A Factory Capable of Processing Customized Production of Quartz Boats

Views: 0     Author: Site Editor     Publish Time: 2026-02-27      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
A Factory Capable of Processing Customized Production of Quartz Boats

As a key carrier in the production process of semiconductor, photovoltaic, and fiber optic prefabricated rods, Quartz boat has extremely high requirements for material purity, temperature resistance, and dimensional accuracy. We are a factory specializing in the deep processing of high-purity quartz products, providing full process services from customized drawings to collaborative research and development. We are committed to solving the core pain points of difficult procurement of standard parts, expensive mold opening of non-standard parts, long delivery time, and easy deformation and pollution in high-temperature environments for global users.

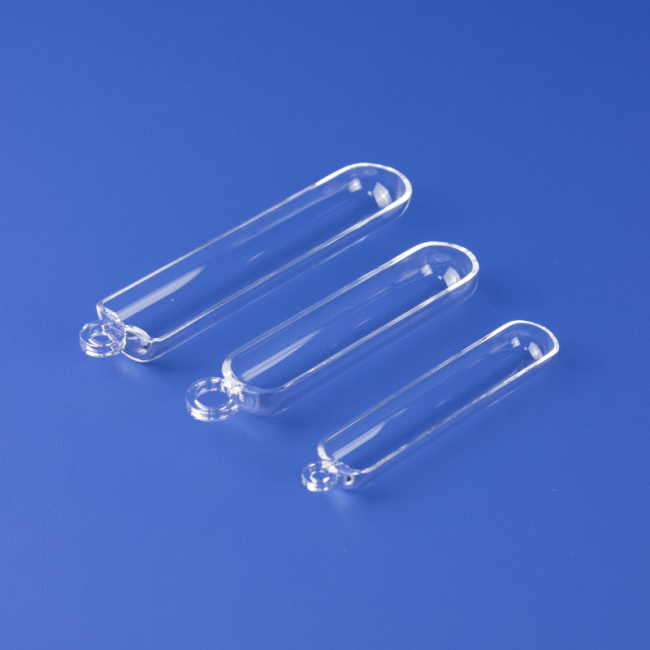

Quartz boat wholesaler



Product FAQ

Q: My production process requires quartz boats to be repeatedly used at 1300 ℃. Ordinary quartz boats are prone to whitening and foaming. Can you solve this problem?

Answer: Of course. We use Herasil series imported from Japan and high-quality domestically produced gas refined synthetic quartz boats with extremely low hydroxyl content, ensuring that the product will not crystallize or lose transparency under high temperature load conditions, and the service life will be extended by more than 30%.

Q: Our laboratory needs a unique quartz boat with a special slot. The quantity is not large, but the accuracy requirement is ± 0.1mm. Some factories are unwilling to accept it because they find it troublesome. Can you do it?

Answer: This is exactly our core business. Our factory has a dedicated "non-standard customization workshop", which provides sampling services for orders of all sizes as long as the drawings are clear. Through the combination of five axis machining centers and manual lighting techniques, we are able to achieve complex geometric structures.

Q: After using the quartz boat for a period of time, there is severe pollution. How can we ensure the purity of the boat after cleaning and reuse?

Answer: We provide subsequent precision cleaning and annealing services. Adopting the semiconductor grade standard SC1/SC2 cleaning process, the metal impurity content on the surface of the boat is ensured to be less than 1ppm, and internal stress is eliminated to prevent natural cracking during subsequent use.

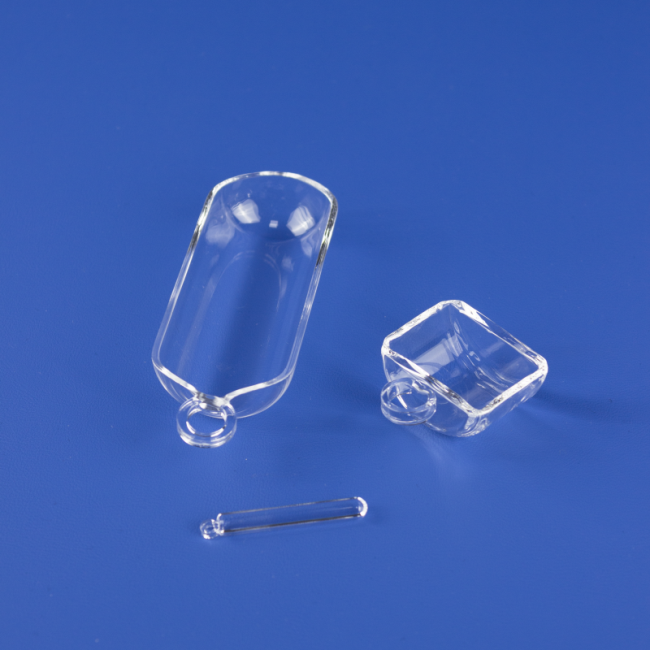

Quartz boat manufacturer



Core advantages and applications of the product

Product application areas

Our quartz boat is mainly used in semiconductor wafer diffusion process, photovoltaic cell tube oxidation/diffusion furnace, fiber preform dehydration sintering, and vacuum high-temperature experiments in scientific research institutions. As a carrier for silicon wafers or reagents, it directly determines the final yield of the product.


Quartz boat price



Product performance advantages

1. Ultimate purity: The raw materials have passed SGS certification, with a temperature resistance of up to 1200-1350 ℃ and good thermal stability.

2. High precision machining: The laser cutting edge is free of burrs, and the groove depth tolerance is controlled within ± 0.05mm to ensure that the silicon wafer is placed flat without tilting.

3. Structural strength optimization: For large horizontal quartz boats, we adopt a reinforced rib structure design and optimize it through finite element analysis to prevent high-temperature softening and sagging.

4. Quick response: Equipped with a cluster of CNC machine tools and hydrogen oxygen flame lamp equipment, samples can be produced within 24 hours after drawing confirmation.

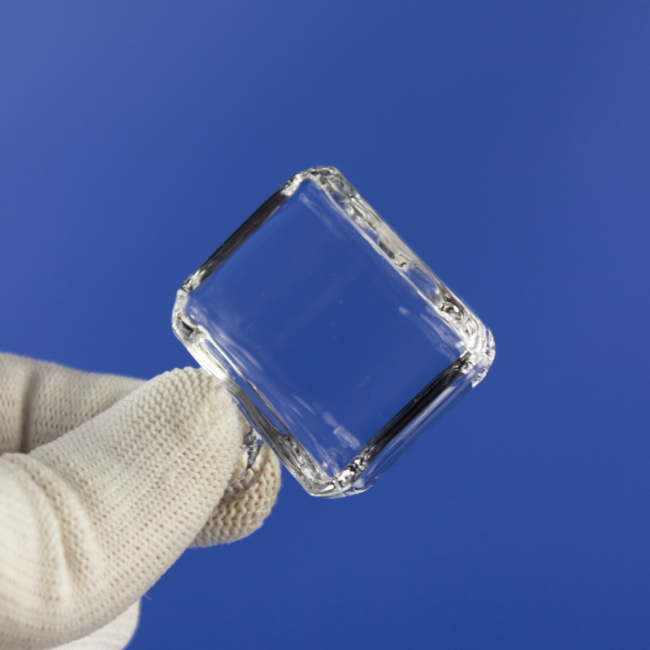

Quartz boat supplier



Customization service for specifications and dimensions

Whether you need an 8-inch semiconductor wafer carrier boat, a 2-meter fiber preform sintering boat, or a small experimental boat with special baffles, we can provide:

-Size range: Length from 10mm to 2500mm.

-boat diameter/thickness: Customize wall thickness according to load-bearing requirements, ranging from 1.5mm to 6mm.

-Interface customization: Quartz flanges, handles, and hollow structures can be customized to fit mainstream furnace tube equipment from different brands both domestically and internationally.

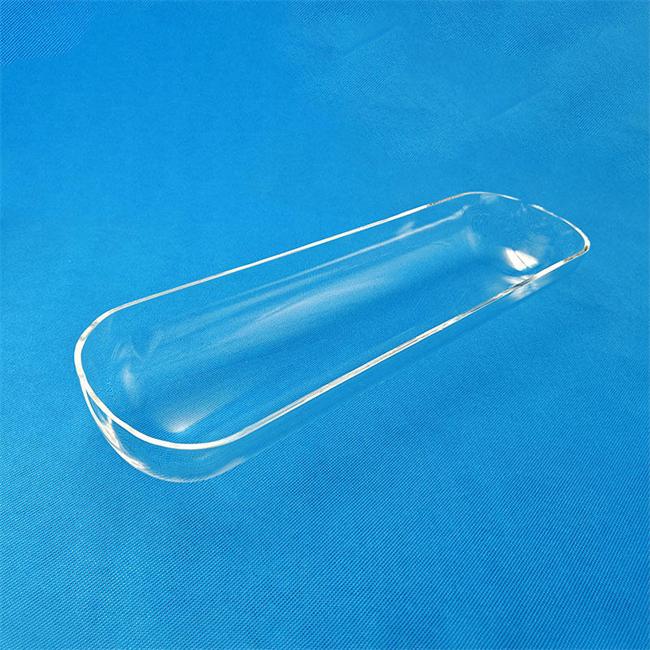

High temperature resistant quartz boat



Customer Application Case (Anonymous)

Background of the case: A well-known semiconductor equipment manufacturer in East China (hereinafter referred to as "Customer B") needs to provide a batch of quartz boats for its new horizontal diffusion furnace. The total length of the boat is 1800mm, and it needs to carry 156 6-inch silicon wafers. It is required that the boat teeth operate for a long time at a high temperature of 1250 ℃ without deformation, and the straightness of the boat body is extremely high (the overall curvature is less than 1mm).

Requirement and Challenge: Customer B had previously attempted to supply from two suppliers, both of which experienced the problem of sinking in the middle of the boat under high temperature, resulting in silicon wafer slippage. They urgently need to find a supplier who can solve the structural strength problem.

Solution: After receiving the drawings, we did not immediately produce them. Instead, our technical team conducted structural mechanics simulation analysis. We found that the spacing between the original design beam support points was too large. To this end, we propose an optimization plan: adding an "I" - shaped support structure at the bottom without changing the external interface, and upgrading the raw material to high-purity synthetic quartz.

Final effect: After delivering the quartz boat manufactured with the new scheme to the customer, it underwent 15 consecutive days of full load high-temperature testing, and the boat body showed no deformation, with straightness still maintained within 0.8mm. The purchasing manager of customer B provided feedback: "Not only has the deformation issue been resolved, but the transparency and batch consistency of your quartz material have also improved significantly compared to before." Currently, this model of quartz boat has become a standard component for customer B, with an annual purchase volume of over 200 sets.


Customized Quartz boat



If you are struggling to find a suitable quartz boat supplier or are not satisfied with the quality of your existing products, please feel free to send us your drawings or requirements. We will provide you with free drawing review and professional material selection advice. Please contact our sales team immediately to obtain your exclusive customized solution.


Custom Quartz Glass Manufacture



Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.



Why choose us?

1.We are more experienced.

We have over 19 years production experience of quartz items.

2.We are more efficient.

We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.

3.Our quality is more guaranteed.

We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.

4.We are able to produce more difficult quartz products.

We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.

5. About 20 years of professional experience

-Focusing on the manufacturing of quartz products for a quarter century

-The average working experience of the technical team exceeds 15 years

6.Global Service Network

-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East

-Multi language technical support (English, German, French, Spanish, Russian, Japanese)

7. Flexible cooperation mode

Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
