In the precision world of semiconductor manufacturing, quartz tubes (quartz furnace tubes) play an indispensable role as "guardians". As the core consumables and reaction chamber for key processes such as high-temperature diffusion, oxidation, and chemical vapor deposition (CVD), it must have extremely high purity, excellent thermal stability, and almost perfect cleanliness. Any small impurities or deformations can have a fatal impact on the yield of wafers. Therefore, choosing a high-quality quartz tube with stable performance and high customization is the cornerstone to ensure the stable operation of semiconductor production lines and improve product yield.

Why choose our customized quartz tube? From your perspective, the core needs we are addressing are:

• Ensuring process purity and product yield: We provide high-purity synthetic quartz materials to minimize the precipitation of metal impurities and eliminate pollution risks from the source.

• Ensure stability in extreme environments: Whether it's momentary thermal shock or prolonged high-temperature operation, our quartz tubes can maintain excellent geometric dimensional stability and low crystallization rate.

• Achieve perfect process adaptation: We provide a full range of deep customization services for sizes and shapes, ensuring that products can be seamlessly integrated into your equipment, solving the problem of difficult matching of "standard parts".

• Improve supply chain efficiency and reliability: We provide professional technical support and stable, fast delivery to global customers, making us your trusted long-term partner.

Core Applications and Product Advantages: Born for Your Value

Our customized quartz tube product line deeply covers multiple core stages of semiconductor manufacturing, aiming to create significant value for users.

High temperature diffusion and oxidation process

Application value: As the core reaction tube of diffusion and oxidation furnaces, it carries the key processing process of wafers at high temperatures.

Product advantages: We use high-purity quartz materials (such as synthetic quartz) to ensure that impurities will not be released to contaminate the wafer at high temperatures, thereby directly ensuring the electrical performance and yield of the chip.

Chemical vapor deposition

Application value: In CVD process, quartz tube serves as a reaction chamber and directly contacts the reaction gas.

Product advantages: The inner wall of our quartz tube has undergone special treatment, resulting in a smooth and clean surface that is not easily adhered to reaction by-products, effectively reducing particle pollution and extending the maintenance cycle of the equipment.

Epitaxial growth

Application value: Provide a high cleanliness growth environment for epitaxial furnaces.

Product advantages: Strict purity control and extremely low bubble/stripe levels ensure the crystal quality of the epitaxial layer, which is crucial for manufacturing high-performance power and optoelectronic devices.

Customization service for specifications and dimensions

We are well aware that the diversity of semiconductor equipment and the specificity of processes often cannot be met by standard products. Therefore, we offer highly flexible customization services to ensure that every product can perfectly meet your needs:

Wide size range: Outer diameter (OD) ranges from a few millimeters to over 1000 millimeters, length can reach several meters, and wall thickness can be precisely controlled according to process requirements.

• Diverse shapes: In addition to standard straight tubes, we can also customize flared tubes, tapered tubes, U-shaped tubes, porous tubes, and various irregular structures.

Precision machining: Provide high-precision machining services such as flanges, observation windows, gas nozzle interfaces, etc., to ensure the reliability of installation and sealing.

Solve practical problems for users in the application

Our customized quartz tube products are designed to address the many challenges that semiconductor users encounter in actual production:

• Solve the problem of high temperature deformation: Under long-term high temperature (>1000 ° C) cycles, ordinary quartz tubes are prone to softening or deformation. We use high-quality raw materials and optimize production processes to ensure that quartz tubes maintain excellent geometric stability even at extreme temperatures, avoiding process abnormalities or equipment failures caused by deformation.

• Solve the problem of crystallization (loss of transparency): Crystallization can reduce the transparency and mechanical strength of quartz tubes, and may cause particle contamination. We have significantly reduced the crystallization rate, extended the service life of quartz tubes, and reduced customer maintenance costs by strictly controlling the hydroxyl (OH ⁻) content and optimizing the annealing process.

• Addressing cleanliness and contamination issues: We implement strict cleaning and packaging processes (such as Class 100 cleanroom packaging) to ensure that products meet the highest cleanliness standards upon delivery, effectively solving the problem of wafer contamination caused by insufficient cleanliness of quartz tubes themselves.

Why choose us?

By choosing us, you have not only chosen a quartz product supplier, but also a professional technical partner:

Global perspective and professional services: We face global customers, deeply understand the special needs of different markets and processes, and provide professional technical consultation and support.

Technological leadership and quality assurance: We adopt advanced production equipment and testing methods, and every step from raw material warehousing to finished product outbound undergoes strict quality control.

Flexible customization and quick response: We have strong R&D and production capabilities, which can quickly respond to customers' customization needs and provide stable and efficient delivery services.

Customer Application Case (Anonymous)

Customer background: A well-known semiconductor equipment manufacturer located in Europe is developing a new generation of large-size wafer processing equipment. They need a special structure of quartz reaction tube for their core high-temperature process module.

Challenges faced:

1. Special size and structure: Standard quartz tubes cannot meet the complex gas flow and wafer carrying requirements inside their equipment, requiring a shaped tube with multiple precision interfaces and a special expansion structure.

2. High purity requirements: The new process is extremely sensitive to metal impurities and requires the purity of quartz materials to reach the ppb level to ensure extremely high chip yield.

3. Urgent delivery time: The customer's equipment development progress is tight, and the supplier needs to provide samples and verify them in a very short period of time.

Our solution:

1. Deep technical collaboration: Our technical team has had in-depth communication with the customer and fully understood their process requirements and equipment structure. We utilized our CAD design capabilities to tailor detailed quartz tube design solutions for our clients.

2. Selection of high-purity materials: We have chosen top-grade high-purity synthetic quartz materials to ensure compliance with customers' stringent requirements for metal impurities.

3. Precision machining and fast delivery: Our production team has overcome the difficulty of irregular machining and achieved perfect design solutions through high-precision cold processing and hot forming technologies. At the same time, we have activated a rapid response channel, worked overtime, and completed the production of samples and strict cleanliness testing within the extremely short time required by the customer, and delivered them quickly through international logistics.

Final result

The customer has highly praised the quality, purity, and delivery speed of our samples. After internal testing, our customized quartz tube fully meets the process requirements of its new equipment, effectively ensuring the smooth progress of its research and development project. At present, we have become a long-term quartz tube supplier for this customer's equipment, providing stable support for their global equipment shipments.

Contact us immediately for your exclusive quartz tube customization solution! Whether it's standard component procurement or deep customization of complex shaped components, we will provide you with professional and reliable solutions to help your semiconductor business succeed.

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

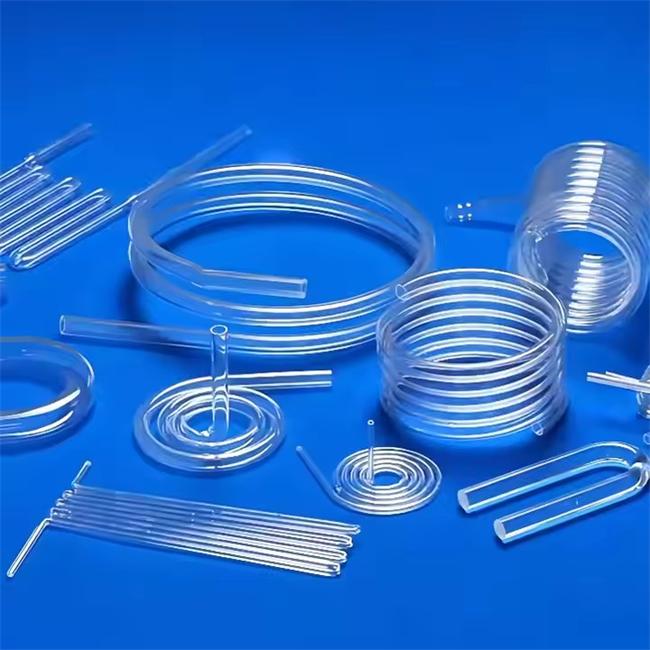

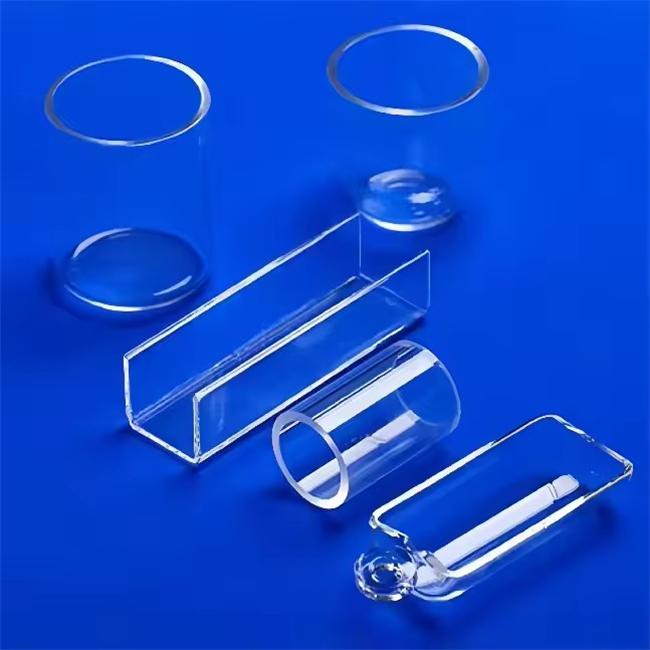

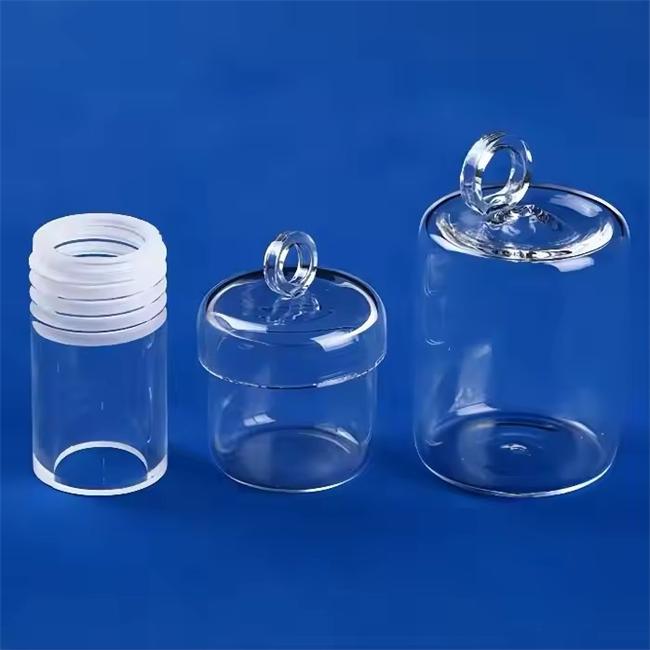

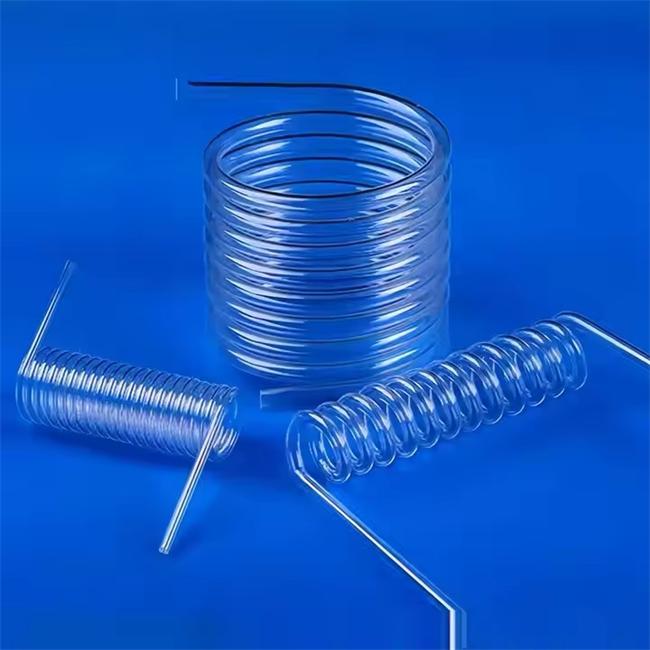

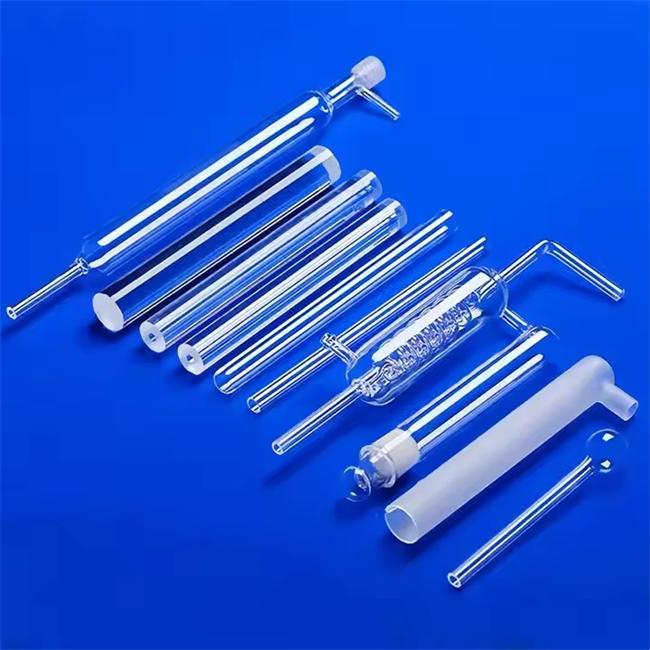

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
