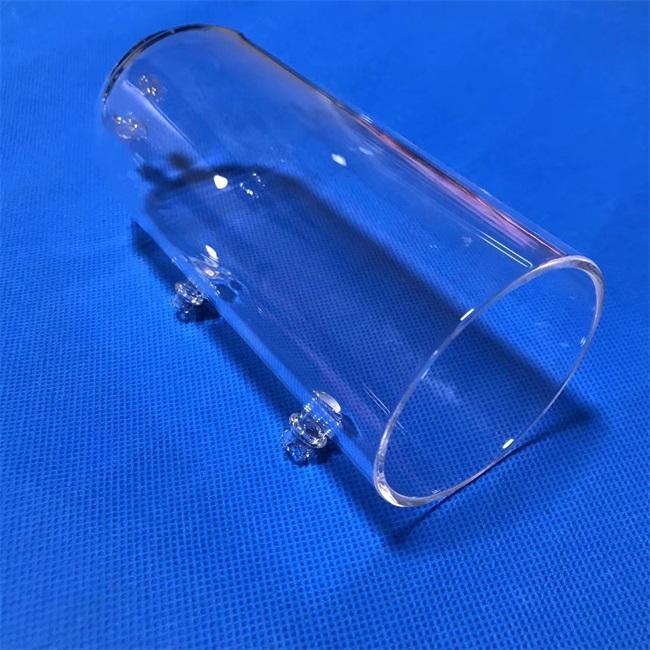

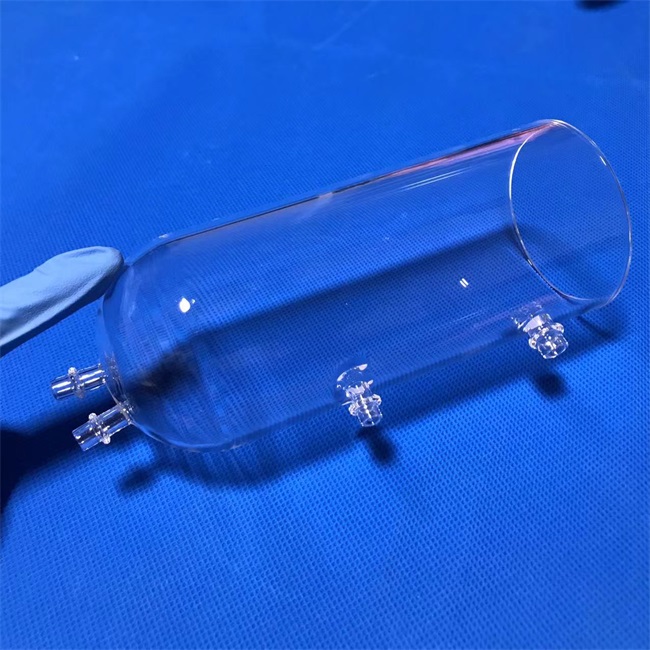

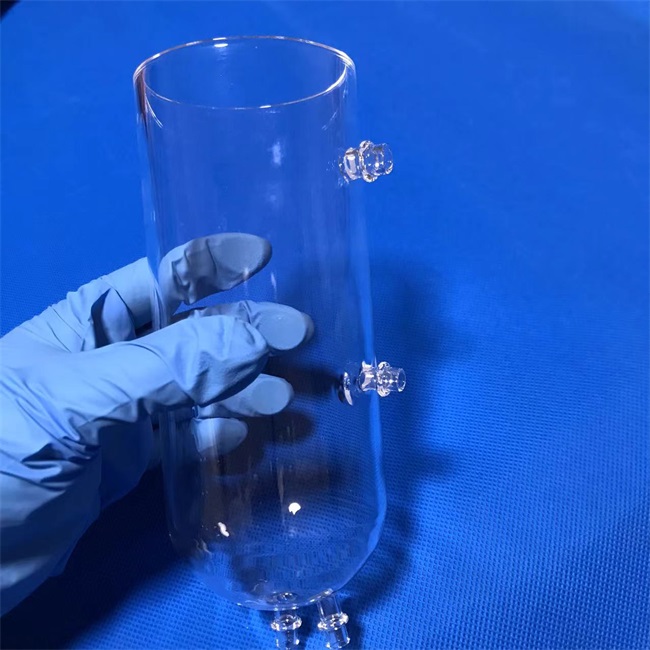

Customized laboratory quartz condenser is an efficient heat exchange equipment specially designed for high-end chemical experiments, fine chemicals, and pharmaceutical fields. We use 99.99% high-purity fused silica as raw material, combined with superb fire processing and cold processing technology, to provide you with a full range of customized services from standard straight, spherical, serpentine to complex irregular structures, to ensure that each condenser can accurately adapt to your experimental devices and technological needs.

Are you looking for a condensing device that can simultaneously meet extreme temperature resistance, strong corrosion resistance, and ultra-high transparency when facing complex chemical reactions and harsh experimental environments? Our customized quartz condenser is designed to address these core challenges. Whether it is distillation purification of high boiling point solvents or reflux reactions in strong acid and alkali environments, our products can provide you with stable, safe, and visualized experimental process guarantees with their excellent physical and chemical properties, completely solving the problems of easy explosion and sample contamination of ordinary glass instruments.

Professional Quality and Application Value

As a professional manufacturer of quartz products, we are well aware of the importance of high-quality condensers for experimental results. Our product has significant advantages in the following aspects:

Extreme temperature resistance and thermal shock resistance: Made of high-quality fused silica, the softening point can reach 1730 ℃, and the long-term working temperature can reach 1200 ℃. Its extremely low coefficient of thermal expansion enables it to withstand drastic temperature changes, maintaining structural stability even in high-temperature distillation or rapid cooling environments, and eliminating the risk of explosion.

Excellent chemical stability and high purity: The product has a silicon dioxide (SiO2) content of ≥ 99.99%, with extremely strong chemical inertness. Except for hydrofluoric acid, it can almost withstand the corrosion of all strong acids, strong bases, and organic solvents. This ensures that impurities will not precipitate during long-term experiments, making it perfectly suitable for fields such as semiconductors and pharmaceutical intermediates that require extremely high purity.

Excellent optical performance and structural design: Quartz material has excellent transparency, allowing you to clearly observe the flow, boiling, and condensation of internal liquids, facilitating real-time control of experimental progress. We offer a variety of customized specifications and sizes, including inner pipe diameter, outer pipe length, and grinding interface standards (such as 24/40, etc.), all of which can be processed according to needs. We can also customize the position of inlet and outlet interfaces and special elbow structures.

Solving application challenges and customer cases

In practical applications, many research teams and production enterprises often face problems such as difficulty in matching non-standard experimental equipment and low efficiency of conventional condensers. We have successfully helped numerous clients overcome these technical challenges through our flexible customization capabilities.

A researcher from an overseas university once required a highly complex spiral condensation device for a special natural product extraction experiment, in order to maximize the cooling area and adapt to a narrow reaction space. Due to its unique structure and small order volume, multiple suppliers are unable to undertake it. In the end, we successfully delivered this high-precision quartz spiral condenser through the manual fire processing skills of senior technicians and repeated debugging of molds and blowing angles. After being put into use, the condensation efficiency of the device has increased by nearly 40%, which not only significantly shortens the experimental cycle, but also effectively avoids the volatilization loss of precious solvents.

In addition, in response to the incomplete condensation problem encountered by certain chemical enterprises in the recovery of high boiling point solvents, we have customized a batch of elongated double-layer quartz condenser tubes and designed special side arm interfaces according to their pipeline direction. The improved equipment operates stably under high temperature conditions, significantly improves solvent recovery rate, and reduces a large amount of raw material costs for the enterprise.

If you are looking for high-performance quartz condensation solutions for your laboratory, or have special customized requirements for shaped quartz devices, please feel free to contact us at any time. Please tell us your specific drawings or parameter requirements, and we will provide you with a free evaluation and professional customized quotation!

Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
