Quartz products play an irreplaceable role in high-temperature industry and precision technology. As a source manufacturer specializing in customized production of quartz tubes, Luverre Quartz is deeply committed to the processing and manufacturing of high-purity quartz materials, and is committed to providing non-standard size and irregular structure quartz glass solutions for the semiconductor, photovoltaic, chemical, and scientific research fields. From miniature reaction vessels in the laboratory to giant furnace tubes in industrial furnaces, we use precise lamp welding technology and strict quality control to ensure that every product can accurately match your special working conditions.

Frequently Asked Questions for Users

Q: Procurement standard quartz tubes often have insufficient length or inconsistent caliber, resulting in a high scrap rate for cutting and modification. Can you solve this problem?

Answer: Absolutely possible. We provide customized services according to the drawings, whether it is specific length, outer diameter, wall thickness, or special structures such as openings, grinding, and flanging, we can all be formed in one go to reduce your secondary processing losses.

Q: Our process furnace needs to withstand high temperatures of over 1300 degrees and be corrosion-resistant. Ordinary quartz tubes cannot withstand it. Can your product do it?

Answer: Our products use high-purity imported or domestically produced high-quality raw materials, and their temperature resistance is greatly improved after gas refining. They can be used for a long time at 1100 degrees Celsius and can withstand temperatures up to 1300 degrees Celsius in a short time. They also have strong acid and corrosion resistance (except for hydrofluoric acid) and are designed for harsh environments.

Q: We are just making a small reactor in the laboratory, with only one or two units and a complex spiral structure. Do you accept this order?

Answer: We accept customization of small batches, multiple varieties, and complex shaped parts. Whether it's a few samples or bulk orders, as long as you provide drawings or physical objects, our technical team can work with you to complete the difficult processing of irregular tubes.

Core applications of the product

Our customized quartz tubes are widely used in high-precision industries. In the photovoltaic industry, it serves as the core tube material for diffusion furnaces and oxidation furnaces, ensuring high cleanliness in silicon wafer processing; In the semiconductor industry, it is used for cleaning tanks and carriers to resist strong acid corrosion; In the field of chemical engineering, as a tubeline sight glass or reaction tower lining, it is used to deal with corrosive media under high temperature and high pressure; In analytical instruments, they are processed into various complex combustion tubes or measuring cells.

Core advantages of the product

High purity temperature resistance: With a silicon dioxide content of over 99.99%, it has a high softening point temperature, excellent thermal stability, and is not easily deformed.

Accurate size: equipped with large glass lathes and special-shaped processing equipment, with tolerances controlled within a very small range, high concentricity, and uniform wall thickness.

Strong transparency: The spectral transmittance from ultraviolet to infrared is very high, suitable for optical instruments and observation glasses applications.

Personalized customization: not limited by regular inventory, produced on demand, to maximize the non standardized design of equipment.

Why choose us as your customization partner

We are not only a quartz tube manufacturer, but also your technical partner for process implementation. We understand that a dimensional deviation on the drawing may result in the inability to install the entire equipment; We understand that tiny bubbles in materials can become the starting point of rupture at high temperatures. Therefore, from the beginning of material selection, we deeply communicate with customers about the usage environment and recommend the most suitable tube model. Our craftsmen have over ten years of experience in manual and mechanical processing, capable of handling complex bends, reducers, and spherical interfaces, turning your design ideas into reality.

Customer Application Cases

Customer background:

A well-known university's new materials laboratory is developing a new type of catalyst. The experiment requires gas reaction to be carried out in a special reactor with a three-way branch tube and an internal quartz filter plate in a vacuum high-temperature environment. The reactor has a complex structure and requires extremely thin and transparent walls for observing internal color changes, which cannot be met by market standards.

Faced with demand:

1. Complex structure: It requires an integrated 19 # standard grinding interface with a diagonal upward branch tube.

2. Internal function: A No. 2 sand core filter plate needs to be sintered in the middle of the main tube to carry catalyst powder.

3. High precision requirements: The reactor is required to be stress free as a whole to prevent explosion during high-temperature vacuum pumping.

Our solution:

After receiving the drawings, we quickly assessed the processing difficulties. Technicians use high-quality quartz tubes with low hydroxyl content and employ segmented lamp welding technology. Firstly, sinter the filter plate at the designated location by the supervisor to ensure that it is flat and seamlessly adheres to the tube wall; Subsequently, the branch tube is blown out using a mold at high temperature and the ground joint is precisely welded. The entire process undergoes slow annealing to completely eliminate stress.

Final effect:

The delivered reactor fully meets the experimental requirements, with high transparency and good vacuum maintenance. During repeated temperature rise and fall tests, the structure remained stable without any signs of cracking. The laboratory teacher provided feedback that the customized reactor greatly shortened their experimental preparation cycle and significantly improved data reproducibility. It has now become a standard experimental consumable for the research group.

Whether your device requires a simple extension tube or a complex component with multiple functional interfaces, please feel free to contact us at any time and send us your requirements or drawings for an exclusive quartz tube customization solution and quotation.

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

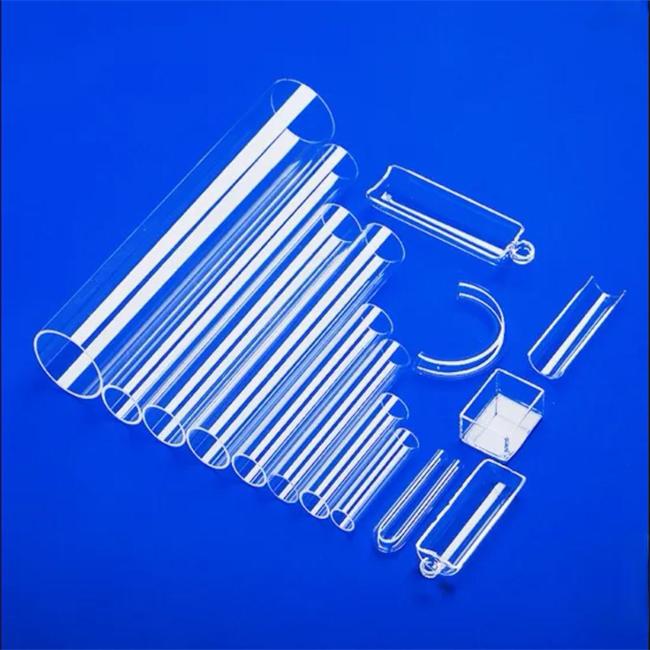

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
