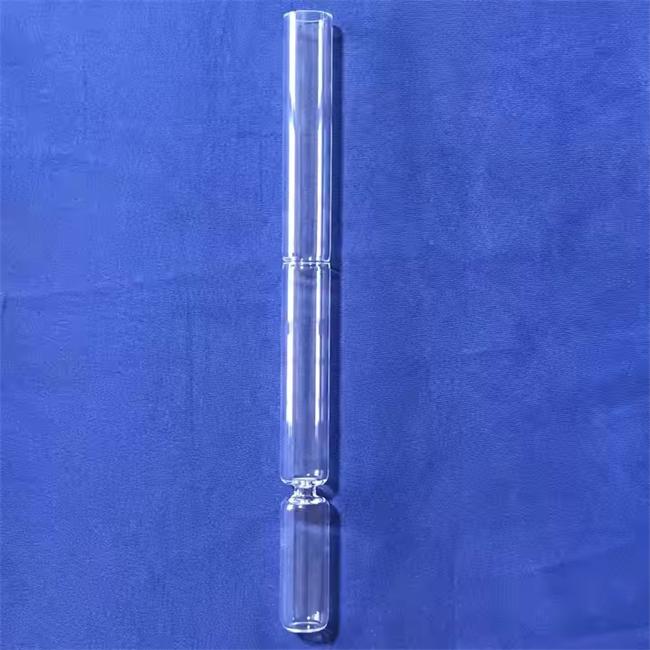

Quartz tubes are commonly used as reaction vessels, diffusion furnace tubes, protective sleeves, or fluid transport channels in laboratories, semiconductor production lines, chemical processes, and photovoltaic manufacturing. However, the interface size, flange form, temperature sensor hole position, and air inlet layout vary among different equipment manufacturers - standard specification quartz tubes often cannot be installed or sealed tightly. The quartz tube with strong compatibility is not a single product, but a customized solution that can flexibly match irregular interfaces, non-standard diameters, porous positions, and composite steps. It solves the problem of "buying but not using well", allowing quartz tubes to truly adapt to your equipment, rather than letting the equipment accommodate the tube.

Frequently Asked Questions (FAQ)

Q1: What is a quartz tube with strong compatibility?

A: It refers to the size, shape, opening position, and end processing method of the pipe that can accurately match the requirements of your existing equipment or process flow. Including: non-standard outer/inner diameter, one end tapered or expanded, side wall openings (circular/waist shaped/multi row holes), flange integrated sintering, grinding taper sealing, etc.

Q2: My equipment's furnace tube interface is KF16 flange. Can it be directly matched with quartz tube?

A: Okay. We offer direct sintering or bonding solutions for quartz tubes with standard flanges such as KF, CF, VG, NPT, etc. O-ring grooves can also be machined at the end of the quartz tube and used in conjunction with stainless steel sleeves. No need for adapters, reducing leakage points.

Q3: Quartz tubes need to withstand a pressure of 20 bar. How is the wall thickness determined?

A: Calculate according to the formula for thin-walled pressure vessels, while considering the brittleness characteristics of quartz. Conventional experience: With an outer diameter of 50mm and a wall thickness of 3mm, it can safely withstand a pressure of 15bar; With an outer diameter of 30mm and a wall thickness of 4mm, it can withstand a pressure of 25bar. We provide finite element verification reports and can optimize wall thickness and tolerances in reverse according to your working pressure.

Q4: Can multiple precision holes be opened on the side of the quartz tube? How much can the hole tolerance be achieved?

A: Okay. Through CNC ultrasonic drilling or laser assisted processing, the minimum aperture is 0.5mm, the hole spacing tolerance is ± 0.05mm, and the distance tolerance from the hole center to the end face is ± 0.1mm. Single row, double row staggered or spiral distributed holes can be processed for gas distribution or thermocouple insertion.

What core needs can the product address for users?

-Resolve the issue of 'unable to fit in' - any non-standard outer diameter, ellipticity, or curvature can be customized according to the drawings and accurately matched with equipment furnaces or fixtures.

-Solve the problem of "poor sealing" - strictly control the perpendicularity, chamfer, taper of the grinding mouth, and flatness of the flange within the sealing requirements, and match them with O-rings, graphite gaskets, or metal gaskets.

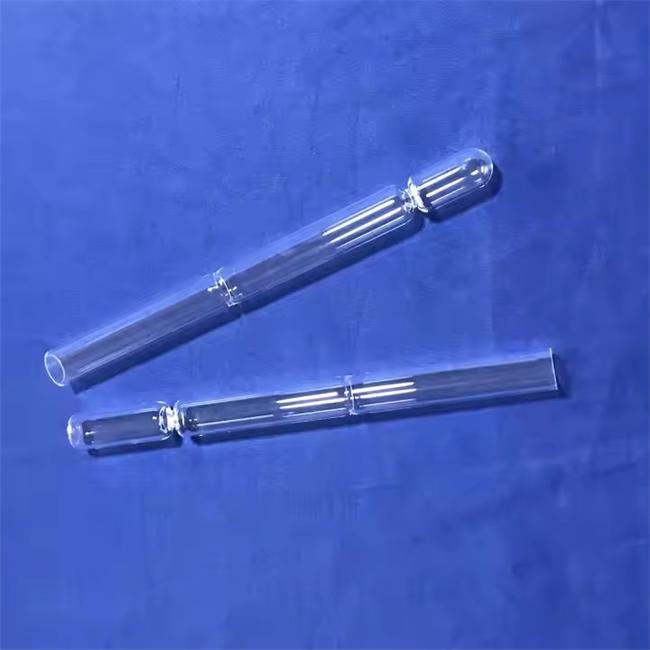

-Solve the problem of "functional deficiencies" - integrated processing of functional structures such as side holes, inner protrusions, variable diameter sections, and spiral grooves without the need for external modifications.

-Resolve the issue of "changing the equipment upon changing the tube" - we have designed the quartz tube replacement according to your existing interface, without the need to modify any flanges, joints, or heating area layout.

Core application scenarios and product value

Semiconductor diffusion/oxidation furnace tube

Typical problem: Some equipment's original quartz tubes are expensive and have long lead times (8-12 weeks); The domestic standard pipe size does not match (furnace flange, inlet hole position, deviation of thermocouple slot).

Quartz tube compatibility solution:

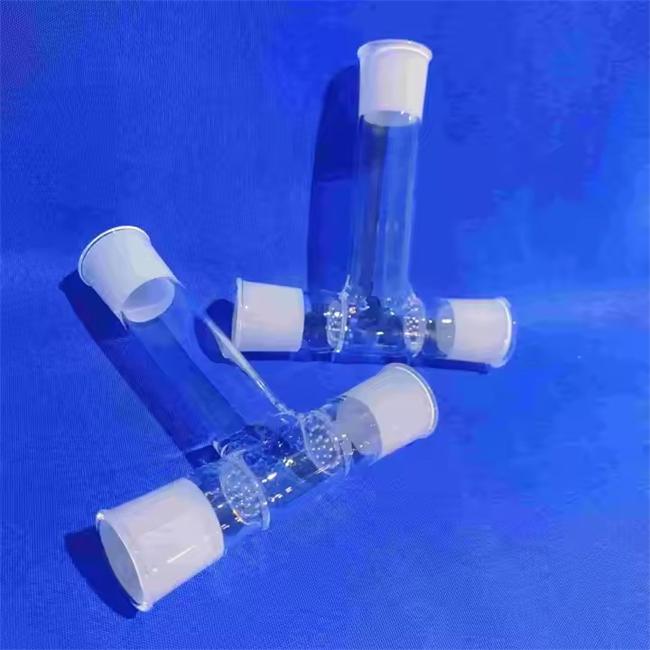

-Reverse survey according to the original part drawing number and copy all features: sealing groove on the furnace mouth surface, porous distribution plate in the tail gas chamber, and temperature measurement groove in the middle

-Material options: transparent quartz (visual inspection), milky white quartz (heat reflection, energy-saving), carbon coated quartz (reducing particle adsorption)

Value: The delivery time has been shortened to 3 weeks, the cost has been reduced by 40% -60%, and the performance fully meets the diffusion process (square resistance uniformity<3%).

Chemical Shell and Tube Heat Exchanger/Reactor

Typical problem: Quartz tube bundles are needed to replace metal tubes for highly corrosive media, but the gap between the outer diameter of the standard quartz tube and the tube plate hole is too large or too small, resulting in leakage or inability to pass through the tube.

Quartz tube compatibility solution:

-The outer diameter tolerance is controlled within ± 0.05mm (± 0.3mm for ordinary quartz tubes), and a transition fit is achieved with the tube plate hole

-Both ends can be designed with horn mouths or chamfers to guide the passage of pipes

-Support irregular bending of U-shaped tubes, serpentine tubes, spiral tubes, etc. (bending radius ≥ 5 times outer diameter)

Value: The sealing glue or expansion joint process of the tube plate is successful in one go, with no trial leaks or rework. After 3 years of use, a customer disassembled and inspected the tube bundle, and found no cracks or scaling.

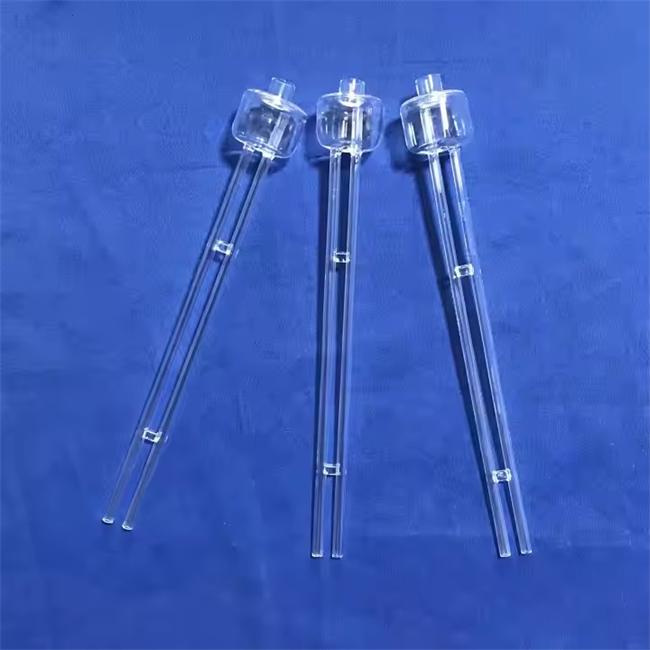

Analytical instruments and laboratory equipment

Typical problem: Spectrometers, elemental analyzers, and reaction vessels require quartz tubes with specific inner diameters, wall thicknesses, and integrated transparent windows. Market standards cannot meet the requirements for optical path length or sample cell volume.

Quartz tube compatibility solution:

-Minimum inner diameter 1mm (capillary tube), maximum 200mm

-The thinnest wall thickness is 0.5mm (used for X-ray fluorescence analysis windows)

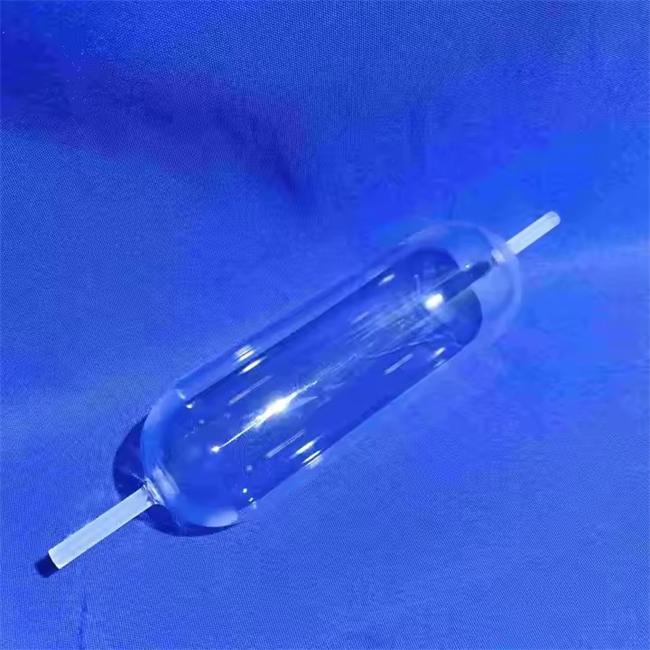

-Optical window plates (flat or lens) can be fused at both ends to form a closed colorimetric or flow-through pool

Value: The optical path accuracy reaches ± 0.02mm, and the dead volume can be controlled to micro upgrades, meeting the traceability requirements of GLP laboratories.

Vacuum and Coating Equipment

Typical problem: Electrodes, sensors, or observation light paths need to be introduced into the vacuum chamber, and standard fittings cannot simultaneously meet the requirements of vacuum sealing and multi-channel extraction.

Quartz tube compatibility solution:

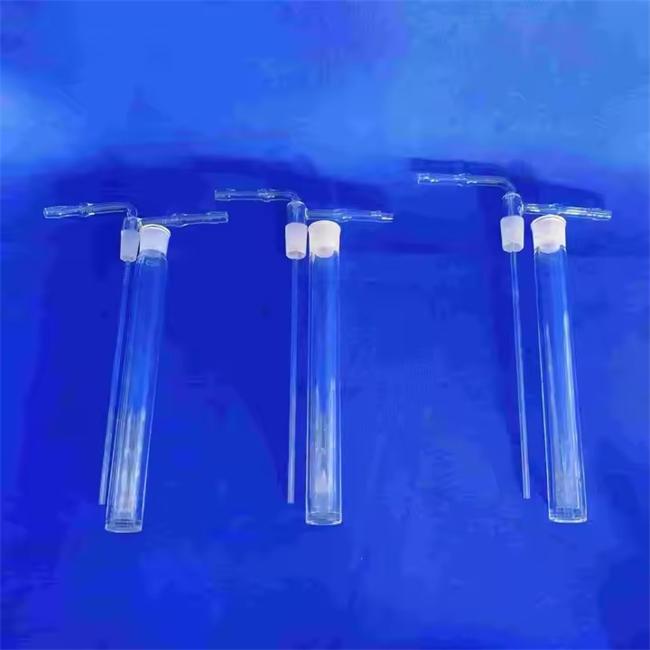

-Multiple side pipes (branch pipes) with different diameters are sintered on the pipe wall, and standard vacuum flanges are machined at the ends of each branch pipe

-Metal electrodes can be placed inside the tube and vacuum sealed (quartz metal transition sealing)

-Provide full annealing treatment with residual stress less than 5nm/cm (polarization detection)

Value: Achieve "one tube for multiple uses", reduce the number of vacuum interfaces, and achieve a leakage rate of less than 1 × 10 ⁻⊃1;⁰ Pa · m ⊃3;/s (helium mass spectrometry leak detection).

List of customizable specifications (all parameters can be freely combined)

Outer diameter: 1mm -300mm

Inner diameter: 0.5mm -280mm

Length: 10mm -2000mm

Wall thickness: 0.5mm-15mm

Straightness: 0.1 ‰ -0.5 ‰ of the total length

End face form: flat mouth, ball mouth, tapered grinding mouth, flange, flanging

Side holes: circular hole, waist shaped hole, multi row hole, spiral hole

Bending: U-shaped, serpentine, spiral, L-shaped

Surface treatment: flame polishing, acid etching, sandblasting, coating

>No minimum order quantity limit: 1 unit minimum order, standard size inventory available for 24 hours shipping; 5-10 working days after confirmation of non-standard customized drawings.

Customer Application Case (Anonymous)

Case 1: PECVD Furnace Tube Replacement by a Photovoltaic Cell Manufacturer in the United States

-Problem: The previous quartz furnace tube (with an outer diameter of 280mm, length of 1600mm, and 5 lateral air inlets) has a delivery time of 16 weeks and a unit price of $3200. Equipment shutdown and waiting for management result in a production capacity loss of approximately $9000 per day.

-Solution: We surveyed the old parts and optimized the inlet angle (from radial to tangential), using milky white quartz material (to reduce thermal radiation loss), with an outer diameter tolerance control of ± 0.08mm, and reduced the gap with the heating furnace from 0.5mm to 0.2mm.

-Result: Delivery in 3 weeks, unit price $1850. The new tube improves the uniformity of film thickness from ± 5% to ± 2.8%, and reduces single furnace energy consumption by 11%. The customer has handed over all 8 devices to us for replication and replacement.

-Verification data: After 300 thermal cycles (room temperature → 450 ° C) without cracks, the helium leak detection rate is less than 5 × 10 ⁻⊃1;⊃1; Pa · m ⊃3;/s.

Case 2: A chemical equipment company in Germany - Shell and tube hydrochloric acid evaporator

-Problem: The corrosion rate of titanium tubes in 120 ° C hydrochloric acid reaches 0.5mm/year, and the products are contaminated with iron ions. Attempted to purchase quartz tubes externally, but the outer diameter tolerance was too large (± 0.5mm) to seal with the tube plate.

-Solution: Customize a quartz tube with an outer diameter of 25mm, a wall thickness of 2.5mm, and a length of 1200mm. The outer diameter tolerance is ± 0.03mm, and both ends are chamfered at 30 °. The tube plate is sealed with PTFE liner and O-ring. A total of 127 units were supplied.

-Result: After 18 months of continuous operation, the quartz tube was randomly inspected and found to have no corrosion, no rupture, and no leakage at the sealing point. The overall equipment efficiency (OEE) has increased from 72% to 94%. The client will add 260 units to the second phase project in the future.

Case 3: A domestic semiconductor testing equipment supplier - wafer carrier tube

-Problem: We need a quartz tube with an inner diameter of 200mm, 3 spiral guide grooves on the inner wall (for wafer edge support), and 6 Φ 8mm observation holes on the side wall. There is no domestic supplier that can meet both the precision of spiral grooves and hole openings.

-Solution: CNC internal grinder is used to machine spiral grooves (lead 300mm, groove depth 1.5mm, width 3mm), with a groove bottom roughness Ra of 0.8 μ m. The observation hole is drilled with ultrasonic waves and then flame polished to remove stress.

-Result: The wafer did not tilt or scratch during the lifting process inside the tube. Six units will pass the equipment acceptance in one go after delivery. This design has become a standard component for the customer's new model.

Case 4: Supercritical Fluid Device at a Japanese University - High Pressure Mirror Tube

-Problem: It is necessary to directly observe the fluid phase behavior in supercritical CO ₂ at 25MPa and 400 ° C, requiring the quartz tube to be able to withstand pressure while retaining an optical window on the side.

-Solution: Design a variable diameter quartz tube - with a main body outer diameter of 40mm and a wall thickness of 8mm (pressure resistant section). The middle section is locally thinned to a wall thickness of 3mm and polished on both sides to form an optical observation window, with a gradual transition on both sides of the observation window.

-Result: Through the 35MPa water pressure blasting test, the transmittance of the optical section is greater than 90% (400-800nm).

Are you repeatedly debugging the equipment due to mismatched quartz tube size, sealing failure, or insufficient functionality? We provide a full process customization service of "providing old parts or drawings → 4 hours for solution → 5-10 working days for delivery → batch production after satisfactory first trial". Whether you need non-standard diameter, porous distribution, variable diameter structure, irregular bending, or flange integrated sintering, simply inform us of the operating conditions (temperature, pressure, medium) and interface requirements, and our quartz engineers will design the most suitable compatibility solution for you. Supports a minimum order of 1 unit and global shipping.
