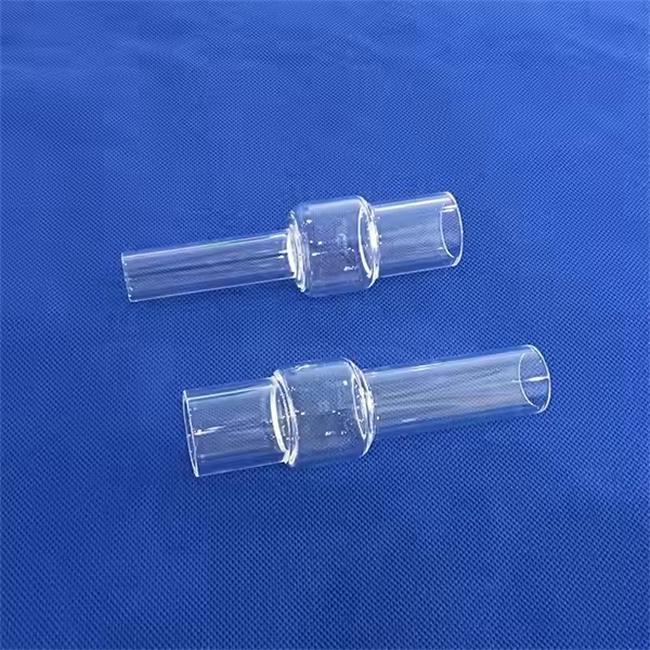

What is a non-standard quartz step expansion tube?

Non standard quartz step expansion tube is a customized quartz glass component designed specifically for special industrial and scientific research scenarios. It breaks the traditional single form of standard quartz tubes and achieves multi-stage diameter changes (steps) and port expansion (expansion) on the tube body through high-precision hot and cold processing techniques. This structure not only meets the sealing, connection, and fluid control requirements of specific equipment, but also becomes an indispensable key consumable in semiconductors, photovoltaics, fine chemicals, and high-end laboratories due to its excellent high temperature resistance, corrosion resistance, and high transparency characteristics.

Addressing core requirements and facing application challenges head-on

For users who pursue the ultimate craftsmanship, purchasing non-standard quartz step expansion tubes is mainly to solve the following core problems:

Difficulties in adapting to irregular equipment: Many experimental furnace tubes or reactor interfaces are not standardized, and ordinary straight pipes cannot be directly assembled. Customized steps and expansion structures are required to achieve seamless docking.

Stability in harsh environments: Under conditions of high temperature (>1100 ℃), strong acid-base corrosion, or high purity requirements, ordinary materials are prone to crystallization, cracking, or sample contamination, while high-quality quartz products can ensure long-term stable operation.

Complex fluid dynamics design: Step and expansion structures are commonly used to control gas flow rate, prevent material backflow, or serve as specific support structures to meet complex process design requirements.

Advantages and Application Value

The non-standard quartz step expansion tube we provide, relying on advanced continuous melting technology and precision deep processing technology, brings significant application value to customers:

Ultimate dimensional accuracy and tolerance control: By combining CNC grinding machines with manual precision by technicians, we strictly control dimensional tolerances within ± 0.05mm (far superior to the industry standard of ± 0.2mm). This means that the product can be assembled directly after unboxing, greatly improving the success rate of installation and shortening the equipment debugging cycle.

Excellent material performance: High purity quartz raw material (purity>99.998%) is selected, with low hydroxyl content and excellent temperature resistance (able to withstand high temperatures above 1150 ℃ for a long time) and thermal shock resistance. Whether in an oxidizing or reducing atmosphere, it can maintain structural stability and effectively avoid the risk of explosion caused by crystallization.

Full specification flexible customization service: Whether it is large caliber (up to 800mm), ultra-thin wall thickness, or complex multi-level steps, flanging, sanding, thread processing, we support customized according to drawings and samples. From simple single-stage expansion to complex multi-stage variable diameter structures, integrated molding can be achieved to reduce stress concentration hazards caused by welding.

Why choose us?

Facing the uneven supply of quartz products in the market, choosing a professional source manufacturer is the key to ensuring project progress.

Quick response sampling mechanism: In response to scientific research and small-scale trial production needs, we have established a fast sampling channel, which significantly shortens the delivery cycle of customized orders compared to the industry average, helping customers seize the opportunity in research and development.

Highly competitive cost advantage: As the source factory, we eliminate the price difference between intermediaries, provide reasonable pricing solutions while ensuring high quality, and have no additional markup for small batch customized orders, effectively reducing customers' trial and error costs.

Customer application case sharing

Case 1: A certain photovoltaic cell manufacturer

In the diffusion process of battery cells, the company has experienced frequent explosions and crystallization of quartz furnace tubes and boats, resulting in frequent equipment shutdowns and maintenance, which seriously affects production capacity and yield. After introducing our customized high-purity quartz step expansion tube and supporting components, thanks to the excellent material purity and precise step fit, the internal airflow distribution of the equipment is more uniform, and the thermal field stability is significantly improved. Actual operational data shows that the service life of quartz consumables has been extended by more than 40%, and downtime caused by consumables replacement has been reduced by nearly half, greatly reducing production costs.

Case 2: A large chemical enterprise

The customer is facing a safety hazard of pipeline corrosion and leakage when producing highly toxic chemical raw materials. The existing ordinary pipelines cannot meet the requirements of long-distance (over 10 meters) and strong corrosion resistance. We have tailored an ultra thick walled quartz flange expansion tube for it, utilizing the excellent acid and alkali resistance of quartz glass to solve the problem of corrosion. After six months of continuous operation testing, the pipeline showed no signs of leakage or corrosion, successfully ensuring the safe and stable operation of the production line. Currently, both parties have established a long-term and stable cooperative relationship.

If you are looking for a non-standard quartz step expansion tube that can perfectly solve the challenges of complex assembly and extreme working conditions, please feel free to contact us at any time. Whether it's technical consultation, drawing confirmation, or small batch sampling, our professional team will provide you with one-on-one exclusive solutions to help you efficiently promote project implementation!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
