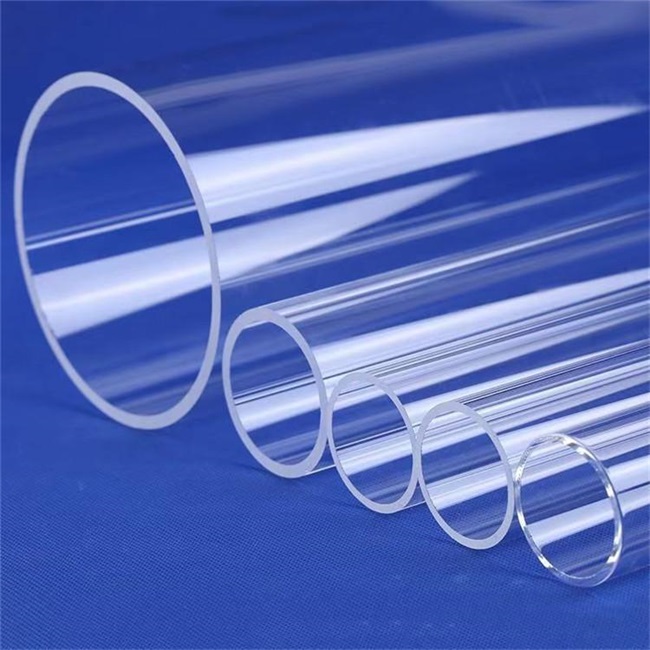

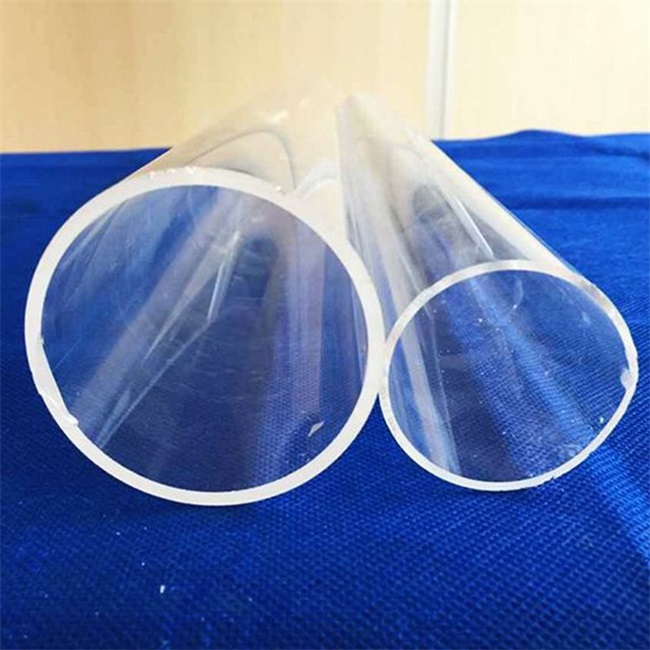

OD > 200mm large diameter quartz tube
OD > 200mm large-diameter quartz tube is a transparent quartz tube mainly composed of high-purity silicon dioxide (SiO _ 2), with an outer diameter of more than 200mm.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
OD > 200mm large diameter quartz tube
OD > 200mm large-diameter quartz tube is a transparent quartz tube mainly composed of high-purity silicon dioxide (SiO _ 2), with an outer diameter of more than 200mm.
Notable features:
High chemical purity: The content of silica can reach more than 99.95%, ensuring stable performance under high temperatures and special chemical environments.
High heat resistance: Can be used for a long time at temperatures of 1100 ° C or even higher, suitable for high-temperature experiments and industrial applications.
Excellent mechanical properties: with high strength, high hardness and good thermal shock resistance.
High transparency: easy to observe the internal reaction process, especially suitable for optics and scientific research.
Application
OD > 200mm large diameter quartz tubes are widely used in the following fields due to their excellent performance:
Semiconductor industry:
Used for diffusion, oxidation, and etching processes in wafer fabrication.
As a core component in semiconductor equipment, such as quartz boats and quartz pipes, it directly affects product yield.
Petrochemical industry:
Used for pipeline transportation of high temperature or corrosive media.
It is used as a high temperature resistant material in special metal smelting molds.
Scientific research and experimentation:
Used for high temperature tube furnace experiments, such as large-area single-layer graphene growth experiments.
It is used as a reaction vessel in the preparation of new materials such as nanomaterials and carbon fibers.
Optical field:
Manufacture of special optical instruments, such as light-transmitting components in large optical instruments.
Custom description
According to specific application requirements, OD > 200mm large-diameter quartz tubes can be customized as follows:
Size customization:
Outer diameter range: 200mm to 300mm, length can be customized according to requirements.
Wall thickness adjustment: Choose different wall thicknesses according to the use scenario to adapt to pressure and heat resistance requirements.
Surface treatment:
We provide high-precision polishing to meet the transparency and surface quality requirements of optical applications.
Surface coating treatments, such as anti-reflective coatings, to enhance optical performance.
High temperature design:
Optimize the material formula to maintain stable performance above 1100 ° C.
Equipped with an inner tube structure, it is suitable for multi-sample sintering or pilot experiments.
Chemical purity:
We provide higher purity quartz tubes according to customer requirements to adapt to high-precision experiments and special chemical environments.
Interface and accessories:
Flanges, threads and other interfaces can be customized for easy connection with equipment.
Provide matching seals to ensure sealing performance in high temperature or vacuum environments.
OD > 200mm large diameter quartz tube has become an indispensable key material in semiconductor, petrochemical, scientific research and other fields due to its high purity, high heat resistance and wide applicability. Through customized design, it can better meet the needs of different industries and experiments, improve production efficiency and product quality.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
