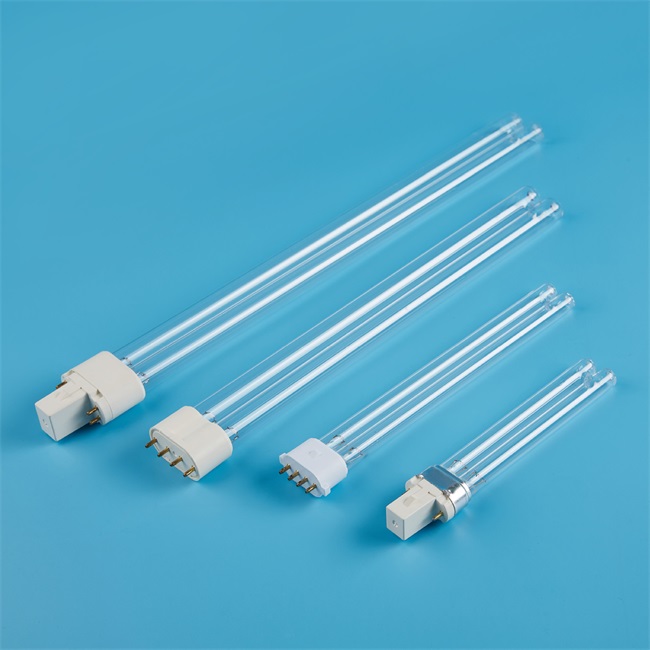

UV germicidal lamp quartz glass tube
Ultraviolet germicidal lamp quartz glass tube is a high-purity quartz glass tube specially designed for ultraviolet germicidal lamps.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Ultraviolet germicidal lamp quartz glass tube is a high-purity quartz glass tube specially designed for ultraviolet germicidal lamps. It is mainly used to make the core components of ultraviolet germicidal lamps. It has high light transmittance, good thermal stability and excellent chemical stability. This quartz glass tube can effectively penetrate ultraviolet rays, especially ultraviolet rays with a wavelength of 253.7 nm. This wavelength of ultraviolet rays has a strong destructive effect on the DNA or RNA of bacteria, viruses and other microorganisms, thus achieving efficient germicidal disinfection effect.
Product features
1. High purity and high light transmittance: The quartz glass tube is made of high purity silica, and its UV transmittance exceeds 80%, which is much higher than that of ordinary high borax glass tubes (transmittance < 50%). This ensures that UV rays can penetrate efficiently and achieve the best sterilization effect.
2. Strong thermal stability: Quartz glass has a low coefficient of thermal expansion and high heat resistance, enabling it to operate stably in high-temperature environments and is not prone to cracking due to temperature changes.
3. Good chemical stability: Quartz glass is chemically stable, not easily corroded, and is suitable for use in various chemical environments.
4. Ozone-free and low-ozone options: Quartz glass tubes can be selected to shield or transmit 185 nm UV light as needed to control ozone production. Ozone-free tubes are mainly used for direct sterilization, while high-ozone tubes further enhance the sterilization effect by generating ozone.
Technical parameters
- Wavelength: The main emission wavelength is 253.7 nm, and some products can also emit 185 nm ultraviolet light.
- UV intensity: Depending on the model, the 254 nm UV intensity on the lamp surface can reach more than 2000 μW/cm ⊃2;.
- Lifespan: Standard quartz UV sterilization lamps can last up to 8,000 hours, and high-output lamps can last up to 10,000 hours.
- Light attenuation: Light attenuation is small, less than 20%/1000 hours.
Application field
1. Water treatment: Widely used in disinfection and sterilization of drinking water, domestic water, pure water, ionized water, etc., it can effectively kill bacteria, viruses and mold spores in water.
2. Air disinfection: It is used for air disinfection in hospitals, schools, offices, homes, etc., and can quickly kill pathogenic microorganisms in the air.
3. Object surface disinfection: It can be used for disinfection of medical apparatus, food processing equipment, laboratory equipment and other object surfaces to ensure the hygiene and safety of the environment and equipment.
4. Food processing: In the food processing industry, UV sterilization lamps made of quartz glass tubes can be used for disinfection in food packaging and processing workshops to prevent food contamination.
5. Medical equipment: In the medical field, UV sterilization lamps and quartz glass tubes can be used to make toothbrush sterilizers, disinfection cabinets, and other equipment, providing efficient and reliable disinfection functions.
Use and maintenance
1. Cleaning: The surface of the quartz glass tube should be kept clean and regularly wiped with 75% alcohol to remove dust and oil stains and ensure the transmission rate of ultraviolet rays.
2. Installation: Avoid direct contact with quartz glass tubes during installation to avoid grease on hands affecting light transmittance.
3. Safety: Ultraviolet rays are harmful to the human body. When using them, avoid looking directly at the lamp and take appropriate protective measures.
4. Replacement: According to the frequency of use and environmental conditions, replace the lamp regularly to ensure the sterilization effect.
UV germicidal lamp quartz glass tube is an ideal choice for UV germicidal lamps due to its high light transmittance, good thermal stability and chemical stability. It performs well in many fields such as water treatment, air disinfection, object surface disinfection, etc., and can effectively kill various pathogenic microorganisms, providing a strong guarantee for public health and food safety.

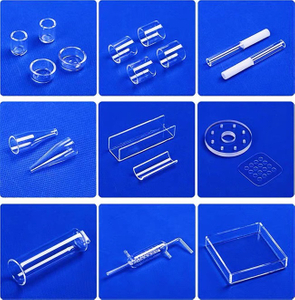

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
Ultraviolet germicidal lamp quartz glass tube is a high-purity quartz glass tube specially designed for ultraviolet germicidal lamps. It is mainly used to make the core components of ultraviolet germicidal lamps. It has high light transmittance, good thermal stability and excellent chemical stability. This quartz glass tube can effectively penetrate ultraviolet rays, especially ultraviolet rays with a wavelength of 253.7 nm. This wavelength of ultraviolet rays has a strong destructive effect on the DNA or RNA of bacteria, viruses and other microorganisms, thus achieving efficient germicidal disinfection effect.
Product features
1. High purity and high light transmittance: The quartz glass tube is made of high purity silica, and its UV transmittance exceeds 80%, which is much higher than that of ordinary high borax glass tubes (transmittance < 50%). This ensures that UV rays can penetrate efficiently and achieve the best sterilization effect.
2. Strong thermal stability: Quartz glass has a low coefficient of thermal expansion and high heat resistance, enabling it to operate stably in high-temperature environments and is not prone to cracking due to temperature changes.
3. Good chemical stability: Quartz glass is chemically stable, not easily corroded, and is suitable for use in various chemical environments.
4. Ozone-free and low-ozone options: Quartz glass tubes can be selected to shield or transmit 185 nm UV light as needed to control ozone production. Ozone-free tubes are mainly used for direct sterilization, while high-ozone tubes further enhance the sterilization effect by generating ozone.
Technical parameters
- Wavelength: The main emission wavelength is 253.7 nm, and some products can also emit 185 nm ultraviolet light.
- UV intensity: Depending on the model, the 254 nm UV intensity on the lamp surface can reach more than 2000 μW/cm ⊃2;.
- Lifespan: Standard quartz UV sterilization lamps can last up to 8,000 hours, and high-output lamps can last up to 10,000 hours.
- Light attenuation: Light attenuation is small, less than 20%/1000 hours.
Application field
1. Water treatment: Widely used in disinfection and sterilization of drinking water, domestic water, pure water, ionized water, etc., it can effectively kill bacteria, viruses and mold spores in water.
2. Air disinfection: It is used for air disinfection in hospitals, schools, offices, homes, etc., and can quickly kill pathogenic microorganisms in the air.
3. Object surface disinfection: It can be used for disinfection of medical apparatus, food processing equipment, laboratory equipment and other object surfaces to ensure the hygiene and safety of the environment and equipment.
4. Food processing: In the food processing industry, UV sterilization lamps made of quartz glass tubes can be used for disinfection in food packaging and processing workshops to prevent food contamination.
5. Medical equipment: In the medical field, UV sterilization lamps and quartz glass tubes can be used to make toothbrush sterilizers, disinfection cabinets, and other equipment, providing efficient and reliable disinfection functions.
Use and maintenance
1. Cleaning: The surface of the quartz glass tube should be kept clean and regularly wiped with 75% alcohol to remove dust and oil stains and ensure the transmission rate of ultraviolet rays.
2. Installation: Avoid direct contact with quartz glass tubes during installation to avoid grease on hands affecting light transmittance.
3. Safety: Ultraviolet rays are harmful to the human body. When using them, avoid looking directly at the lamp and take appropriate protective measures.
4. Replacement: According to the frequency of use and environmental conditions, replace the lamp regularly to ensure the sterilization effect.
UV germicidal lamp quartz glass tube is an ideal choice for UV germicidal lamps due to its high light transmittance, good thermal stability and chemical stability. It performs well in many fields such as water treatment, air disinfection, object surface disinfection, etc., and can effectively kill various pathogenic microorganisms, providing a strong guarantee for public health and food safety.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
