As a special industrial technology glass, high-purity quartz tubes can be used continuously for a long time at 1100 ℃, with a short-term peak temperature of up to 1200 ℃ to 1450 ℃. Its extremely low coefficient of thermal expansion endows it with excellent thermal shock resistance, allowing it to maintain structural integrity even under severe temperature differences, making it an ideal choice for extreme high temperature and high-purity process environments.

We are well aware of the challenges you face under harsh working conditions. Whether it's trace impurity contamination in semiconductor manufacturing or the risk of tube rupture caused by frequent temperature fluctuations, our customized quartz products can provide you with reliable solutions. By providing comprehensive services from material purification to precision machining, we are committed to ensuring your production yield, reducing equipment maintenance frequency, and making complex high-temperature processes safer, more stable, and efficient.

Stable working conditions and core advantages of quartz tubes in high-temperature environments

The high temperature resistance of quartz tubes is not a single indicator, but is determined by their material purity, working environment, and physical properties. Quartz tubes exhibit extremely high professional adaptability for different industrial application scenarios:

1. Extreme temperature resistance and thermal shock resistance

The standard high-purity quartz tube has a softening point of about 1730 ℃, and can maintain a stable temperature of 1100 ℃ during normal continuous operation. Under specific atmospheric conditions, its short-term tolerance peak temperature can reach 1200 ℃ or even higher. More importantly, quartz has an extremely low coefficient of thermal expansion (about 0.55 × 10 ⁻⁶/℃), which gives it excellent thermal shock resistance. Even if the quartz tube heated to 1100 ℃ is directly immersed in cold water, it will not explode, perfectly adapting to complex heat treatment processes that require rapid temperature rise and fall.

2. Temperature threshold under vacuum and special atmosphere

The stable operating temperature of the quartz tube will be adjusted under different working pressures. In a vacuum environment, to prevent the tube from softening or deforming at high temperatures, it is recommended to control the maximum safe working temperature at around 1000 ℃. In atmospheric pressure or protective gas atmosphere, quartz tubes can fully exert their heat resistance potential and meet the long-term high-temperature calcination needs.

3. Ultimate chemical inertness and high purity guarantee

The purity of materials is crucial in high-temperature reactions. Our quartz tube silica (SiO ₂) typically has a purity of over 99.99% and hardly reacts with any acidic, alkaline, or corrosive gases except for hydrofluoric acid and hot phosphoric acid. This excellent chemical stability not only prevents the degradation of the tube itself, but also ensures that trace metal ions are not released into the sample during high-temperature processes, providing an unparalleled clean environment for semiconductor diffusion furnaces, CVD reaction chambers, and other applications.

4. Full size and depth customization service

In order to meet the assembly requirements of different devices, we provide extremely flexible customized services. Whether you need a microcapillary tube with an outer diameter of a few millimeters or a large-diameter thick walled tube with a diameter of thousands of millimeters; Whether it's simple straight tubes or complex components that require flange welding, threading, irregular drilling, or surface coating, we can deliver them accurately through CNC lathes and hot working processes, ensuring dimensional tolerances are controlled at the ± 0.01mm level and achieving seamless docking.

Addressing industry application challenges and real-life customer cases

In actual production, many enterprises often face challenges such as short lifespan of high-temperature consumables and substandard process purity. Our quartz products, with their excellent performance, have successfully helped numerous users overcome these bottlenecks.

Taking a battery material research and development enterprise as an example, the customer experienced frequent crystallization and embrittlement of traditional tubes during high-temperature sintering testing of new positive electrode materials, resulting in experimental interruption and easy contamination of the samples. After introducing our customized 4N5 grade high-purity quartz tube, thanks to its excellent resistance to glass transition and extremely low coefficient of thermal expansion, the tube maintained perfect transparency and mechanical strength even after repeated thermal cycling at 1150 ℃. This not only completely solves the problem of material cross contamination, but also nearly doubles the service life of a single tube, significantly shortens the research and development cycle, and reduces overall operating costs.

Another typical case comes from a high-end optical instrument manufacturer. They put forward extremely high requirements for the transmittance and water pressure resistance of the casing when developing the cooling system for high-power lasers. We have tailored a special quartz sleeve with low hydroxyl content for it, which can withstand high-pressure water flow while achieving excellent transmittance of over 90% in the ultraviolet to infrared band, ensuring the non-destructive transmission of laser energy and helping its new generation products to be successfully launched into the market.

If you are looking for quartz products that can cope with extreme high temperature challenges and meet strict purity requirements, please feel free to contact us at any time for exclusive size specification quotations and customized technical solutions!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

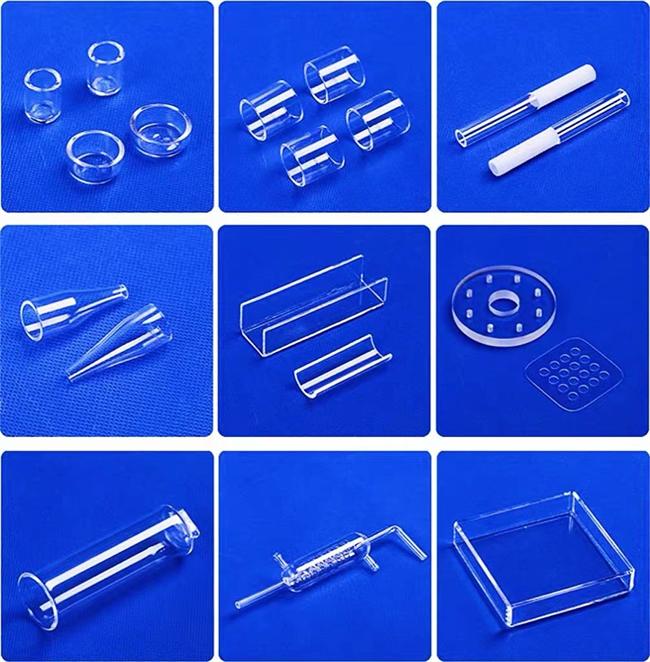

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
