Luverre Quartz, as a professional manufacturer of quartz products, focuses on providing high-quality welding, cutting and customized quartz tubes for global customers. Whether it's laboratory precision instruments, new energy manufacturing equipment, or industrial high-temperature furnaces, we can provide a one-stop solution from raw material selection to deep processing based on the specific drawings and parameter requirements of the customers.

Precise matching, addressing your core application challenges

From the perspective of users, we understand that during the assembly and upgrade of equipment, standard products often fail to fit perfectly. Our customized service is designed to solve the following core problems for you:

Incompatible interfaces: Address the challenges of air leakage and rework caused by inconsistent interface sizes and thread standards when assembling laboratory equipment or industrial tubelines.

Poor environmental tolerance: Provide high-purity quartz materials for use in high-temperature, highly corrosive, or high-pressure environments, replacing easily aged and brittle ordinary glass or metal parts.

Light transmission and observation requirements: Meet the strict requirements for high light transmittance in optical experiments or fluid observations, ensuring the accuracy and clarity of experimental data.

Professional customization, fully meeting your specification requirements

We possess a complete set of deep processing technical capabilities and are committed to resolving the contradiction between the specialization of equipment and the standardization of quartz products. Relying on advanced production equipment and a professional technical team, we can offer you highly competitive product advantages:

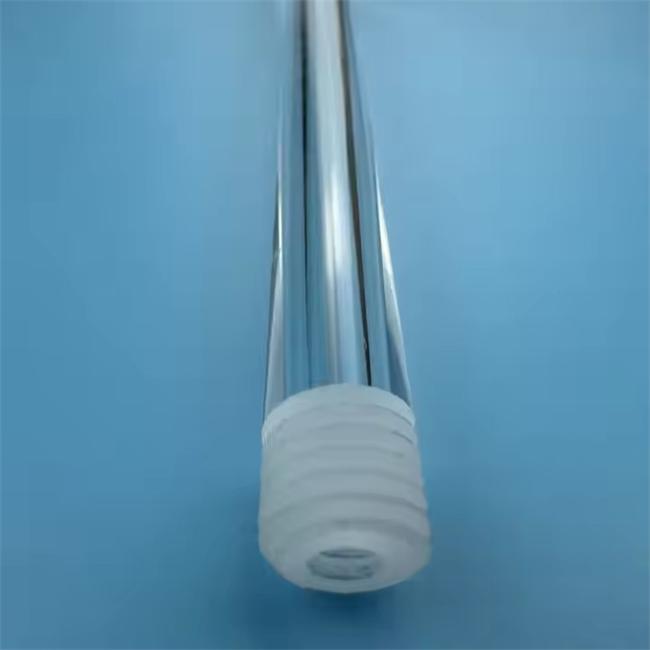

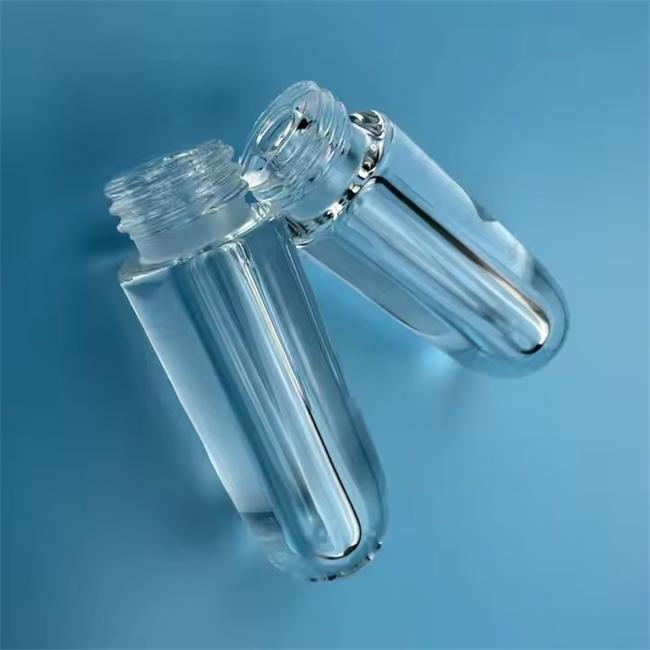

Diversified deep processing techniques: We provide a complete range of services including precision cutting, firing holes, sealing, bending, sandblasting, special-shaped processing, and high-precision internal and external thread processing. Whether it's a micrometer-sized capillary quartz tube or a large-diameter quartz tube with complex flange structures, it can be customized as per your needs.

Outstanding material performance: Our quartz products have a silicon dioxide content of over 99.99%, possess extremely strong temperature resistance (suitable for long-term working environments above 1100℃), and are resistant to drastic temperature changes and crystal precipitation. In terms of chemical stability, they can effectively withstand strong acids and strong bases, avoiding impurity contamination of reactants or wafers.

Precise tolerance control: Through a combination of precision machining with CNC lathes and manual welding, we can control the product size tolerance within extremely small ranges (such as ±0.05mm or even micrometer-level), far exceeding the industry's common standards, ensuring a one-time success rate for assembly.

Flexible customization services: For the small-batch, multi-variety needs of research customers, we have established a rapid prototyping mechanism; for large-scale orders from industrial customers, we can achieve stable mass production and delivery.

Overcoming Application Challenges: Why Choose Us?

In practical applications, many users encounter challenges such as excessive stress when converting non-standard designs into physical objects, weld points prone to cracking, or insufficient assembly accuracy. Choosing us means opting for ease and efficiency:

Preceding technical consultation and 3D modeling: During the customization process, we provide pre-technical support. Through 3D modeling, we predict stress points, effectively solving problems such as excessive welding stress and inaccurate interfaces, and avoiding project delays due to design flaws.

Precise connection of cold and hot processing: The processing of quartz products requires alternating cold processing (cutting, grinding) and hot processing (welding, annealing). We precisely control the heat-affected zone, effectively avoiding residual stress and uneven wall thickness, and preventing the products from deforming or cracking in rapid cooling and heating environments.

Extremely high cleanliness and surface quality: Our production environment has high cleanliness, and the polishing process is precise, effectively avoiding minor pockmarks or scratches, and perfectly meeting the extremely high surface quality requirements of fields such as optical communication, biomedicine, and precision instruments.

Customer Application Case Sharing

To enable you to have a more intuitive understanding of the value of our services, we are sharing two real anonymous customer cooperation cases below:

Case 1: Customized Silicon Wafer Annealing Furnace for a Photovoltaic Enterprise

This customer, during the production process of photovoltaic silicon wafers, needed a batch of special-shaped ring-shaped quartz tubes for the high-temperature annealing stage. Due to the large roundness error of common products on the market, the heat flow distribution was uneven, resulting in a high rate of silicon wafer cracking after heating. After our intervention, we used 99.99% high-purity quartz sand and adopted CNC bending and stepped annealing processes to strictly control the roundness error of the quartz tubes within 0.1mm, while completely eliminating internal stress. After being put into use, it not only perfectly matched the customer's high-temperature equipment but also increased the quality rate of silicon wafers by more than 8%, and significantly extended the continuous operation cycle of the equipment.

Case 2: Assembly of High-Temperature Reactor for a University Research Laboratory

When building a new tubular furnace reaction system at this laboratory, they needed multiple quartz tubes with special internal and external threaded interfaces, and required them to be able to withstand 1200℃ high temperature and drastic temperature differences. Previously, the ordinary joints they purchased often had cracks and poor sealing. Based on the drawings provided by them, we quickly completed the prototype, using high-purity quartz material and optimizing the tightness of the thread fit. The final product not only achieved zero air leakage assembly, but also had excellent light transmission, which facilitated researchers to observe the internal fluid state in real time, significantly improving the experimental efficiency.

Whether you need standard-sized quartz tubes or are facing the challenge of complex customized shapes, we are always ready to provide you with professional solutions.

If you have specific drawings or parameter requirements, please feel free to contact us at any time to get quotations and technical support. Let us create the most suitable quartz products for you!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

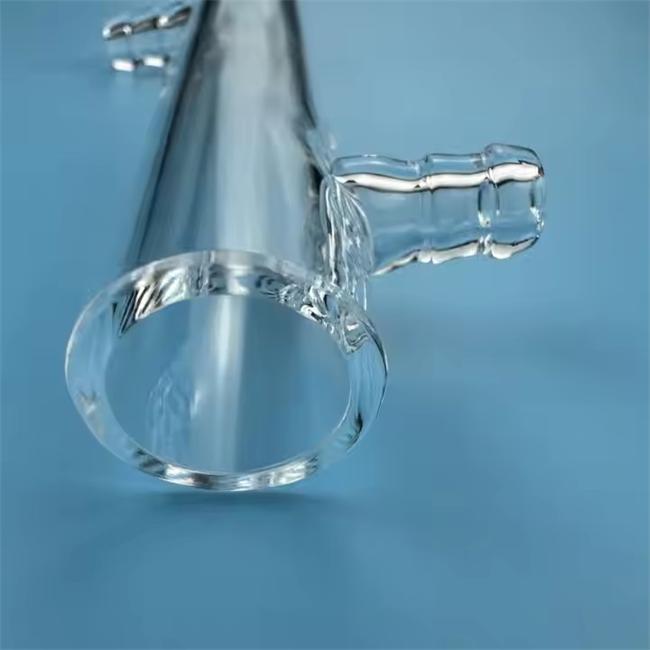

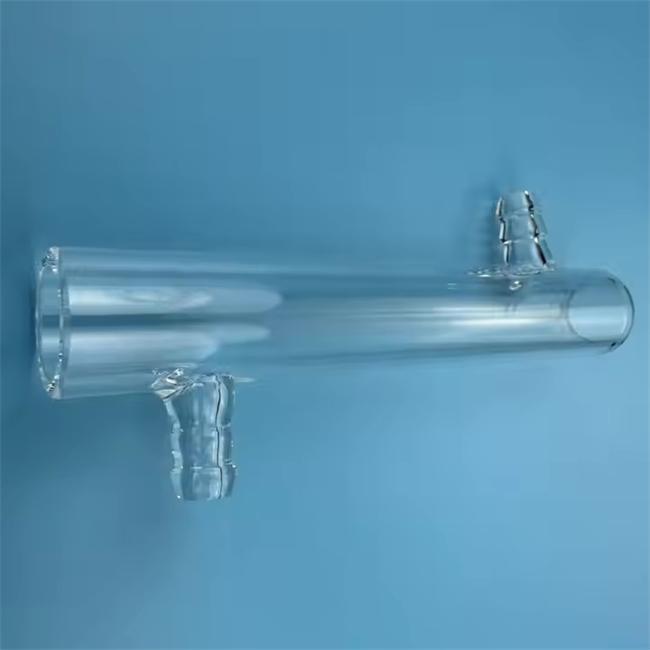

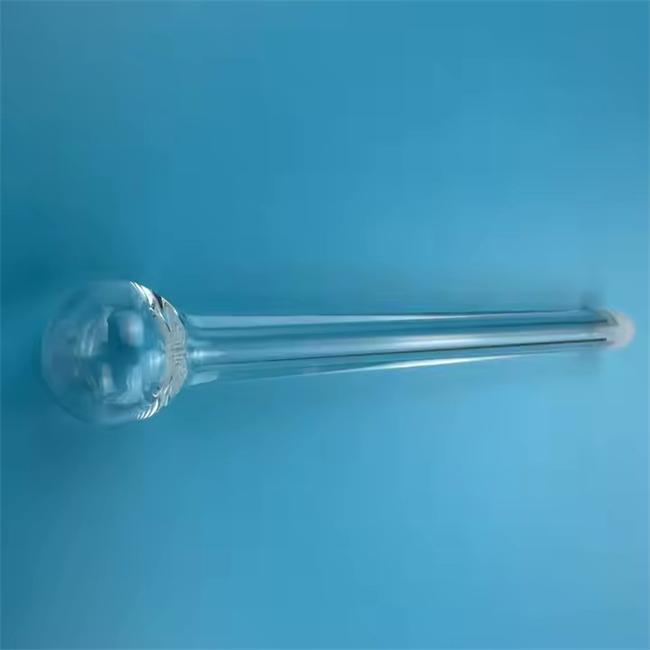

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
