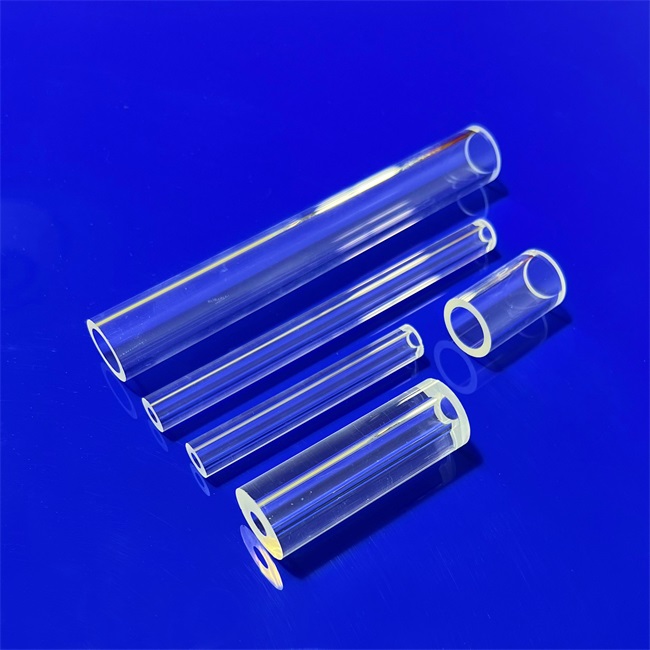

In the fields of high-end analytical instruments, semiconductor equipment, ozone generation, and environmental engineering, quartz tubes (quartz glass tubes) have become ideal packaging and insulation materials for precision electrode structures due to their unique physical and chemical properties. Compared to ceramics, polytetrafluoroethylene, or ordinary glass, high-purity quartz tubes not only have extremely low thermal expansion coefficients and excellent high temperature resistance, but also provide a nearly "zero background" chemical inert environment, ensuring stable operation of electrodes under high voltage, strong corrosion, or high-frequency radiation conditions. As a professional manufacturer, we provide composite products ranging from high-purity quartz tubes to charged electrode components, meeting the demanding demands of global scientific research and industrial fields.

Product FAQ: What core needs can quartz tube electrodes solve for you?

Q1: I always encounter media corrosion or signal interference in experiments, which leads to inaccurate data. What should I do?

A: Our high-purity quartz tube (SiO ₂ content ≥ 99.99%) serves as the outer layer or carrier of the electrode, with extremely low chemical background and never participating in reactions, completely eliminating interference from impurity signals and ensuring the authenticity and reliability of detection data.

Q2: The equipment needs to operate in high temperature or high pressure environments, and ordinary insulation materials are prone to explosion or breakdown. Is there a suitable solution?

A: The thermal expansion coefficient of quartz tube is extremely small, and it has strong resistance to sudden temperature changes (can instantly withstand temperature differences of over 1000 ℃). Using it as an electrode sleeve or ion migration tube can provide stable physical support and excellent dielectric insulation performance under extreme working conditions.

Q3: Ozone generators or water treatment equipment have high requirements for electrode lifespan, and frequent replacement greatly affects costs.

A: That's right. The electrode structure using quartz tube as the dielectric layer (such as surface discharge quartz tube) not only has high dielectric constant and low loss, but also has antioxidant properties that can significantly improve the lifespan and ozone production of ozone generators.

Q4: I need to integrate the electrode into a special chemical reaction device. Standard parts are not needed. Can they be customized?

A: Fully supports customization. We can customize quartz tube electrode components in various shapes (straight pipes, bent pipes, porous pipes), with different precision and metal sealing methods based on your drawings.

The core advantage of quartz tube as electrode material

The reason why quartz material can stand out among many media and become the preferred choice for high-end electrode construction is mainly due to the following objective and professional advantages:

1. Ultra high temperature resistance and thermal shock resistance

The softening temperature of quartz is as high as 1730 ℃, and it can be used for a long time at 1100 ℃. More importantly, its extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃) gives it strong resistance to thermal shock. When the electrode heats up instantly through high current or needs to switch between liquid nitrogen temperature and high temperature, the quartz tube will not break due to thermal stress, effectively protecting the internal electrode.

2. Extremely low dielectric loss and excellent insulation properties

As a dielectric material, quartz has a volume resistivity of up to 10 ⊃1;⁸Ω· cm at 20 ℃ and a high breakdown voltage. In ozone generators, quartz tubes are used as the dielectric material, which has a stable dielectric constant, high energy efficiency conversion, and uniform discharge. In high-frequency electric fields, its dielectric loss is extremely small and will not affect system stability due to self heating.

3. Excellent chemical inertness (extremely low background)

Except for hydrofluoric acid and high-temperature phosphoric acid, quartz hardly reacts with other acids, halogen gases, and strong oxidants. In electrochemical analysis or ion mobility spectrometry (IMS), using quartz tubes as migration zones or electrolytic cells does not precipitate metal ions to contaminate the sample, ensuring that the "chemical background" of the detection is at an extremely low level. This is crucial for high-sensitivity analytical instruments.

4. Excellent optical transparency (added value)

For experiments involving photoelectrochemical bonding (such as photocatalysis and spectroelectrochemistry), transparent quartz tubes allow ultraviolet/visible light to penetrate, making it possible to perform in-situ spectroscopic analysis while energized.

Customer Application Cases

Case 1: A well-known European analytical instrument manufacturer (ion mobility spectrometry upgrade project)

-Customer demand: The customer's original ion migration spectrum uses a stacked structure of ceramic rings and metal rings, which has problems with uneven electric fields, complex assembly, and high costs. They need an alternative solution that can provide a more uniform electric field and a clean chemical background.

-Our solution: We recommend using high-precision, thin-walled and thick quartz tubes as external migration tubes. The customer strings ultra-thin PDMS electrode sheets made by microfluidic technology onto a quartz tube. By utilizing the perfect cylindricity and smooth inner wall of the quartz tube, the uniform distribution of the electric field in the migration zone is ensured.

-Final effect: The ion separation resolution of the new migration tube has been improved by about 20%, and due to the chemical inertness of the quartz tube, the detection limit of the equipment is lower and the noise is lower. At the same time, the assembly process is greatly simplified, reducing manufacturing costs.

Case 2: A large exporter of environmental protection equipment (procurement of ozone generator accessories)

-Customer demand: The ozone water treatment equipment produced by the customer is exported to Southeast Asia. The core components are required to be resistant to high temperature and humidity, corrosion-resistant, and able to maintain stable discharge in environments with large voltage fluctuations.

-Our solution: Customized components using 316L stainless steel inner electrodes and high-purity quartz tube media, with aluminum alloy heat sinks on the outer electrodes. We have precision ground both ends of the quartz tube to ensure a perfect fit with the fluorine rubber seal and prevent air leakage.

-Final effect: After adopting our quartz tube electrode components, the stability of ozone concentration in the equipment is significantly improved, and the repair rate is reduced. Even when working continuously in hot and humid environments, there have been no incidents of quartz tube breakdown or explosion.

If you are looking for electrode materials that can withstand extreme environments, have high purity and stability, or if your existing electrode component solutions need to be optimized and upgraded, please feel free to communicate with us at any time. Whether it is standard size or complex shaped quartz electrode tubes, we can provide you with one-stop customized procurement services with professional technology and rich foreign trade experience.

Contact us immediately, submit your drawings or requirements, obtain samples and professional quotations!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

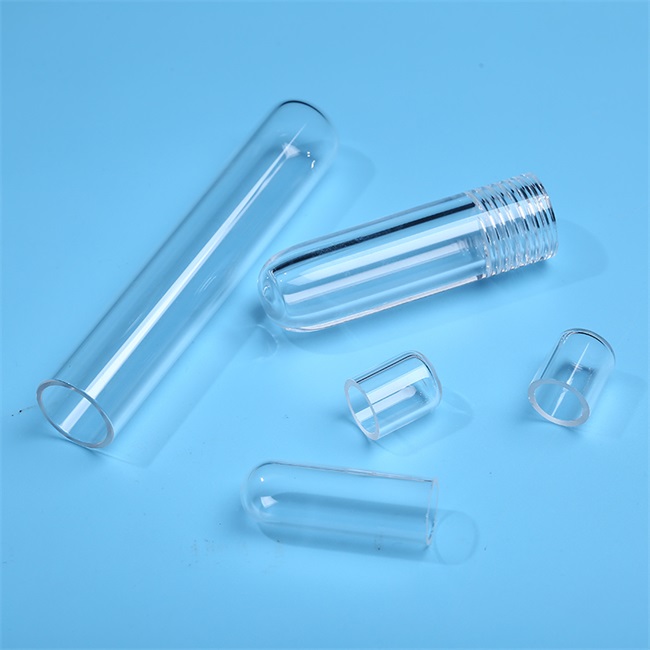

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.

Why choose us?

1.We are more experienced.

We have over 19 years production experience of quartz items.

2.We are more efficient.

We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.

3.Our quality is more guaranteed.

We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.

4.We are able to produce more difficult quartz products.

We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.

5. About 20 years of professional experience

-Focusing on the manufacturing of quartz products for a quarter century

-The average working experience of the technical team exceeds 15 years

6.Global Service Network

-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East

-Multi language technical support (English, German, French, Spanish, Russian, Japanese)

7. Flexible cooperation mode

Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
