As a kind of special industrial technology glass made of high-purity silica as the main raw material, quartz tubes are widely used in many fields due to their unique physical and chemical properties, especially in the lighting industry. Quartz tubes play an indispensable role.
Basic characteristics of quartz tubes
Quartz tubes have a range of excellent physical and chemical properties, including:
High temperature resistance: The softening point temperature of quartz glass is about 1730 degrees Celsius, which can be used for a long time at 1100 degrees Celsius, and the maximum temperature for short-term use can reach 1450 degrees Celsius.
Corrosion resistance: Except for hydrofluoric acid, quartz glass hardly reacts chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Good thermal stability: quartz glass has a very small coefficient of thermal expansion and can withstand severe temperature changes. After being heated to around 1100 ° C, it will not burst when placed in room temperature water.
Good light transmittance: Quartz glass has good light transmittance in the entire spectral band from ultraviolet to infrared, with a visible light transmittance of over 93%, especially in the ultraviolet region, with a maximum transmittance of over 80%.
Good electrical insulation performance: The resistance value of quartz glass is equivalent to ten thousand times that of ordinary glass, making it an excellent electrical insulating material, even at high temperatures.

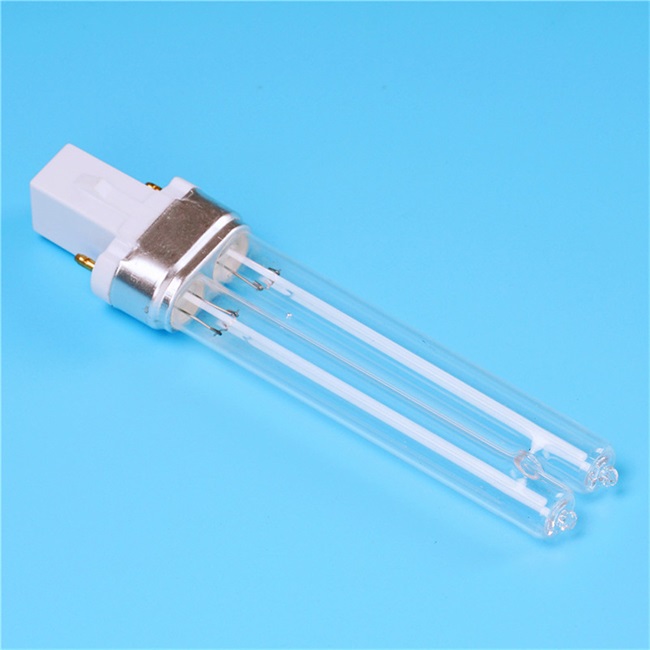

The application of quartz tubes in the lighting industry
Due to its excellent light transmission and high temperature resistance, quartz tubes are widely used in the lighting industry, including the following aspects:
Halogen lamp: Halogen lamp is a kind of high-brightness and high-efficiency lamp, which is widely used in stage lighting, automotive headlamps, photographic lighting and other fields. Quartz tube, as the lamp tube of halogen lamp, can withstand gas discharge at high temperature, while ensuring the transmittance of light and the stability of the lamp.
Mercury lamp: Mercury lamp is a commonly used gas discharge lamp, which has the advantages of high efficiency, energy saving and long life. As the lamp tube of mercury lamp, quartz tube can withstand high pressure discharge and high temperature environment, while ensuring the uniform distribution of light and the reliability of the lamp.
Xenon lamp: Xenon lamp is a kind of gas discharge lamp with high brightness and high color temperature, which is widely used in stage lighting, film and television lighting, scientific research experiments and other fields. Quartz tube, as the lamp tube of xenon lamp, can withstand the impact of high voltage and high current, while ensuring the stability of light and the durability of lamps.
High pressure mercury lamp: High pressure mercury lamp is an efficient and energy-saving gas discharge lamp, which is widely used in road lighting, industrial lighting and other fields. Quartz tube, as the lamp tube of high pressure mercury lamp, can withstand high pressure discharge and high temperature environment, while ensuring the uniform distribution of light and the reliability of the lamp.
New light sources: Quartz tubes are also used to make new light sources such as tungsten iodide lamps and thallium iodide lamps. These light sources have the advantages of high efficiency, energy saving, and long life, and are widely used in scientific research experiments, medical lighting, and other fields.
The advantages of quartz tubes in the lighting industry
The application of quartz tubes in the lighting industry offers significant advantages, including:
High light transmittance: Quartz tubes have excellent light transmittance, which can ensure the uniform distribution of light and the brightness of lamps, improving the lighting effect.
High temperature resistance: The quartz tube can withstand gas discharge in high temperature environments, ensuring the stability and reliability of the lamp and prolonging the service life of the lamp.
Corrosion resistance: Quartz tubes have excellent corrosion resistance and can resist the erosion of various chemical substances, ensuring the cleanliness and safety of lamps.
Good electrical insulation performance: quartz tubes have excellent electrical insulation properties, which can ensure the electrical safety and stability of lamps and lanterns, and avoid electrical failures and safety accidents.
As a glass tube with special functions, quartz tubes play an indispensable role in the lighting industry. Their excellent physical and chemical properties enable quartz tubes to withstand harsh environments such as high temperature, high voltage, and high current, while ensuring uniform light distribution and the stability of lamps.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
