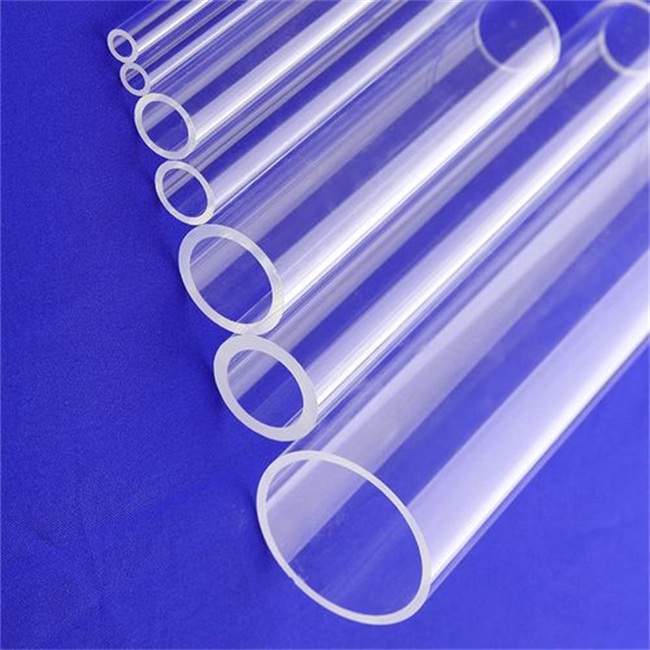

Quartz tube is a material made of high-purity silicon dioxide (SiO ₂), which has a wide range of applications in industry and scientific research due to its unique physical and chemical properties. The thermal conductivity and insulation performance of quartz tubes have their own characteristics.

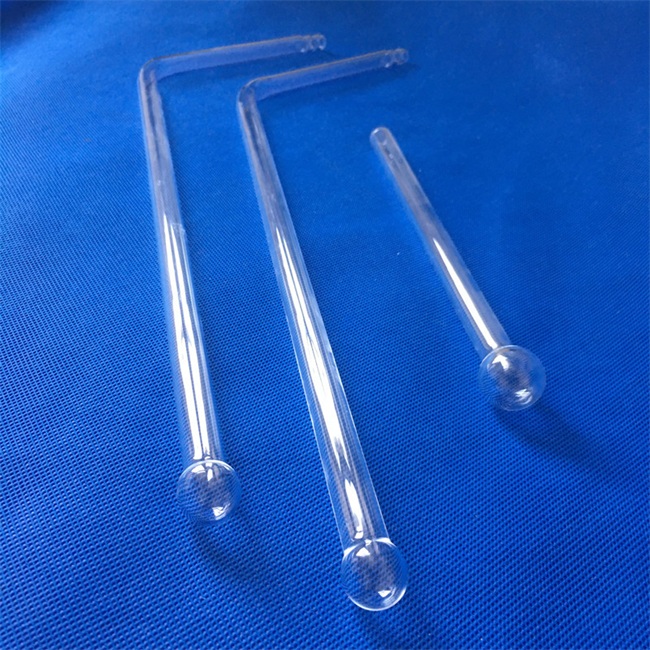

Thermal conductivity of quartz tube

The thermal conductivity of quartz tubes is mainly reflected in the following aspects:

1. Moderate thermal conductivity: The thermal conductivity of quartz tubes is usually 1.3 to 1.5 W/(m · K). Although this value is much lower than that of metal materials (such as copper with a thermal conductivity of about 400 W/(m · K)), it is higher than many common insulation materials (such as glass with a thermal conductivity of about 1 W/(m · K)). This means that quartz tubes have thermal conductivity between metals and ordinary insulation materials, and can achieve a certain degree of thermal conduction.

2. Good thermal conductivity uniformity: The crystal structure of quartz tubes enables them to conduct heat evenly, avoiding local overheating or undercooling, thereby ensuring the stability and consistency of the heat transfer process.

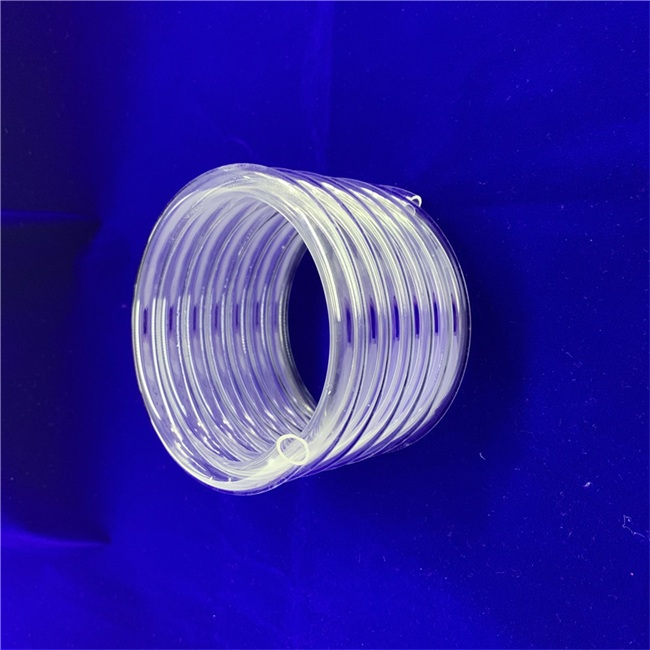

3. High temperature resistance: Quartz tubes have extremely high heat resistance, with a softening point of about 1270 ° C, and can work for a long time in high temperature environments without deformation or rupture. This makes quartz tubes perform well in high-temperature heating applications, for example, in quartz heating tubes, the quartz tube wall can withstand high temperatures and quickly conduct heat.

4. Corrosion resistance: Quartz tubes have strong resistance to most acids, alkalis, and other corrosive substances. This characteristic enables it to work stably in corrosive environments for a long time without affecting its thermal conductivity due to chemical erosion.

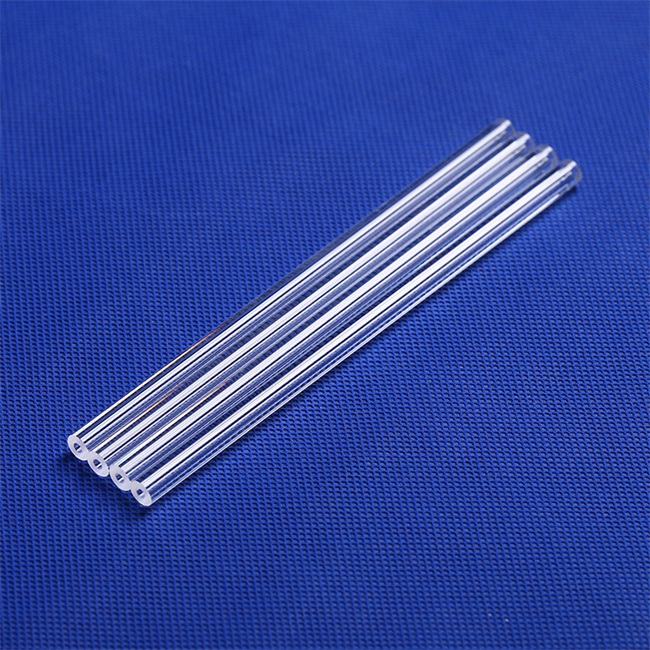

Thermal insulation performance of quartz tube

The thermal insulation performance of quartz tubes is mainly reflected in the following aspects:

1. Relatively low thermal conductivity: Although the thermal conductivity of quartz tubes is higher than some insulation materials, it is still lower compared to metals. This means that in the absence of direct contact with an external heat source, quartz tubes can effectively prevent the conduction of heat and serve as insulation.

2. High temperature insulation stability: Quartz tubes can still maintain good insulation performance in high temperature environments, and their insulation effect will not be significantly reduced due to temperature rise. Its high purity and crystal structure enable it to maintain structural stability at extreme temperatures, effectively isolating heat.

3. Protecting internal structure and environment: In some applications, quartz tubes are used as insulation barriers to protect internal structures or samples from external high-temperature environments. For example, in diffusion furnaces and etching chambers in semiconductor manufacturing, quartz tubes can prevent excessive heat transfer while protecting equipment from corrosive gases or liquids.

4. Energy saving effect: As quartz tubes can effectively isolate heat and reduce heat loss, the use of quartz tubes can improve energy utilization efficiency and reduce energy consumption in some equipment that requires precise temperature control.

Application scenarios

The thermal conductivity and insulation properties of quartz tubes enable them to have diverse applications in different fields:

-Heating equipment: Quartz heating tubes utilize the thermal conductivity of quartz tubes to quickly convert electrical energy into thermal energy, and achieve efficient heating through high-temperature infrared radiation on the tube wall. This heating method is widely used in industries such as food drying, baking paint, and plastic processing.

-Semiconductor manufacturing: In the semiconductor manufacturing process, the thermal insulation performance of quartz tubes is used to protect critical equipment and processes, ensuring stable operation in high temperature and corrosive environments.

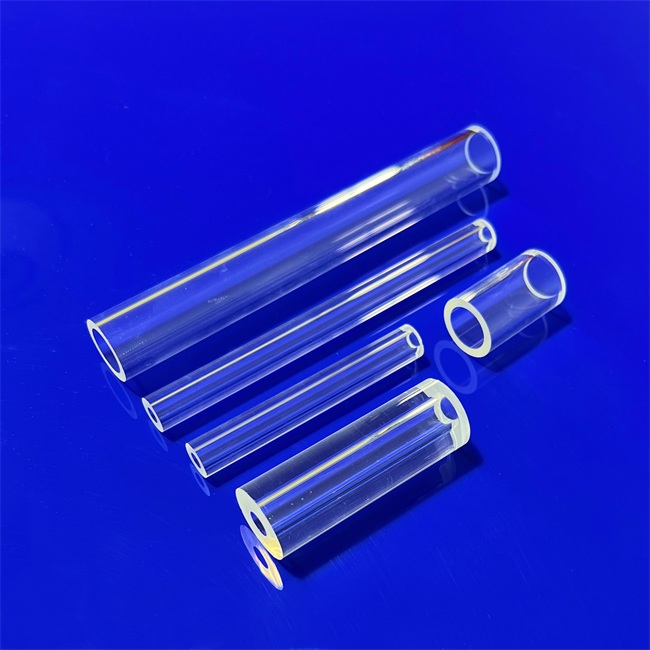

-Laboratory equipment: Quartz tubes are often used in high-temperature furnaces, crucibles, and test tubes in laboratories due to their high temperature and corrosion resistance characteristics.

Quartz tube, as a multifunctional material, has its own characteristics in terms of thermal conductivity and insulation performance. It can achieve a certain degree of heat conduction and effectively isolate heat in high-temperature environments. This unique performance combination makes quartz tubes perform well in applications that require precise temperature control and corrosion resistance, and are widely used in heating equipment, semiconductor manufacturing, laboratory research, and other fields.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
