In highly corrosive environments such as chemical, semiconductor, photovoltaic, and laboratory, the corrosion resistance of tubeline materials directly affects the safe operation and service life of equipment. Quartz tube, as a high-performance special glass material, has much higher corrosion resistance than ordinary metal tubes and glass products, making it the preferred material for high temperature and strong acid-base conditions. So, in what aspects is the corrosion resistance of quartz tubes reflected? What material properties support it behind?

Frequently Asked Questions (FAQ)

Q: What chemical corrosion can quartz tubes withstand?

Answer: Quartz tubes have strong corrosion resistance to most chemical media except hydrofluoric acid and hot phosphoric acid, including hydrochloric acid, nitric acid, sulfuric acid, aqua regia, strong alkaline solutions, etc. They exhibit excellent chemical stability at both room temperature and high temperature.

Q: What are the advantages of corrosion resistance between quartz tubes and ordinary glass tubes?

Answer: Ordinary glass contains a high amount of alkali metal oxides (such as sodium oxide and calcium oxide), which are easily precipitated in acidic and alkaline environments, leading to material corrosion and aging. The main component of quartz tubes is silicon dioxide (content ≥ 99.9%), with extremely low alkali metal impurities, resulting in stronger chemical inertness and significantly improved corrosion resistance.

Q: Will the corrosion resistance of quartz tubes decrease under high temperature conditions?

Answer: Quartz tubes have excellent thermal stability and can maintain their chemical inertness below 1000 ℃. They will not release impurities or undergo significant reactions with the reaction medium due to high temperatures. However, it should be noted that contact with hydrofluoric acid, strong alkaline vapors, and phosphoric acid should be avoided at high temperatures to prevent corrosion.

Q: How to ensure that the corrosion resistance meets specific working conditions when customizing quartz tubes?

Answer: For different application scenarios, we can ensure that the corrosion resistance of quartz tubes is maximally matched with your process conditions by selecting high-purity raw materials (such as JGS1, JGS2, GE124, etc.), controlling the surface cleanliness during the processing, and optimizing the annealing process.

Resolve your three key issues

For engineers engaged in chemical synthesis, semiconductor diffusion processes, or high-temperature experiments, the problems caused by tubeline corrosion are often catastrophic - impurity contamination caused by corrosion can significantly reduce product yield, leaks caused by tubeline perforation can pose safety hazards and production interruptions, and frequent replacement of parts can drive up maintenance costs. Our customized quartz tubes, with excellent corrosion resistance, can ensure ultra-high purity of process media and ensure long-term stable operation of equipment, freeing you from frequent maintenance and replacement to focus on core production.

Core application scenarios

The corrosion resistance of quartz tubes makes them an irreplaceable key component in the following fields:

-Semiconductor and Photovoltaic Industry: As furnace tubes and process tubes for diffusion furnaces and oxidation furnaces, they maintain stability in corrosive atmospheres such as high-temperature chlorine, oxygen, and hydrogen to ensure a pure environment during silicon wafer processing.

-Chemical and pharmaceutical industries: used for conveying tubelines, reaction vessel liners, and distillation tower internals in strong acid and alkali media, resistant to long-term impact of corrosive materials such as hydrochloric acid, nitric acid, aqua regia, etc.

-Laboratory and analytical instruments: serving as furnace tubes for high-temperature tube furnaces, sample gas path tubes for gas chromatographs, and lining for chemical synthesis reactors, ensuring the accuracy of experimental results and instrument lifespan.

-Environmental Protection and Water Treatment: Used for liquid level gauge protection tubes, high-temperature flue gas sampling probes, and other harsh working conditions in corrosive wastewater treatment equipment.

Specific manifestations of corrosion resistance

The corrosion resistance of quartz tubes is mainly reflected in the following aspects:

-Acid alkali inertness: Silicon dioxide has high chemical bond energy and hardly undergoes ion exchange or dissolution reactions in conventional acid alkali environments. It does not form a corrosion layer or pitting phenomenon on the surface.

-High temperature stability: At temperatures up to 1100 ℃, quartz tubes can maintain their chemical composition unchanged and will not produce impurities due to thermal decomposition or phase transition.

-Non polluting characteristics: Due to its extremely low impurity content, quartz tubes will not release metal ions or particles into the process medium during use, ensuring the cleanliness requirements of high-purity processes.

-Thermal shock resistance: Even under alternating high and low temperature conditions, quartz tubes will not produce microcracks due to thermal stress, avoiding the risk of accelerated corrosion at the crack site.

Comprehensive customization service capability

We are well aware that different working conditions have varying requirements for the corrosion resistance of quartz tubes, so we provide comprehensive customized services:

-Material purity customization: Based on the corrosion strength of the usage environment, we provide various material grades such as ordinary quartz, high-purity quartz (impurity content<20ppm), and ultra-high purity synthetic quartz.

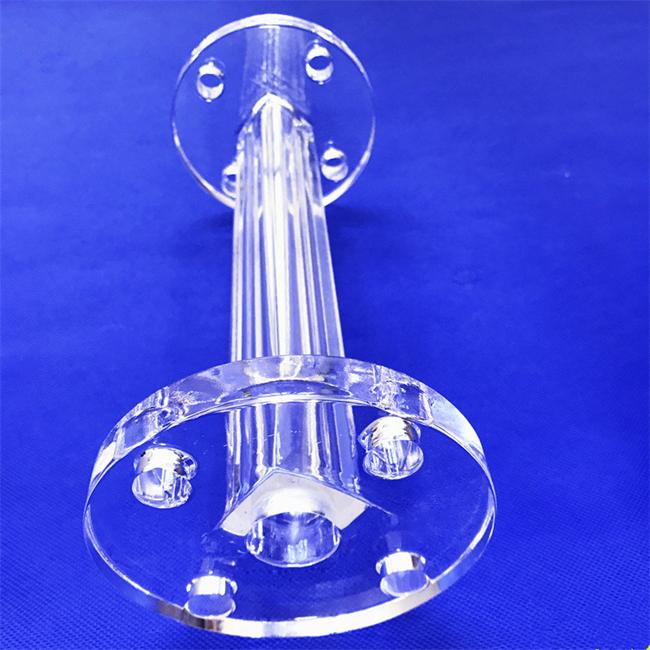

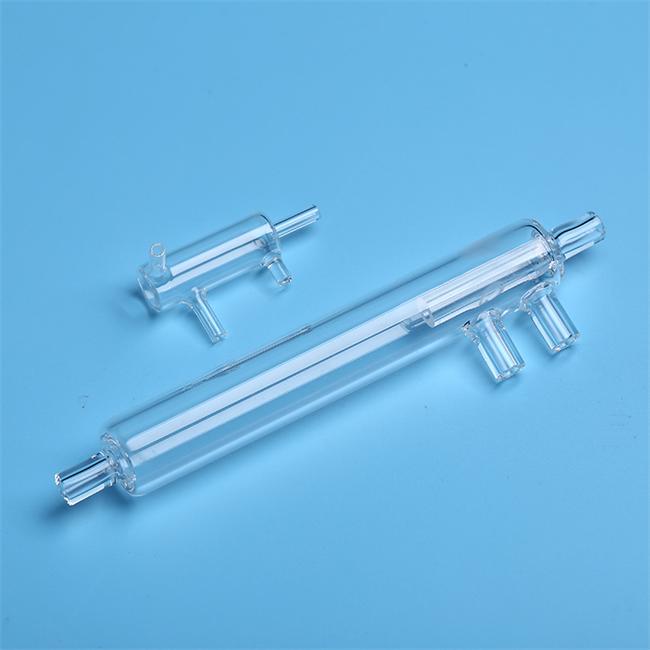

-Customization of size and shape: outer diameter range of 2mm-500mm, wall thickness range of 0.5mm-10mm, and length up to 2000mm. It can be processed into irregular structures such as straight tubes, bent tubes, variable diameter tubes, tapered tubes, flange connecting tubes, etc.

-Customized surface treatment: providing inner wall polishing, outer wall sanding, surface coating and other treatments to further enhance corrosion resistance and pollution resistance under specific working conditions.

-Deep processing integration: providing one-stop processing services such as precision drilling, welding and sealing, flange sintering, and observation window integration to meet the requirements of complex system integration.

Why choose us?

As a professional manufacturer specializing in customized quartz products, we have in-depth research on the corrosion resistance mechanism of quartz materials. We are well aware that corrosion resistance not only depends on the raw materials, but is also closely related to the processing technology. Our core advantage lies in:

-Strictly select high-purity raw materials: All raw materials come from high-quality quartz sand suppliers at home and abroad, ensuring that the impurity content of the finished product is controlled at the industry-leading level.

-Precision machining technology: using CNC machining equipment and dust-free workshop production to avoid secondary pollution or micro cracks during the machining process, ensuring corrosion resistance from the source.

-Technical Support Team: We provide full cycle technical support from material selection, drawing design to usage and maintenance, helping you avoid corrosion risks caused by improper material selection or processing defects.

Customer Application Case (Anonymous)

Case 1: A leading photovoltaic enterprise (high-temperature diffusion furnace tube)

-Customer requirement: During the production of high-efficiency PERC cells, the diffusion furnace tubes are exposed to a high-temperature atmosphere of chlorine, oxygen, and phosphorus sources for a long time. After 12 months of use, micro cracks and corrosion spots appeared on the inner wall of the original imported furnace tube, resulting in a decrease in the uniformity of silicon wafer resistance and a yield loss of about 3%.

-Our solution: We have customized high-purity quartz diffusion furnace tubes for our customers, using imported high-purity quartz sand raw materials, strictly controlling the surface cleanliness during the processing, and precision polishing the inner wall to reduce microcracks and surface defects. At the same time, we have strengthened the sintering of the flange connection part of the tube mouth to ensure sealing.

-Result: After the furnace tube was put into operation, there were no signs of corrosion for more than 24 months of continuous use. The uniformity of silicon wafer resistance was improved to within ± 2%, and the customer's annual yield rate increased by about 2.5%. The equipment maintenance cycle was extended from quarterly to semi annual, significantly reducing production costs.

Case 2: A fine chemical enterprise (strong acid transmission tubeline)

-Customer demand: The company is building a new high-purity hydrochloric acid tubeline. Traditional fluorine lined tubelines are prone to lining bulging and leakage under high temperature (80 ℃) conditions, and the sealing at the joints is difficult to guarantee, posing significant safety hazards.

-Our solution: We have designed and manufactured a customized fossil quartz tube conveying system for our clients, including high-purity quartz straight tubes with a diameter of 100mm and a wall thickness of 5mm, as well as matching variable diameter joints, elbows, and flange connectors. All connection parts use precision ground sealing surfaces, combined with PTFE gaskets to achieve leak free connections.

-Result: The system has been running continuously and stably for over 36 months without any corrosion or leakage accidents. The chemical stability of the quartz tube far exceeds expectations, completely solving the corrosion problem we have been facing for a long time. At the same time, our customized ability to process shaped parts allows us to flexibly layout tubelines, saving a lot of space and installation costs

Case 3: a State Key Laboratory (high-temperature and high-pressure reactor lining)

-Customer requirement: Conduct supercritical water oxidation experiments in the laboratory. The medium inside the reactor is supercritical water, oxygen, and organic pollutants. The temperature can reach up to 550 ℃, the pressure is 25MPa, and the corrosiveness is extremely strong. The original metal reactor experienced severe corrosion after each experiment, and the leaching of metal ions interfered with the experimental data.

-Our solution: We have customized an integrated high-purity quartz reactor liner for our customers, using thick walled quartz tubes with a wall thickness of 10mm. The bottom is sealed and the top is designed with a high-pressure sealing flange interface. For high-temperature and high-pressure working conditions, we have optimized the annealing process to eliminate internal stress and ensure the structural integrity of the lining under extreme working conditions.

-Result: The quartz lining has withstood the test of hundreds of supercritical water oxidation experiments, with a surface intact and no signs of corrosion. The quartz lining has completely solved the problem of metal ion pollution, and the accuracy and repeatability of experimental data have been qualitatively improved. The customized size perfectly matches our existing high-pressure reactor system, achieving plug and play functionality

In the process involving corrosive media, the corrosion resistance of quartz tubes is not only a matter of material selection, but also a key decision related to product quality, production safety, and operating costs. Whether you need high-purity furnace tubes for semiconductor high-temperature diffusion or corrosion-resistant tubeline systems for chemical transportation, we can provide comprehensive customized services from material selection to finished product delivery.

If you are looking for a quartz tube solution with excellent corrosion resistance and deep customization, please feel free to contact us at any time. Our technical team will provide you with professional selection advice and customization solutions.
