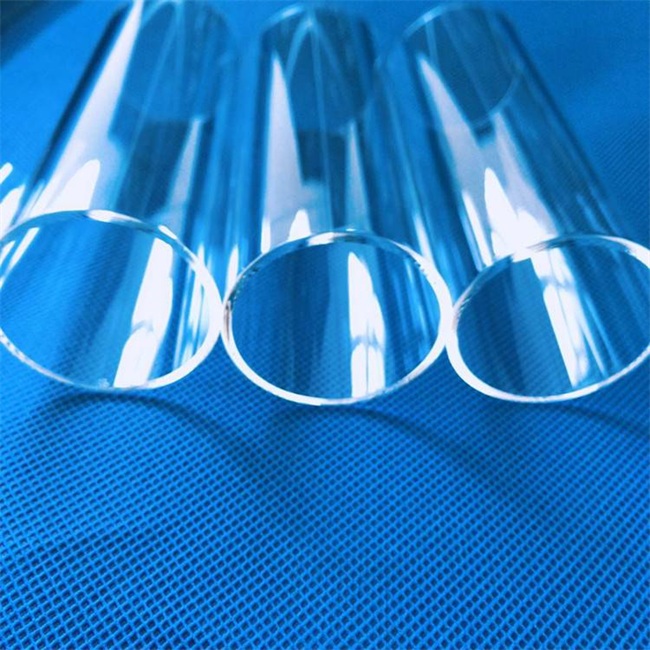

The aerospace industry has extremely strict performance requirements for materials, which require high temperature resistance, thermal shock resistance, high purity, and chemical stability. Quartz tubes have become one of the indispensable key materials in this field due to their unique physical and chemical properties.

The core application of quartz tubes in aerospace

1. Testing of spacecraft thermal protection system

-Application scenario: Quartz tubes are used to simulate high-temperature environments and test the extreme temperature resistance of spacecraft insulation materials (such as ceramic based composite materials).

-Product requirement: High purity quartz tube (SiO ₂ ≥ 99.99%), long-term temperature tolerance ≥ 1200 ℃.

2. Rocket engine observation window and sensor protective cover

-Application scenario: As a combustion chamber observation window or sensor protective cover, quartz tubes need to maintain transparency and structural integrity in high-pressure and high-temperature gas environments.

-Product requirements: low bubble density, high thermal shock resistance (Δ T ≥ 1000 ℃).

3. Satellite optical systems and communication equipment

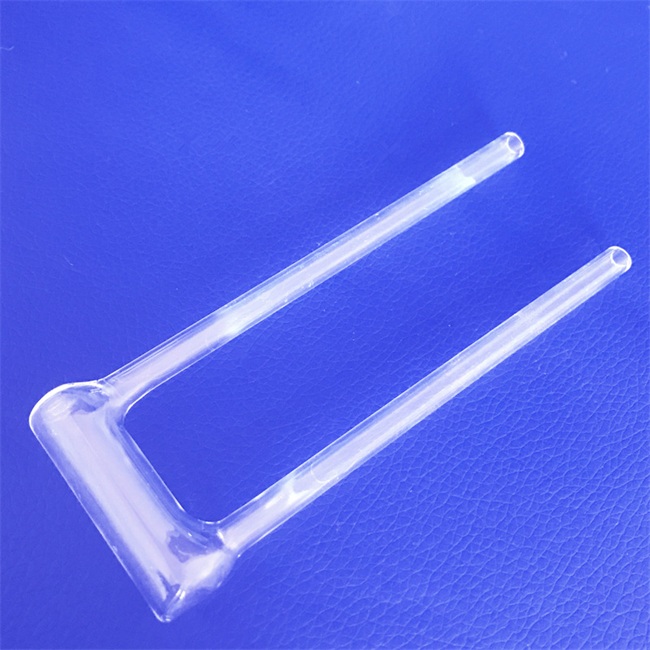

-Application scenario: Quartz tubes are used as UV optical lenses, laser carriers, or antenna protection covers, requiring low thermal expansion coefficient (5.5 × 10 ⁻⁷/℃) and high UV transmittance (≥ 90%).

4. Aerospace grade electronic component packaging

-Application scenario: High purity quartz tubes are used to package precision sensors, oscillators, and other components inside spacecraft to prevent space radiation and particle erosion.

Advantages and Solutions of Quartz Tube

1. Extreme environmental stability

-Resistant to high temperatures of over 1200 ℃ and instant thermal shock with a temperature difference of up to 1000 ℃, avoiding rupture caused by sudden temperature changes.

-Problem solving: Thermal shock during the ignition phase of rocket engines and damage to materials caused by extreme temperature differences in space.

2. High purity and chemical inertness

-SiO ₂ content ≥ 99.99%, no heavy metal precipitation, no reaction with fuel or oxidant.

-Problem solving: Prevent contamination of spacecraft propulsion systems and ensure accuracy of sensor data.

3. Excellent optical performance

-High transmittance in the ultraviolet to infrared band, with a transmittance fluctuation range of less than 0.5% (wavelength 190nm-2500nm).

-Problem solving: Ensure the signal transmission accuracy of satellite remote sensing and navigation systems.

Why choose us?

Deeply cultivate customized experience in foreign trade

We have long served aerospace clients in Europe, America, Asia, and other countries. We are familiar with industry standards such as ISO and MIL-STD, and can provide precise size, purity (up to 99.99%), and shape customization services based on customer drawings or requirements.

Advanced technology and strict quality control

The quartz tube is refined using a two-step method of continuous melting and electric melting to ensure low hydroxyl content (<1ppm) and high uniformity. Each batch of products undergoes high-temperature deformation testing, spectral transmittance detection, and bubble impurity scanning to ensure consistent performance in extreme aerospace environments.

Quick response and technical support

We provide full process technical support from material selection, structural design to application scenario simulation, helping customers optimize the performance of quartz tubes in specific components.

Customer case (anonymous processing)

-A European space agency

Requirement: Develop reusable rocket engines with observation window components that can withstand 1500 ℃.

Solution: We have customized a double-layer structure quartz tube, with the inner layer doped with cerium oxide to enhance radiation resistance and the outer layer treated with frosted to prevent glare.

Result: Passed 50 consecutive ignition tests without deformation or attenuation of transmittance.

-North American satellite manufacturing company

Requirement: Low dielectric loss quartz tube for packaging high-frequency circuits of spaceborne antennas.

Solution: Provide ultra-low loss quartz tubes with a dielectric constant ≤ 3.8, and enhance signal shielding through surface metallization treatment.

Result: The device operated in orbit for 3 years with a performance fluctuation range of less than 0.1%.

Quartz tubes play multiple roles in aerospace, from structural support to functional implementation, and their performance directly affects the reliability and lifespan of spacecraft. As a professional quartz product manufacturer with 15 years of foreign trade experience, we are committed to providing global customers with solutions that are resistant to extreme environments, have a long lifespan, and are customizable through material innovation and precision craftsmanship.

What problems or challenges have you encountered during the use of your product? Welcome to leave a message and communicate with us!
