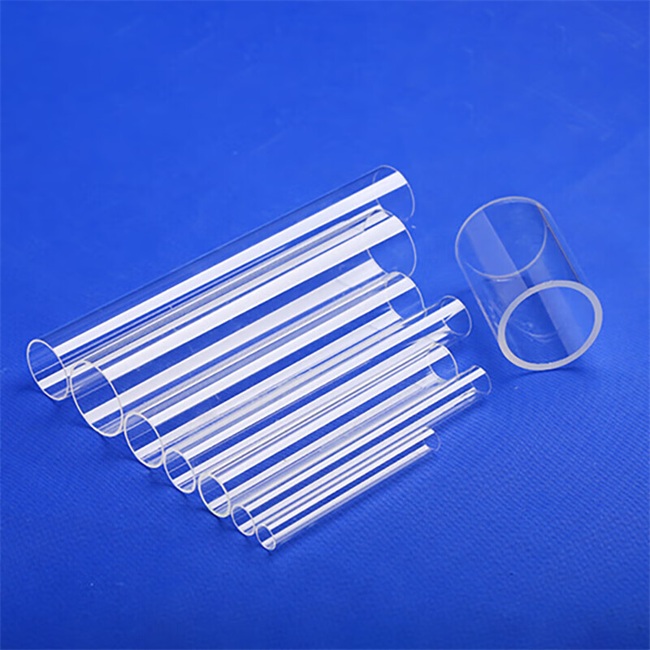

Quartz tube, as a high-performance industrial material, has a wide range of applications in semiconductor manufacturing, optoelectronics, chemical engineering, medical and laboratory equipment fields. Its core advantage lies in its ability to withstand high temperatures and specific pressures, but its specific performance is affected by material purity, processing technology, and usage environment.

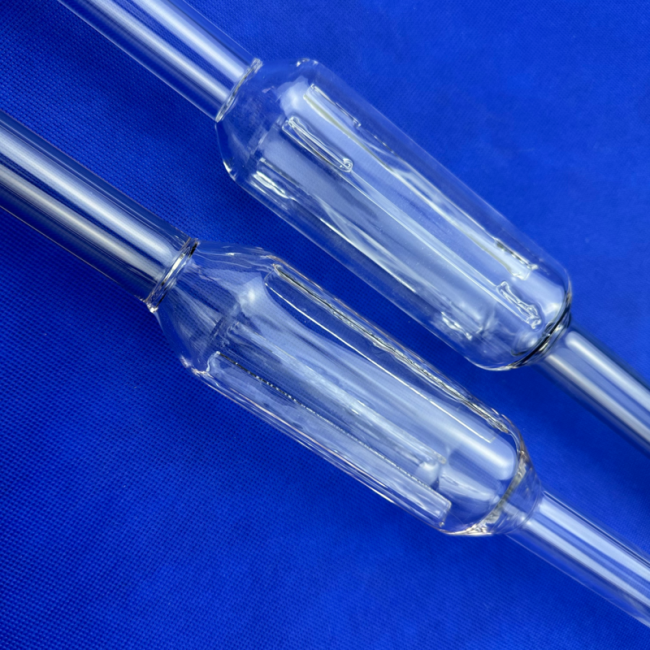

Basic characteristics of quartz materials

The main component of quartz tube is high-purity silicon dioxide (SiO ₂), and its physical properties determine its performance boundary:

Melting point: The melting point of pure quartz is 1713 ℃, but in practical applications, it is usually controlled between 1100-1450 ℃ for long-term use due to impurities such as metal oxides and hydroxyl groups.

Thermal expansion coefficient: extremely low (0.55 × 10 ⁻⁶/℃), but sudden temperature gradients may lead to thermal stress rupture.

Chemical stability: Acid resistant (except hydrofluoric acid), may react with alkaline substances at high temperatures.

Mechanical strength: The compressive strength can reach 800-1000MPa, but the tensile strength is only 48-50MPa, indicating high brittleness.

Deep analysis of temperature tolerance limit

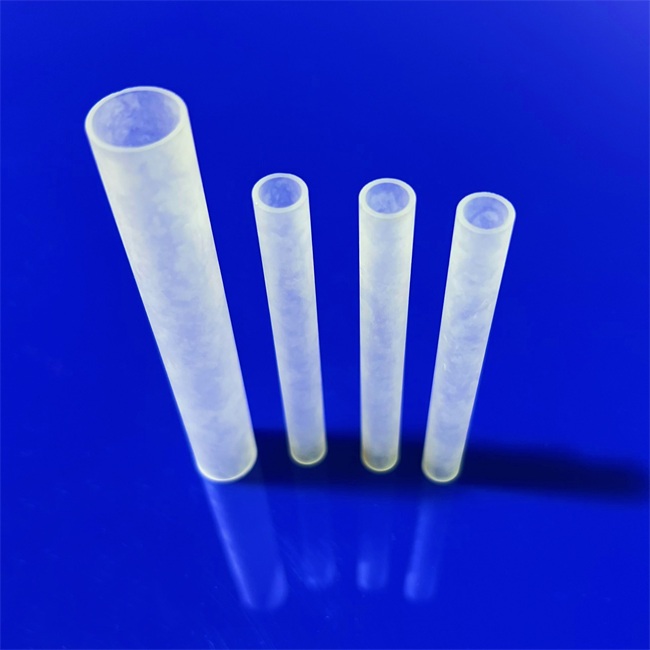

(1) Short term extreme temperature

Theoretical value: In a pure vacuum environment, quartz tubes can withstand high temperatures close to 1700 ℃ for a short period of time (such as tungsten wire packaging in xenon lamps).

Actual constraints:

Gas environment: Oxygen above 1000 ℃ accelerates the breaking of silicon oxygen bonds on the surface of quartz, resulting in the phenomenon of "loss of permeability";

Heating rate: Heating above 100 ℃/min may cause thermal shock rupture;

Impurity impact: For every 10ppm increase in hydroxyl (- OH) content, the long-term use temperature needs to be reduced by about 20 ℃.

Special process strengthening:

Doping treatment: Adding 0.5-1.5% titanium, germanium and other elements can increase the softening point to 1650 ℃;

Surface coating: SiC coating can extend the lifespan by 3-5 times at 1400 ℃.

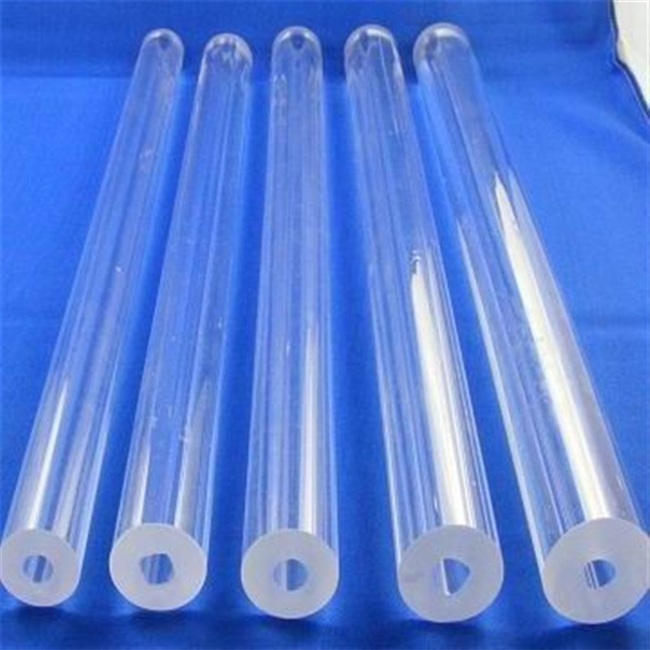

Multidimensional evaluation of stress tolerance

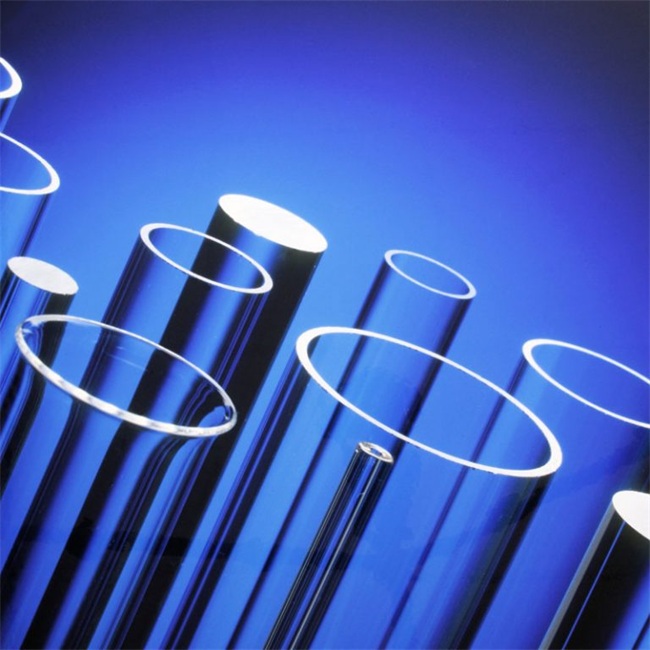

(1) Static pressure limit

Compressive strength: High quality quartz tubes can withstand internal pressures of 100-150MPa (equivalent to a water depth of 1000 meters), but are affected by the following factors:

When the ratio of pipe diameter to wall thickness is greater than 30, the risk of buckling significantly increases;

Temperature coupling effect: For every 100 ℃ increase, the compressive strength decreases by about 8%;

Cyclic fatigue: When the pressure fluctuation amplitude exceeds 30% of the rated value, the service life is shortened by more than 50%.

(2) Dynamic stress and fatigue

Alternating pressure test: At a frequency of 80MPa and 0.1Hz, the lifespan of a regular quartz tube is approximately 10 cycles;

Shock wave tolerance: It can withstand shock waves of less than 0.5MPa, but a buffer layer needs to be installed outside the pipe.

Failure Mode and Detection Warning

(1) Main failure modes

Thermal shock rupture: sudden temperature change exceeding the material strain limit;

Creep deformation: plastic deformation caused by long-term compression at high temperatures;

Chemical corrosion: such as HF gas rapidly corroding the pipe wall above 400 ℃;

Fatigue fracture: Microcrack propagation caused by pressure cycling.

(2) Non destructive testing methods

Infrared thermal imaging: detecting abnormal temperature distribution;

Acoustic emission monitoring: capturing stress waves generated by microcracks;

Laser interferometry measurement: Real time monitoring of pipe deformation.

(3) Life prediction model

The Larson Miller parameter method (P=T (C+logt)) is used for life assessment, where:

P is the material constant (approximately 20 for quartz)

T is the absolute temperature (K)

T is the fracture time (in hours)

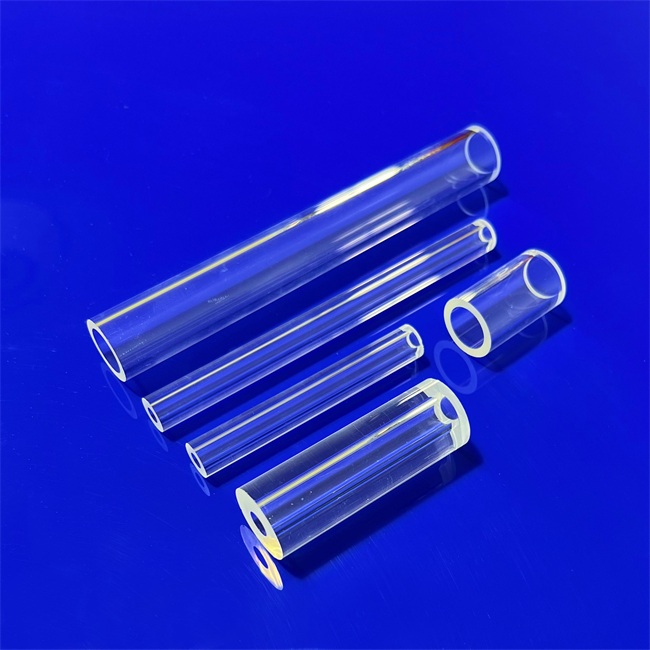

Suggestions for safe use and optimization

Temperature control:

Heating rate<50 ℃/min, cooling rate<30 ℃/min;

Set up a temperature gradient buffer zone (length>5 times the pipe diameter);

Stress management:

It is recommended to control the operating pressure below 70% of the rated value;

Avoid sudden pressure changes exceeding 1MPa/min;

Material selection:

Fused silica is preferred in high temperature environment (＞ 1200 ℃);

Consider synthesizing quartz (such as Suprasil) in environments with strong corrosive media;

Structural design:

Adopting a double-layer casing structure to reduce thermal stress;

Add ceramic support rings to key areas.

The performance boundary of quartz tubes is the intersection of materials science, thermodynamics, and engineering practice. By precisely controlling usage parameters, optimizing material formulations, and introducing intelligent monitoring technology, there is still significant room for improvement in its performance under extreme working conditions. In practical applications, it is recommended to establish a material database based on specific working conditions and determine the safe operating window through accelerated life testing to fully leverage the high-temperature and high-pressure advantages of quartz materials.
