Where can I buy quartz tubes? Professional Guidelines and Global Procurement Solutions

Quartz tubes, as a high-performance industrial material, are widely used in semiconductor manufacturing, photovoltaic energy, optical instruments, laboratory equipment, electric light sources, and chemical equipment due to their excellent high temperature resistance, chemical stability, transparency, and electrical insulation properties. For global buyers, finding a reliable quartz tube supplier is not only related to product quality and production efficiency, but also directly affects the performance and safety of the final product.

The main application areas of quartz tubes

1. Semiconductor and Photovoltaic Industry

-Diffusion process tube: used for high-temperature diffusion process in chip manufacturing

-Photovoltaic quartz boat: a carrier container in the production of solar cells

-LED epitaxial tube: core component of MOCVD equipment

2. Optoelectronics and Lighting Industry

-Halogen lamp, mercury lamp, UV lamp tube shell

-Laser optical components

-Manufacturing of optical fiber preform

3. Laboratory and research equipment

-High temperature reaction tube, observation window

-Analytical instrument sample tube

-Vacuum system components

4. Chemical and environmental protection equipment

-Corrosive medium conveying pipe

-Observation window for exhaust gas treatment

-High purity water preparation system

Advantages and characteristics of professional quartz tubes

Material advantage

-High purity: SiO ₂ content reaches over 99.99%, with extremely low impurity content

-Heat resistance: softening point up to 1730 ℃, long-term use temperature of 1200 ℃

-Thermal stability: extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃), excellent thermal shock resistance

-Optical performance: Good transparency in both ultraviolet and infrared bands

-Chemical inertness: Resistant to most acidic corrosion except hydrofluoric acid and hot phosphoric acid

Process advantage

-Precision machining: The inner and outer diameter tolerances can be controlled within ± 0.1mm

-Complex molding: can customize special shapes such as U-shaped, V-shaped, spiral shaped, etc

-Surface treatment: multiple options including flame polishing, matte treatment, hydrofluoric acid etching, etc

-Secondary processing: additional services such as pipe end flanging, welding, sealing, and drilling

Why Choose Us: A Global Leading Professional Manufacturer of Quartz Products

Core strengths

As a manufacturer specializing in quartz products for 20 years, we integrate advanced technology and strict quality control to provide global customers with:

1. Production capacity of the entire industry chain

-Integrated manufacturing from high-purity quartz sand melting to precision machining

-Self melting ensures material consistency and reduces supply chain risks

2. Professional technical team

-A research and development team composed of experts in materials science, mechanical engineering, and applied physics

-Each order is equipped with a dedicated engineer who provides full process consultation from material selection to application

3. Deep customization capabilities

-Support ODM/OEM cooperation and optimize design according to application scenarios

-Diameter range: 2mm to 450mm

-The length can reach 3000mm (special specifications can be negotiated)

-Wall thickness accuracy: ± 0.5mm (standard requirement)

Customer Application Case (Anonymous)

Case 1: European semiconductor equipment manufacturer

Challenge: A batch of quartz liner tubes for new etching equipment is needed, requiring extremely high dimensional stability (diameter 300mm ± 0.15mm) and low metal impurity content (sodium and potassium<1ppm)

Solution: We have adjusted the melting process parameters, adopted a special annealing program to reduce internal stress, and used a pollution-free processing environment

Result: The product fully meets the specification requirements, and the customer's equipment yield rate has increased by 3%. It has been continuously purchased for three years, and the annual order amount exceeds 500000 US dollars

Case 2: American Photovoltaic Equipment Company

Challenge: Quartz boats for solar cell diffusion furnaces need to work continuously at 1320 ℃, and traditional products are prone to deformation, leading to an increase in fragment rate

Solution: We have developed an enhanced quartz material formula, optimized the support structure design, and improved the high-temperature creep resistance performance

Result: Product lifespan extended by 40%, customer annual maintenance costs reduced by 25%, and strategic supplier relationships established

Case 3: Japan Optical Instrument Laboratory

Challenge: A batch of quartz lens protection tubes with special curvature are required for deep-sea exploration equipment, which must withstand high pressure and have minimal optical distortion

Solution: Using computer simulation assisted design, combined with precision hot bending forming process, customized special detection fixtures

Achievement: The product passed the 200MPa pressure test in one go, and its optical performance fully met the standard. The project won a national scientific research award

Procurement Guide: How to Start Your Quartz Tube Procurement

Standard product procurement

For commonly used specifications, we have some inventory and can provide fast shipping services, covering:

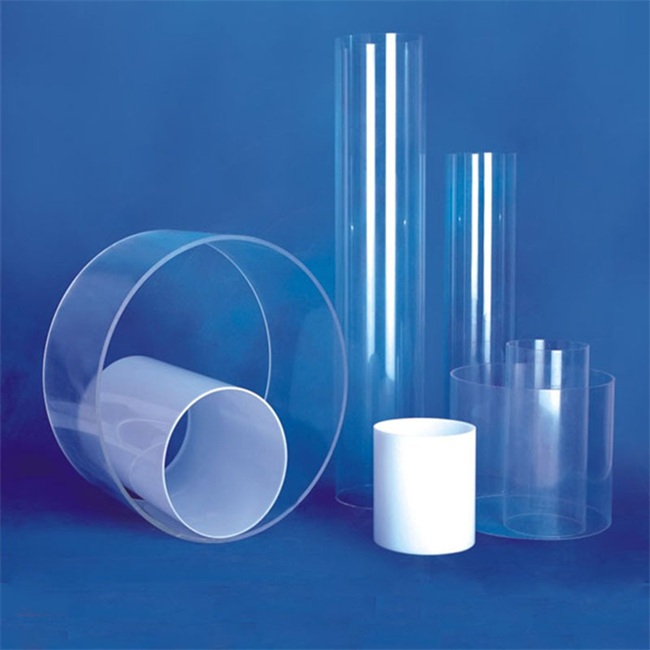

-Transparent quartz tube (outer diameter 3-1500mm)

-Milky quartz tube (infrared heating application)

-UV grade quartz tube (high UV transmittance)

In the globalized industrial division of labor, choosing the right quartz tube supplier is not just about purchasing a product, but also establishing a technology partnership that can enhance your core competitiveness. We have provided reliable quartz solutions to customers in over 30 countries worldwide through our extensive industry experience, strict quality control, and flexible customization capabilities.

Whether you need standard specifications of quartz tubes or customized requirements facing special application challenges, our professional team is willing to provide you with technical support and product solutions.

Contact us immediately for personalized pricing and technical consultation! Please provide your specific application requirements, drawings or samples, and our engineers will provide you with professional advice and customized solutions within 24 hours.

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
