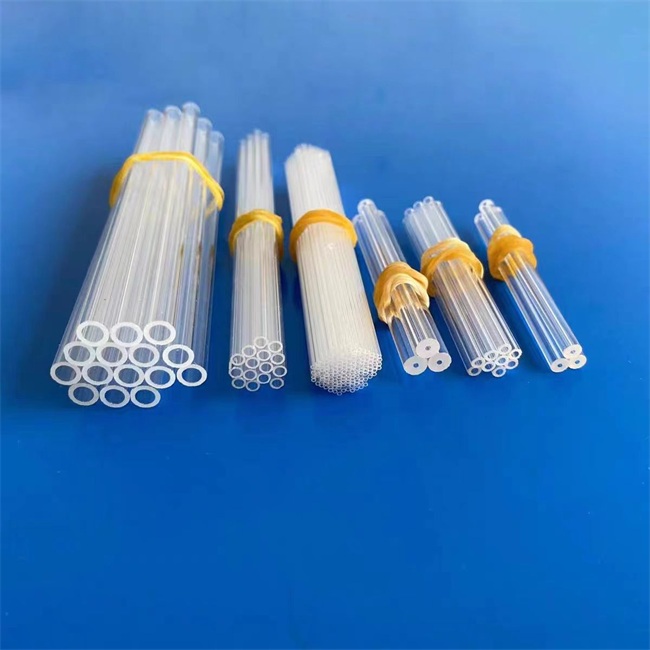

0.2-5 mm transparent capillary fused silica tube
0.2-5mm transparent capillary fused silica tube is a kind of high purity and high-precision quartz glass tube, which is made of high-purity fused silica (SiO ₂), and has excellent high temperature resistance, chemical stability and optical transparency.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
0.2-5mm transparent capillary fused quartz tube
0.2-5mm transparent capillary fused silica tube is a kind of high purity and high-precision quartz glass tube, which is made of high-purity fused silica (SiO ₂), and has excellent high temperature resistance, chemical stability and optical transparency. The inner diameter of the product ranges from 0.2mm to 5mm, and the wall thickness is uniform. It is suitable for various precision experiments, industrial production and scientific research applications.
Core Features
High purity material: SiO ₂ content ≥ 99.99%, low metal impurities, suitable for high-precision experiments.
Excellent temperature resistance: it can withstand the extreme temperature from -200 ℃ to 1200 ℃, and its coefficient of thermal expansion is extremely low.
Chemical inertia: resistant to strong acids (except HF), strong alkalis and organic solvents, with strong corrosion resistance.
Optical transparency: high transmittance from ultraviolet to near-infrared (190nm-2500nm), suitable for optical experiments.
Accurate size: the inner diameter tolerance is ± 0.02mm, and the wall thickness is uniform to ensure the repeatability of the experiment.
Main application fields
1. Laboratory research and analysis
-Chromatographic analysis: used as the capillary column of gas chromatography (GC) and liquid chromatography (HPLC) to improve the separation accuracy.
-Microfluidic technology: used for microfluidic chips and microreactors to achieve precise control of trace liquid.
-Spectral detection: UV/visible/infrared spectrum sample pool, ensuring high transmittance and low interference.
2. Semiconductor and photoelectric industry
-Fiber preform: used for support and protection during fiber drawing.
-Semiconductor technology: gas transmission and etching solution transmission in high-purity environment.
3. Medical and biotechnology
-Minimally invasive surgical instruments: such as endoscopic catheter, minimally invasive surgical tools.
-Drug delivery: Precisely control the delivery of trace liquid medicine to reduce waste.
4. Industrial manufacturing
-High temperature sensor protection tube: protect thermocouple and optical sensor from corrosion and high temperature.
-Precision fluid control: high-precision fluid transmission in chemical and petroleum industries.
Customized service
We provide flexible customized solutions to meet the special needs of different industries:
1. Size customization
-Inner diameter: 0.2mm-5mm (smaller or larger, consultation required)
-Outer diameter: 0.5mm-10mm (adjusted as required)
-Length: standard 1m/piece, any length can be customized
2. Special treatment
-Coating service: antireflective film, reflective film, anti-corrosion coating.
-End face treatment: cutting, polishing and flame sealing to ensure that the end face is smooth without burrs.
-Bending forming: special shapes such as U shape and spiral shape can be customized.
3. Material optimization
-Ultra high purity quartz tube (SiO ₂ ≥ 99.999%), suitable for semiconductor grade applications.
-Doping modification: such as titanium doping, erbium doping, etc., to optimize optical or mechanical properties.
Why choose our products?
1. High precision manufacturing: precision drawing process is adopted to ensure dimensional consistency.
2. Strict quality inspection: each batch shall be tested for light transmittance, size and temperature resistance to ensure reliability.
3. Quick response: small batch trial production and large batch orders are supported, and the delivery cycle is short.
4. Professional support: provide technical consultation to help optimize the application scheme.
The 0.2-5mm transparent capillary fused quartz tube, with its high purity, high temperature resistance, chemical stability and other characteristics, has become an ideal choice for scientific research, medical treatment, semiconductor and other fields. Whether it is standard specifications or special customization, we can provide professional solutions to help your project advance efficiently.
Contact us: get more product parameters, quotations and customized services!
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
