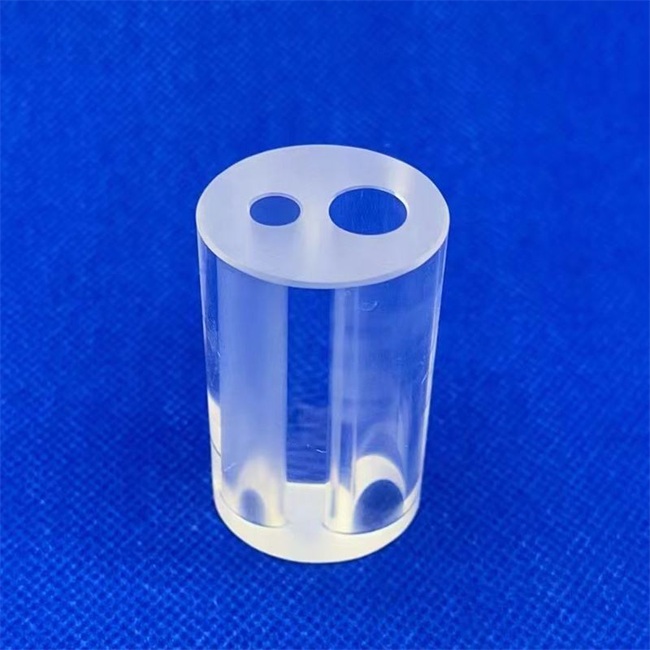

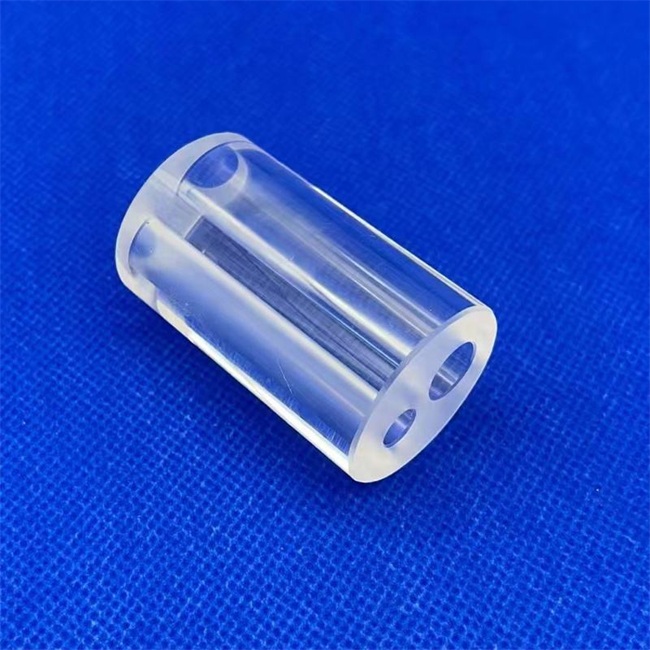

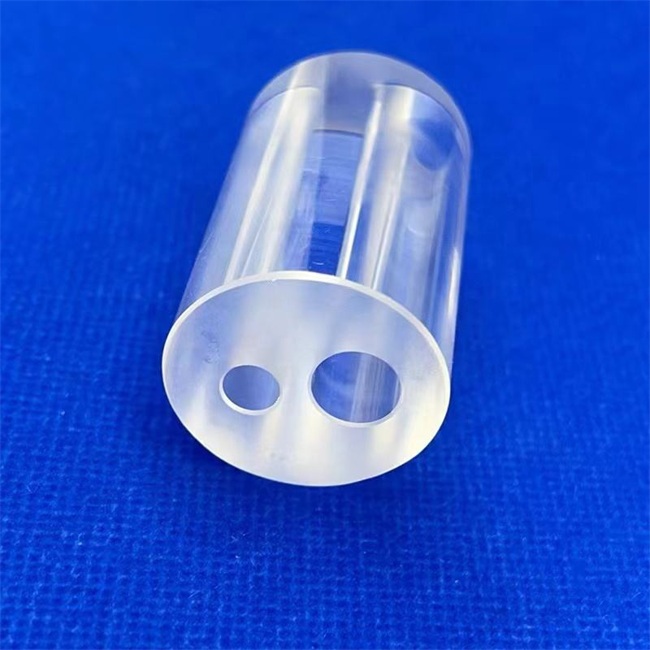

5-30mm diameter double hole transparent fused silica tube
5-30mm diameter double hole transparent fused silica tube is a special kind of high purity, high temperature resistance and high light transmittance quartz glass tube
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
5-30mm diameter double hole transparent fused silica tube
5-30mm diameter double hole transparent fused silica tube is a special kind of high purity, high temperature resistance and high light transmittance quartz glass tube, which is made of high-purity fused silica (SiO ₂ ≥ 99.99%), and has excellent chemical stability, thermal stability and optical performance. This product adopts a dual hole design and is suitable for precision application scenarios that require multi-channel fluid transmission, gas guidance, or synchronous transmission of optical signals.
Core features
-High purity material: SiO ₂ content ≥ 99.99%, extremely low impurities, suitable for high-purity environments.
-High temperature resistance: Long term use temperature can reach 1100 ℃, short-term tolerance 1450 ℃.
-Low thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃, excellent thermal shock resistance, able to withstand rapid temperature changes.
-High transmittance: The transmittance in the ultraviolet to near-infrared band (170nm-2500nm) is>90%, suitable for optical applications.
-Double hole structure: precise coaxial or parallel dual channel design, supporting synchronous transmission of gases, liquids, or optical fibers.
-Chemical inertness: resistant to strong acids (except hydrofluoric acid), strong bases, and organic solvents corrosion.
Typical applications
1. Semiconductor and Photovoltaic Industry
-Wafer processing: used for gas transportation in high-temperature processes such as CVD (chemical vapor deposition) and diffusion furnaces.
-Photovoltaic cell manufacturing: As a high-purity reaction chamber component, it reduces the risk of pollution.
2. Optoelectronics and laser technology
-Fiber optic coupling: The dual hole design can simultaneously accommodate fiber optic and cooling gas, improving the heat dissipation efficiency of the laser.
-UV optical system: High transmittance UV light is suitable for excimer laser and UV curing equipment.
3. Chemical and laboratory equipment
-Corrosive fluid transport: acid and alkali resistant properties suitable for chemical reactors and analytical instrument pipelines.
-High temperature observation window: Transparent characteristics facilitate real-time monitoring of the reaction process.
4. Medical and Life Sciences
-Endoscope components: high transparency+dual channel design, supporting synchronous imaging and instrument operation.
-Bioreactor: Transport of culture medium or gas in a sterile environment.
5. Research and customized experimental equipment
-Synchrotron Radiation Experiment: Beam line components with high temperature resistance and low expansion characteristics suitable for extreme environments.
-Customized reactor: Design a dual hole layout (such as coaxial, eccentric, etc.) according to experimental requirements.
Customized service
We offer flexible size, structure, and surface treatment customization to meet diverse needs:
-Caliber range: 5mm-30mm (supports non-standard sizes).
-Hole design: Double hole (parallel/coaxial), porous, irregular hole, etc.
-Surface treatment: polishing (Ra ≤ 0.4 μ m), coating (anti reflective, stain resistant), flame polishing, etc.
-Additional functions: Pre installed flanges, threaded interfaces, bending forming, etc.
Why choose our product?
1. Problem solving ability:
-Can traditional single hole quartz tubes meet multi-channel requirements? Double hole design achieves synchronous transmission.
-Does high temperature cause deformation of ordinary glass? → fused silica is resistant to high temperature and low thermal deformation.
-Is the transmission loss of ultraviolet light high? → High transmittance+optional anti reflective coating to optimize efficiency.
2. Quality assurance:
-100% optical grade raw materials, pollution-free production throughout the entire process.
-Strict quality inspection (control of bubbles, impurities, and dimensional tolerances).
3. Quick response:
-Provide sample validation and support small-scale trial production to large-scale delivery.
If you need technical parameters or customized solutions, please feel free to consult at any time! We will provide you with professional selection advice and optimization design support.
Luverre fused silica manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
