In the world of advanced thermal processing, semiconductor fabrication, and high-purity chemical research, a standard single-wall quartz tube often fails to meet critical operational demands. The challenge is significant: how do you maintain precise temperature control, ensure operator safety, and protect sensitive materials when furnace temperatures exceed 1000°C? The solution lies in sophisticated double-walled vacuum quartz tube technology.

Double-walled vacuum quartz tube features an inner and outer tube with an evacuated or inert-gas-filled interlayer. This design creates a highly efficient thermal barrier. For procurement managers, engineers, and OEM manufacturers grappling with non-standard specifications, extreme temperature requirements, and the need for rapid, reliable sourcing, this guide provides the technical and commercial answers you need.

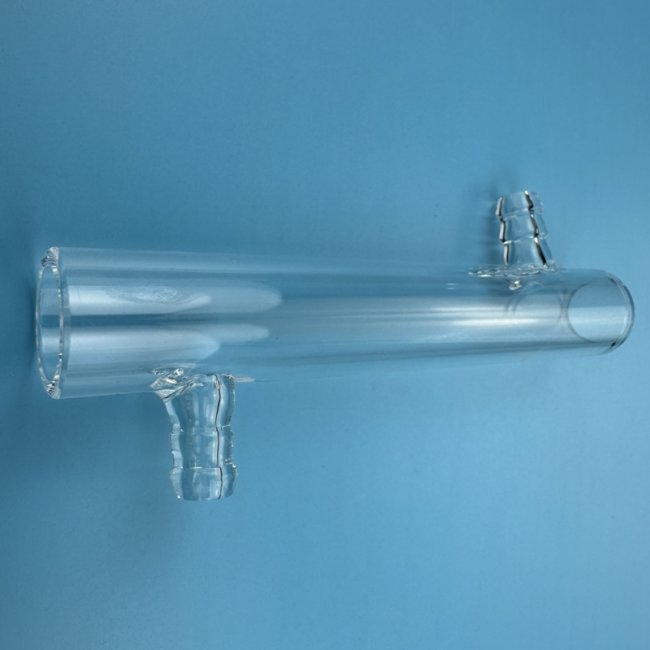

What is Double-Walled Vacuum Quartz Tube?

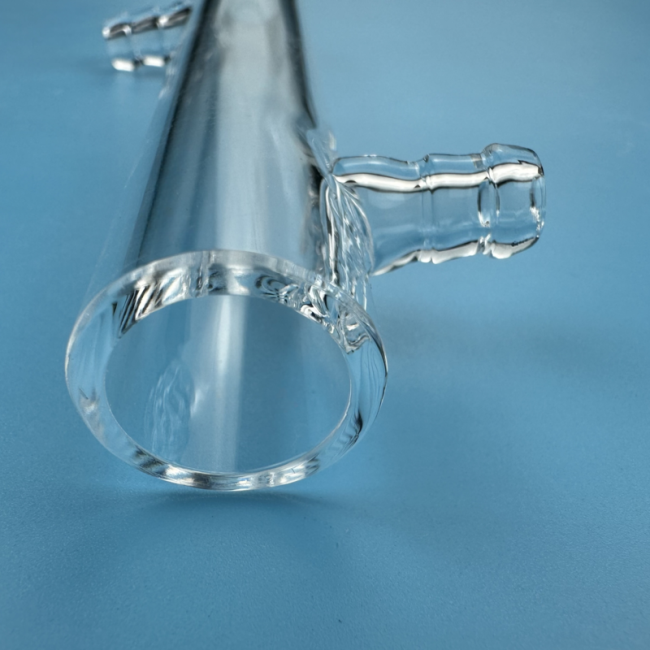

Double-walled vacuum quartz tube is a specialized glass component composed of two concentric quartz tubes sealed together, with the space between them (the annulus) evacuated to create a vacuum or filled with an inert gas. This design acts as a powerful thermal insulator, significantly reducing heat transfer from the inner hot zone to the outer wall.

Unlike standard quartz tubes, the double-walled design is engineered to solve critical problems in high-temperature processes:

- Enhanced Thermal Insulation: The vacuum layer provides superior thermal resistance. In high-temperature experiments, this can lower the outer wall temperature from over 1100°C to a safe, touchable range, protecting operators and extending the life of sensitive O-ring seals.

- Temperature Field Isolation: For CVD, oxidation, or diffusion processes, the double-walled structure helps create a more stable and uniform thermal profile within the reaction chamber, ensuring consistent results.

- Optimized for High Purity: By using high-purity fused silica (SiO₂ > 99.99%), these tubes prevent contamination of semiconductor wafers or sensitive chemical reactions from metallic impurities, a critical requirement for LPCVD and diffusion processes.

Why Choose Double-Walled Over Standard Quartz Tubes?

The choice to use a double-walled vacuum quartz tube is a strategic decision driven by specific operational requirements. It solves distinct engineering challenges that a standard tube cannot address. The primary benefits are safety, process control, and the ability to manage complex fluid dynamics.

While single-wall tubes are sufficient for many applications, engineers turn to double-walled designs when facing the following challenges:

- Overcoming High-Temperature Safety Limits: In a single-walled tube, high internal temperatures conduct to the outside, creating a burn hazard and degrading elastomer seals. The vacuum layer in a double-walled tube creates a thermal break, keeping the exterior at a manageable temperature even when the interior is at 1100°C.

- Superior Thermal Shock Resistance: Quartz glass, while resistant to thermal shock, can still fracture under extreme, rapid temperature changes. The low coefficient of thermal expansion (approx. 5.5 x 10⁻⁷ cm/cm·°C) of high-purity quartz glass, combined with the insulating air gap, provides an extra margin of safety during rapid temperature ramping.

- Enabling Complex Process Design: For applications requiring dual-channel gas transport, such as preheating and mixing reactive gases, a double-walled Y-shaped design allows for independent management of precursor gases, preventing premature reactions and tube blockages.

- Achieving Exceptional Thermal Uniformity: When used in furnace applications, the vacuum layer can act as a buffer, leading to a more uniform radial temperature distribution compared to a single wall, which is crucial for consistent film deposition in semiconductor manufacturing.

Key Applications Across Industries

Double-walled vacuum quartz tubes are critical components in high-end industrial sectors requiring ultra-pure materials, precise temperature control, and process integrity. Their primary applications are in semiconductor manufacturing, chemical vapor deposition systems, and advanced research laboratories.

These products are not commodities; they are engineering components designed for performance under extreme conditions. Here is where they are most commonly used:

- Semiconductor Fabrication: They serve as process chambers for thermal oxidation (900°C-1100°C), dopant diffusion, and Low-Pressure Chemical Vapor Deposition (LPCVD). The double-walled design prevents contamination with sub-ppm metallic purity, maintains precise temperature uniformity, and protects expensive furnace seals from heat degradation.

- CVD & Research Reactors: For advanced material growth like graphene synthesis, these tubes allow for separated precursor gas preheating and mixing. The insulating layer ensures that the reaction occurs exclusively in the correct thermal zone, which optimizes film quality and effectively prevents tube clogging.

- Industrial Furnaces: In high-temperature tube furnaces, the double-walled configuration reduces the outer wall temperature, significantly improving furnace efficiency and overall operator safety. These tubes are engineered to withstand the effects of high-temperature sagging and devitrification.

- Laboratory Equipment: They are used in specialized reactors for photocatalytic reactions or high-temperature cracking. The transparency of quartz allows for CCD monitoring of internal processes, while the insulation maintains the integrity of the reaction environment.

How to Choose the Right Double-Walled Quartz Tube

Selecting the correct double-walled quartz tube requires a careful assessment of your thermal requirements, chemical environment, dimensional constraints, and purity needs. The choice should be driven by these specific parameters to avoid performance failure and ensure long-term reliability.

When specifying a double-walled quartz tube, consider the following criteria:

- Operating Temperature and Thermal Profile: Assess your continuous and peak operating temperatures. High-purity quartz can withstand long-term use at 1100°C-1300°C and short-term exposure up to 1500°C.

- Chemical Compatibility: Quartz glass offers excellent resistance to most acids and alkalis, with the crucial exception of hydrofluoric acid (HF). It is significantly more resistant to acid than ceramic or stainless steel alternatives.

- Dimensional Tolerance and Configuration: Determine if you require a straight tube, a Y-shaped design for multi-channel flow, or a U-shaped tube. Tolerances are critical; for large diameter tubes exceeding 150mm, the standard tolerance is typically maintained at ±0.1% of the diameter.

- Purity Level (OH and Metal Content): For semiconductor applications, verifying low hydroxyl (OH) content is vital to prevent structural sagging at high temperatures.

- Custom Features: Confirm if your application requires features like end-flanges, slots, or precision-ground stop-offs. A reliable manufacturer should offer comprehensive custom quartz tube processing services, including bending, welding, cutting, and polishing.

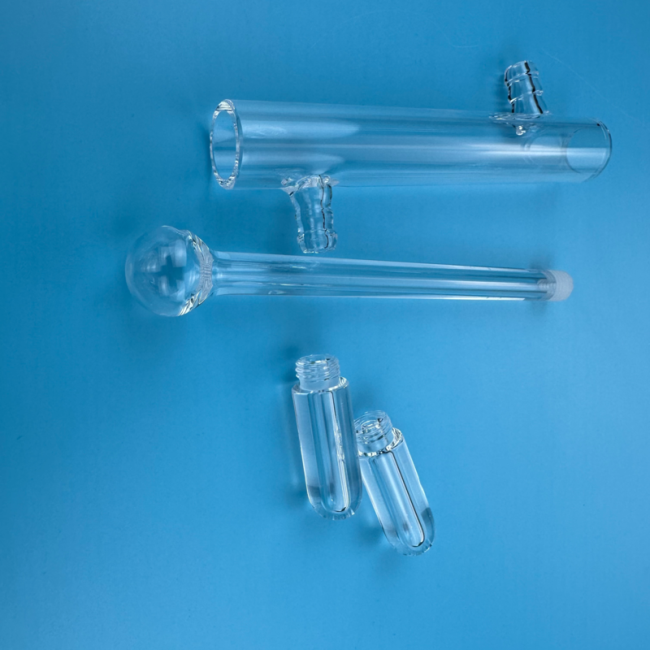

Customization & Specifications

We understand that no two applications are the same. We offer complete customization of double-walled vacuum quartz tubes, including custom diameters (30mm to 500mm), lengths, wall thicknesses, and complex shapes like Y-branches, based on your drawings or samples.

We solve the frustration of "non-standard" procurement. Our capabilities include:

- OEM/ODM Services: We produce according to your exact engineering drawings.

- Sample-Based Production: We can replicate and improve upon existing samples.

- Flexible Order Quantities: We operate without strict MOQ or with a low MOQ, catering to both prototyping and large-scale production needs.

- End-to-End Machining: We handle cutting, fire polishing, bending, sealing, drilling, and grinding.

- Quality Assurance: Each product undergoes strict dimensional, optical, and thermal validation.

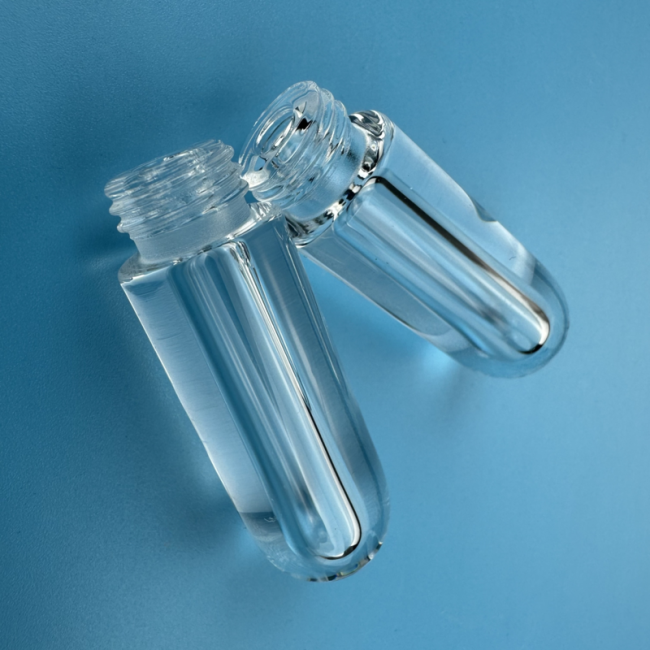

Typical Specification Range for Double-Walled Vacuum Quartz Tubes:

Our manufacturing capability spans a wide range of sizes to fit various furnace and reactor designs. This includes intricate custom shapes such as Y-shaped or branched tubes for specialized gas flow requirements, as well as standard straight tubes for horizontal and vertical furnaces.

Below is a representative overview of our standard capabilities. Please note that all dimensions are highly customizable, and we routinely produce non-standard sizes to meet unique project demands.

- Outer Diameter (OD) Range: 30mm to 500mm, with custom dimensions available upon request.

- Wall Thickness: Standard ranges from 2mm to 5mm, adjustable based on pressure and thermal requirements.

- Length: Up to 3000mm, dependent on the diameter and complexity of the design.

- Material Purity: High-purity natural fused quartz (SiO₂ ≥ 99.99%) and synthetic fused silica for ultra-low metallic contamination.

- OH Content: Available in low-OH (for high-temperature stability) and high-OH (for UV transmission) grades.

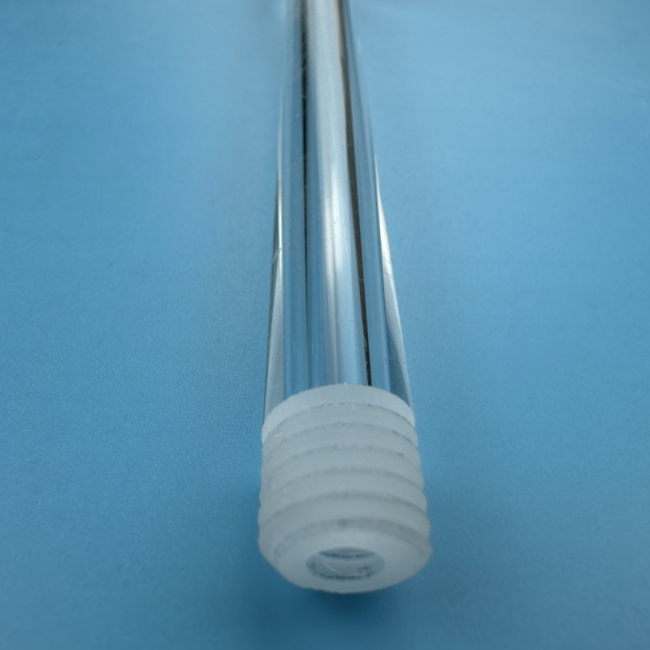

- Custom Shapes: Straight tubes, Y-shaped tubes, U-shaped tubes, and branched configurations with integrated flanges or stop-offs.

- Surface Finish: Fire-polished, ground, or cut ends based on your assembly requirements.

- Tolerance: Precision machining to meet your specified tolerances, typically within ±0.1% for large diameters.

Frequently Asked Questions (FAQ)

What is the maximum temperature a double-walled vacuum quartz tube can withstand?

   For long-term, continuous use, the recommended upper temperature is 1100°C to 1200°C. For short-term or intermittent use, it can withstand up to 1500°C.

How does the vacuum layer improve performance?

   It acts as a thermal insulator, reducing heat transfer from the inner hot zone to the outside. This lowers the outer wall temperature for safety and improves the thermal uniformity inside the chamber.

What are the chemical limitations of quartz glass?

   High-purity quartz glass is highly resistant to almost all acids and alkalis except for hydrofluoric acid (HF), which will attack it.

Can I customize the tube if my required size isn't standard?

   Yes. We offer full customization for outer diameters (OD) from 30mm to 500mm, wall thickness, length, and complex configurations like Y-branches or U-shapes.

How is the purity of the quartz material defined?

   High-purity quartz for semiconductor applications typically boasts an SiO₂ content > 99.99%, with total metallic contamination (Fe, Cu, Na, etc.) kept under 10 ppm.

Can double-walled tubes be used for low-pressure (vacuum) processes?

   Yes, these tubes are perfectly suited for Low-Pressure Chemical Vapor Deposition (LPCVD) and other vacuum-based processes.

What is the typical lead time for a custom double-walled quartz tube?

   For standard custom dimensions, the lead time is typically 7-20 days. Complex shapes may require more time.

How are these tubes packaged for export?

   They are carefully packaged with special protective materials, bubble wrap, and shock-absorbent materials, typically in wooden crates, to prevent damage during shipping.

Can I get a prototype or small batch before a large order?

   Yes. We offer flexible MOQs and can produce small prototype batches to help you test and qualify our components in your system.

Is a double-walled tube better at resisting thermal shock than a single-walled tube?

   While both benefit from quartz's low thermal expansion, the double-walled design provides an additional protective barrier and insulation, making it more forgiving during rapid temperature changes.

What does it mean to have a "low OH" quartz tube?

   "Low OH" refers to a low hydroxyl content in the quartz. This is crucial for high-temperature applications as it minimizes devitrification (crystallization) and prevents the tube from sagging during long thermal cycles.

Do you require a specific coating for the quartz tubes?

   We can work with you to determine if a specific coating is needed for your process, but uncoated high-purity quartz is the standard for most applications due to its excellent inherent properties.

Can you produce a Y-shaped double-walled tube for gas mixing?

   Yes. We specialize in custom shapes, including Y-shaped and branched double-walled tubes that allow for separate gas inlet channels, which is ideal for complex CVD processes.

What is the difference between fused quartz and synthetic fused silica?

   Natural fused quartz is made from crystalline silica. Synthetic fused silica is man-made, resulting in even higher purity and fewer impurities. We can supply both based on your requirements.

Why Choose Us as Your Quartz Glass Manufacturer?

We are not just a supplier; we are your engineering partner. With over 20 years of expertise, we solve the critical problems of non-standard size procurement, high-temperature stability, and quality inconsistency. Our customer-centric approach provides end-to-end support, from design to delivery.

- Engineering Excellence: We are a national-level specialized and innovative enterprise with a complete industry chain integration.

- Unmatched Customization: Our vast mold library and skilled engineers allow us to accept complex custom fabrication requests, from Y-shaped reactors to multi-branch designs.

- Quality without Compromise: We use high-purity natural and synthetic quartz, with rigorous quality control to meet high-end semiconductor and optical standards.

- Reliable Global Shipping: We have extensive experience in exporting globally, ensuring fast and safe delivery to your facility.

- Responsive Service: We provide prompt, professional quotes and technical support to address your specific challenges.

Double-walled vacuum quartz tubes are high-purity (SiO₂ > 99.99%) custom-engineered glass components designed for semiconductor, CVD, and high-temperature furnace applications. They use an evacuated interlayer to provide superior thermal insulation and safety, allowing the interior to reach extreme temperatures while keeping the outer wall at a safer temperature. We offer extensive customization (30-500mm OD) for complex applications like Y-shaped reactors and handle any order size. These tubes are characterized by low thermal expansion and high chemical inertness.
