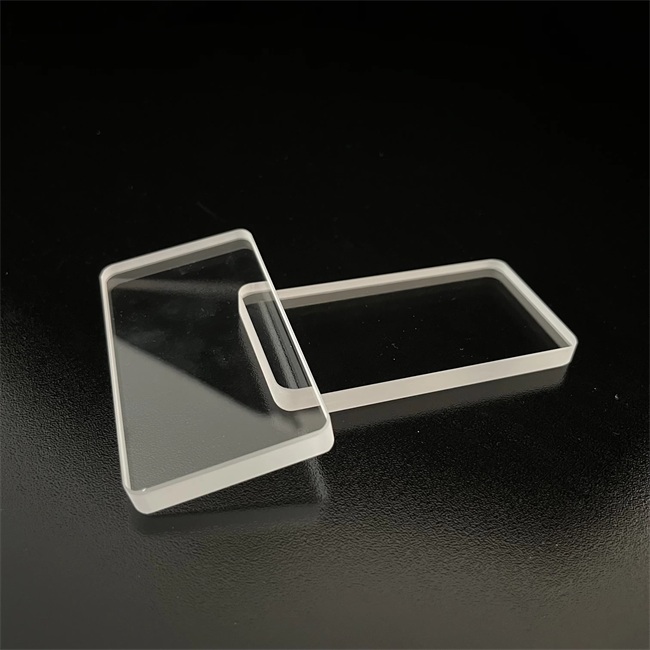

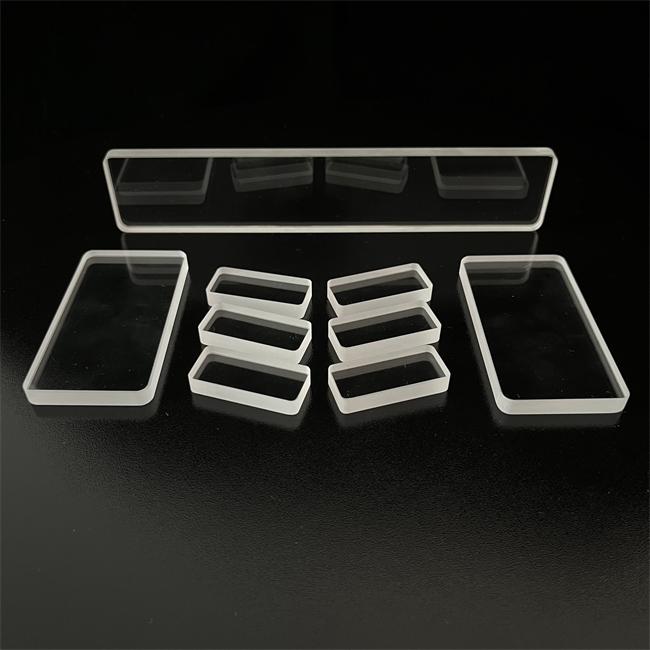

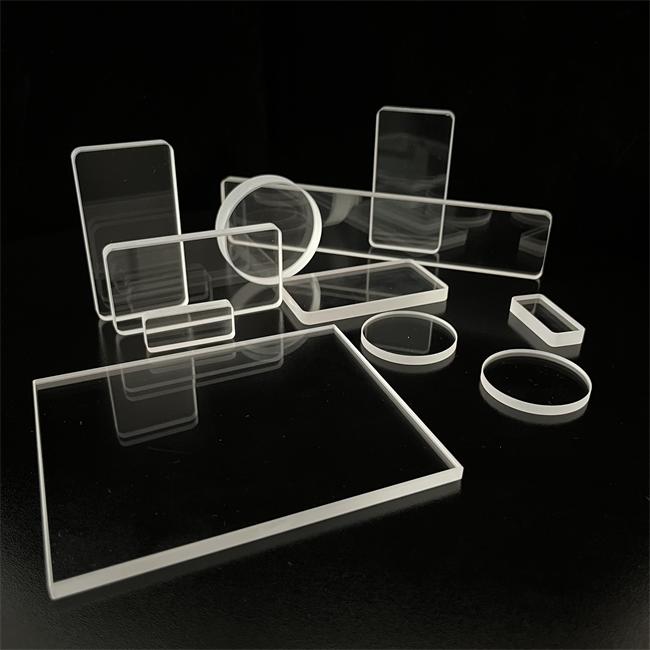

The round square transparent UV quartz plate with high transmittance is an optical element made of high-purity fused silica (silica) material, which has high UV transmittance, excellent high temperature resistance and excellent chemical stability. This product is suitable for multiple high-end fields such as UV curing, laser optics, semiconductor manufacturing, and medical equipment, and can effectively improve the performance and reliability of optical systems.

Frequently Asked Questions (FAQ)

Q: What is the specific transmittance of this UV quartz plate in the ultraviolet spectrum?

A: Our high-transmittance transparent quartz plates offer excellent transmission performance in the deep ultraviolet and ultraviolet bands. In the ultraviolet spectral region, transmittance can reach over 80%, while transmittance in the visible light region exceeds 93%. Depending on the application, we also offer materials of different grades, such as JGS1 (far-ultraviolet grade) and JGS2 (ultraviolet grade).

Q: What are the maximum custom sizes for round and square quartz plates?

A: We have proven capabilities for processing large-size components. Round plates can be custom-made up to a maximum diameter of 500 mm, while square plates can reach dimensions of up to 700 mm × 700 mm. Thickness can be flexibly adjusted within the range of 1–100 mm based on requirements. Specific specifications can be precisely cut and polished according to drawings.

Q: Will these quartz plates shatter when used in high-temperature environments?

A: No. These quartz plates have an extremely low coefficient of thermal expansion—1/10 to 1/20 that of ordinary glass—and exhibit excellent thermal stability. Tests have shown that even when heated to 1,100°C and then immediately placed in room-temperature water, they will not shatter, allowing them to withstand various environments with extreme temperature fluctuations with ease.

Q: Aside from high light transmittance, how does this product perform in terms of chemical resistance?

A: Quartz plates are acidic materials with extremely high chemical stability. With the exception of hydrofluoric acid, they react with almost no acidic substances. Their acid resistance is 30 times that of ceramics and 150 times that of stainless steel, enabling them to effectively withstand erosion in corrosive environments.

Core features

-High transmittance: With a transmittance of over 90% in the ultraviolet band (200-400nm), it ensures efficient transmission of UV light.

-High temperature resistance: capable of withstanding temperatures above 1000 ℃, suitable for extreme working environments.

-Low thermal expansion coefficient: Excellent thermal stability, reducing optical deformation caused by temperature changes.

-High chemical inertness: resistant to acid and alkali corrosion, suitable for corrosive environments.

-Precision machining: supports customization of various shapes such as circular and square, with high dimensional accuracy and excellent surface smoothness.

Application

1. UV curing industry

-Solution: Traditional glass has a high absorption rate of UV light, resulting in low curing efficiency.

-Application scenarios: Used for UV-LED curing equipment, printing coating, 3D printing, etc., to improve light energy utilization and accelerate curing speed.

2. Laser optical system

-Problem solved: Ordinary optical components are susceptible to damage from high-energy lasers and have a short lifespan.

-Application scenario: As a window mirror and reflector substrate for lasers, it is suitable for equipment such as ultraviolet laser cutting and marking.

3. Semiconductor and Lithography Technology

-Problem solved: The photolithography process requires high-purity materials to avoid contamination.

-Application scenario: Used for optical components in photolithography masks and wafer processing, ensuring high-precision pattern transfer.

4. Medical and research equipment

-Solution: UV optical components need to have both biocompatibility and durability.

-Application scenarios: UV disinfection equipment, spectrometers, microscope lenses, etc.

5. Other industrial sectors

-High temperature observation windows, solar panel testing equipment, aerospace sensors, etc.

Customized service

We provide comprehensive customized solutions to meet the special needs of different customers:

1. Customization of size and shape

-Support cutting of irregular shapes such as circles, squares, and rectangles, with a diameter or side length range of 5mm to 500mm.

-Thickness customization: 0.5mm-20mm, with an accuracy of ± 0.01mm.

2. Surface treatment options

-Anti reflective film (AR coating): reduces reflection loss and improves specific band transmittance.

-Hard coating: enhances surface wear resistance and extends service life.

3. Special performance optimization

-Doping modification: Adjust the UV/IR transmittance characteristics of quartz plates.

-Double sided polishing: Ultra smooth surface (Ra ≤ 0.5nm), suitable for high-precision optical systems.

4. Batch production and rapid delivery

-We can undertake both small-scale trial production and large-scale production, providing urgent production services.

Why choose our UV quartz film?

1. Material purity guarantee: high-purity quartz sand with a purity of 99.99% or higher is used to avoid impurities affecting optical performance.

2. Strict quality inspection standards: Each batch of products is tested by spectrophotometers, interferometers, etc. to ensure transparency and surface accuracy.

3. Rich industry experience: Serving leading enterprises in multiple fields such as semiconductors, lasers, and healthcare.

4. Comprehensive technical support: providing value-added services such as optical design consultation and coating solution recommendation.

If you need to learn more about product parameters or obtain samples, please contact us and we will provide you with professional technical support and customized solutions!

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
