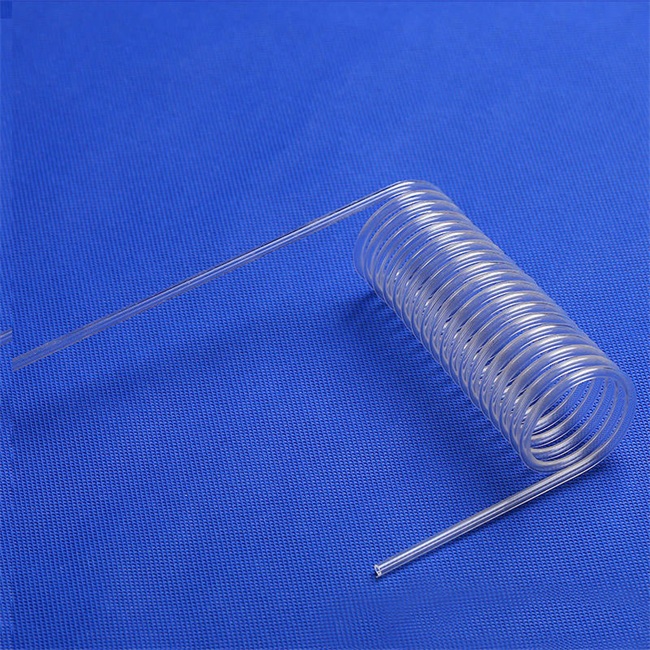

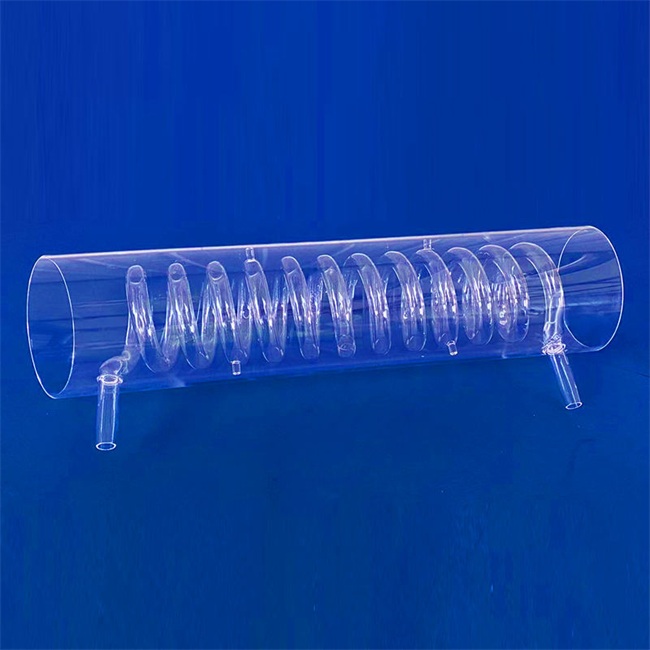

Diameter 3-500mm spiral quartz glass heating tube
Spiral quartz glass heating tube is a high-performance heating element, made of high-purity quartz glass, with excellent high temperature resistance, corrosion resistance and thermal stability.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Diameter 3-500mm spiral quartz glass heating tube
Spiral quartz glass heating tube is a high-performance heating element, made of high-purity quartz glass, with excellent high temperature resistance, corrosion resistance and thermal stability. The product has a wide range of calibers (3-500mm), and can be customized according to different application requirements. The spiral shape ensures efficient and uniform heat conduction.
Core Features
High temperature resistance: up to 1200 ℃ high temperature, suitable for extreme heating environment.
Fast heating: quartz glass has fast thermal response, high heating efficiency, energy saving and electricity saving.
Strong corrosion resistance: acid and alkali resistance, oxidation resistance, suitable for chemical corrosive environment.
High light transmittance: It can be used for optical applications such as infrared heating and ultraviolet curing.
Long life: stable structure, not easy to aging, service life far beyond ordinary metal heating tube.
Main application fields
Spiral quartz glass heating tubes are widely used in industries that require accurate and efficient heating. The following are typical application scenarios:
1. Industrial heating
-Semiconductor manufacturing: used in high temperature processes such as wafer heating and vacuum coating.
-Chemical industry: corrosive liquid heating, reactor temperature control.
-Glass processing: high temperature treatment such as glass softening and hot bending.
2. Laboratory and scientific research
-Material research: high temperature sintering and thermal analysis experiments.
-Optical experiment: infrared radiation heating, ultraviolet curing.
3. Food and medicine
-Food drying: low temperature drying to avoid nutrient loss.
-Medical sterilization: high temperature sterilization, no pollution risk.
4. Environmental protection and new energy
-Exhaust gas treatment: high temperature decomposition of VOCs (volatile organic compounds).
-Lithium battery production: pole piece drying, electrolyte heating.
Customized service
We provide a full range of customized solutions to ensure that the products perfectly match your needs:
1. Size customization
-Pipe diameter range: 3mm-500mm (support for large diameter requirements).
-The number of spiral turns, pitch and length can be adjusted according to requirements.
2. Power and voltage adaptation
-Supports different power (100W-20kW) and voltage (12V-380V) designs.
-Customizable single-ended or double-ended wiring mode.
3. Special process treatment
-Coating treatment: increase infrared reflectivity and improve heating efficiency.
-Explosion-proof design: suitable for high pressure or explosive environment.
-Acid Resistance Enhancement: Enhance corrosion resistance against strong acid environment.
Why choose our spiral quartz glass heating tube?
Solve industry pain points
Traditional metal heating tube is easy to corrode → quartz glass is acid and alkali resistant and has a longer life.
Uneven heating leads to low yield → spiral structure optimizes heat distribution and improves product consistency.
High energy consumption, slow heating → high thermal efficiency of quartz glass, energy saving more than 30%.
Special environment cannot be satisfied → customized design can adapt to vacuum, high pressure and corrosive working conditions.
Quality assurance
-Use high purity quartz raw materials to ensure stable performance.
-Strict QC, each product has passed high temperature and pressure resistance tests.
-Provide professional technical support to assist in type selection and installation.
Whether it is industrial heating, scientific research experiments, or food and pharmaceutical production, our spiral quartz glass heating tubes can provide efficient, stable and durable solutions. Support all-round customization to meet your special needs!
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
