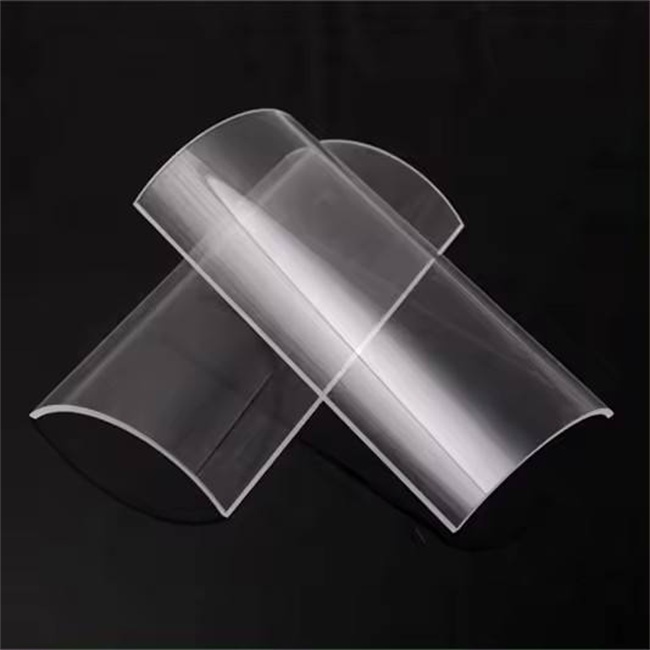

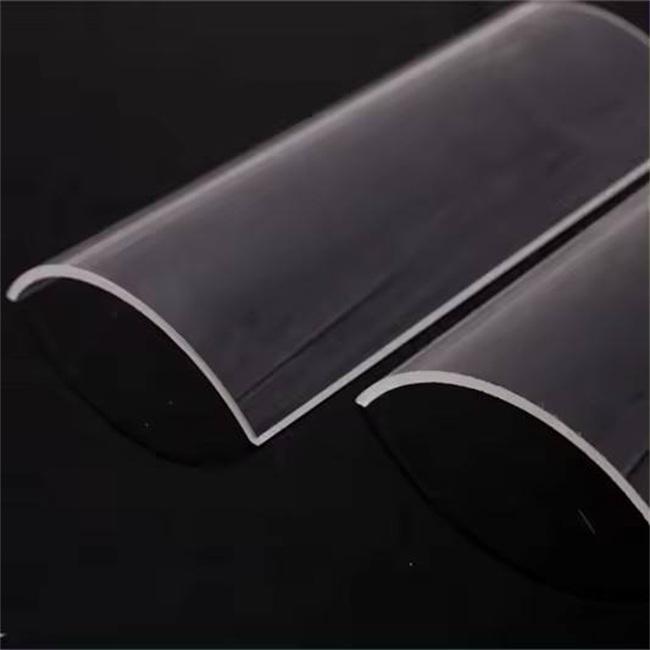

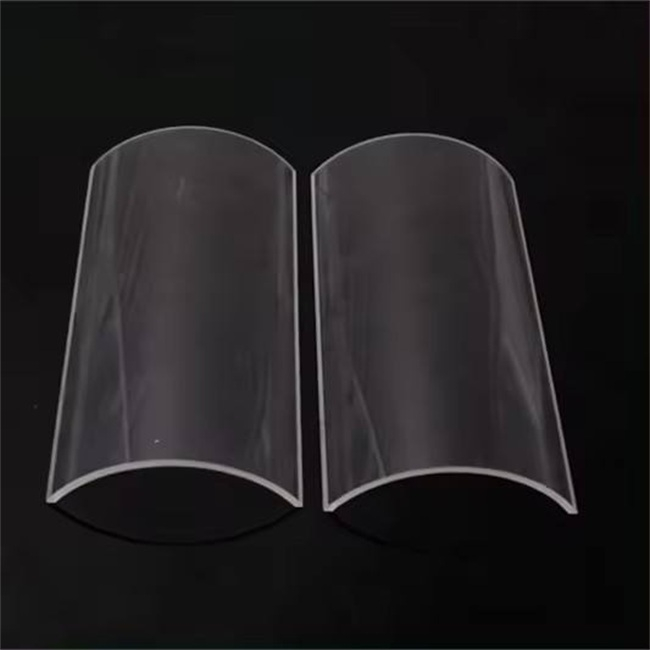

Transparent curved UV fused silica glass plate
Transparent curved UV fused silica glass plate is a special glass material with high purity, high light transmittance, high temperature resistance and UV resistance.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Transparent curved UV fused silica glass plate
Transparent curved UV fused silica glass plate is a special glass material with high purity, high light transmittance, high temperature resistance and UV resistance. Made of high-purity fused silica (SiO ⊃2;), it has excellent optical properties, chemical stability and thermal stability, and can be customized into various curved shapes to meet the needs of high-precision optical components in different industries.
- High light transmittance: excellent light transmittance in the ultraviolet (UV), visible and near-infrared bands (transmittance > 90%).
- High temperature resistance: can withstand high temperatures above 1000 ° C, with an extremely low coefficient of thermal expansion, suitable for high temperature environments.
- UV resistance: It has an extremely high transmittance to the UV band (200-400nm), suitable for UV optical systems.
-Chemical stability: resistant to strong acids, alkalis, and organic solvents, suitable for harsh chemical environments.
- High mechanical strength: high hardness, scratch resistance, long service life.
- Customizable curved surfaces: support single, hyperboloid, spherical, aspherical and other shapes to meet different optical design requirements.
Product application
Transparent curved UV fused silica glass plate is widely used in the following fields due to its excellent performance:
1. Optical instruments
- Used in ultraviolet spectrometers, laser optical systems, high-precision lenses, prisms, and other optical components.
- Suitable for high-end equipment such as deep ultraviolet (DUV) lithography machines and high-energy lasers.
2. Semiconductors and optoelectronics
As an optical window or mask substrate in wafer processing, photolithography, and etching processes.
- UV curing process for LED, OLED, Micro-LED and other display technologies.
3. Medical and biotechnology
- Used in UV disinfection equipment, medical laser therapy equipment, DNA sequencers, etc.
As a transparent substrate material for biochips and microfluidic devices.
4. Aerospace and defense
- Used for high-precision optical sensors, missile seekers, satellite remote sensing lenses, etc.
The high temperature resistance makes it suitable for extreme environments such as rocket engine observation windows.
5. Industry and research
- Used for high temperature observation windows, chemical reactor windows, UV curing equipment, etc.
In the field of scientific research, it can be used in high-end experimental devices such as synchrotron radiation and X-ray optics.
Customized service
We provide a full range of customized solutions to meet the specific needs of different customers.
1. Size and shape customization
- Can produce round, square, special-shaped and other specifications of glass panels.
- Supports complex optical surface processing such as single curved surface, hyperboloid surface, and free curved surface.
2. Coating customization
- Provide optical coatings such as anti-reflection coatings (AR), reflection coatings, spectroscopic coatings, and filter coatings to optimize transmittance or reflectivity in specific wavebands.
- Customized high temperature resistant, anti-fog, anti-reflection and other special function coatings.
3. Surface treatment
Ultra-precision polishing ensures surface roughness up to nanometer (Ra < 1nm).
Special treatments such as anti-glare (AG) and anti-fingerprint (AF) are available.
4. Special performance optimization
Low-fluorescence, low-impurity version for high-sensitivity optical inspection.
- High uniformity version with reduced optical distortion, suitable for imaging systems.
The problem that the product can solve
1. Optical observation problems in high temperature environments: traditional glass is easily deformed or loses light transmission at high temperatures, while fused silica glass can operate stably in environments above 1000 ° C.
2. Material limitations of UV optical systems: Ordinary glass absorbs UV light severely, while this product still maintains a high transmittance in the UV band.
3. Difficulties in the implementation of complex optical designs: By customizing the surface shape, high-end requirements such as aspherical lenses and free-form surface optics can be met.
4. Durability issues in harsh chemical environments: It can remain stable in strong acid, alkali or plasma environments, prolonging the service life of the equipment.
Transparent curved UV fused silica glass plates are ideal for high-end optical applications. Whether it is a standard product or a custom need, we can provide professional technical support and solutions. Please contact us for more technical parameters or sample testing.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
