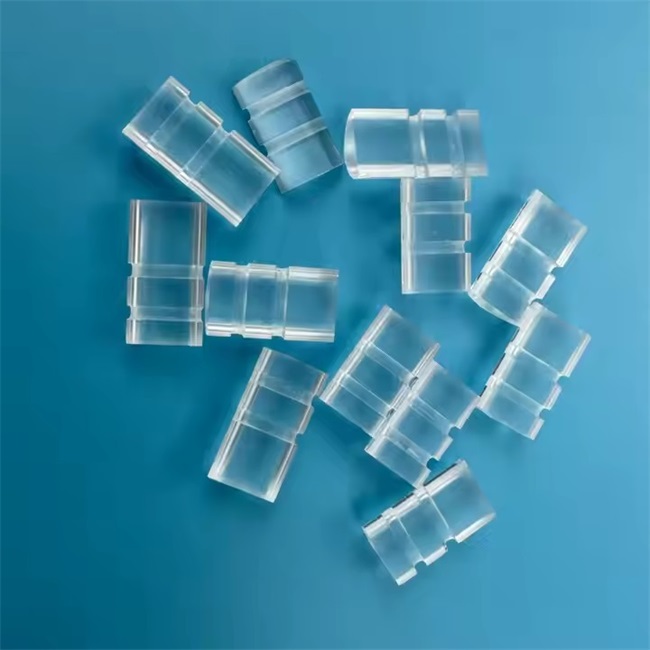

Electronic component substrate quartz rod
Electronic component substrate quartz rod is a high-purity and highly stable quartz material mainly used in the manufacturing of electronic components. Its main component is silicon dioxide (SiO ₂).
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

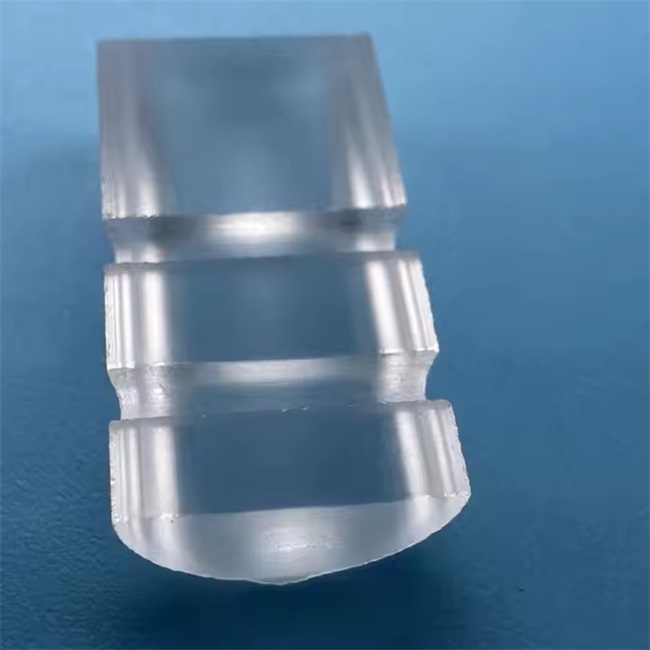

Electronic component substrate quartz rod
Electronic component substrate quartz rod is a high-purity and highly stable quartz material mainly used in the manufacturing of electronic components. Its main component is silicon dioxide (SiO ₂).
Main features:
-High purity: The impurity content is extremely low, usually less than 10ppm.
-Low hydroxyl content: The hydroxyl content is less than 30ppm.
-Excellent thermal stability: softening point up to 1670 ℃, annealing point at 1210 ℃.
-Good chemical stability: Excellent performance in high temperature and corrosive environments.
Application of electronic component substrate quartz rod
1. Semiconductor manufacturing:
-As a chip substrate, it is used for manufacturing monocrystalline silicon and polycrystalline silicon.
-Used for semiconductor manufacturing processes such as photolithography, oxidation, diffusion, etching, etc.
-As a photomask substrate, it is used for high-precision photolithography processes.
2. Manufacturing of electronic components:
-As the base material for high-frequency components, oscillators, and filters.
-Used for manufacturing electronic components such as capacitors and resistors.
3. Optical field:
-Used for manufacturing optical components such as optical windows and lenses.
4. Other applications:
-As an insulating material, used for high-voltage electrical equipment.
-Used for manufacturing semiconductor grade quartz products, such as quartz boats, quartz tubes, etc.
Customized description of electronic component substrate quartz rod
The electronic component substrate quartz rod can be customized according to the specific needs of customers, including:
1. Size customization:
-The outer diameter range is from a few millimeters to 160 millimeters, and the length can be customized according to requirements.
-Quartz rods of different diameters and lengths can be produced according to drawings or specific requirements.
2. Purity and impurity control:
-Provide high-purity quartz rods with impurity content that can be controlled at extremely low levels.
3. Geometric accuracy customization:
-High precision geometric dimension control can be achieved to ensure the flatness and consistency of the substrate.
4. Other customizations:
-According to application requirements, low hydroxyl content quartz rods can be customized.
-Provide transparent, semi transparent, or white quartz rods to meet different optical and electronic applications.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
