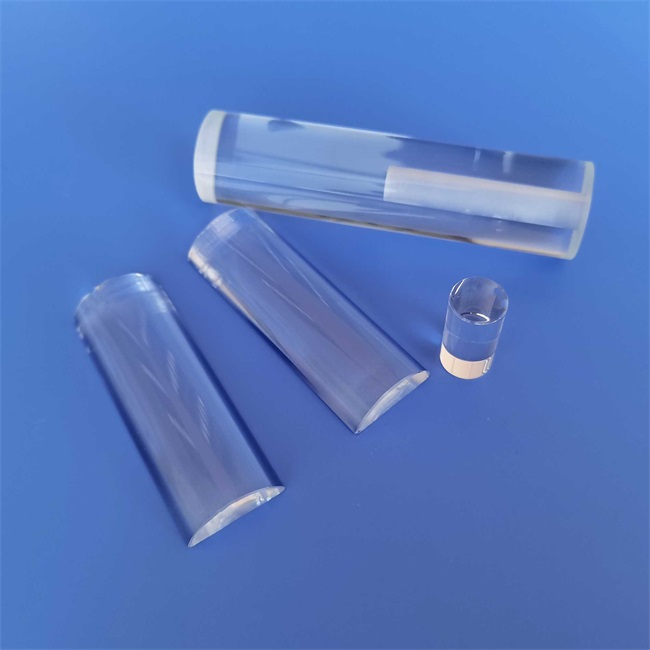

Superconducting magnet insulation quartz rod
Superconducting magnet insulation quartz rod is an insulation material used in superconducting magnet systems.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

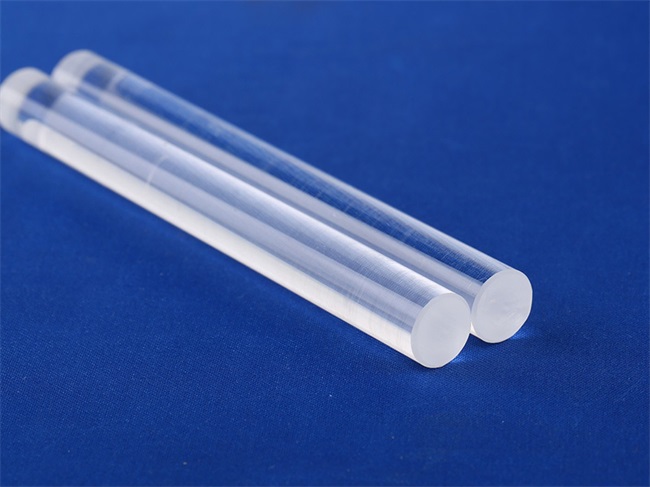

Superconducting magnet insulation quartz rod
Superconducting magnet insulation quartz rod is an insulation material used in superconducting magnet systems. Quartz rods have high strength, high temperature resistance, chemical inertness, and excellent insulation properties, which can effectively isolate high-voltage components in low-temperature environments. It mainly serves as insulation and mechanical support in superconducting magnets, ensuring the stable operation of superconducting coils in low-temperature and high magnetic field environments.
Application
Quartz rods, as insulation components for superconducting magnets, are widely used in the following fields:
-Magnetic confinement fusion device: In tokamak devices, quartz rods are used to support and insulate superconducting coils, ensuring the stability and safety of the magnetic field.
-High energy physics accelerator: used for fixing and insulating superconducting magnets in accelerators to ensure stable acceleration of particle beams.
-Magnetic resonance imaging (MRI) equipment: In medical MRI systems, quartz rods serve as insulating components to ensure high uniformity and stability of the magnets.
-Research and precision instruments: such as X-ray monochromator support rods in synchrotron radiation devices, the high rigidity and low thermal deformation characteristics of quartz rods make them ideal materials.
Customized description
The customization of quartz rods is mainly based on the specific application scenarios and design requirements of superconducting magnets:
-Size customization: Quartz rods can be customized in different lengths, diameters, and shapes based on the size and structure of the magnet to meet specific installation requirements.
-Performance optimization: The material formula and production process of quartz rods can be adjusted for different low-temperature environments and magnetic field strengths to optimize their insulation performance and mechanical strength.
-Surface treatment: In order to improve insulation performance and corrosion resistance, the surface of quartz rods can be treated with special coatings.
-Integrated design: Quartz rods can be integrated with other insulation materials or structural components to form a composite insulation system to meet complex engineering requirements.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
