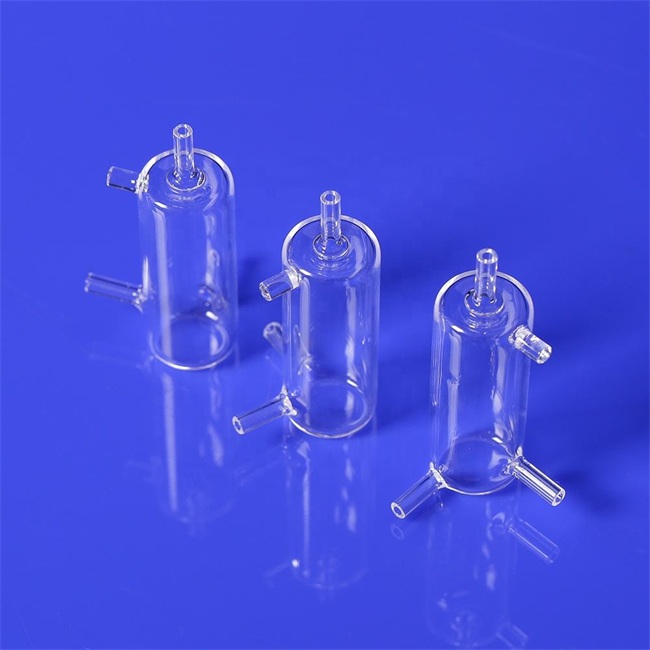

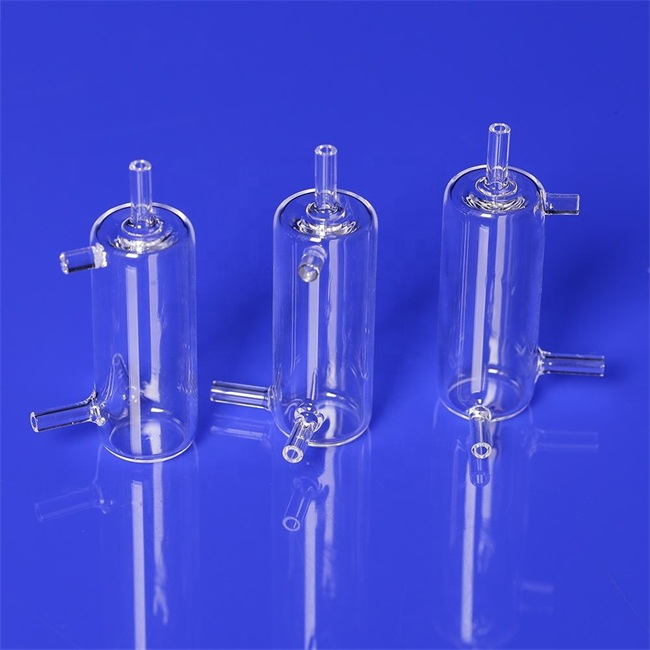

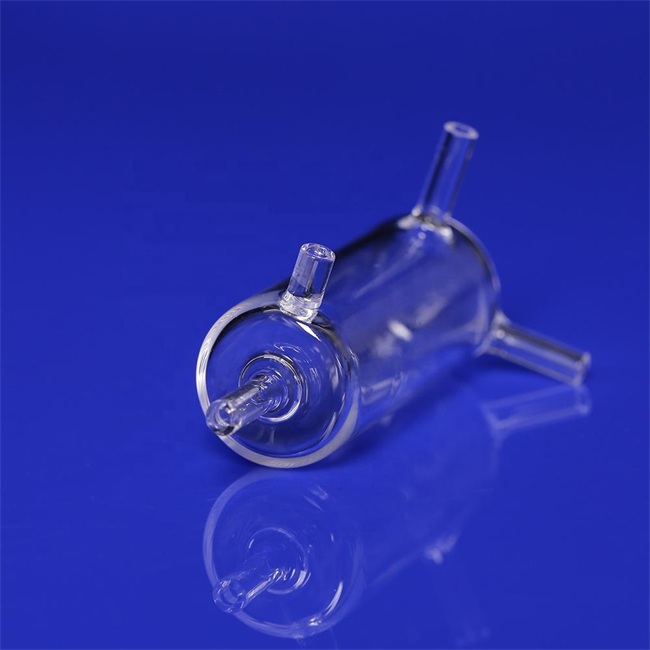

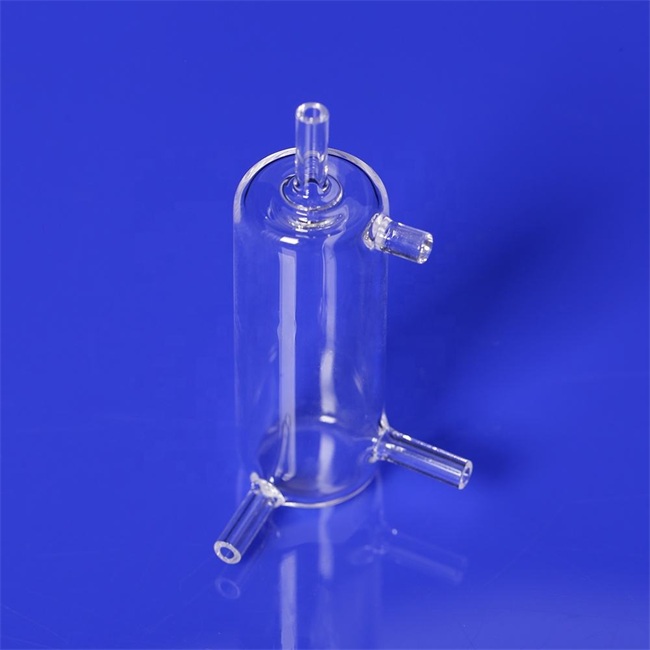

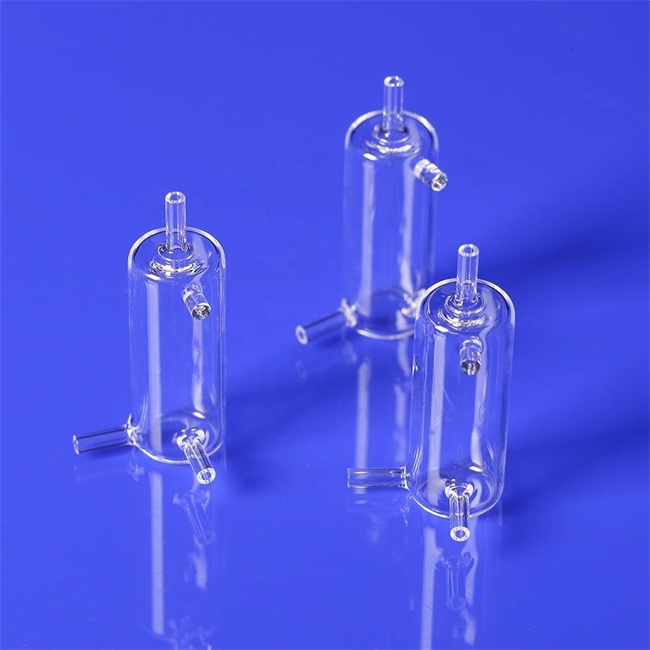

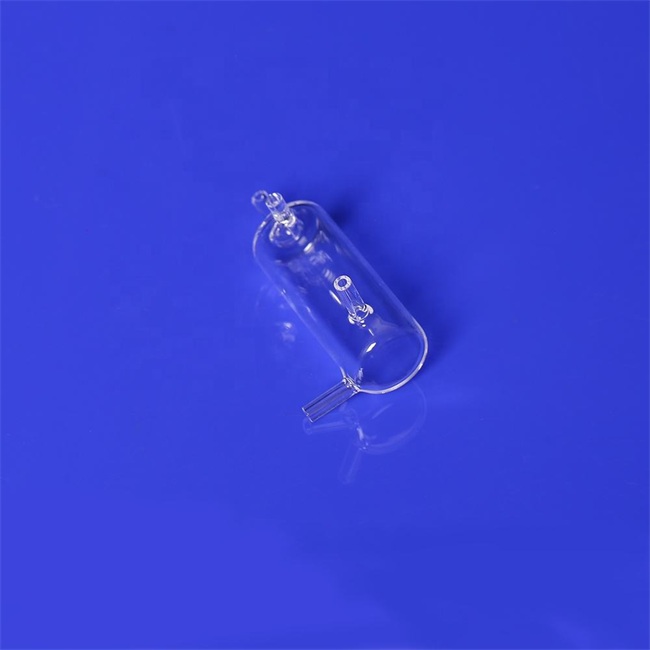

Laboratory transparent quartz overflow tube
The laboratory transparent quartz overflow tube is a precision experimental equipment made of high-purity quartz glass
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Laboratory transparent quartz overflow tube
The laboratory transparent quartz overflow tube is a precision experimental equipment made of high-purity quartz glass, mainly used for laboratory liquid transmission, overflow control, and fluid management in high-temperature environments. This product has excellent high temperature resistance, chemical stability, and optical transparency, and is suitable for various harsh experimental environments.
Product Features
1. High purity material: high purity fused silica (SiO ₂ ≥ 99.99%) is used to ensure no pollution and is suitable for high-precision experiments.
2. High temperature resistance: It can withstand high temperatures of 1200 ℃ for a long time and 1450 ℃ for a short period of time, suitable for high-temperature reaction environments.
3. Chemical inertness: Resistant to strong acids (excluding HF), strong bases, and organic solvents, suitable for the transportation of corrosive liquids.
4. High transparency: Optical grade transparency, easy to observe the flow state of liquids, suitable for optical experiments and real-time monitoring.
5. Precision machining: The inner wall is smooth, without bubbles or impurities, ensuring smooth liquid flow and reducing residue.
Product Specifications
-Material: high-purity fused silica
-Temperature resistance range: -200 ℃~1200 ℃ (long-term), short-term up to 1450 ℃
-Diameter range: 2mm~50mm (customizable)
-Length range: 50mm~1000mm (customizable)
-Connection method: standard grinding mouth, flange connection or customized interface
Application field
Transparent quartz overflow tubes are widely used in the following fields due to their excellent performance:
1. Chemistry and Chemical Engineering Experiments
-Corrosive liquid transmission: suitable for overflow control of corrosive media such as strong acids (such as sulfuric acid, nitric acid) and strong bases (such as sodium hydroxide).
-High temperature reaction system: used in scenarios such as high-temperature distillation and catalytic reactions to ensure safe liquid overflow.
2. Semiconductor and Photovoltaic Industry
-High purity chemical transportation: Avoid metal ion contamination during wafer cleaning and etching processes.
-CVD (Chemical Vapor Deposition) system: used for precise control of high-temperature gases or liquids.
3. Optics and Laser Experiments
-Optical fluid control: In laser dye cycling and fluorescence experiments, transparent quartz tubes facilitate observation and adjustment of the optical path.
4. Biological and pharmaceutical industries
-Aseptic liquid transfer: suitable for high-purity liquid overflow in pharmaceutical processes to avoid contamination.
-Cell culture and fermentation system: resistant to high temperature sterilization (such as high-pressure steam sterilization).
5. Research and teaching experiments
-Conventional overflow device in the laboratory: used for basic experiments such as titration, condensation reflux, etc.
-Customized fluid system: overflow tubes with special structures can be designed according to experimental requirements.
Customized service
To meet different experimental needs, we provide comprehensive customized services to ensure that our products perfectly match your experimental system.
1. Customization of size and structure
Diameter range: 1mm-200mm, supporting the design of irregular tubes (such as conical and bent tubes).
Overflow port types: single hole, multiple hole, circular overflow port, with adjustable aperture and quantity according to flow requirements.
Interface methods: flange connection, threaded connection, or quick plug interface, suitable for different experimental equipment.
2. Material and surface treatment upgrade
Hydrofluoric acid resistant coating: For hydrofluoric acid environments, we provide polytetrafluoroethylene (PTFE) or special ceramic coatings.
Anti adhesion treatment: Surface nano coating reduces liquid residue and is suitable for high viscosity fluids.
Transmittance optimization: By polishing or coating processes, the transmittance can be further increased to over 95%.
The problems that the product can solve
1. The problem of liquid overflow in high temperature environments: Traditional glass or plastic tubes cannot withstand high temperatures, while quartz overflow tubes can work stably in environments above 1200 ℃.
2. Safe transmission of corrosive media: Avoid tubeline rupture or contamination caused by materials that are not corrosion-resistant.
3. High purity experimental requirements: Ensure no metal ion precipitation, suitable for fields such as semiconductors and pharmaceuticals that require extremely high purity.
4. Real time observation requirements: Transparent design facilitates monitoring of the experimental process and improves experimental accuracy.
5. Adaptability of complex experimental systems: Through customized services, meet the connection and functional requirements of special experimental devices.
The laboratory transparent quartz overflow tube is an ideal choice for high-end experimental equipment, with advantages such as high temperature resistance, corrosion resistance, and high purity, and can provide flexible customized services according to user needs. This product can provide reliable solutions for both routine laboratory applications and special scientific research needs.
For more details or to obtain samples, please contact us and we will provide you with professional product selection and customization advice!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused quartz plates, tubes and high size precision fused quartz items.
