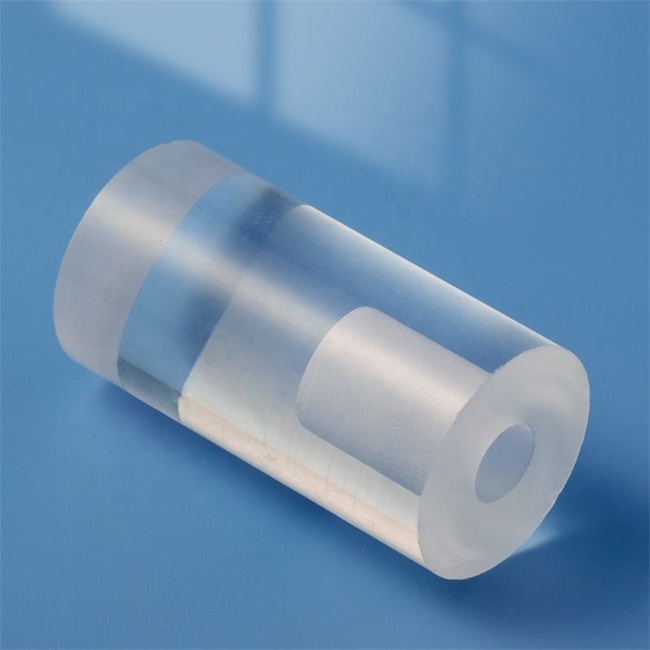

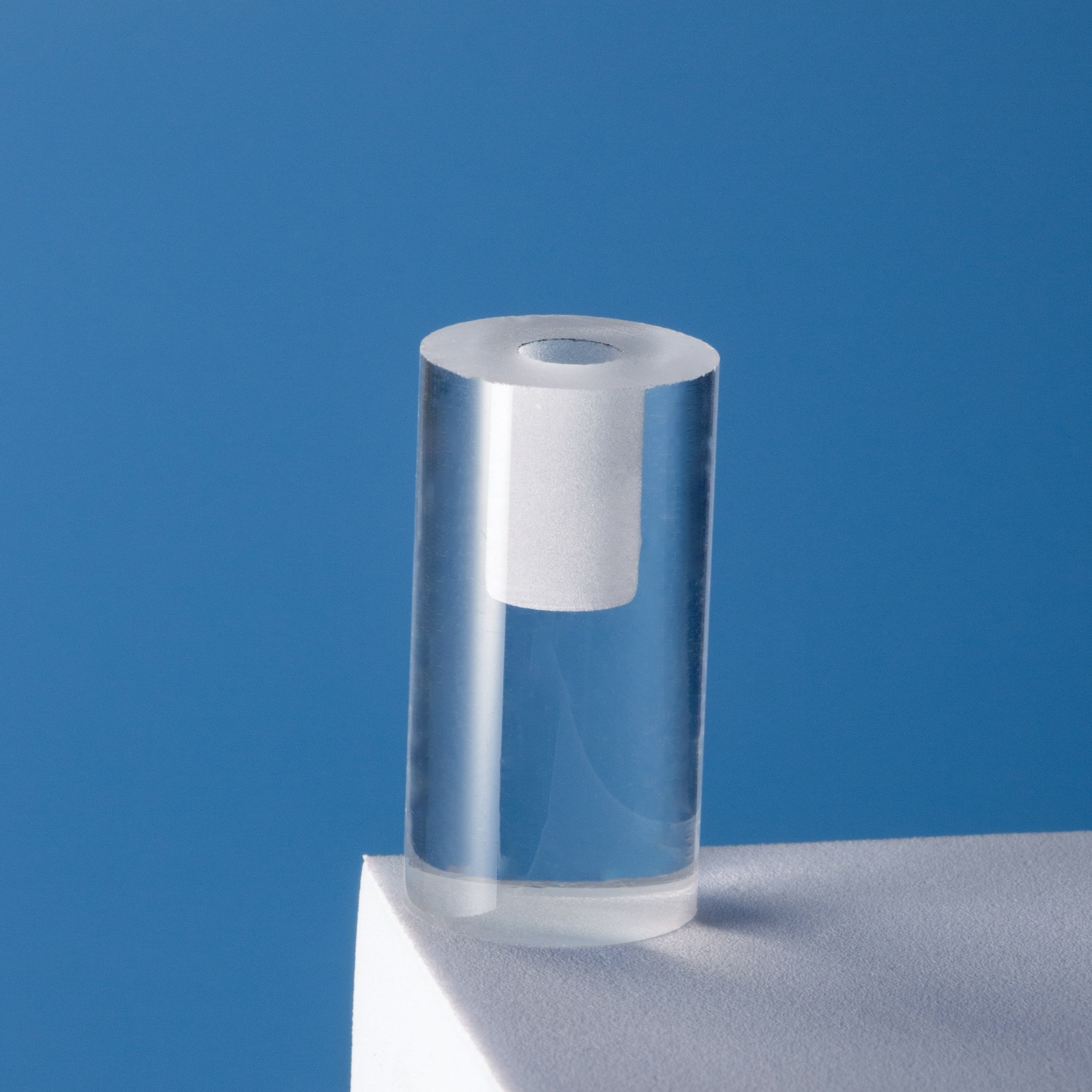

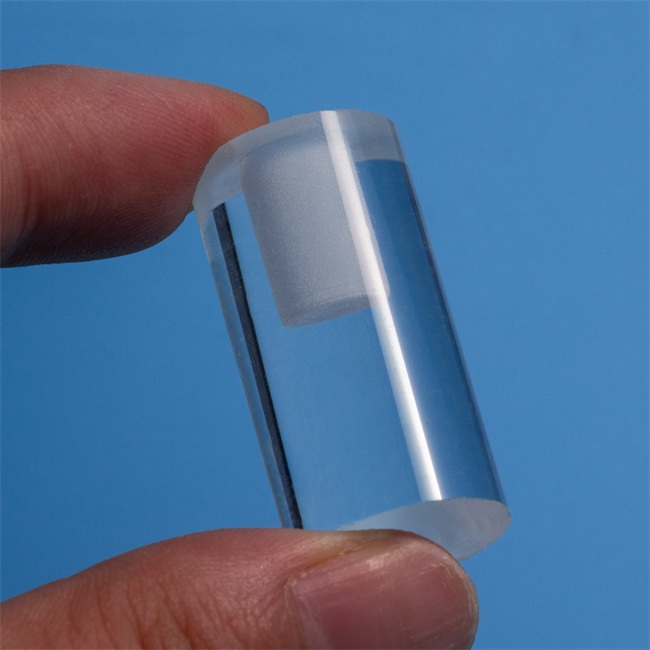

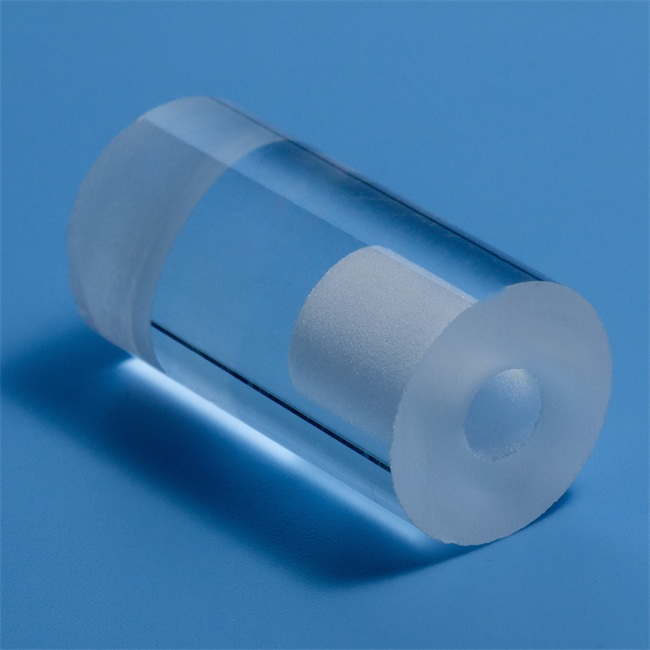

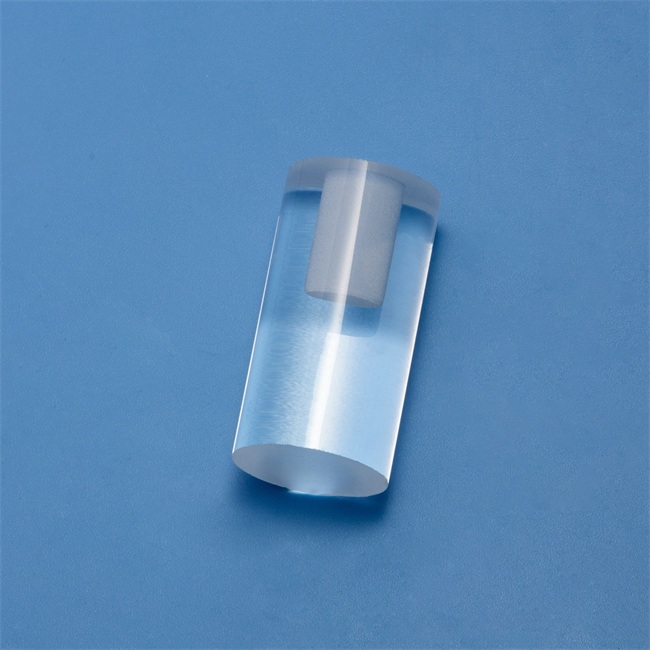

Mini quartz rod with hole at one end
The mini quartz rod with a hole at one end is a high-precision and high-performance micro quartz material product, made of high-quality and high-purity silicon dioxide (SiO ₂) as raw material
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Mini quartz rod with hole at one end
The mini quartz rod with a hole at one end is a high-precision and high-performance micro quartz material product, made of high-quality and high-purity silicon dioxide (SiO ₂) as raw material, and manufactured through precision processing technology. Its core feature is a circular hole with standard specifications designed at one end, which combines the high temperature resistance, corrosion resistance, high transparency, and low thermal expansion coefficient of quartz material itself. At the same time, it meets the requirements of precision scenes through miniaturization design.
Product Features:
High purity material: Quartz content ≥ 99.99%, ensuring chemical and thermal stability.
Precision aperture design: aperture tolerance controlled within ± 0.01mm, supporting customized dimensions.
High temperature resistance: It can withstand high temperatures of 1100 ℃ for a long time and 1300 ℃ for a short period of time.
Low thermal expansion coefficient: The thermal expansion coefficient is only 5.5 × 10 ⁻⁷/℃, reducing the risk of thermal deformation.
High surface smoothness: Surface roughness Ra ≤ 0.2 μ m, reducing friction and pollution risks.
Application field
This product, with its unique structure and excellent performance, is widely used in the following fields to solve industry pain points:
1. Semiconductor and Microelectronics Industry
Application scenario: As a micro carrier or positioning pin in chip manufacturing, used for precision processes such as photolithography and etching.
solve the problem:
Traditional metal carriers are prone to introducing impurities, while quartz material can avoid contamination.
Micro hole design facilitates the fixation and transmission of small components, improving production yield.
2. Optics and laser technology
Application scenario: As a supporting structure for laser resonators or as a substrate for optical filters.
solve the problem:
High transparency (UV to IR band) ensures optical path stability.
High temperature resistance prevents optical path deviation caused by thermal deformation.
3. Biomedical and laboratory equipment
Application scenarios: Used for micro sample reaction containers, micro manipulation probes, or fluid channel components.
solve the problem:
Chemical inertness avoids cross contamination of samples.
Micro pore design enables precise droplet manipulation and improves experimental efficiency.
4. Industrial sensors and precision instruments
Application scenario: As a temperature sensor protective sleeve or pressure sensor base.
solve the problem:
Corrosion resistance prolongs the service life of equipment.
The low thermal expansion coefficient ensures the measurement accuracy of the sensor at extreme temperatures.
Customized service
To meet the personalized needs of different customers, we provide comprehensive customized solutions:
1. Size customization
Length range: 0.5mm-50mm (supports development of shorter or longer sizes).
Diameter range: 0.2mm-10mm (adjustable ratio of aperture to outer diameter).
Tolerance control: Provide ± 0.005mm level ultra precision machining according to requirements.
2. Aperture and Shape Design
Aperture types: circular hole, square hole, irregular hole (such as tapered hole, threaded hole).
Hole depth control: Supports through-hole or blind hole design, with a depth tolerance of ≤ 0.05mm.
Porous structure: Customizable single pore, double pore, or porous array layout.
3. Surface treatment
Polishing treatment: Improve surface smoothness to Ra ≤ 0.05 μ m.
Coating services: providing value-added services such as anti reflective coating, hydrophilic/hydrophobic coating, etc.
The mini quartz rod with a hole at one end has the core advantages of miniaturization design, high-precision processing, and excellent material performance, providing key component support for fields such as semiconductors, optics, and biomedicine. Through customized services, we assist customers in solving complex needs such as miniaturization, high precision, and environmental resistance, promoting technological innovation and industrial upgrading.
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
