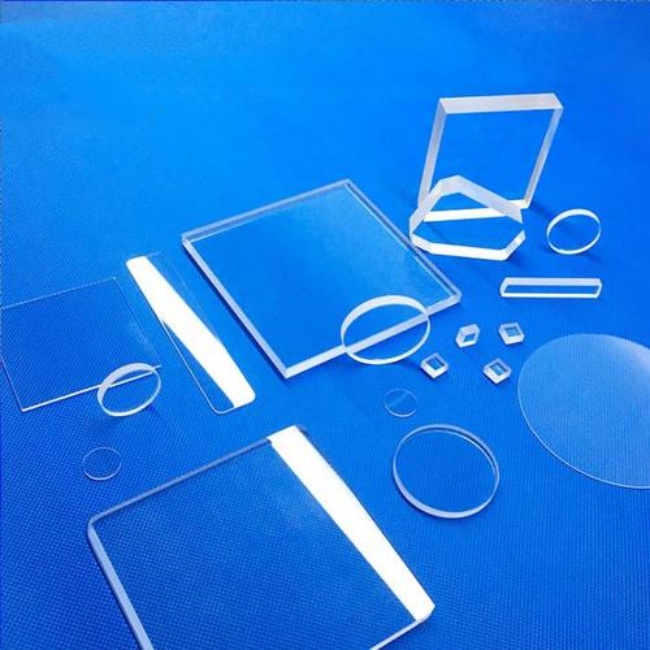

Optical coated fused silica glass plate
Optical coated fused silica glass plate is a kind of high-purity quartz glass material, whose SiO2 content is more than 99.99%,
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Optical coated fused silica glass plate
Optical coated fused silica glass plate is a kind of high-purity quartz glass material, whose SiO2 content is more than 99.99%, so it has the characteristics of high purity, colorless transparency, and few bubbles and impurities. This material also has high transmittance for ultraviolet and visible light, as well as good thermal and chemical properties. Due to these characteristics, it is widely used as a coating material, especially in the fields of mirror multi-layer coating and anti reflective coating.
The principle of optical coating materials is to change the transmission characteristics of light waves by depositing or coating one or more layers of dielectric films or metal films on optical components or independent substrates. These characteristics include the transmission, reflection, absorption, scattering, polarization, and phase change of light. By appropriate design, the transmittance and reflectivity of components in different wavelength bands can be adjusted, resulting in different characteristics of light with different polarization planes.
The relevant properties and indicators of quartz glass for coating include refractive index, transmission wavelength range, molecular weight, specific gravity, hardness, solubility, metal impurity content, melting temperature, evaporation temperature, etc. For example, its refractive index is 1.46021 (wavelength 546.07nm), transmission wavelength range is 200-2500nm, specific gravity is 2.202g/cm3, hardness is 5.5-6.5 (Mohs hardness), insoluble in water but soluble in hydrofluoric acid.
Optical coating fused silica glass plate has important application value in the field of optical coating because of its high purity, excellent optical properties and chemical stability.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
Optical coated fused silica glass plate
Optical coated fused silica glass plate is a kind of high-purity quartz glass material, whose SiO2 content is more than 99.99%, so it has the characteristics of high purity, colorless transparency, and few bubbles and impurities. This material also has high transmittance for ultraviolet and visible light, as well as good thermal and chemical properties. Due to these characteristics, it is widely used as a coating material, especially in the fields of mirror multi-layer coating and anti reflective coating.
The principle of optical coating materials is to change the transmission characteristics of light waves by depositing or coating one or more layers of dielectric films or metal films on optical components or independent substrates. These characteristics include the transmission, reflection, absorption, scattering, polarization, and phase change of light. By appropriate design, the transmittance and reflectivity of components in different wavelength bands can be adjusted, resulting in different characteristics of light with different polarization planes.
The relevant properties and indicators of quartz glass for coating include refractive index, transmission wavelength range, molecular weight, specific gravity, hardness, solubility, metal impurity content, melting temperature, evaporation temperature, etc. For example, its refractive index is 1.46021 (wavelength 546.07nm), transmission wavelength range is 200-2500nm, specific gravity is 2.202g/cm3, hardness is 5.5-6.5 (Mohs hardness), insoluble in water but soluble in hydrofluoric acid.
Optical coating fused silica glass plate has important application value in the field of optical coating because of its high purity, excellent optical properties and chemical stability.
