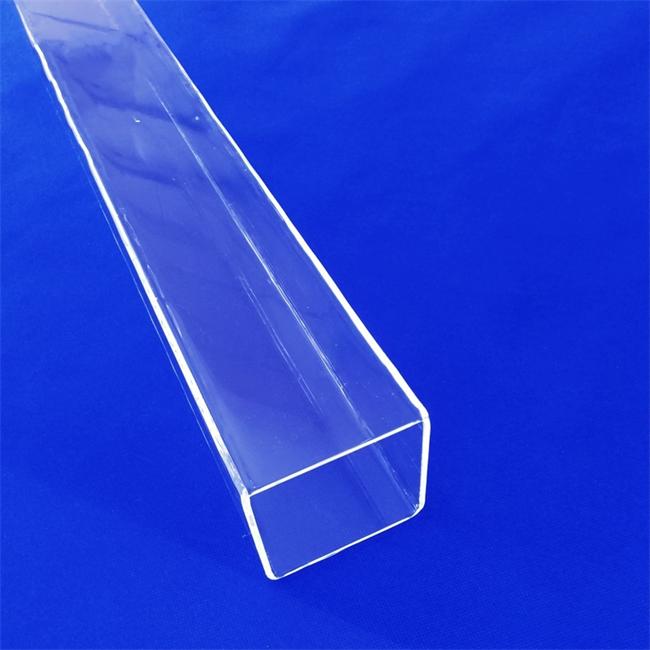

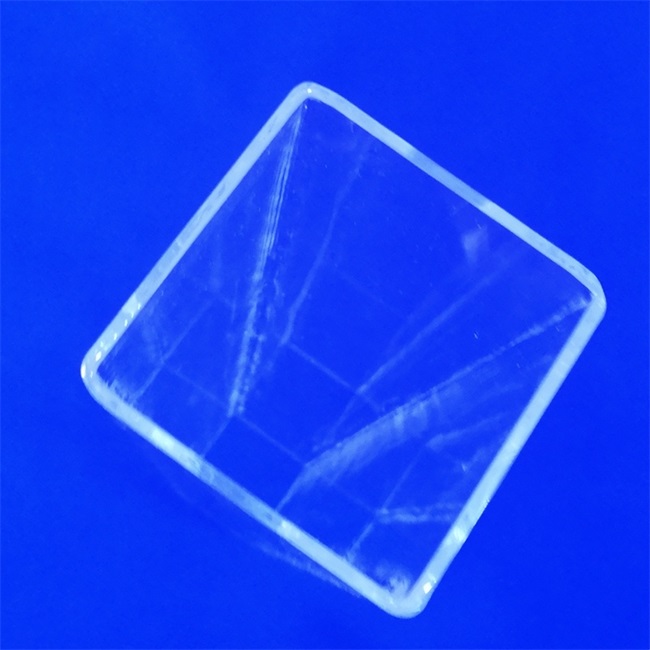

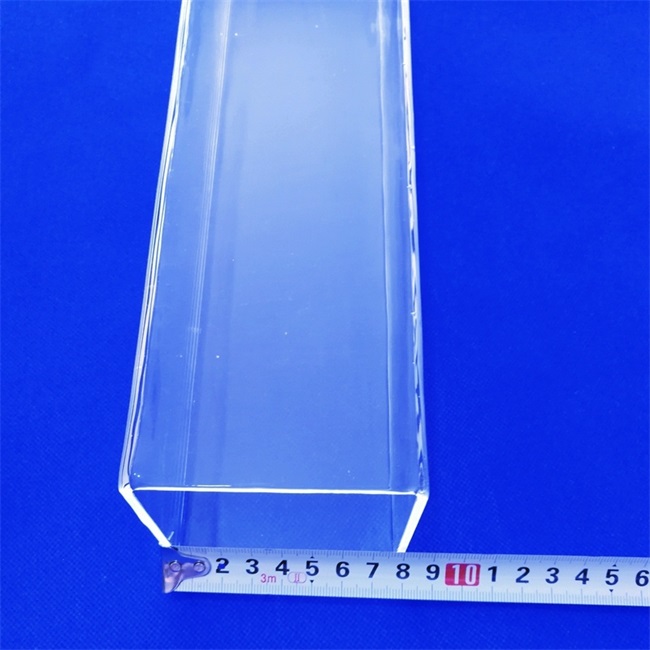

In the fields of optical detection, microfluidic analysis, and special industrial packaging, transparent square quartz tubes have become an upgraded choice to replace traditional round tubes due to their unique geometric structure and high transparency characteristics. As a global manufacturer of customized quartz products, Luverre Quartz focuses on producing high-precision and high-purity square quartz pipes. From micro capillary square tubes with a side length of 0.3mm to large-diameter thick walled square cylinders with a side length of over 100mm, we strictly control dimensional tolerances and hydroxyl content, and are committed to providing square quartz glass solutions with customizable dimensions and traceable performance for global research institutions, semiconductor and optoelectronic enterprises.

Frequently Asked Questions by Users

Q: Why does my device have to use square quartz tubes instead of round tubes? Will square tubes be more prone to rupture?

Answer: The square design is mainly designed to meet the two core requirements of installation positioning and non-destructive testing of optical paths. The square outer wall can prevent rolling and facilitate fixing in the fixture; Flat walls can effectively reduce light refraction distortion, especially suitable for spectral analysis or visual monitoring scenarios. Our square tubes have undergone precision annealing, resulting in uniform stress distribution and the same resistance to rapid cooling and heating as round tubes, making them less prone to cracking.

Q: I need to use it in high-temperature and high-pressure liquid level gauges. The inner hole must be square and able to withstand steam impact. Can you do it?

Answer: This is precisely our area of advantage. We can produce thick walled pipes with outer circles and inner corners or outer and inner corners, specifically for boiler water level gauges or high-pressure reaction observation windows. The product can work in an environment of 1000 ℃ for a long time, with high pressure resistance and transparency.

Q: I am conducting microfluidic chip research and development in the laboratory, and I need square capillaries with a side length of less than 1mm. The inner hole accuracy should reach the micrometer level. Can it be customized?

Answer: Absolutely possible. We have precision tube drawing technology and can produce micro square quartz capillary tubes with an outer diameter of 0.2mm-20mm. The inner hole tolerance can be controlled within the range of ± 0.001mm to ± 0.005mm, fully meeting the strict requirements of microfluidic control and optical detection.

Core applications of the product

The unique shape of the transparent square quartz tube makes it an irreplaceable component in multiple fields. In the field of boilers and pressure vessels, thick walled pipes with outer circles and inner squares are used as dual color water level gauges, forming distinct red and green liquid level displays through square inner holes. In the field of analytical instruments, micro square capillaries are the core components of spectrometer flow cells and liquid chromatography injection needles, and their flat inner walls can reduce sample residue. In the field of optical communication, it serves as a fiber array substrate or capillary fixture to ensure precise positioning of optical fibers. In addition, in semiconductor diffusion furnaces, large-diameter square quartz cylinders can serve as special shaped carriers or reaction chambers.

Core advantages of the product

High purity and corrosion resistance: SiO ₂ has a purity of up to 99.99%, and is resistant to all acid and alkali corrosion except hydrofluoric acid, without contaminating the contact medium.

Optical grade transparency: It has excellent transmittance from ultraviolet to infrared bands, and the square plane provides an undistorted observation window and optical path channel.

High geometric accuracy: small edge tolerance, uniform diagonal and wall thickness, and the outer wall can be finely polished. The tolerance of micro tubes can reach ± 0.001mm.

Strong thermal stability: high softening point temperature, extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃), able to withstand severe temperature differences without cracking.

Rich in form: supports various structural combinations such as outer and inner circles (used for water level gauges), outer and inner circles (used for observation mirrors), and outer and inner circles (used for special channels).

Why choose us as your global customization partner

As a quartz product manufacturer targeting the global market, we are well aware that customers in different countries and regions have varying demands for standards, logistics, and packaging. We not only provide products, but also offer a quality assurance system that meets international standards. From the moment you provide drawings or requirements, our engineers will intervene and recommend the most suitable raw material grades and processing techniques based on the voltage standards, safety regulations, and usage environment in your region. We have mature export packaging experience (PE foam+wooden box) to ensure that the products are still intact after long-distance transportation to Europe, America, Japan, South Korea and other countries. Whether you need 1 sample for research and development or 1000 consumables for mass production, we provide you with traceable and certified high-quality square quartz tubes with the same professional attitude.

Customer Application Cases

Customer background:

A German industrial automation equipment manufacturer is developing a new generation of high-temperature and high-pressure visual liquid level sensors for monitoring corrosive liquids in chemical reaction vessels. Traditional circular quartz tubes exhibit edge distortion during imaging, resulting in significant errors in liquid level identification. The customer requires a transparent mirror with an outer circle and an inner square shape. The outer diameter should be compatible with a standard flange, and the inner hole should be an 8mm × 8mm square channel. The surface tension of the liquid should be used to form a flat liquid column interface in the square hole, which can be accurately recognized with a CCD camera.

Faced with demand:

1. Irregular structure: The outer diameter is circular (Ø 24mm), and the inner hole is square (8mm × 8mm). It is required that the four corners transition into small arcs to reduce stress concentration while not affecting optical observation.

2. Pressure and temperature resistance: It needs to work stably in a steam environment of 220 ℃ and 2.5MPa for a long time, and the material must have zero gas lines and zero microcracks.

3. Uniform light transmission: The square inner wall needs to be optically polished to ensure that light passes through without scattering and to ensure clear image edges.

Our solution:

After accepting the order, the technical team uses high-purity low hydroxyl quartz glass tube blanks, and through precision thermoforming technology, uses high-precision square core shaft molds in a high-temperature softened state to draw and form an outer circular and inner square structure in one go. After forming, precision annealing is carried out to eliminate internal stress, and flame polishing is performed on both end surfaces and inner walls. Each pipe undergoes ultrasonic cleaning and high-pressure testing to ensure there are no hidden defects.

Final effect:

The delivered samples performed excellently in on-site testing by German customers. The liquid column interface formed by the square inner hole is clear and stable, and the imaging distortion rate is reduced to negligible. The sensor did not show any cracking or decreased transparency during the continuous 2000 hour high-temperature and high-pressure aging test. The customer has listed this plan as the standard design for their new product and signed an annual bulk supply agreement. The customer feedback: "This is the supplier we have found worldwide that can achieve such high levels of precision and long-term stability for outer circular and inner square quartz tubes

No matter where you are, whether your square quartz tube is used for deep-sea exploration, aerospace experiments, or precision medical equipment, we are happy to discuss with you. Welcome to send us your drawings or technical requirements, and immediately obtain exclusive customized solutions and quotations for your local market.

Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.

Why choose us?

1.We are more experienced.

We have over 19 years production experience of quartz items.

2.We are more efficient.

We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.

3.Our quality is more guaranteed.

We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.

4.We are able to produce more difficult quartz products.

We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.

5. About 20 years of professional experience

-Focusing on the manufacturing of quartz products for a quarter century

-The average working experience of the technical team exceeds 15 years

6.Global Service Network

-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East

-Multi language technical support (English, German, French, Spanish, Russian, Japanese)

7. Flexible cooperation mode

Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
