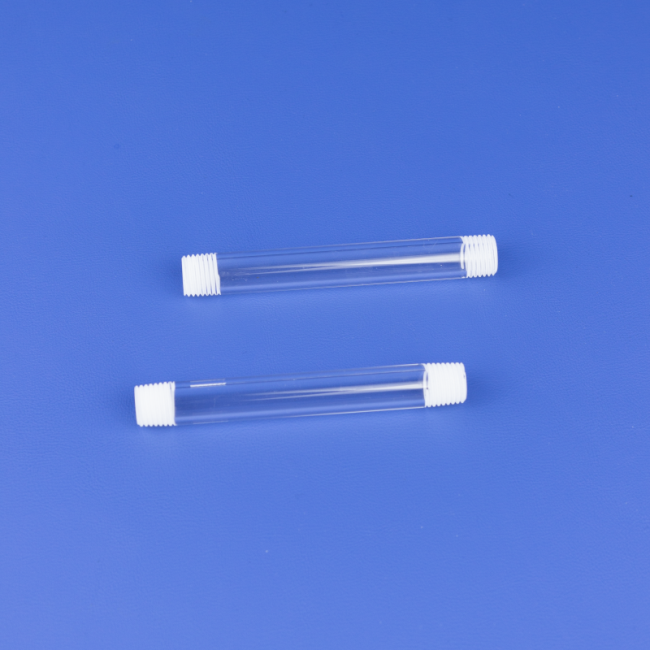

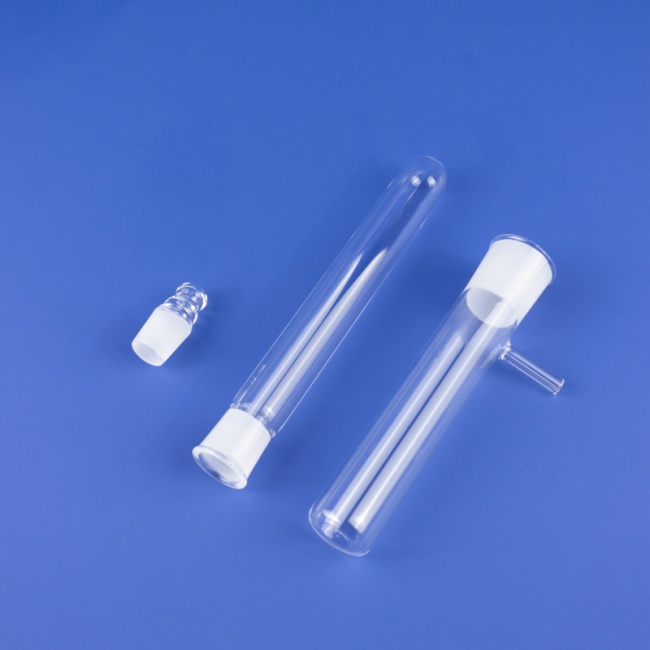

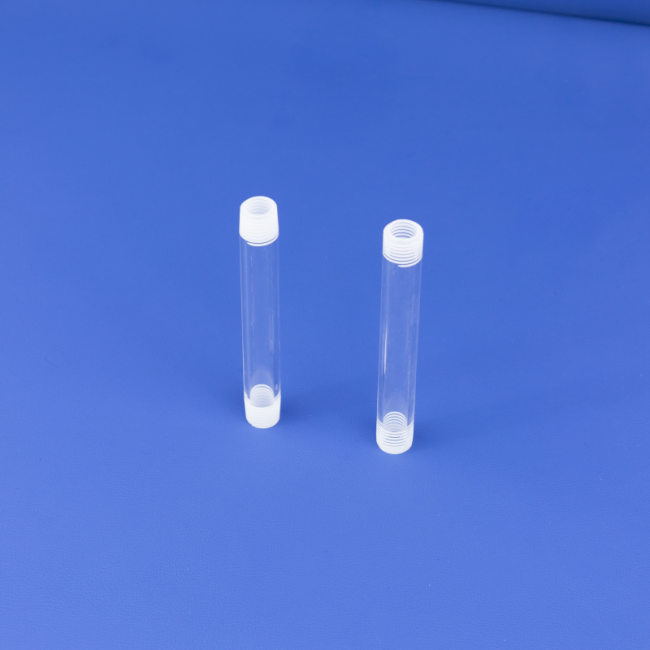

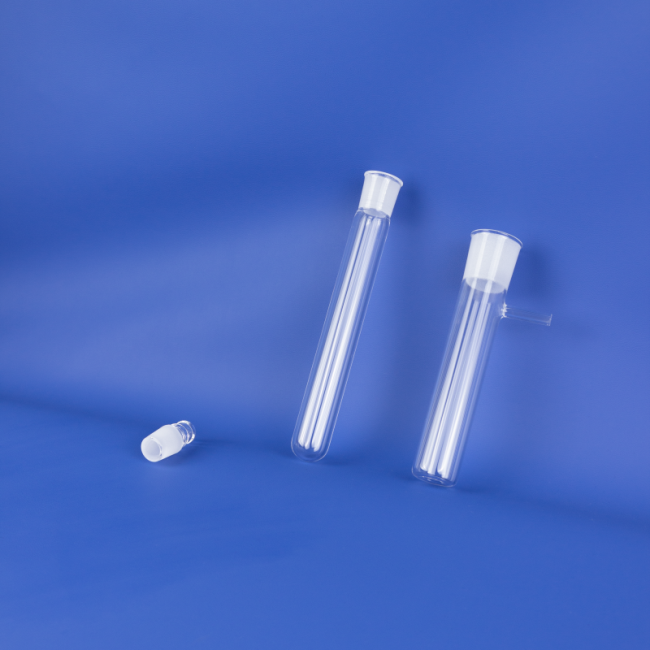

Spiral mouth transparent quartz tube
Spiral mouth transparent quartz tube is a specially processed laboratory and industrial quartz glass product.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Spiral mouth transparent quartz tube
Spiral mouth transparent quartz tube is a specially processed laboratory and industrial quartz glass product. It uses precise thermal processing technology to produce standardized spiral interfaces at the end of a standard transparent quartz tube. This design revolutionary solves the sealing and connection problems of traditional quartz tube flat mouth docking.
Core features:
1. Excellent sealing: The spiral design ensures a tight fit at the connection, and can be equipped with dedicated PFA or silicone gaskets to easily achieve reliable sealing in high vacuum or high-pressure environments, effectively preventing medium leakage and external pollution.
2. Convenient connection and disassembly: No complex flanges or cumbersome bonding processes are required, only rotation is needed to complete installation and disassembly, greatly improving the efficiency of equipment assembly and maintenance and reducing operational difficulty.
3. Excellent material properties: Adhering to all the advantages of transparent quartz tubes:
High purity and high temperature resistance: can withstand temperatures up to 1050 ℃ and can withstand even higher temperatures in a short period of time.
Excellent thermal stability: With an extremely low coefficient of thermal expansion, it can withstand drastic temperature changes without bursting.
Excellent optical performance: It has extremely high transmittance in a wide spectral range from ultraviolet to infrared, especially for ultraviolet light, which is much higher than ordinary glass.
High chemical inertness: Except for hydrofluoric acid and hot phosphoric acid, it hardly reacts with other acidic substances and has strong corrosion resistance.
What problems can it solve?
Traditional flat mouth pipes are not tightly connected: solving the problems of unreliable sealing, easy air leakage, and easy contamination caused by bundling or adhesive methods.
Complex and time-consuming system assembly: simplifies the construction process of complex pipeline systems, saving a lot of installation and disassembly time.
Frequent replacement and maintenance difficulties: provide great convenience for experiments and production processes that require regular cleaning, replacement, or adjustment.
Main application areas
Spiral mouth quartz tubes play an irreplaceable role in the following fields due to their unique connection advantages and material properties:
1. Semiconductor and Photovoltaic Industry
Application scenarios: Process tubes and their connecting components for diffusion furnaces, oxidation furnaces, and LPCVD (low-pressure chemical vapor deposition) systems.
Problem solved: Ensure high purity and airtightness of the reaction chamber, prevent impurities from entering, and improve wafer quality; Easy to quickly clean furnace tubes and reduce equipment downtime.
2. Optoelectronic light source industry
Application scenario: The casing and connection parts of high-end UV lamps, halogen lamps, xenon lamps and other electric light sources.
Problem solved: To achieve a fast and reliable sealed connection between the lamp body and the power supply or cooling system, ensuring the stability and lifespan of the lamp.
3. Analytical instruments and scientific research experiments
Application scenarios: Torque tube and atomization systems for ICP-MS (Inductively Coupled Plasma Mass Spectrometry) and ICP-OES (Inductively Coupled Plasma Emission Spectroscopy); Customized photochemical reactors and synthetic experimental equipment.
Problem solved: Provide high-purity and corrosion-resistant sample pathways for precision analytical instruments; Allow researchers to quickly build and adjust complex experimental reaction devices, improving experimental efficiency and flexibility.
4. Chemical and Environmental Engineering
Application scenarios: Observation windows for the transportation of highly corrosive media, sampling and detection pipelines for high-temperature flue gas.
Problem solved: Provide reliable observation and circulation channels in harsh chemical environments, corrosion-resistant and high-temperature resistant, and extend equipment service life.
Customized service
To meet diversified needs and provide customized services throughout the entire process:
1. Parameter customization
Dimensions: The outer diameter, wall thickness, and length are processed according to the customer's drawings, with strict tolerance control (such as ± 2.0% when the outer diameter is ≤ 6mm).
Hydroxyl content: Customized according to application scenarios (such as 20ppm, 10ppm, 5ppm), low hydroxyl tubes (≤ 5ppm) are suitable for the semiconductor field.
Transmitting band: UV filtering quartz tube (cutoff 190-320nm), ozone free quartz tube (transmitting 253.7nm sterilization band).
2. Irregular processing
Interface types: spiral mouth, expansion mouth, flanging, frosted treatment, suitable for different device connection requirements.
Structural customization: Complex structures such as outer circles and inner squares, fan-shaped holes, double-layer sleeves, etc., supporting 3D modeling and sampling.
3. Deep processing services
Surface treatment: burning, sealing, bending, sandblasting to enhance the sealing or anti reflective performance of the pipe body.
Function enhancement: Doping titanium elements to make ozone free tubes, or adding rare earth elements to improve infrared transmittance.
The spiral mouth transparent quartz tube is not only an upgrade in basic materials, but also an innovation in system connection solutions. It combines the high performance of quartz material itself with a convenient and reliable spiral connection method, fundamentally solving core issues such as sealing, efficiency, and flexibility. No matter which industry you are in, as long as your processes involve high temperature, high purity, corrosion or precision optical environments, our spiral mouth quartz tubes and customized services will be your ideal choice to improve system performance and reliability.
Welcome to contact us anytime for more information or to discuss your specific needs!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused quartz plates, tubes and high size precision fused quartz items.
