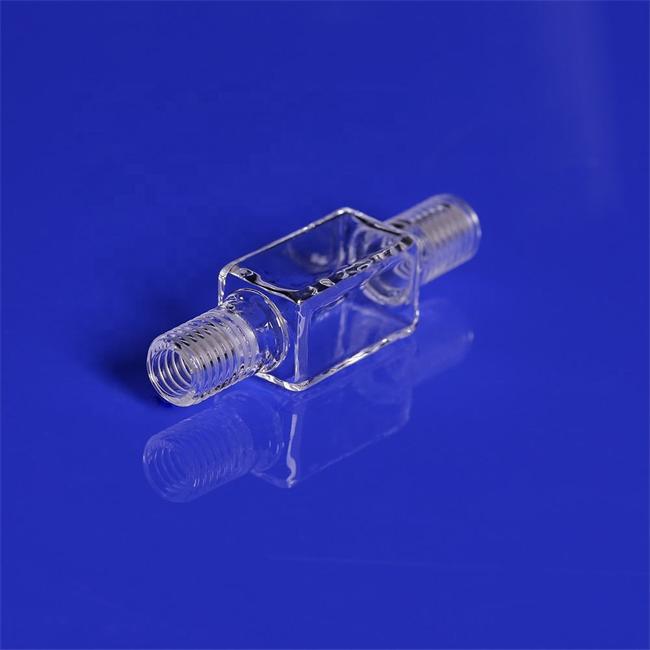

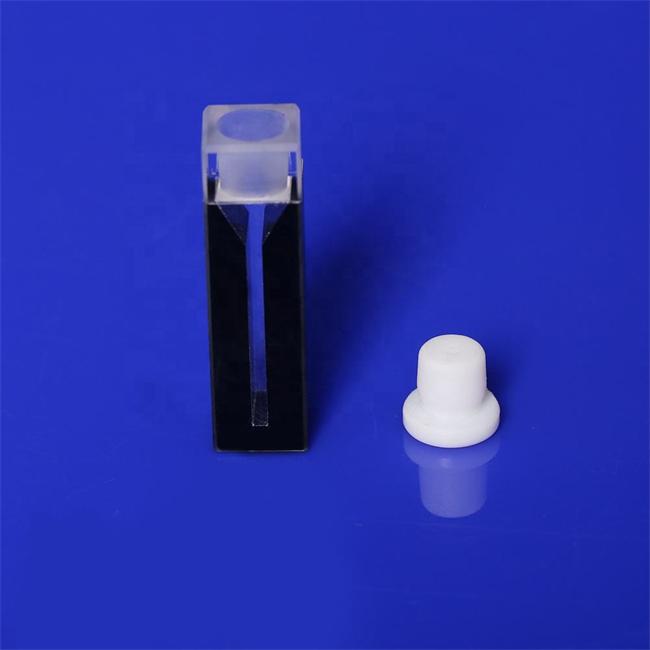

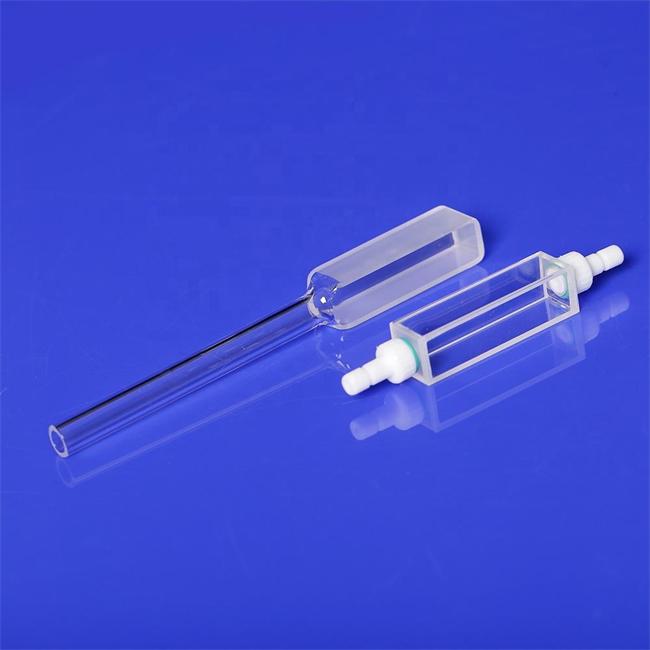

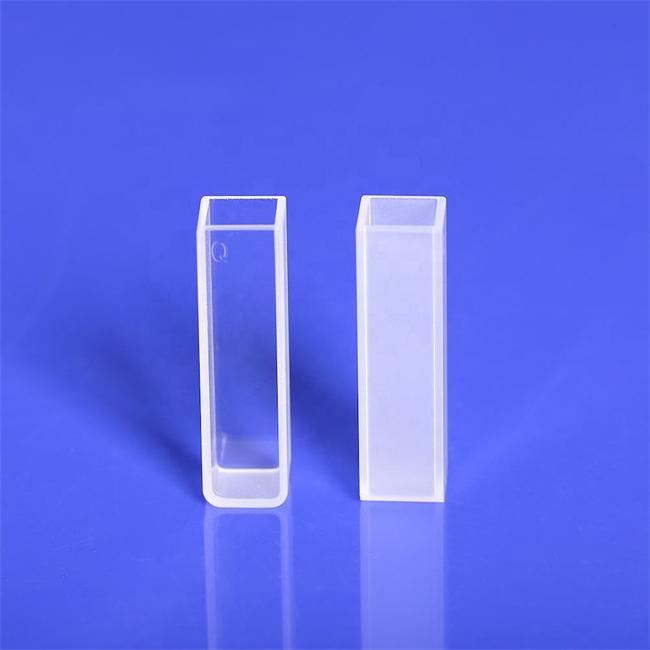

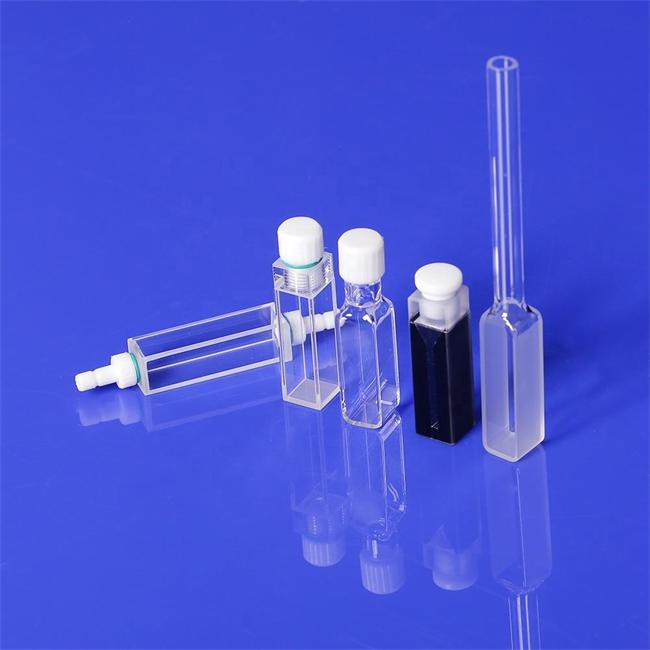

The transparent spectrophotometer quartz flow cell reactor (hereinafter referred to as "quartz flow cell reactor") is a high-precision experimental device designed for online and real-time monitoring of liquid-phase chemical reaction processes. It cleverly combines the functions of a high-quality quartz flow cell and a miniature chemical reactor, enabling direct chemical reactions in the spectrophotometer optical path and simultaneous optical detection.

The core of this product consists of an optical grade quartz flow cell with extremely smooth parallel optical windows on both sides, ensuring that UV visible light can pass through with very low loss and scattering, thereby obtaining stable and accurate spectral data. The interior of the pool is designed with precise flow channels, allowing reactants to continuously or intermittently pass through the area illuminated by the light beam. The entire cell is usually equipped with standard interfaces (such as 1/4-28, M6, etc.), which can easily adapt to mainstream spectrophotometer sample chambers on the market, and achieve precise temperature control and fluid delivery through external thermostats, peristaltic pumps, or injection pumps, perfectly simulating batch or continuous flow chemical reaction conditions.

It mainly addresses the following key issues:

The lag of traditional offline detection: it does not require frequent sampling from the reactor, avoiding reaction interruption, sample deterioration, and time delay caused by sampling, and obtaining real and continuous reaction kinetics data.

Difficulties in monitoring heterogeneous reactions: Traditional methods are difficult to track in real-time for heterogeneous systems such as photocatalysis and catalytic hydrogenation. This product allows catalysts (such as titanium dioxide particles) or bubbles (such as hydrogen gas) to flow through the detection area for in-situ monitoring.

Sparse data points: Offline detection can only obtain limited time points of data, which may miss key reaction intermediates or instantaneous states. This product can achieve high-frequency and continuous spectral scanning, depicting a complete reaction process spectrum.

Complicated operation and errors: Automated integration reduces manual operation steps, lowers human errors, and reduces the risk of exposure to hazardous chemicals.

Main applications

Quartz flow cell reactors are widely used in cutting-edge scientific research and industrial development fields such as chemistry, chemical engineering, materials, biology, and pharmaceuticals due to their excellent online monitoring capabilities.

Study on reaction kinetics

Detailed description: Real time monitoring of the process of decreasing reactant concentration and increasing product concentration, by recording the absorbance time curve at specific wavelengths, accurately calculating the reaction rate constant, and studying the reaction mechanism.

Research on photochemical reactions and photocatalysis

Detailed description: It is a core tool for photochemical research. The reaction tank is directly located in the optical path of the spectrophotometer and can be illuminated simultaneously with internal or external light sources (such as LED, xenon lamp) to monitor the photolysis rate, photocatalyst activity (such as TiO ₂ degradation of pollutants), photosynthesis simulation, etc. online.

Research on catalytic reactions

Detailed description: Especially suitable for heterogeneous catalytic reactions, such as catalytic hydrogenation, oxidation, etc. Real time tracking of substrate and product changes, evaluation of catalyst efficiency and lifespan. The flow system can effectively prevent catalyst deposition in the detection window.

Biochemical process monitoring

Detailed description: Used for enzyme kinetics analysis (enzymatic reactions), protein folding/unfolding processes, DNA hybridization kinetics, and online monitoring of metabolite concentrations in cell culture.

Process analysis and chemical synthesis

Detailed description: As the "eye" in Flow Chemistry, it is integrated at the end of the microreactor system to monitor and provide real-time quality feedback on the synthesized products, ensuring that the reaction proceeds according to the predetermined path and improving synthesis efficiency and safety.

Monitoring of Nanomaterial Synthesis

Detailed description: Real time monitoring of the growth process of nanoparticles (such as gold nanorods and quantum dots), optimizing synthesis conditions through the movement of surface plasmon resonance absorption peaks (SPR) or changes in quantum dot fluorescence.

Customized service

We are well aware that different research topics have unique requirements for experimental equipment. Therefore, we provide comprehensive and flexible customized services to ensure that the equipment you receive perfectly meets your experimental needs.

Customization of optical path length: Multiple standard optical path lengths (such as 1mm, 2mm, 5mm, 10mm) are available for selection, and special optical path lengths (from 0.1mm to 50mm or even longer) can be customized to meet the detection needs of different concentration samples (short optical path for high concentration and long optical path for low concentration).

Customization of pool volume and interface: The internal volume of the pool can be customized according to your flow requirements (from a few microliters to several milliliters) to reduce sample consumption or increase residence time. At the same time, customized import and export interface types (such as PEEK, 316 stainless steel Swagelok ®）、 Size and orientation for seamless integration with your existing chromatography, pumping, or reaction systems.

Material customization: In addition to standard high-purity quartz, we can also provide sapphire windows or other special optical glass materials that are resistant to hydrofluoric acid (HF) to cope with extreme chemical environments.

Function integration customization:

Temperature control interface: Integrated jacket circulation liquid jacket, achieving precise temperature control (such as -20 ° C to 150 ° C).

Multi port design: Add additional ports for introducing inert gas protection, adding a third stream of reagents, or integrating temperature and pH sensors.

Pressure and corrosion resistance rating: The pressure resistance rating of the pool body can be increased as needed (such as to 10 Bar) or its ability to withstand specific corrosive chemicals can be enhanced.

Complete system solution: We can not only customize the flow cell itself, but also provide or customize a complete system including peristaltic pumps, injection pumps, constant temperature circulators, automatic injection valves, and data acquisition software according to your experimental design.

Frequently Asked Questions

For which instruments is this quartz flow-cell reactor suitable?

It can be used with UV-Vis spectrophotometers, online flow analysis systems, liquid-phase detection systems, photocatalytic reaction systems, microfluidic detection platforms, and any laboratory equipment requiring a transparent, pressure-resistant reaction chamber.

What are the advantages of quartz over glass or plastic?

High-purity quartz offers a broader range of light transmission, with particularly stable performance in the UV spectrum. It also exhibits superior resistance to high temperatures, acids, and alkalis, as well as greater thermal shock resistance, making it suitable for long-term exposure to solvents, strong acids and alkalis, or high-temperature flow systems.

Do you support custom dimensions and interfaces?

Yes, we support customization. We can tailor the optical path length, internal chamber volume, inlet/outlet interfaces, flange types, thread specifications, wall thickness, and overall dimensions based on customer drawings or application requirements.

What are the common optical path length specifications?

We offer standard optical path lengths of 1 mm, 2 mm, 5 mm, 10 mm, 20 mm, and 50 mm, among others. We can also customize non-standard optical path lengths based on detection sensitivity and sample characteristics.

Can the product be used in high-pressure or high-temperature flow systems?

Structural design and wall thickness can be optimized based on operating pressure and temperature conditions, making the product suitable for flow reaction and detection systems under atmospheric pressure, pressurized conditions, and within a specific temperature range.

How are surface finish and optical windows treated?

Optical windows can be precision-polished to ensure uniform light transmission and detection stability; non-optical areas can be frosted, chamfered, or machined according to installation requirements.

Do you offer sample testing or drawing verification?

We provide sample evaluation, drawing verification, and parameter matching services to help customers validate dimensions, interfaces, and optical performance prior to formal production.

What is the typical lead time?

Standard specifications can be delivered quickly depending on inventory availability. Custom products are typically scheduled for production after drawings are confirmed; the specific lead time depends on order quantity and manufacturing complexity.

Our transparent spectrophotometer quartz flow cell reactor is not just a simple sample cell, but also a powerful 'online reaction monitoring platform'. It will uncover the "black box" of the reaction process for you, providing unprecedented real-time, high-resolution data to accelerate your scientific discoveries and process development.

If you have any special needs or technical questions, our engineering team is always ready to provide you with professional technical consultation and customized solutions.
