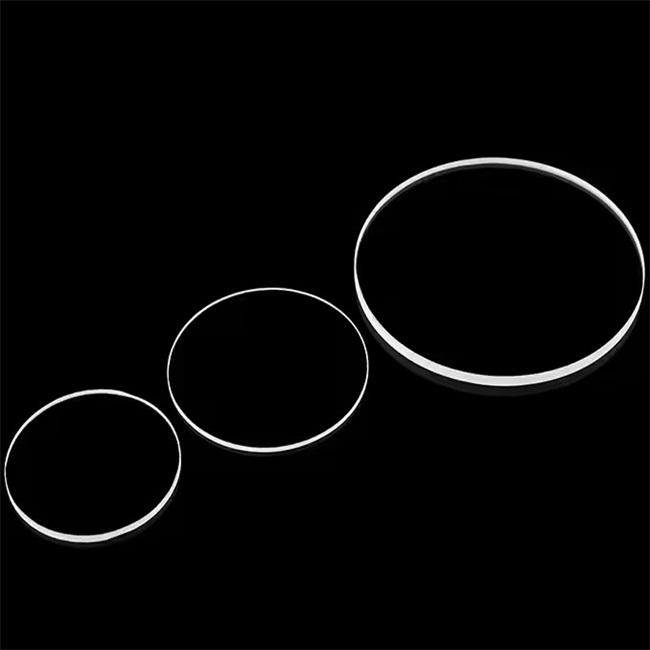

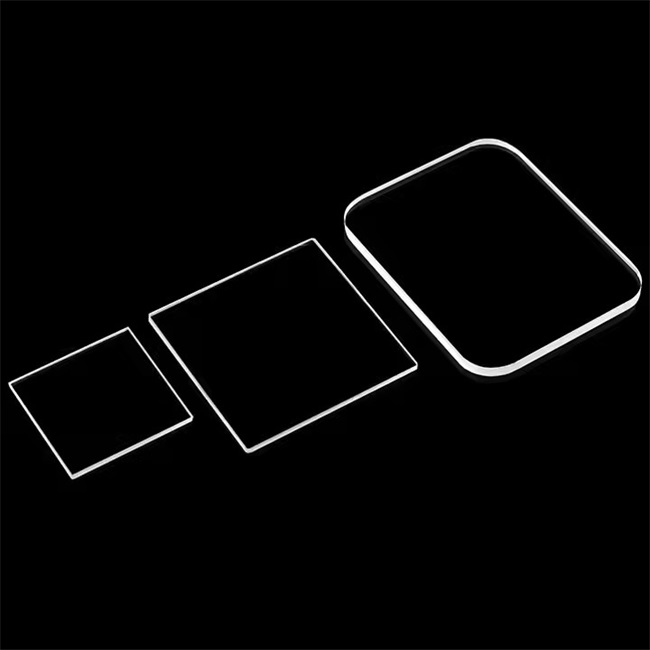

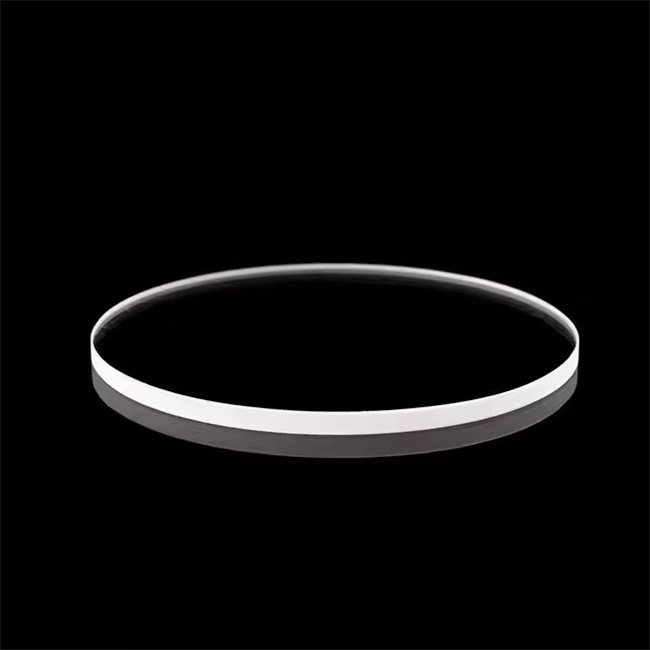

0.5-100mm high-purity optical fused silica glass plate
As an ideal choice for these high-end applications, 0.5-100mm high-purity optical fused silica glass plate stands out for its excellent physical and chemical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
In the fields of precision optical instruments, semiconductor manufacturing, aerospace, and scientific research, there are extremely high requirements for the purity and optical performance of materials. As an ideal choice for these high-end applications, 0.5-100mm high-purity optical fused silica glass plate stands out for its excellent physical and chemical properties.
1、 Material characteristics
1. High purity: This quartz glass plate is made of high-quality silica sand raw material, which is melted at high temperature to remove impurities and ensure the high purity of the product. Its oxygen content is as high as 99.99%, almost free of metal ions and other impurities, thereby reducing interference with light transmission and improving corrosion resistance.
2. Low thermal expansion coefficient: It has a very small linear thermal expansion coefficient (about 0.5 × 10 ^ -6/° C), which can maintain shape stability even under extreme temperature changes, making it suitable for precision instruments that require high dimensional stability.
3. Excellent transmittance: It has excellent transmittance performance in the entire visible to near-infrared wavelength range, especially in the ultraviolet region, with a transmittance of over 90%, making it an indispensable component in devices such as lasers and spectrometers.
4. High temperature resistance: able to withstand high temperatures up to 1200 ° C without deformation or softening, suitable for experimental and industrial processing in high-temperature environments.
5. Chemical inertness: It exhibits excellent resistance to most acidic and alkaline solutions, is not easily corroded, and ensures long-term reliability and safety.
2、 Production process
1. Melting method production: Through advanced melting technology, selected raw materials are heated to their melting point in a dust-free environment, and then slowly cooled to form. This process effectively controls internal stress and the presence of bubbles, improving the quality of the finished product.
2. Precision grinding and polishing: The surface treatment process is exquisite and can achieve various surface states from mirror level to matte level, meeting the needs of different application scenarios. Meanwhile, strict tolerance control ensures that each sheet of board can achieve the expected flatness and parallelism.
3、 Specification parameters
-Thickness range: 0.5mm-100mm
-Dimensional accuracy: ± 0.1mm (customizable according to customer needs)
-Surface quality: Complies with military standard MIL-O-13830A or higher
-Parallelism:<3 arc seconds
-Optical uniformity: Δ n<1 × 10 ^ -5 (within the specified wavelength range)
4、 Application Fields
1. Optical components, such as lenses, prisms, filters, etc., are widely used in various imaging systems due to their excellent optical properties and mechanical strength.
2. Semiconductor industry: As a carrier tool for mask substrates or diffusion furnaces, it participates in the key steps of chip manufacturing.
3. Scientific research experiments: Provide an ideal observation window and experimental platform for research in high-energy physics, astronomy, and other fields.
4. Medical and health: X-ray tube windows, ultraviolet disinfection lampshades, and other important components of medical equipment.
5. Aerospace: Due to its lightweight and sturdy characteristics, it is commonly used for satellite communication antenna reflectors or other space payload structural components.
0.5-100mm high-purity optical fused silica glass plate plays a vital role in many high-tech industries with its unique physical and chemical properties and precise processing technology.

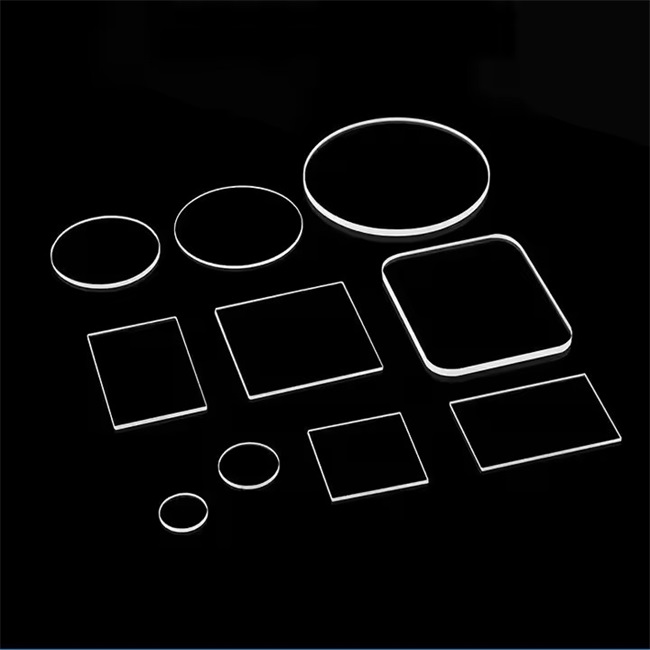

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
