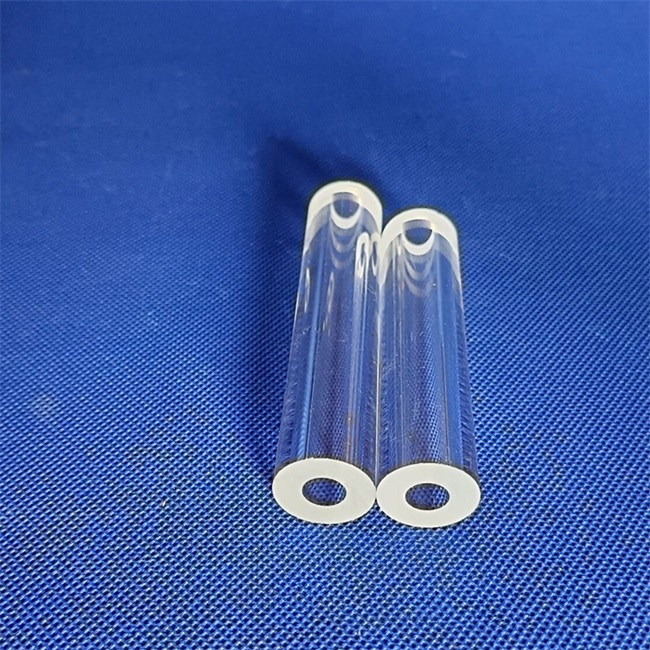

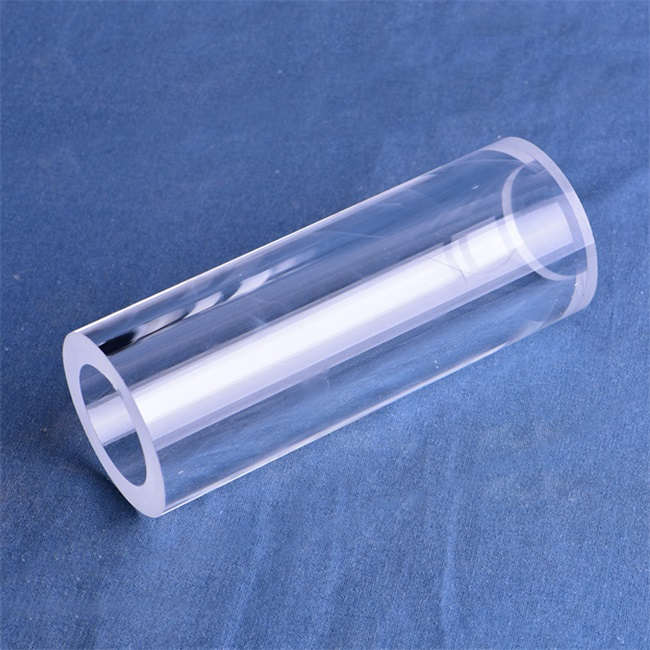

Quartz thick-walled glass tube
Quartz thick walled glass tube is a special type of glass tube made of high-purity silicon dioxide (SiO ₂), which has higher mechanical strength and pressure resistance due to its wall thickness design.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Quartz thick walled glass tube
Quartz thick walled glass tube is a special type of glass tube made of high-purity silicon dioxide (SiO ₂), which has higher mechanical strength and pressure resistance due to its wall thickness design. This material is widely used in multiple fields due to its unique physical and chemical properties.
Main features:
High temperature resistance: The softening point temperature of quartz glass is about 1730 ℃, and it can work stably for a long time at 1100 ℃. The short-term use temperature can reach 1450 ℃.
Chemical stability: It has excellent corrosion resistance to most acids, bases, and chemicals, and is suitable for use in harsh chemical environments.
Low thermal expansion coefficient: The thermal expansion coefficient is extremely small and can withstand drastic temperature changes. Even if heated to 1100 ℃ and suddenly cooled to room temperature, it is not easy to crack.
High transparency: capable of transmitting visible light, infrared, and ultraviolet light, suitable for optical instruments and experimental equipment.
High strength and hardness: High mechanical strength, good pressure resistance, suitable for high-pressure or high mechanical stress environments.
Quartz thick walled glass tubes are commonly used in applications that require high mechanical strength and high temperature resistance, and their wall thickness design further enhances their impact resistance and compressive strength.
Application of thick walled quartz glass tube
Quartz thick walled glass tubes have been widely used in various fields due to their excellent performance, mainly including the following aspects:
Chemical industry:
Used for chemical reaction vessels, pipelines, and valves, it can work stably in strong acid and alkali environments for a long time due to its corrosion resistance and high temperature resistance.
Optics and experimental equipment:
Used as reaction vessels or transparent components in optical instruments, laboratory equipment, and chemical reaction devices due to their high transparency and chemical stability.
Metallurgical industry:
In high-temperature metallurgical processes, it is used in high-temperature furnaces, melting equipment, or continuous casting systems, and its high temperature resistance and thermal stability provide reliable guarantees for metallurgical processes.
Medical and Biological Fields:
Used for bioreactors, medical equipment, or laboratory instruments, it is suitable for sterile environments due to its non toxicity, high temperature resistance, and chemical stability.
Aerospace and Semiconductor Industry:
Used as high-purity pipelines or reactors in semiconductor production, integrated circuit manufacturing, and aerospace equipment to ensure process stability and accuracy.
Other fields:
Used as high-temperature and corrosion-resistant components in lasers, sensors, and lighting equipment.
Customized quartz thick walled glass tube service
Size specifications:
Inner and outer diameters: Customize thick walled glass tubes with different inner and outer diameters according to requirements.
Wall thickness: Different wall thicknesses can be customized to adapt to high-pressure or high mechanical stress environments.
Length: Customize the length according to the actual usage scenario to ensure ease of installation and use.
Surface treatment:
Roughness: Customize different surface roughness according to assembly or appearance requirements.
Coating treatment: The surface can be treated with special coatings to enhance corrosion resistance or transparency.
Performance requirements:
Mechanical strength: Adjust indicators such as bending strength and fracture toughness according to the usage environment.
Insulation performance: Ensure high breakdown voltage and volume resistivity to meet special electrical requirements.
Thermal performance: Optimize thermal conductivity and coefficient of thermal expansion to adapt to high temperatures or environments with significant temperature changes.
If you have specific needs, please feel free to contact us for detailed consultation and customization.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
