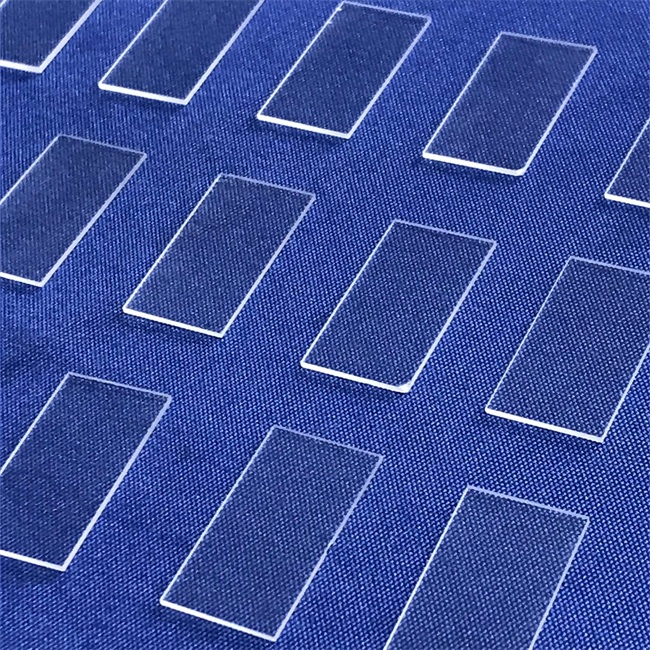

0.5-100mm length and width transparent UV quartz plate
Transparent UV quartz plate with a length and width of 0.5-100mm is a high-purity quartz glass product with excellent ultraviolet (UV) transmittance, high temperature resistance, and chemical stability.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
0.5-100mm length and width transparent UV quartz plate
Transparent UV quartz plate with a length and width of 0.5-100mm is a high-purity quartz glass product with excellent ultraviolet (UV) transmittance, high temperature resistance, and chemical stability. This product adopts high-precision cutting technology, with a wide size range (0.5mm to 100mm) and customizable thickness, suitable for various fields such as precision optics, semiconductors, lasers, and scientific research experiments.
Core Features
High UV transmittance: It has excellent optical performance in the wavelength range of 190nm-2500nm, especially suitable for UV applications.
High temperature resistance: capable of withstanding temperatures up to 1200 ℃, with an extremely low coefficient of thermal expansion, suitable for high-temperature environments.
High chemical stability: acid and alkali resistant, strong corrosion resistance, suitable for harsh chemical environments.
High precision dimensions: The tolerance is strictly controlled within ± 0.05mm to ensure precise matching of the optical system.
High surface quality: Available polishing grades (ordinary polishing, precision polishing, ultra smooth polishing) to reduce light scattering and improve optical efficiency.
Typical Applications
1. Optics and laser technology
-UV laser window plate: High UV transmittance ensures efficient laser transmission.
-Optical lenses and prisms: used in precision optical equipment such as spectrometers and microscopes.
-Laser cutting protective mirror: resistant to high temperatures, laser damage, and extends equipment life.
2. Semiconductors and Photolithography
-Lithography machine mask plate: high-purity quartz ensures no impurity interference and improves chip manufacturing accuracy.
-Wafer processing carrier: resistant to high temperatures and low thermal expansion, ensuring stability in semiconductor production.
3. Research and laboratory equipment
-UV spectrometer window: Ensure high transmittance in the UV band and improve detection accuracy.
-High temperature observation window: used for observation in high-temperature environments such as vacuum chambers and furnaces.
4. Medical and Biotechnology
-UV disinfection equipment window: corrosion-resistant, highly transparent, suitable for medical sterilization systems.
-Fluorescence detector component: low spontaneous fluorescence, improves detection signal-to-noise ratio.
Customized service
We provide flexible product customization solutions to meet the special needs of different industries:
1. Size customization
-Length and width range: 0.5mm~100mm (supports non-standard sizes)
-Thickness customization: 0.1mm~50mm
2. Surface treatment
-Ordinary polishing: Ra ≤ 0.8 μ m, suitable for general optical applications.
-Precision polishing: Ra ≤ 0.3 μ m, reducing light scattering and improving imaging quality.
-Ultra smooth polishing: Ra ≤ 0.1 μ m, suitable for high-power laser systems.
3. Coating reinforcement
-Anti reflective film (AR coating): reduces reflection loss and improves light transmittance.
-Corrosion resistant film: enhances chemical stability and extends service life.
-Laser protective film: suitable for high-energy laser equipment to prevent surface damage.
4. Special shape processing

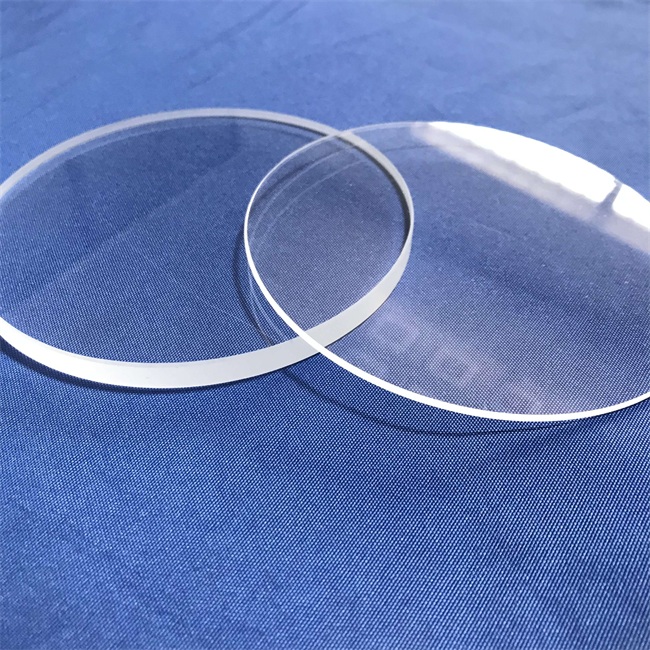

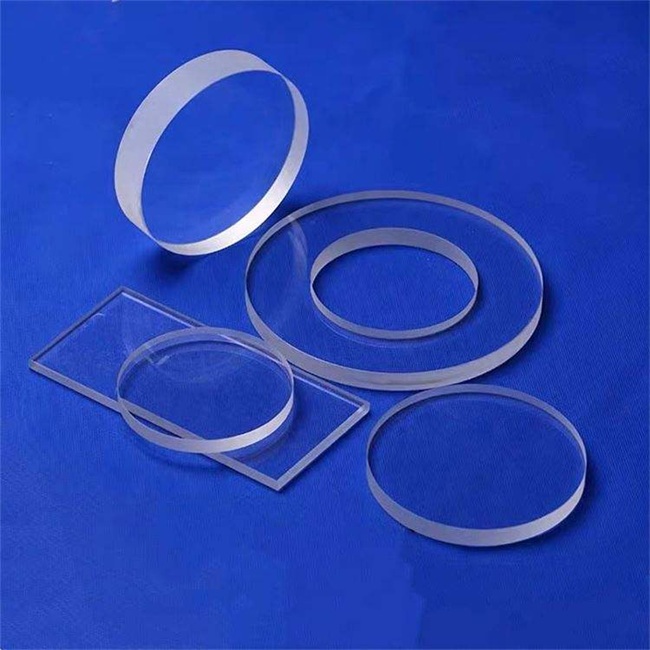

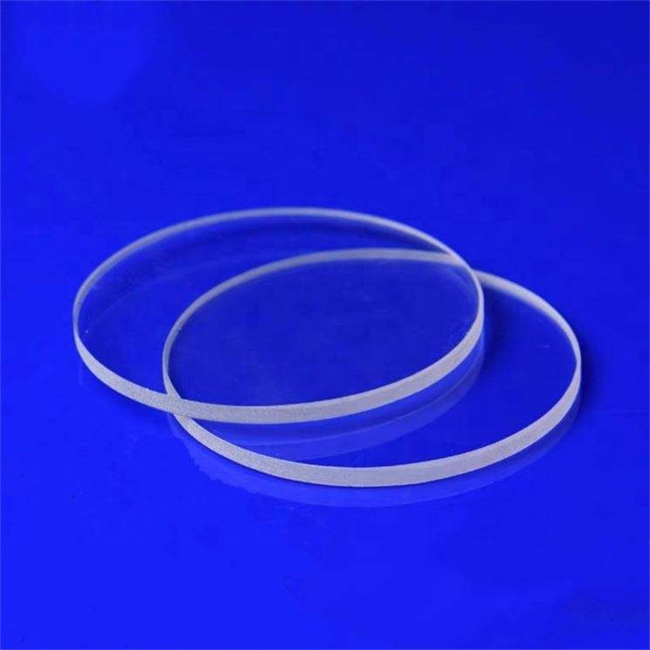

-Circular, square, and irregular cutting
-Chamfering, drilling, and beveled edge grinding
Why choose our UV quartz plate?
High precision manufacturing: using CNC precision machining to ensure strict dimensional tolerances.
Strict quality inspection: Each batch of products undergoes testing for spectral transmittance, surface roughness, and dimensional accuracy.
Quick delivery: Regular sizes can be shipped within 3-5 days, while customized products can be completed within 7-15 days.
Technical support: Provide optical design suggestions to optimize your application solution.
Whether it is optical systems, semiconductor manufacturing, or scientific research experiments, transparent UV quartz plates with a length and width of 0.5-100mm can provide excellent performance and reliability. We support flexible customization to ensure that our products perfectly meet your needs.
Contact us for samples or customized solutions!
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
