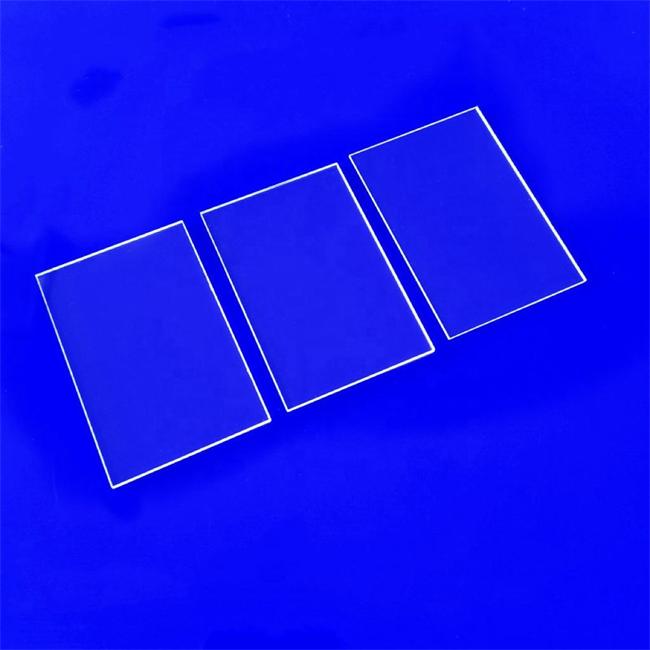

0.5-50mm thick quartz plate
The quartz plates we produce are made of high-purity silicon dioxide (SiO ₂ ≥ 99.9%) through melting or synthesis processes, with a thickness range covering 0.5mm to 50mm.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
0.5-50mm thick quartz plate
Q: I need a material that can withstand high temperatures, resist corrosion, while maintaining high transparency and dimensional stability - can you provide it?
Answer: Our customized quartz plates, with thicknesses ranging from 0.5mm to 50mm, are designed to meet the needs of observation windows, load-bearing plates, or isolation components in high-temperature and corrosive environments. They have excellent thermal stability and chemical inertness.
Q: We often encounter the problem of glass materials breaking under thermal shock. Is there a more reliable alternative?
Answer: Yes. The thermal expansion coefficient of high-purity quartz plate is extremely low, and it can withstand rapid temperature changes without breaking, perfectly solving the problem of material failure caused by thermal shock.
Q: Do we need to customize non-standard sizes and shapes to support small batch purchases?
Answer: We specialize in customized foreign trade services, supporting small batch and multi specification orders from global customers. We provide flexible cutting, drilling, polishing and other processing to meet your unique application needs.
The quartz plates we produce are made of high-purity silicon dioxide (SiO ₂ ≥ 99.9%) through melting or synthesis processes, with a thickness range covering 0.5mm to 50mm. The products have excellent optical properties, thermal stability, and chemical corrosion resistance, and are suitable for semiconductor, optical, chemical, laboratory, and high-end industrial fields.
Key features and advantages
-High heat resistance: softening point up to 1730 ℃, long-term use temperature up to 1100 ℃, resistant to thermal shock.
-Chemical inertness: Except for hydrofluoric acid and hot phosphoric acid, it hardly reacts with other acids and has strong corrosion resistance.
-Excellent optical performance: with a transmittance of over 93% (in the ultraviolet to infrared range), it is an ideal choice for optical windows and lens substrates.
-Low thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃, ensuring that the size remains almost unchanged in high-temperature environments.
-Excellent electrical insulation: high resistivity, suitable for high-temperature insulation components.
Specifications and Customization Services
-Thickness range: 0.5-50mm (supports conventional thicknesses such as 0.5mm, 1mm, 2mm, 5mm, 10mm, 20mm, 30mm, 50mm, etc., and can also be customized non-standard).
-Size and shape: It can produce up to 1500 × 2000mm sheet metal, supporting circular, square, and irregular cutting, as well as secondary processing such as drilling, chamfering, sanding, and coating.
-Surface treatment: We can provide polished surfaces, matte surfaces, matte surfaces, etc. to meet different light transmission and diffusion requirements.
Typical application scenarios
-Semiconductor industry: wafer carrier board, diffusion furnace window, CVD reactor observation window.
-Optics and Optoelectronics: UV lens substrate, laser window, optical filter substrate.
-Chemical and laboratory: corrosion-resistant observation window, reactor sight glass, high-temperature sample holder.
-Lighting industry: high-end lighting fixtures, transparent plates, UV curing equipment windows.
-Research equipment: Space telescope mirror blanks, synchrotron radiation device components.
Customer Application Case (Anonymous)
-A certain optical enterprise in Germany: purchases polished quartz plates with a thickness of 2mm and a diameter of 300mm for use in UV spectrometer windows, replacing raw glass materials and improving equipment temperature resistance from 300 ℃ to 800 ℃.
-American semiconductor equipment manufacturer: Customized 5mm thick quartz carrier plate with porous structure for chip annealing process, with an annual purchase volume of over 2000 pieces and a 15% increase in yield rate.
-Japanese laboratory equipment company: uses 0.5mm ultra-thin quartz plate as the observation window for corrosive gas reaction chamber, solving the pain point of frequent replacement of mirrors and extending the service life by three times.
Whether it's precision optical research, harsh industrial environments, or innovative product development, our 0.5-50mm thickness quartz plates can provide you with reliable material solutions. If you need to customize samples or obtain technical information, please feel free to contact us at any time.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
7. Flexible cooperation mode
Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
