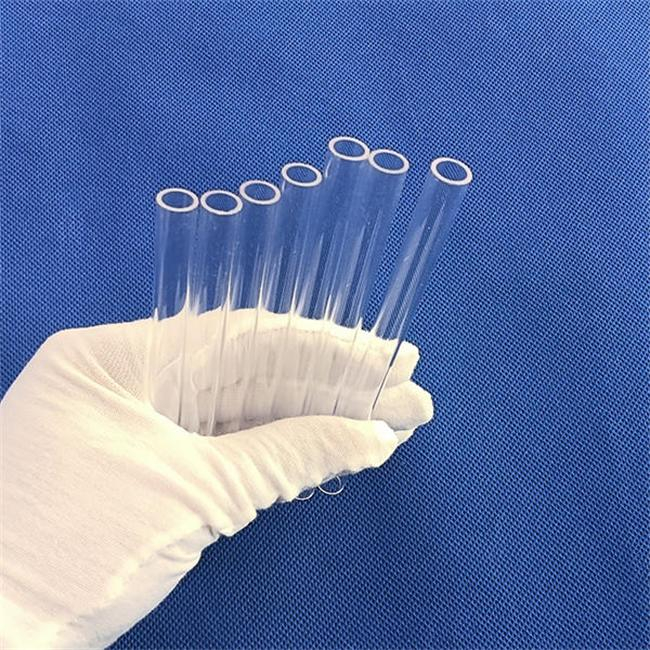

3-10mm Microcapillary Quartz Tube
The 3-10mm microcapillary quartz tube is made of high-purity fused silica by precision drawing process. The inner diameter ranges from 3mm to 10mm.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

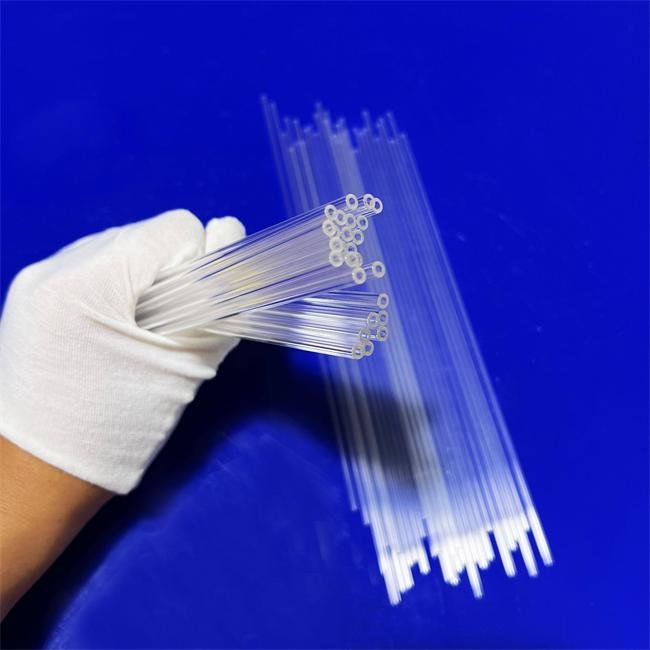

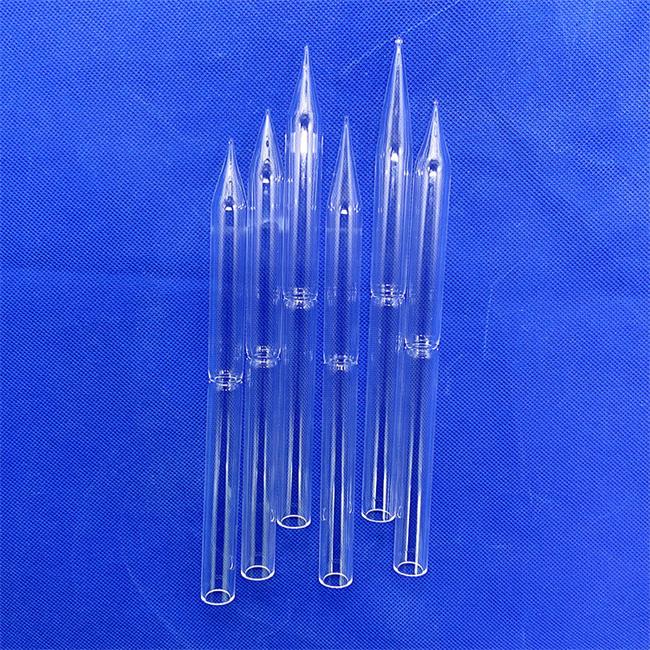

3-10mm Microcapillary Quartz Tube
Q: Are you looking for a precision fluid transmission pipe that can withstand high temperatures, chemical corrosion, and has excellent optical transparency?
A: Our 3-10mm microcapillary quartz tube is designed to solve this problem and is suitable for high-temperature experiments, corrosive medium transmission, and optical observation scenarios.
Q: Do you need to achieve precise fluid control at the microscale while ensuring the dimensional stability and long-term reliability of the pipes?
A: We provide quartz capillary tubes with an inner diameter of 3-10mm and customizable wall thickness, with a dimensional accuracy of ± 0.05mm, ensuring precise and repeatable fluid control.
Q: Do you suffer from the fragility and easy contamination of ordinary glass pipes, or the problem of plastic pipes not being resistant to high temperatures and corrosion?
A: High purity quartz material (SiO ₂ ≥ 99.99%) combines high strength, high temperature resistance (softening point up to 1730 ℃), and excellent chemical inertness, completely solving these pain points.
The 3-10mm microcapillary quartz tube is made of high-purity fused silica by precision drawing process. The inner diameter ranges from 3mm to 10mm. The wall thickness can be customized according to the application needs. The product has excellent thermal stability, chemical corrosion resistance, optical transparency, and mechanical strength, making it an ideal choice for laboratory analysis, industrial sensing, medical devices, semiconductor processes, and other fields.
Key features and advantages
1. Excellent temperature resistance performance
-Softening point up to 1730 ℃, long-term use temperature up to 1200 ℃
-Extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃), excellent thermal shock resistance
2. Excellent chemical stability
-Resistant to most acids, bases, and organic solvents except hydrofluoric acid and hot phosphoric acid
-Smooth and dense surface, not easy to adsorb pollutants, easy to clean and sterilize
3. Precise dimensional control
-The inner diameter tolerance can be controlled within ± 0.05mm
-Wall thickness uniformity>95%, ensuring consistent fluid transmission
4. Optical and electrical properties
-High transparency in the ultraviolet to infrared wavelength range (UV cutoff wavelength ≤ 170nm)
-High insulation resistance, dielectric strength>40kV/mm
Specification customization service
-Size range: Inner diameter 3mm, 4mm, 5mm, 6mm, 8mm, 10mm (supports non-standard customization)
-Wall thickness options: 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
-Length customization: Standard length 1000mm/1500mm, supports cutting of any length
-End treatment: flame polishing, flat grinding, chamfering, flange connection, etc
-Surface modification: hydrophobic/hydrophilic coatings, metalized coatings, etc
Main application areas
In the field of analytical instruments: as injection capillaries for GC/MS and HPLC, microfluidic chip channels, and flow cells for spectral detection.
In the field of biomedicine: micro drug delivery tubes, cell manipulation microneedles, and in vitro diagnostic reagent carriers.
Semiconductor industry: ultra-high purity chemical delivery pipelines, photoresist distribution pipelines, micro reaction tubes for etching processes.
Optics and Sensing: Fiber Coupled Auxiliary Tube, Laser Capillary Cooling Channel, Distributed Sensor Packaging Tube.
New energy research: fuel cell microchannels, electrolysis water reactor capillary arrays, lithium battery electrolyte injection tubes.
Customer Application Cases
-A European analytical instrument manufacturer has purchased a quartz capillary tube with an inner diameter of 5mm and a wall thickness of 1mm for a new gas chromatograph, replacing the original stainless steel tube and increasing detection sensitivity by 18%. Customers have reported excellent product size consistency and a yield rate of 99.6%
-American Semiconductor Equipment Company: Customized 8mm inner diameter quartz diffusion tube for silicon wafer heat treatment process, operating continuously for 12 months at 1100 ℃ without deformation or pollution, reducing replacement frequency by 60%
-Asian biotechnology company: using 6mm hydrophilic coated quartz tube as microfluidic chip substrate, successfully achieving long-term stable operation of cell sorting experiments, and obtaining customer laboratory certification for surface modification effect
3-10mm microcapillary quartz tubes provide reliable solutions for high-end applications in various industries with their unique material properties and precision machining processes. We can provide comprehensive technical support such as material selection, size design, and process adaptation based on your specific application scenario.
If you need customized solutions or sample testing, please provide your application parameters and technical requirements, and we will provide you with exclusive product solutions within 24 hours.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
