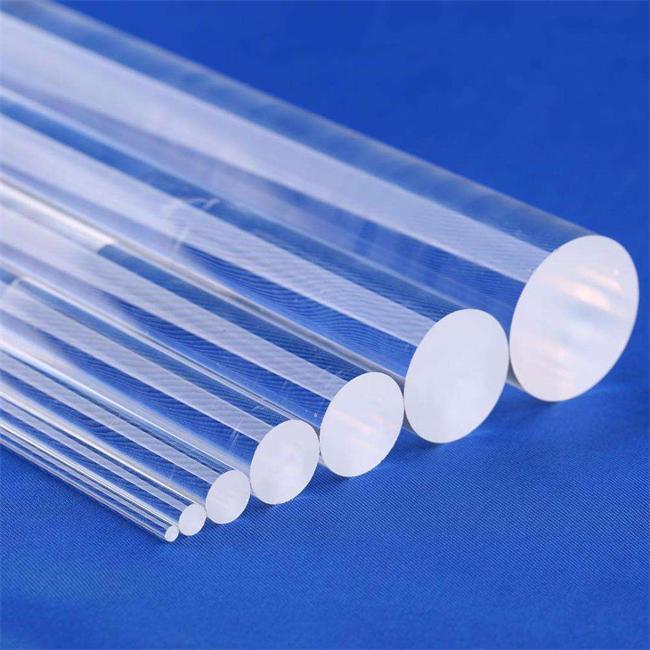

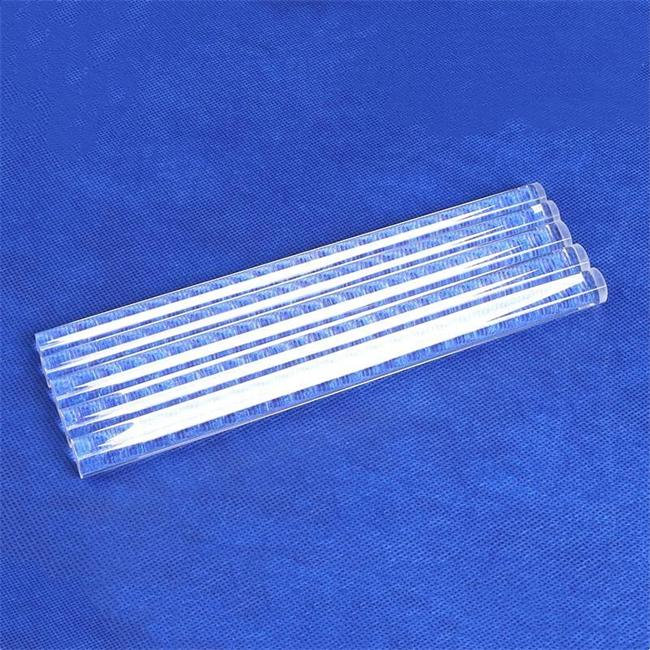

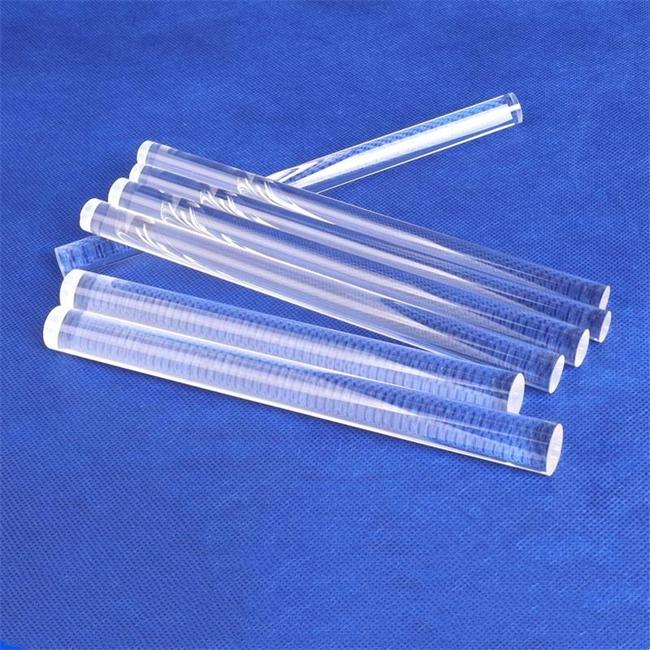

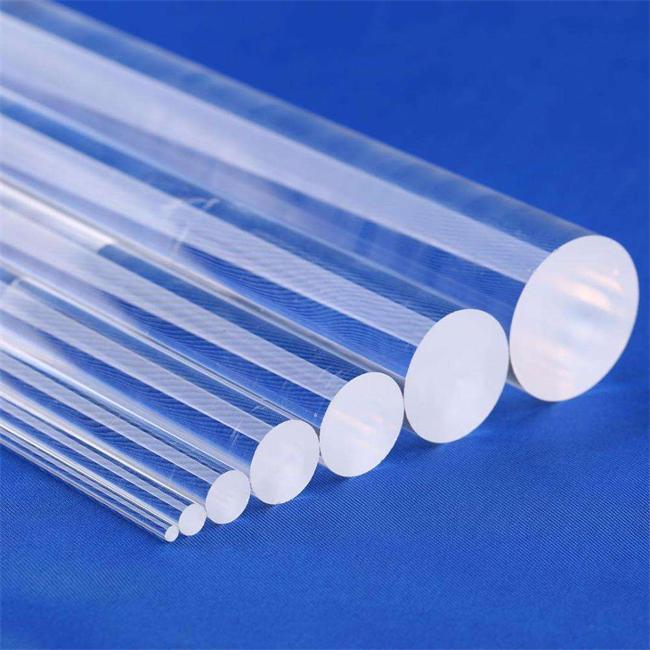

10-3500mm transparent high-temperature resistant optical rod quartz rod is a high-purity quartz glass product with excellent transparency, high temperature resistance, and chemical stability. This product is made of high-purity fused silica, which can work stably in extreme temperature (up to 1200 ℃) and harsh environment for a long time, and is widely used in optics, semiconductor, medical, scientific research and industrial fields.

Frequently Asked Questions (FAQ)

What is the transmittance range of this quartz rod?

Quartz rods have good transmission performance in both ultraviolet and near-infrared continuous spectra, covering wavelengths from 0.18 μ m to 2.2 μ m. The transmittance in the 253.7nm ultraviolet band can reach over 87%, and the transmittance in visible light is ≥ 93%. They are suitable for optical systems such as spectral analysis and laser transmission.

What is the specific size range that can be customized?

The diameter can be customized from 10mm to 3500mm, and the length can be produced according to demand, supporting processing according to drawings. Whether it is micro optical sensing components or large industrial light guiding components, precise customization can be achieved.

What is the temperature resistance performance of the product?

The softening point of quartz glass is 1730 ℃, and the annealing point is about 1210 ℃. It can be used continuously for a long time at a high temperature of 1200 ℃. The coefficient of thermal expansion is only about 0.55 × 10 ⁻⁶/K, which can withstand severe temperature fluctuations.

How about surface treatment and end face accuracy?

The circumference of the rod is transparent, and the end face can be polished to optical grade to achieve a surface quality level of 60/40, ensuring optical transmission efficiency. End face blackening, sanding, or coating with anti reflective film can also be carried out according to the needs.

Core features

High transmittance: The transmittance in the ultraviolet to infrared band (190nm-2500nm) is>90%, suitable for precision optical transmission.

High temperature resistance: The softening point can reach up to 1730 ℃, and the long-term working temperature can reach 1200 ℃ without deformation or performance degradation.

Chemical inertness: resistant to strong acids (except hydrofluoric acid), strong bases, and organic solvents, suitable for corrosive environments.

Low thermal expansion coefficient: The thermal expansion coefficient is only 5.5 × 10 ⁻⁷/℃, with excellent thermal shock resistance and adaptability to rapid temperature changes.

High mechanical strength: high hardness, strong bending resistance, can be customized with different diameters (1mm-50mm) and lengths (10mm-3500mm).

Application

1. Optics and laser technology

-Laser transmission: used as a guiding element for optical systems such as CO ₂ laser and ultraviolet laser to ensure low loss transmission.

-Fiber optic coupling: As a fiber optic docking or beam expansion component, it improves the efficiency of optical signal transmission.

2. Semiconductor and Photovoltaic Industry

-Wafer processing: used as observation windows or light guiding components in high-temperature CVD (chemical vapor deposition) or etching equipment.

-Photovoltaic manufacturing: used for high-temperature process monitoring in the production of solar cells.

3. Medical and Bioengineering

-Endoscope light guide: High transparency ensures clear medical images, high temperature resistance can adapt to sterilization needs (such as high temperature and high pressure disinfection).

-UV curing: Used for the transmission of ultraviolet radiation in dental or skin treatment equipment.

4. Industrial high-temperature environment

-Furnace observation window: Real time monitoring of the reaction process inside the high-temperature furnace to prevent ordinary glass from losing transparency due to high temperature.

-Chemical pipeline inspection: Corrosion resistance is suitable for optical monitoring in chemical processes.

5. Research and Special Environment

-Aerospace and nuclear industry: maintain performance stability under vacuum, radiation, or extreme temperatures.

-Spectral analysis: As a sample cell or optical window, it ensures the accuracy of test data.

Customized service

We provide flexible customized solutions to meet the needs of different scenarios:

1. Size customization

-Diameter range: 1mm-50mm (± 0.1mm accuracy).

-Length range: 10mm-3500mm (can be cut or spliced).

2. Surface treatment

-Polishing: Ultra smooth surface (Ra<0.5nm), reducing light scattering.

-Coating: Anti reflective film (AR), reflective film (HR), or corrosion-resistant coating.

3. Special structure

-Cone shaped, curved, or irregularly shaped quartz rod.

-End face machining (flat, spherical, inclined, etc.).

4. Performance enhancement

-Doping modification (such as UV cut or infrared enhanced).

-Anti radiation or anti-static treatment.

Why choose our quartz rod?

1. Addressing industry pain points

-High temperature environment failure: Replace ordinary glass or plastic light guide rods to avoid melting or aging.

-High light energy loss: high transmittance reduces signal attenuation and improves system efficiency.

-Corrosion resistance requirement: Long term use in acidic/alkaline environments to reduce replacement frequency.

2. Strict quality control

-The purity of the raw material is ≥ 99.99%, with no bubbles, impurities, or stripe defects.

3. Quick response

-Support small-scale trial production to large-scale supply, with short delivery cycles.

-Provide technical consultation and after-sales support to ensure application compatibility.

Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
