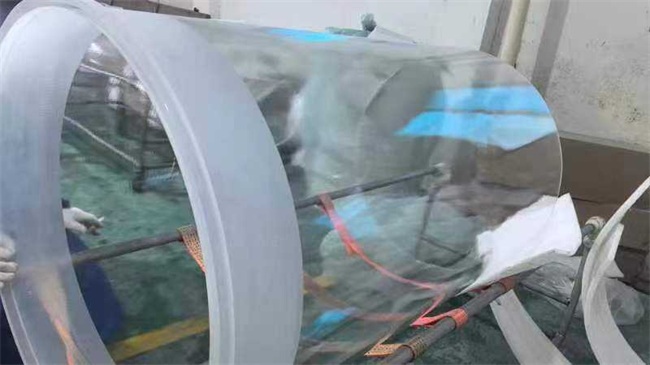

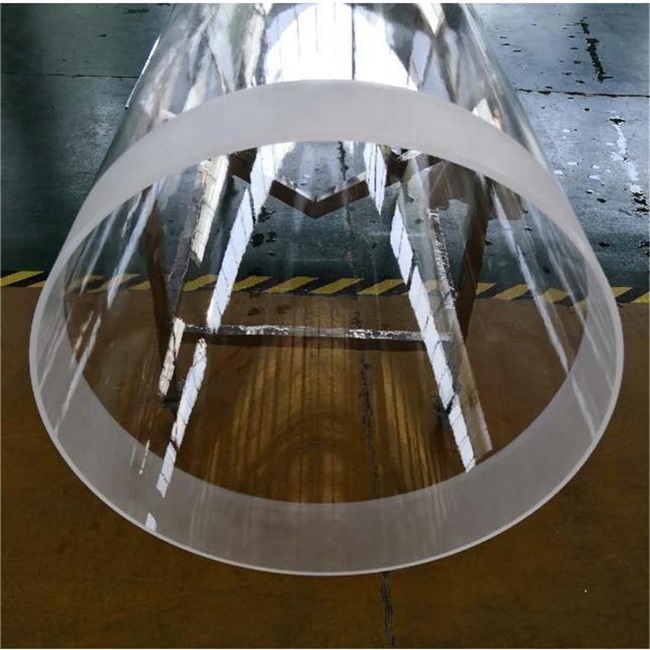

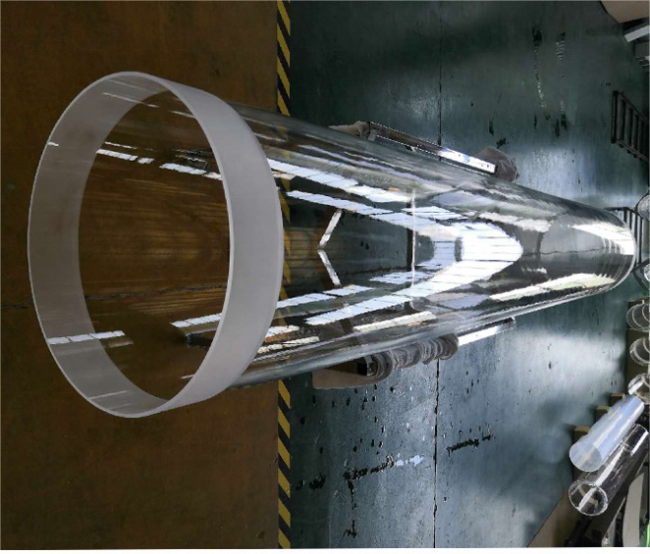

330-2000mm large diameter quartz tube
330-2000mm large diameter quartz tube, made of high-purity quartz material, with excellent high temperature resistance, chemical stability, and high transmittance.
LUVERRE quartz
99.99%

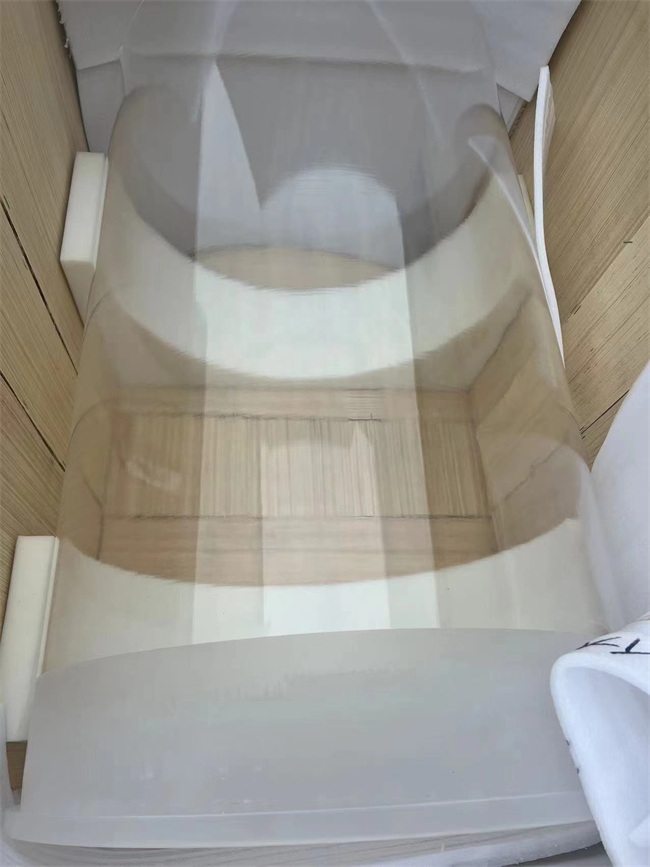

Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
330-2000mm large diameter quartz tube, made of high-purity quartz material, with excellent high temperature resistance, chemical stability, and high transmittance. Wide size range, suitable for industrial scenarios such as high-temperature reactions, vacuum coating, and special light sources in semiconductor, photovoltaic, chemical and other fields.
We specialize in producing large diameter quartz tubes ranging from 330mm to 2000mm, made of high-purity natural quartz sand, with excellent thermal stability, optical transparency, and chemical inertness..
Core strengths
1. Precise dimensional control
-Diameter range: 330mm, 450mm, 600mm, 800mm, 1200mm, 1500mm, 2000mm (supports non-standard customization)
-Wall thickness uniformity error ≤ ± 1.5%, ellipticity ≤ 0.8%
-Straightness: Deviation per meter ＜ 1.2mm
2. Excellent material performance
-Purity grade: SiO ₂ ≥ 99.99%, hydroxyl content<5ppm
-Thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃, can withstand long-term use at 1250 ℃
-Transmittance performance: UV to infrared band (170nm-2500nm) transmittance>92%
3. Strengthen process technology
-Adopting the electric melting method for secondary melting process to reduce bubbles and impurities
-Precision polishing of inner and outer surfaces (Ra ≤ 0.2 μ m optional)
-High temperature resistant coating technology improves crystallization resistance by 300%
Key application areas
-Semiconductor manufacturing: diffusion furnace tube, CVD reaction chamber, wafer carrier
-Photovoltaic industry: polycrystalline silicon ingot furnace, PECVD deposition system
-Optical instruments: high-energy laser tubes, astronomical telescope mirror blanks
-Chemical equipment: corrosion-resistant observation window, high-temperature reaction vessel
-Research experiment: Synchrotron radiation beamline, vacuum system components
Customized service capability
We offer comprehensive customization from design to production:
1. Size customization: diameter, length, wall thickness, end shape (flange/head/opening)
2. Functional modification: UV enhanced, infrared cutoff, low reflection coating
3. Accessory integration: vacuum sealed interface, temperature measuring hole, observation window pre-processing
Addressing industry pain points
1. The difficulty of replacing imports: prices 30-40% lower than European and American brands under the same performance, and delivery cycles shortened by 60%
2. Equipment matching issue: Provide size adaptation solutions for the renovation of old equipment to extend the lifespan of the production line
3. Performance stability: Batch consistency reaches 98.5%, reducing customer process debugging time
4. Emergency response: Keep inventory of commonly used specifications and support emergency shipping within 72 hours
Customer Case (Anonymous)
-German photovoltaic equipment manufacturer: Customized quartz tubes with a diameter of 1500mm × 3000mm for its new generation ingot furnace, with thermal shock performance improved to Δ 300 ℃, and an annual purchase volume of over 200 pieces
-Semiconductor Laboratory in the United States: Developing a low crystallization diffusion tube with a diameter of 800mm, which can be used continuously for 18 months without any performance degradation, replacing the original Japanese supplier
-South Korean display panel company: Customized 1200mm UV enhanced quartz tube, with a transmittance increased to 95% and a yield rate increased by 2.3%
If you need to know the performance parameters of 330-2000mm large diameter quartz tubes in your specific application, or obtain customized quotations, please provide your process requirements and usage environment, and we will provide targeted solutions within 24 hours.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
