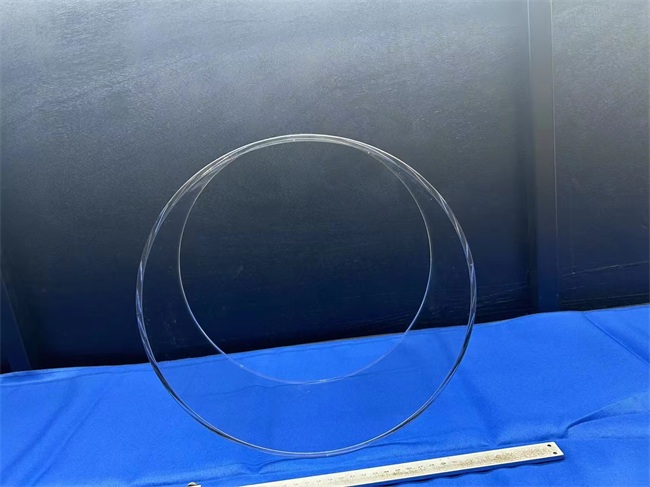

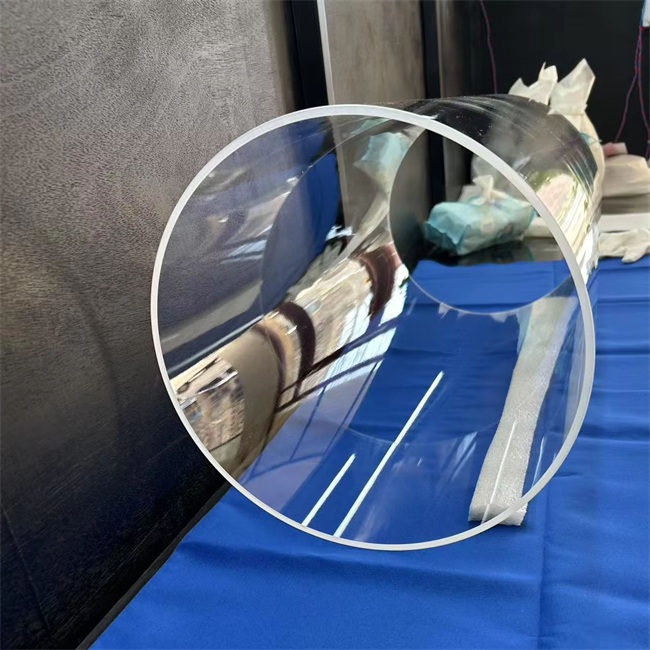

5-600mm round quartz tube
The product diameter range covers from 5mm to 600mm, and the wall thickness can be customized according to application requirements.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
As a professional quartz products manufacturer, the 5-600mm round quartz tubes we produce are made from high-purity natural quartz sand through advanced melting technology. The product diameter range covers from 5mm to 600mm, and the wall thickness can be customized according to application requirements. It features outstanding thermal stability, chemical inertness and optical performance, meeting the global demand for high-quality quartz materials in various industries.
Core product advantages
1. The material has excellent performance
- High purity guarantee: SiO₂ content ≥99.99%, key impurity elements (Al, Fe, Na, etc.) controlled at the ppm level
- Excellent thermal stability: The softening point is as high as 1730℃, and it can be used for a long time at 1200℃. The coefficient of thermal expansion is extremely low (5.5×10⁻⁷/℃)
- Outstanding optical properties: It has excellent light transmittance in the ultraviolet to infrared bands (170nm-3500nm), with a light transmittance in the ultraviolet region exceeding 90%
2. Precision manufacturing process
Continuous melting and temperature-controlled tube drawing technology is adopted to ensure dimensional accuracy (diameter tolerance ±0.5mm, wall thickness tolerance ±0.1mm).
Professional annealing treatment eliminates internal stress, enhances mechanical strength and thermal shock stability
The surface can be polished, matte, coated and other treatments to meet different application requirements
Main application fields
The semiconductor and photovoltaic industry
Diffusion tubes and carrier tubes in the wafer manufacturing process
Quartz boats and furnace tubes for photovoltaic cell production
- Semiconductor equipment cavity liner
The optoelectronics and lighting industry
- LED/MOCVD equipment reaction tube
Special lamp housings, ultraviolet germicidal lamp tubes
Laser device protection sleeve
Laboratories and scientific research equipment
Observation window of high-temperature furnace, sample tube
- Analytical instrument flow path pipes and reaction vessels
Customized experimental device components
Industrial high-temperature treatment
- Inner lining tubes and protective tubes of heat treatment furnaces
Forming molds for the glass processing industry
Pipes for corrosive environments in the chemical industry
Customized service capability
Size and shape customization
Customized in any size within the range of 5 to 600mm in diameter
Special structures such as special-shaped pipes, conical pipes and flanged pipes can be provided
The maximum length can reach 3000mm, and it supports secondary processing such as cutting, chamfering and sealing
Performance enhancement customization
- Doping customization: Doping with elements such as titanium and cerium improves ultraviolet or infrared performance
- Coating treatment: Inner wall coating reduces deposition, and outer wall coating enhances wear resistance
- Connection components: Can be professionally sealed with materials such as metal and ceramic
The problem we have solved
1. The problem of replacing imports
Provide import substitution solutions of the same quality but with a cost reduction of 20-30% for customers in Europe, America, Japan and South Korea, and solve the problem of geographical restrictions in the supply chain.
2. Special application matching challenges
Through customized design, we address the special size and performance requirements that standard products cannot meet, avoiding the high costs of equipment modification for customers.
3. Performance consistency challenge
A strict process control and inspection system resolves the issue of performance fluctuations between batches, ensuring the stability of customers' production processes.
4. Reliability challenges in high-temperature environments
High-purity materials and professional annealing processes solve the problems of quartz tubes being prone to cracking and having a short lifespan in environments with rapid cooling and heating.
Customer application case
Case One: A German photovoltaic equipment manufacturer
Challenge: A super-large quartz tube with a diameter of 350mm and a length of 2500mm is required as the inner lining of the diffusion furnace. It is necessary to ensure that it does not deform or contaminate the silicon wafers at high temperatures.
Solution: We custom-made quartz tubes with low alkali metal content and wall thickness uniformity controlled within ±0.08mm, and the inner walls were specially polished to reduce the deposition of polycrystalline silicon.
Achievements: The customer's production efficiency has increased by 15%, and the service life of the quartz tube has been extended to 1.8 times that of the original product. It has been purchased continuously for three years.
Case Two: Materials Laboratory of an American University
Challenge: A variety of small-batch special-specification quartz tubes (with diameters ranging from 8 to 50mm) are required for high-temperature experiments, demanding rapid delivery and stable performance.
Solution: We have activated a rapid sampling channel, providing samples of five different specifications within two weeks, along with detailed data on the coefficient of thermal expansion and light transmittance.
Achievement: The laboratory has successfully completed the sintering experiment of new ceramic materials and has now listed us as the designated quartz supplier.
Case Three: Japanese LED chip manufacturing enterprises
Challenge: Quartz reaction tubes used in MOCVD equipment need to reduce internal film deposition and extend the cleaning cycle.
Solution: We have developed an inner wall densification treatment process, reducing the inner surface roughness of the quartz tube to Ra≤0.1μm.
Outcome: The maintenance cycle of the customer's equipment has been extended from the original two weeks to four weeks, and the annual maintenance cost has been reduced by approximately 30%.
In the fields of precision manufacturing and high-temperature processes, the quality of quartz tubes directly affects the performance and cost of the final product. Our 5-600mm round quartz tubes not only offer outstanding basic performance, but also become a key support in the process flow of global customers through our deep customization capabilities.
Our professional team can provide you with a full-process solution covering material selection, structural design and subsequent processing based on your specific application scenarios. Welcome to contact us to obtain a customized solution. Let us understand your needs and jointly create the most suitable quartz products for your application.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
