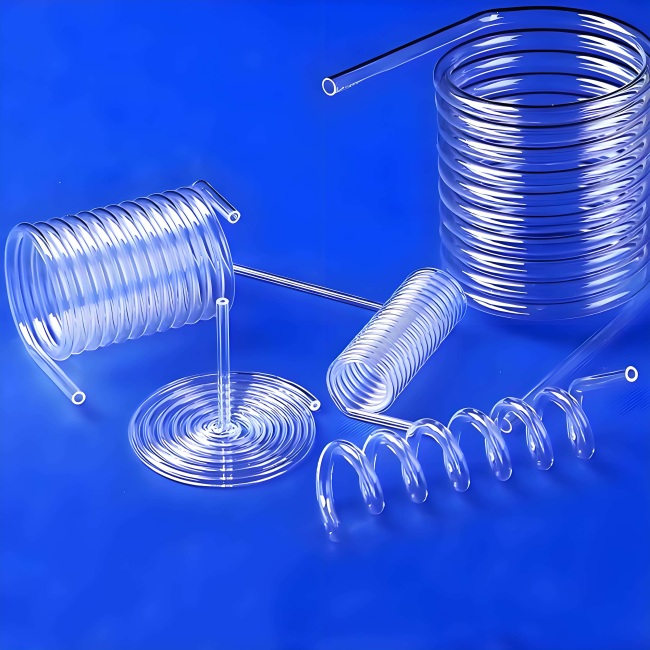

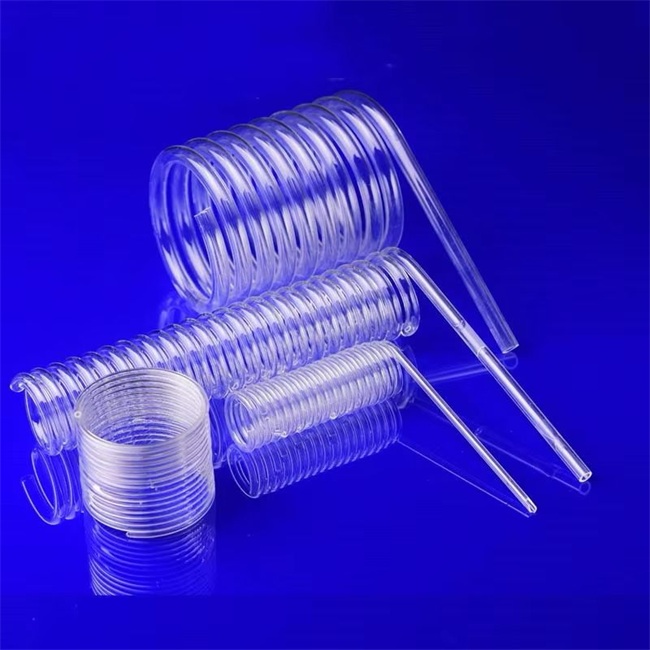

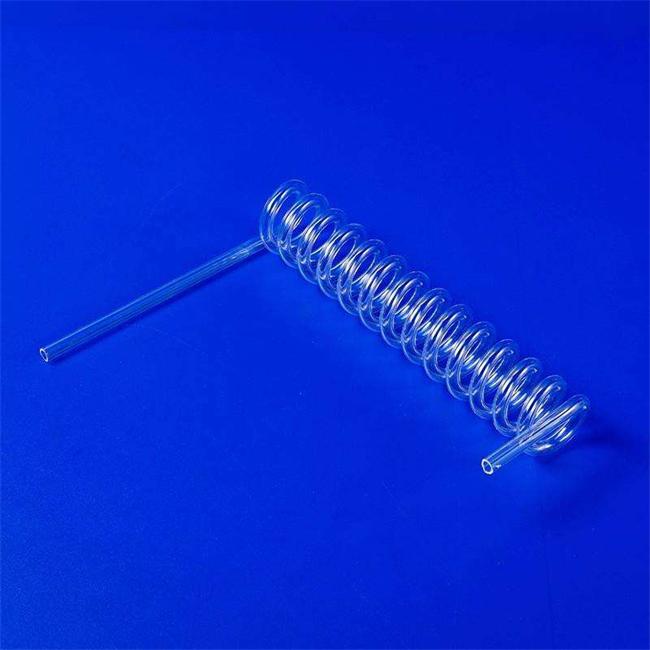

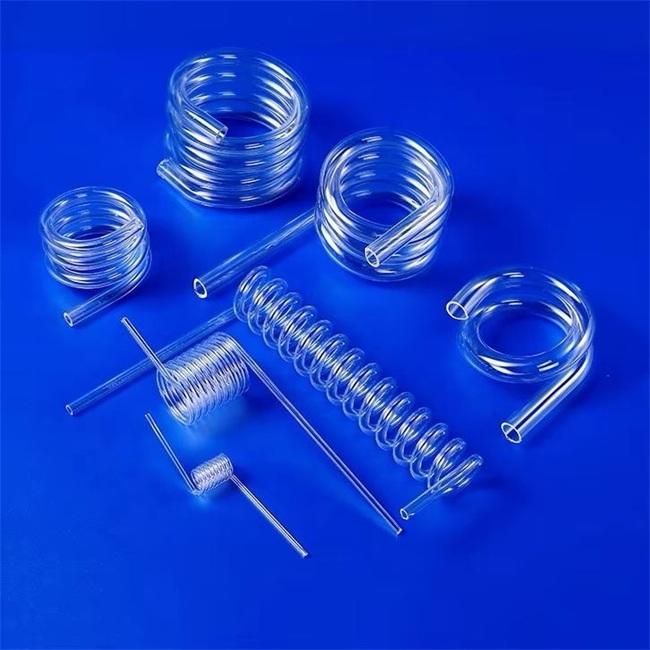

Curved quartz spiral tube
Curved quartz spiral tube is a special heating element made of high-purity quartz material, which has high temperature resistance (up to 1200 ℃), excellent chemical stability and thermal efficiency.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Curved quartz spiral tube is a special heating element made of high-purity quartz material, which has high temperature resistance (up to 1200 ℃), excellent chemical stability and thermal efficiency. It is widely used in semiconductor manufacturing, photovoltaic industry, laboratory instruments and chemical equipment, and is suitable for use in high temperature, high pressure and corrosive environments.
As a professional manufacturer of quartz products, we are committed to providing excellent curved quartz spiral tubes for global industrial and research customers.
Product core advantage: Why does our curved quartz spiral tube stand out?
Our curved quartz spiral tube is made of high-purity fused silica material through precision thermal processing technology, and has a series of irreplaceable excellent performance:
1. Excellent heat shock resistance: able to withstand rapid temperature changes (from over 1000 ℃ to room temperature) without cracking or deformation, ensuring stability and long life in extreme thermal cycling environments.
2. Extremely high thermal stability and high temperature resistance: the softening point is as high as 1730 ℃, and the long-term use temperature can reach 1100 ℃. It can maintain its shape and mechanical strength at high temperatures, with an extremely low coefficient of thermal expansion.
3. Excellent chemical purity and corrosion resistance: except for hydrofluoric acid and hot phosphoric acid, it hardly reacts with other acidic substances. The extremely high purity ensures that impurities will not be introduced in industries such as semiconductors and photovoltaics that have zero tolerance for pollution.
4. Excellent optical performance: With a wide range of light transmittance from ultraviolet to infrared, it is an ideal carrier for optical applications such as ultraviolet lamps and infrared heaters.
5. High mechanical strength and precise geometric shape: Our precision bending technology ensures uniform spacing between spiral tube coils, smooth curvature, and no stress concentration points, ensuring smooth fluid flow and structural consistency.
Main application areas: Where do we need our curved quartz spiral tube?
This multifunctional component is a key component in many high-tech industries and research fields:
Semiconductor industry: used for gas pipelines and furnace tubes in CVD (chemical vapor deposition), LPCVD (low-pressure chemical vapor deposition), and diffusion furnace processes.
Photovoltaic industry: used as heat exchange tubes and protective tubes in polycrystalline silicon, monocrystalline silicon ingot furnaces, and solar cell production equipment.
Optoelectronics and Lighting: As a lamp tube for ultraviolet sterilization lamps, halogen lamps, etc., it achieves maximum lighting efficiency under compact design.
Chemistry and pharmaceuticals: used for the transportation, distillation, and reflux systems of highly corrosive chemicals or high-purity substances.
Research and experimentation: Plays an important role in high-temperature reaction equipment, vacuum systems, and spectroscopic analysis equipment in universities and research institutes.
What key issues can we solve?
By choosing our curved quartz spiral tube, you will effectively tackle the following challenges:
Solving the problem of "thermal stress rupture": Traditional glass or inferior quartz tubes are fragile under frequent cold and hot alternation, and our product fundamentally improves the reliability and continuous operation time of the equipment.
Avoiding the risk of "product contamination": High chemical purity and corrosion resistance ensure the purity of process media, which is crucial for improving semiconductor chip yield and ensuring drug safety.
Overcoming the problem of "space limitation": The spiral design achieves the maximum heat exchange area or optical path length in a limited space, optimizing the overall design of the equipment.
Breaking through the bottleneck of customization: The special needs of non-standard equipment are often difficult to meet, and our strong customization capabilities can turn your drawings or ideas into reality.
Customer real case (anonymous)
Case 1: A semiconductor equipment manufacturer in Germany
Requirement: A quartz spiral tube for new CVD equipment is needed, which is required to work for a long time at high temperature of 1150 ℃, and the spiral structure needs to be perfectly matched with the internal electrode, with a tolerance controlled within ± 0.2mm.
Challenge: The low product yield and poor dimensional consistency of the supplier that the customer previously worked with have led to difficulties in equipment assembly.
Our solution: We have had multiple video conferences with customer engineers to gain a deeper understanding of the technical requirements. By optimizing the mold and bending process, we have successfully delivered small batches of samples. After testing, the sample fully meets all specifications, with thermal stability and dimensional accuracy exceeding customer expectations.
Result: The customer has now listed us as a qualified supplier and started stable bulk procurement.
Case 2: Materials Science Laboratory of a University in the United States
Requirement: Customize a small-diameter quartz spiral tube for high-temperature gas-phase reactions for catalytic research. The requirements are unconventional and require quick delivery.
Challenge: Small quantity (only 5 pieces required), complex process, low commercial value, and most large factories are unwilling to accept orders.
Our solution: We see it as an opportunity to showcase our flexible customization capabilities. After receiving clear drawings, we quickly arranged production and completed the samples within 10 working days and shipped them by air freight.
Result: The researchers are very satisfied with the processing quality of the product and our response speed. They have also entrusted us with the customization requirements for other quartz vessels in their laboratory.
Whether you need a standard specification curved quartz spiral tube or face an extremely challenging customization requirement, we have professional technology, rich experience, and a firm commitment to provide you with the perfect solution.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision fused quartz items.
