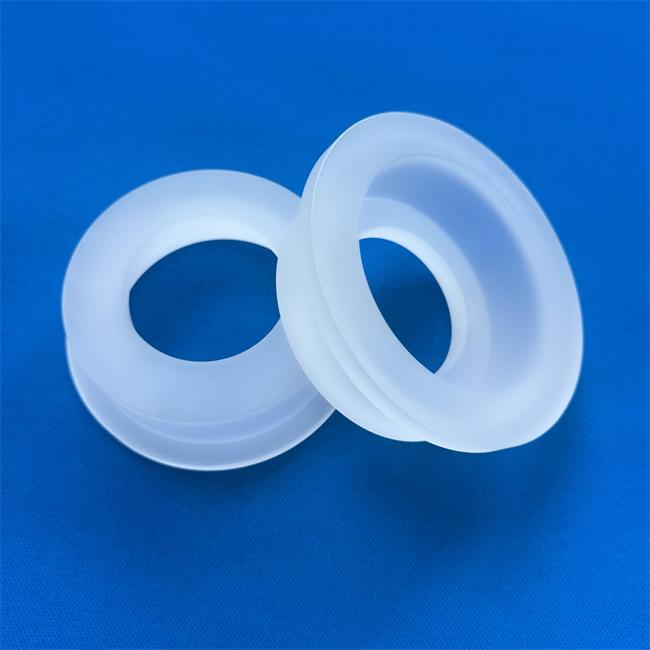

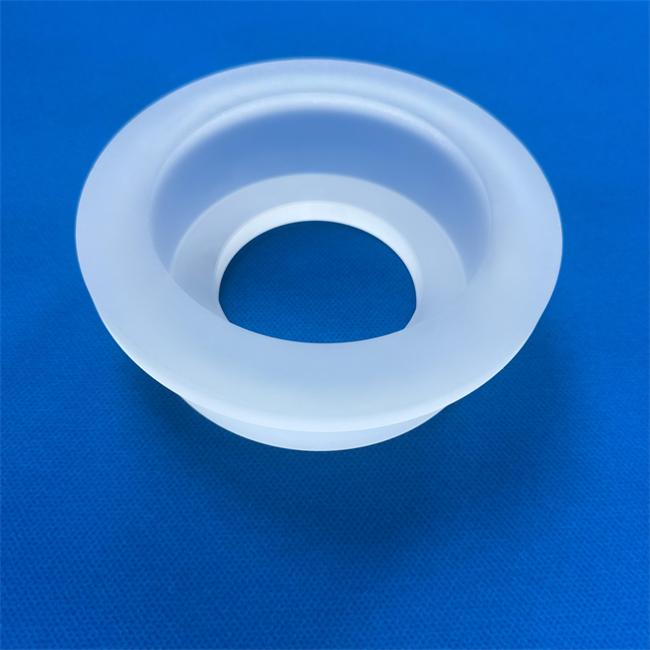

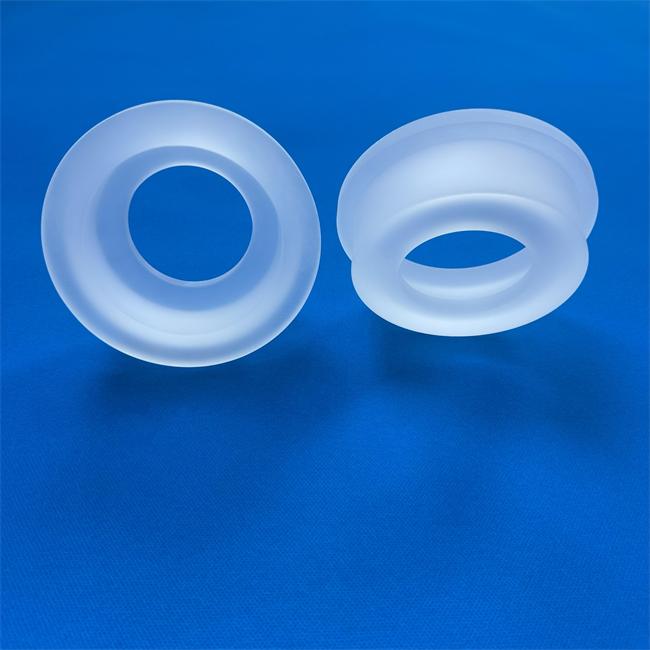

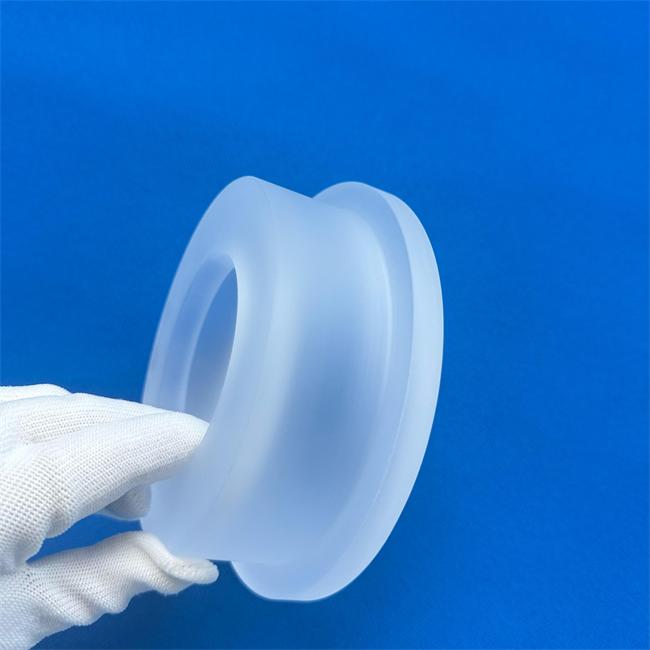

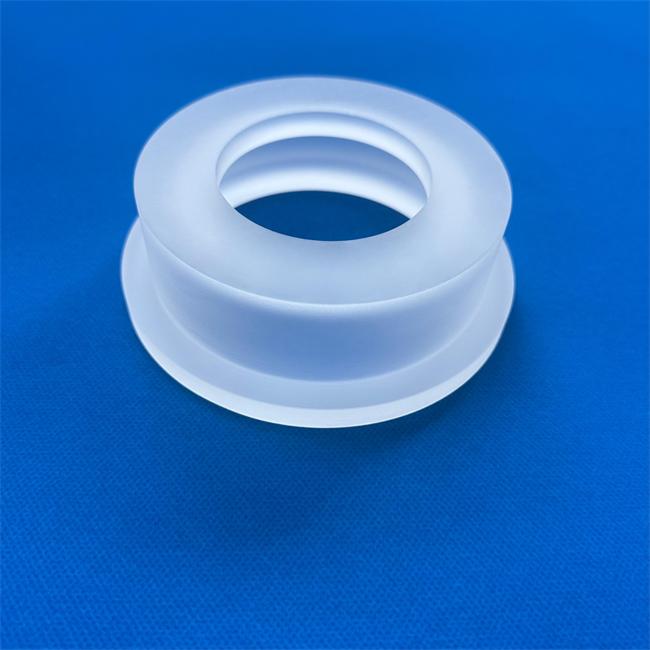

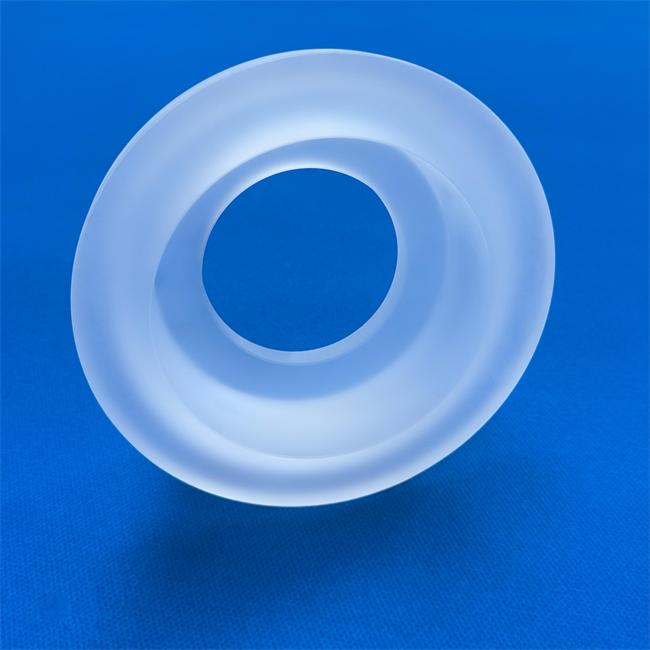

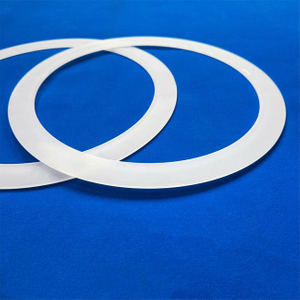

Frosted quartz flange connection ring

In the field of high-purity quartz products, although the flange connection ring is not the core reaction chamber, it is a key hub to ensure the airtightness, pressure resistance, and cleanliness of the system. The frosted quartz flange connection ring is designed specifically for pipelines, reaction chambers, and equipment interfaces in semiconductor, photovoltaic, fiber optic, and high-purity chemical processes. Through precision frosted treatment and customized geometric tolerances, it achieves reliable connections with zero leakage and low particle precipitation, becoming an indispensable "invisible guardian" in high-end manufacturing production lines.

Frequently Asked Questions (FAQ)

Q1: What are the core advantages of frosted quartz flange connection rings compared to traditional metal or plastic flanges?

A: Quartz material has an extremely low coefficient of linear expansion, excellent high temperature resistance (with a maximum working temperature of over 1100 ℃), and strong acid corrosion resistance. After precision grinding, the frosted surface can greatly increase the sealing contact area. When combined with PTFE or perfluoroether gaskets, it can maintain stable sealing under high and low temperature alternating conditions, avoiding metal ion contamination. It is particularly suitable for semiconductor front-end processes that require strict cleanliness.

Q2: What is the specific purpose of the "frosted" treatment on the flange connection ring?

A: Grinding treatment is not simply roughening, but precise grinding of the sealing surface with a specific particle size grinding wheel to form a uniform micro texture. This surface can effectively improve the friction coefficient and sealing fit between the gasket, prevent the sealing ring from shifting due to pressure fluctuations or thermal expansion and contraction, and reduce the risk of slipping caused by excessively smooth surface during installation.

Q3: Can special sizes or irregular flanges be customized for non-standard equipment?

A: Absolutely possible. We focus on fully customized production, whether it is standard ISO, KF, CF flange sizes, or customized non-standard aperture, thickness, groove depth according to customer equipment interface drawings, or even porous irregular connectors. We can provide one-stop service from drawing confirmation to finished product delivery. The smallest inner diameter can be processed up to 5mm, and the largest outer diameter can reach 500mm or more.

What core needs can be addressed for you?

-Addressing interface leakage issues under high-temperature corrosion conditions: In processes such as CVD and diffusion furnaces, ordinary metal flanges are prone to leakage due to corrosion or high-temperature creep, while quartz flanges are integrally formed without welding points, resulting in better long-term stability.

-Eliminating the risk of metal ion contamination: For highly sensitive processes such as advanced manufacturing and MEMS device manufacturing, using a fully quartz flow path can eliminate pollution sources caused by metal flange corrosion or gasket wear.

-Dealing with the challenges of non-standard equipment renovation and maintenance: Imported old equipment or self-developed experimental devices often lack standard interfaces. We provide "processing according to drawings" services to quickly respond and shorten the equipment renovation cycle.

Core values and advantages of the product

Material and process advantages

-High purity quartz substrate: High purity quartz (SiO ₂ purity ≥ 99%) is selected, with extremely low impurity content and excellent heat shock resistance, ensuring no cracking under frequent temperature rise and fall conditions.

-Precision frosted sealing surface: The flatness of the sealing surface can reach within 0.02mm, and the roughness Ra value can be controlled between 0.8-1.6 μ m. It forms a "micro groove locking" effect with various elastic gaskets, and its pressure resistance is about 30% higher than that of ordinary polished surfaces.

-Fully customized geometric structure: supports circular, rectangular, elliptical, and combined hole design; It can process various interface forms such as conical surfaces, stepped surfaces, O-ring grooves, etc., and is compatible with different brands of vacuum valves, heating kits, or chamber flanges.

Application scenario focus

-Semiconductor equipment: gas path connections and cavity transition flanges in etching machines and atomic layer deposition (ALD) equipment.

-Photovoltaics and Display: As a source gas pipeline interface in PECVD equipment, it resists corrosive gases such as silane and ammonia.

-Fiber preform manufacturing: used as a sealing connector in high-temperature hydrogen chloride treatment process, resistant to chlorine gas corrosion.

-Laboratory and Research: Provide non-standard quartz interface conversion components for customized high-temperature reaction vessels and vacuum systems.

Value to users

-Improve system reliability: reduce process interruptions and product scrap caused by interface leaks, and lower overall maintenance costs.

-Shorten delivery cycle: Standardized product spot supply, average delivery time for non-standard customization is 5-10 working days, urgent orders can be coordinated and expedited.

-Reduce procurement complexity: Provide complete support from design, selection, processing to matching seal selection, avoiding coordination difficulties among multiple suppliers for users.

Customer Application Case (Anonymous)

Case 1: A 12 inch semiconductor wafer factory (etching machine renovation)

When the factory introduced a certain type of etching machine, it was found that the metal flange provided by the original factory showed significant corrosion after three months in a fluorine-containing plasma environment, resulting in a decrease in vacuum degree and excessive particle size. We have customized a high-purity quartz flange connection ring for it, using ISO 100 specifications, with a frosted surface matched with a perfluoroether O-ring, and increased the flange thickness by 15% to match the original installation space of the machine. After replacement and continuous operation for 14 months, after metal ion detection on the wafer surface, there were no new sources of pollution, and the average time between failures (MTBF) of the equipment was increased to more than three times that of the original metal parts.

Case 2: A European fiber preform manufacturer (high-temperature hydrogen chloride pipeline sealing)

The customer's original system used a quartz tube and a metal flange connected by a sleeve. When the temperature was repeatedly raised and lowered to 900 ℃, the sleeve became loose due to differences in thermal expansion coefficients, requiring monthly shutdown for maintenance. We designed an integrated frosted quartz flange connection ring based on its pipeline drawings, changed the connection method to a double-sided frosted surface flange with high-temperature resistant graphite composite gasket, and customized bolt hole positions with non-standard center distance. After installation, there has been no leakage record during continuous operation for more than 6 months.

Case 3: Advanced Materials Laboratory of a certain university (interface for irregular vacuum system)

The vacuum sintering furnace built by the laboratory requires a square quartz observation window to be connected to a circular vacuum pipeline, and there are no standard conversion parts on the market. We use high-purity quartz blanks, which are processed into "round square" transition flanges through CNC machining. Both ends are respectively processed with frosted sealing surfaces, and thermocouple threading holes are reserved. After the product delivery, it was successfully installed in one go, with a vacuum degree of up to 5 × 10 ⁻⁵ Pa, which helped the smooth progress of its key project experiments.

If you are troubled by the sealing, cleanliness, or non-standard compatibility issues of quartz equipment interfaces, please feel free to communicate with us for specific requirements - whether it is providing existing drawings or only informing you of equipment models and operating parameters, we can provide customized solutions and accurate quotations for you. We look forward to using a precision machined frosted quartz flange connecting ring to help your production line operate more stably and efficiently.

Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.

For more information, please feel free to contact us.
