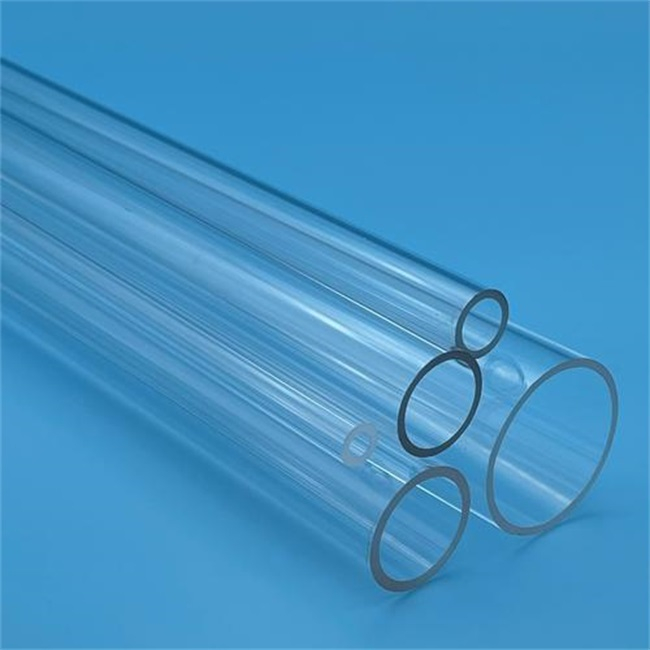

Fused silica glass tube for optical fiber communication
Fused silica glass tube for optical fiber communication is the key material used to manufacture optical fiber preform and final optical fiber in optical fiber communication system.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Fused silica glass tube for optical fiber communication
Fused silica glass tube for optical fiber communication is the key material used to manufacture optical fiber preform and final optical fiber in optical fiber communication system.
Fused silica glass tube for optical fiber communication is a kind of high-purity quartz glass product, which is mainly used for manufacturing optical fiber preforms. This type of glass tube plays a crucial role in fiber optic communication technology, as it provides the required transparency and physical properties for the core and cladding of the optical fiber.
Material characteristics: fused silica glass tube is made of high-purity silicon dioxide (SiO2) with extremely low impurity content, which ensures high transparency and low light loss of optical fiber.
Transparency and optical loss: fused silica glass tube has excellent transparency within the wavelength range used for optical fiber communication (usually 850nm, 1310nm and 1550nm), and the optical loss is very low, which is crucial for efficient optical signal transmission.
Thermal stability: These glass tubes have a low coefficient of thermal expansion and can maintain stable size and shape in high temperature environments, which is crucial for the manufacturing process of fiber optic preforms.
Chemical stability: fused silica glass tubes have high resistance to most chemicals, which enables them to withstand various chemical treatments during manufacturing.
Manufacturing process:
External deposition: In the process of manufacturing optical fiber preforms, fused silica glass tubes are usually used as containers for external deposition. Through methods such as chemical vapor deposition (CVD), silicon dioxide and other materials are deposited inside the tube to form the core and cladding structure of the optical fiber.
Internal deposition: Internal deposition technology can also be used to deposit core material on the inner wall of a quartz glass tube, and then fill it with cladding material.
Shrinking and drawing: After manufacturing, the preform is heated to high temperature and then stretched into slender optical fibers through a drawing machine.
Application field: fused silica glass tube is mainly used to manufacture single-mode and multi-mode optical fibers. These optical fibers are the basis of modern communication networks, and are widely used in telecommunications, data transmission, cable television, Internet and other fields.
Environmental adaptability: Due to its excellent physical and chemical properties, fused silica glass tube can work stably in the harsh environment of optical fiber communication system, such as high temperature, high pressure and chemical corrosion environment.
The quality of optical fiber communication fused silica glass tube directly affects the performance of the final optical fiber. Therefore, its manufacturing process needs strict quality control to ensure the transmission efficiency and reliability of optical fiber. With the continuous development of optical fiber communication technology, fused silica glass tubes play an increasingly important role in improving network bandwidth and transmission distance.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
