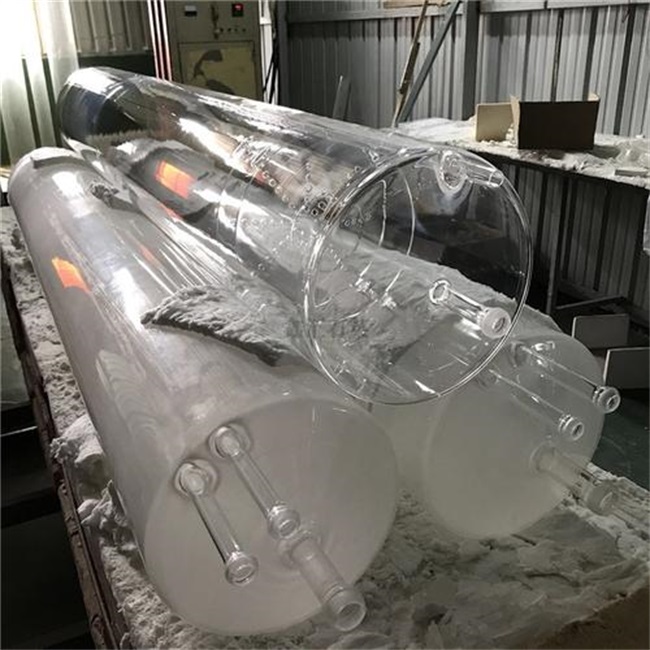

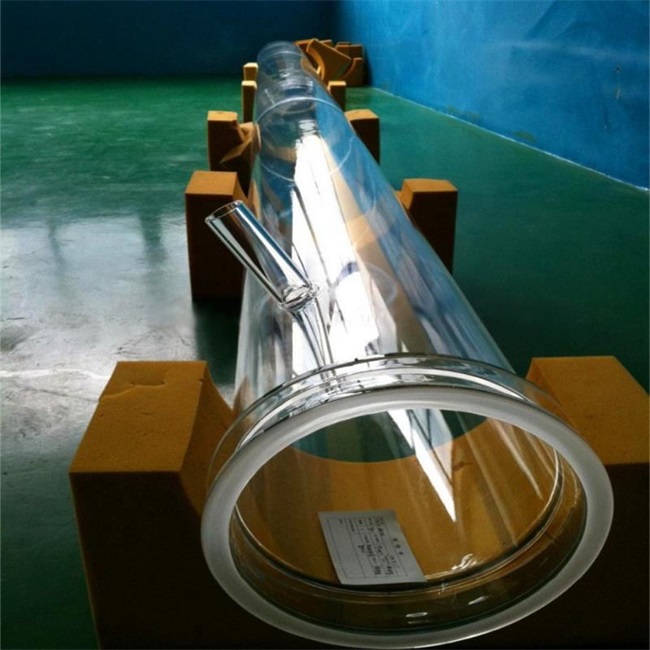

Gas transmission pipeline quartz tube
Gas transmission pipeline quartz tube is a special glass product made of high-purity silicon dioxide (SiO ₂), which has excellent physical and chemical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Gas transmission pipeline quartz tube
Gas transmission pipeline quartz tube is a special glass product made of high-purity silicon dioxide (SiO ₂), which has excellent physical and chemical properties.
Main features:
-High temperature resistance: can withstand high temperatures ranging from 1100 ℃ to 1400 ℃.
-High purity: The impurity content is extremely low, for example, in semiconductor applications, the impurity content is less than 1ppm.
-Corrosion resistance: except for hydrofluoric acid and strong alkali, it has good stability to most chemical reagents.
-Low thermal expansion coefficient: It is not easily ruptured due to thermal expansion and contraction in high temperature environments.
Application
Quartz pipes for gas transportation are widely used in the following fields:
-Semiconductor manufacturing: used in chemical vapor deposition (CVD) equipment to transport high-purity gases such as silane, ammonia, etc., ensuring the uniformity of thin film deposition.
-Photovoltaic industry: In plasma enhanced chemical vapor deposition (PECVD) equipment, as a reaction chamber, it supports the uniform deposition of silicon nitride anti reflection film.
-Fiber optic production: As a component of fiber optic preform, it is used as a sleeve for cladding materials.
-Industrial process: Used for vacuum systems, thermocouple protection tubes, etc., to ensure structural integrity under high temperature and low pressure conditions.
-Laboratory: used for high-temperature processes, sample processing, and cleaning maintenance to ensure the accuracy and completeness of experimental results.
Customized description
Quartz tubes can be customized according to different application scenarios to meet specific needs:
-Size customization: Quartz tubes with different diameters (from 2mm to 900mm) and lengths can be provided according to user requirements.
-Purity requirements: Provide ultra-high purity quartz tubes according to application needs to meet the strict purity requirements of industries such as semiconductors and optical fibers.
-Surface treatment: The inner wall roughness can be controlled within Ra<0.2 μ m to reduce gas retention and chemical reaction residue.
-Customization process: The customization process includes communicating customer requirements, design, production, quality testing, and other aspects to ensure that the product meets customer requirements.
The customization capability of quartz tubes enables them to adapt to various complex industrial and research environments, providing users with highly flexible solutions.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
