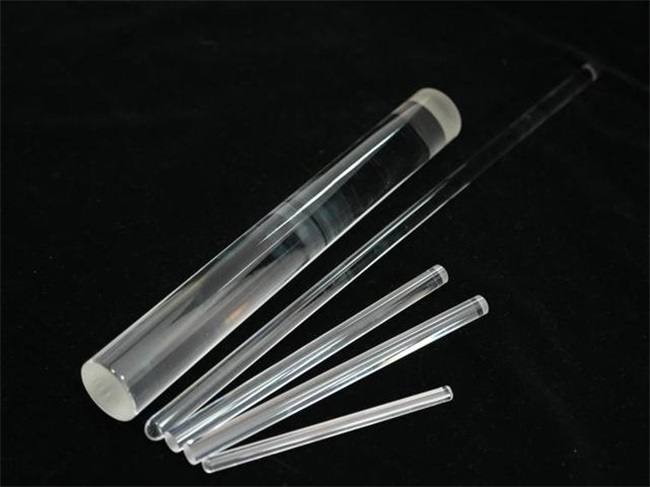

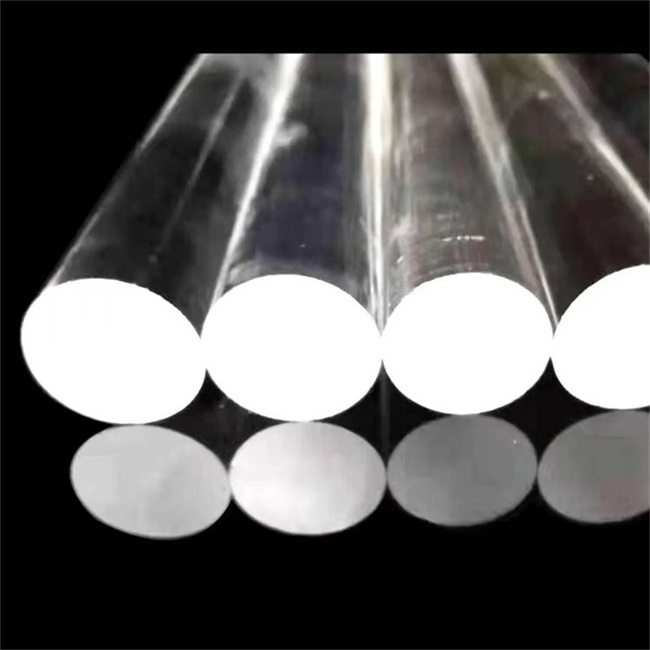

Fiber optic drawing furnace fixed quartz preform
Fixing quartz preform in optical fiber drawing furnace is the core component of manufacturing optical fiber. Its main function is to pull the preform into optical fiber through high temperature drawing process.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Fiber optic drawing furnace fixed quartz preform
Fixing quartz preform in optical fiber drawing furnace is the core component of manufacturing optical fiber. Its main function is to pull the preform into optical fiber through high temperature drawing process. The preform is usually made of high-purity silica (quartz), and the internal structure includes core and cladding. The production process of the preform is complicated, and the common ones are chemical vapor deposition (CVD) and modified chemical vapor deposition (MCVD). These processes can precisely control the refractive index distribution and geometric size of the preform, so as to meet the requirements of different optical fiber properties.
Application
1. Communication field: Optical fibers drawn from optical fiber preforms are the core transmission medium of optical communication networks and are widely used in long-distance communication, metropolitan area networks, access networks, etc., to support high-speed and large-capacity data transmission.
2. Industrial laser field: Special fiber preforms can be used to fabricate gain fibers in fiber lasers, such as ytterbium-doped fibers, for high-power laser cutting, welding, and so on.
3. Medical field: Some fiber optic preforms can be used to fabricate medical laser fibers, such as those used in laser surgery, which can transmit lasers of specific wavelengths.
4. Sensing field: Optical fibers drawn from optical fiber preforms can be used to fabricate optical fiber sensors for the measurement of physical quantities such as temperature, pressure, and displacement.
Custom description
1. Size customization: The diameter and length of the preform can be customized according to customer needs, usually ranging from a few millimeters to tens of millimeters in diameter and up to several meters in length. For example, Heraeus provides quartz bars with a diameter range of 1-90mm and a length of 500-1500mm.
2. Material customization: The material of the preform can be selected according to the application requirements of different quartz grades, such as high-hydroxyquartz (suitable for UV applications) and low-hydroxyquartz (suitable for wide wavelength range applications).
3. Structural customization: The internal structure of the preform can be customized, such as the refractive index distribution of the core and cladding, the ratio of the core diameter to the cladding, etc., to meet different transmission performance requirements.
4. Special function customization: for example, doping specific elements (e.g. germanium, fluorine, etc.) to achieve specific optical properties, or customizing the external shape of the preform (e.g. hexagons, rectangles, etc.).
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
