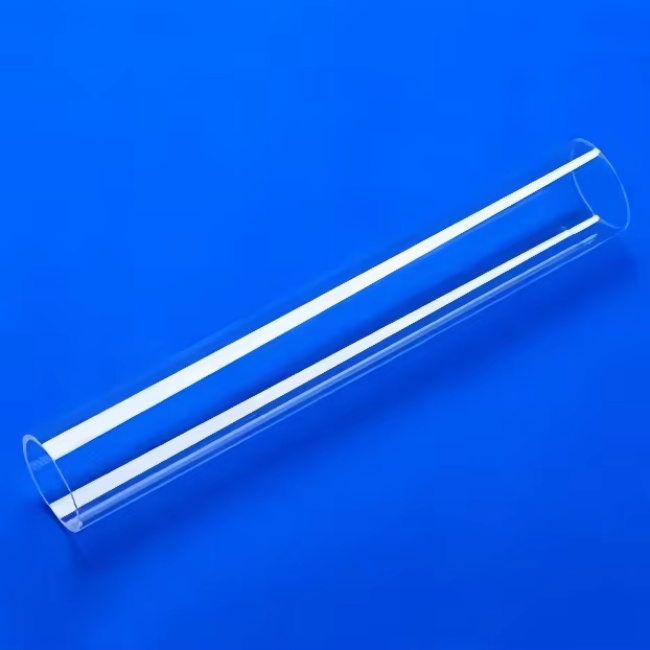

High permeability hollow thick wall quartz tube
High permeability hollow thick wall quartz tube is a tubular product made of high-purity fused silica (SiO ₂) material, which has excellent light transmittance, high temperature resistance, corrosion resistance and mechanical strength.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High transparency hollow thick walled quartz tube
High permeability hollow thick wall quartz tube is a tubular product made of high-purity fused silica (SiO ₂) material, which has excellent light transmittance, high temperature resistance, corrosion resistance and mechanical strength. The product adopts advanced fused silica drawing process to ensure uniform pipe wall thickness, smooth inner wall, no bubbles and impurities, and is suitable for high-precision optics, semiconductor, photovoltaic, chemical and scientific research and other fields.
Product characteristics
-High transmittance: The transmittance in the ultraviolet infrared band (170nm~2500nm) can reach over 90%, making it suitable for precision optical systems.
-High temperature resistance: It can work at 1200 ℃ for a long time and withstand high temperatures of 1600 ℃ for a short period of time. Its coefficient of thermal expansion is extremely low and its thermal shock resistance is excellent.
-Chemical inertness: resistant to strong acids (except hydrofluoric acid), strong alkalis, and organic solvent corrosion, suitable for harsh chemical environments.
-High mechanical strength: Thick walled design (adjustable wall thickness of 1mm~20mm) provides higher compressive and bending strength.
-Low hydroxyl content (OH<10ppm), reduces infrared absorption, suitable for laser and optical applications.
Specification parameters
Outer diameter (OD): 5mm~300mm (customizable)
Inner diameter (ID): 3mm~280mm (customizable)
Wall thickness: 1mm~20mm
Length: 10mm~3000mm (customizable ultra long continuous pipe)
Surface smoothness: can provide polishing, sanding, coating and other treatments
Purity: ≥ 99.99% SiO ₂
Application Fields
1. Semiconductor and Photovoltaic Industry
-Diffusion furnace tube: used for high-temperature diffusion process of semiconductor wafers, resistant to high temperature and does not pollute the wafer.
-CVD (Chemical Vapor Deposition) reaction tube: High purity quartz tube ensures the uniformity and purity of the deposited film layer.
-Photovoltaic silicon wafer sintering furnace tube: resistant to high temperature and thermal shock, suitable for solar cell manufacturing.
2. Optics and laser technology
-Laser cavity: Low hydroxyl quartz tube reduces laser energy loss and improves beam quality.
-UV optical window: high UV transmittance, suitable for UV curing, lithography machines and other equipment.
-Fiber preform support tube: high-purity quartz ensures low loss during the fiber drawing process.
3. Chemical and laboratory equipment
-Corrosion resistant reactor: a chemical reaction vessel used in strong acid and alkali environments.
-High temperature observation window: provides a clear optical observation channel in a high-temperature furnace or vacuum environment.
-Accessories for analytical instruments, such as sample introduction tubes for ICP-MS (Inductively Coupled Plasma Mass Spectrometer).
4. Electric light source and vacuum technology
-High power halogen lamp: resistant to high temperature, UV aging, and extends the lifespan of the lamp.
-Vacuum flange and sealing tube: low gas permeability, suitable for high vacuum systems.
Customized service
We provide comprehensive customized production services to meet the special needs of different industries:
1. Size customization
-Support non-standard inner diameter, outer diameter, and wall thickness adjustment, and can provide irregular pipes (such as tapered pipes, corrugated pipes, etc.).
-Ultra long continuous pipes (with a single length of up to 3 meters or more) or short cut precision pipes (with a tolerance of ± 0.1mm).
2. Surface treatment
-High precision polishing: The inner/outer walls can undergo optical grade polishing, Ra≤0.2μm。
-Coating services: providing anti reflective film (AR), reflective film (IR), high temperature resistant protective film, etc.
-Matte/sandblasting treatment: used for special light scattering or anti glare needs.
3. Material optimization
-Ultra low hydroxyl quartz tube (OH<1ppm), suitable for high-power lasers.
-Doped quartz tube: such as titanium (Ti) and cerium (Ce) doping, to adjust the ultraviolet or infrared transmission characteristics.
4. Processing services
-Precision cutting: CNC or laser cutting to ensure that the end face is flat and free of broken edges.
-Sealing and welding: Vacuum sealing welding of quartz quartz or quartz metal (such as tungsten, molybdenum) can be provided.
-Openings and flange connections: Process side holes, threaded interfaces, or vacuum flanges according to customer requirements.
Our high transparency hollow thick walled quartz tubes have become the preferred choice for high-end industries such as semiconductors, optics, and chemicals due to their excellent material properties and flexible customization capabilities. We can provide professional technical support and fast delivery services for both standard specifications and special requirements. If you need further information or request samples, please feel free to contact us at any time!

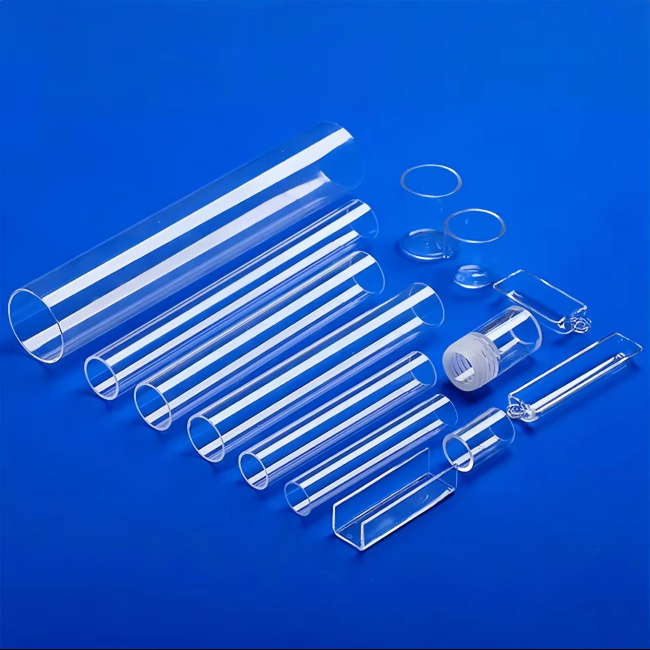

Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
