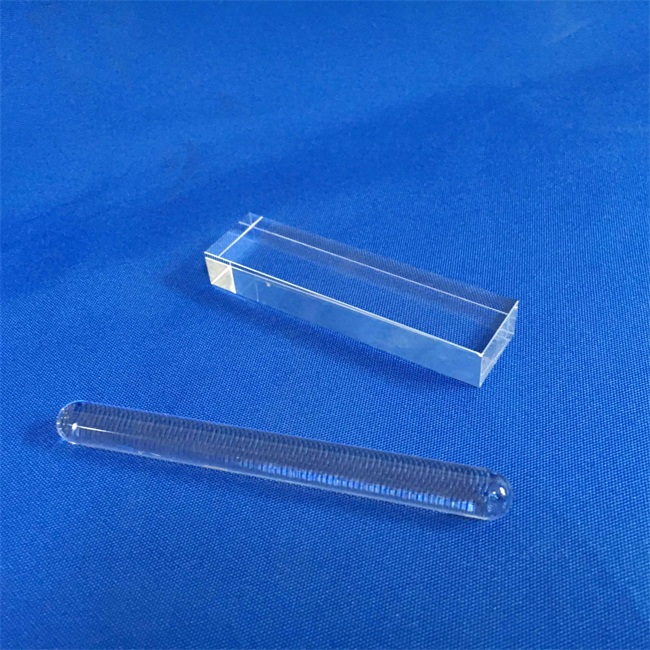

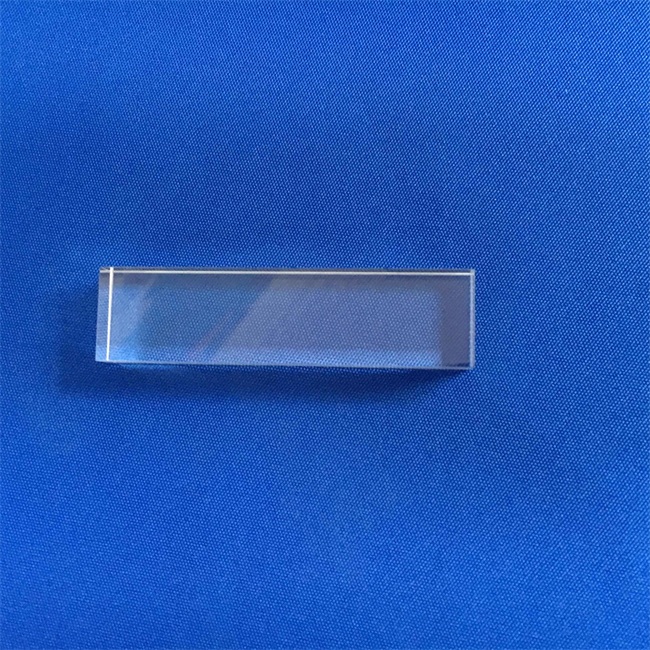

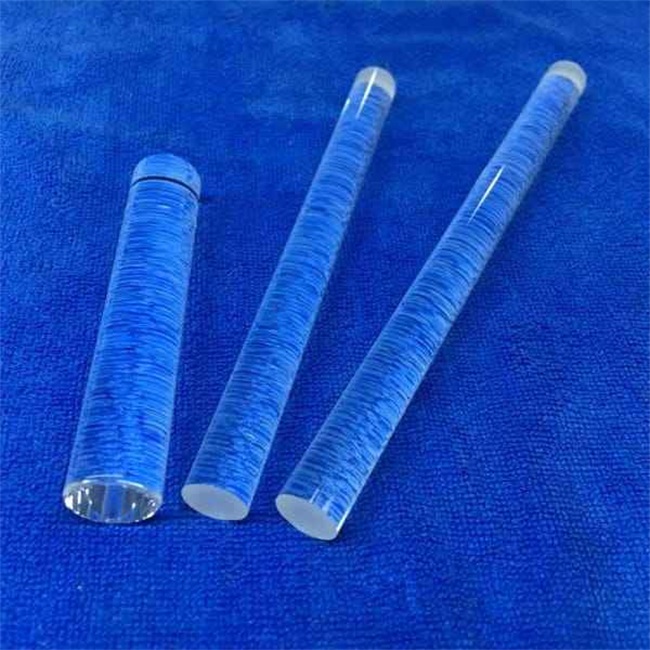

High transmittance and high precision optical quartz light guide rod
High light transmittance and high precision optical quartz light guide rod is an optical element made of high purity synthetic quartz glass (SiO).
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High transmittance and high precision optical quartz light guide rod
High light transmittance and high precision optical quartz light guide rod is an optical element made of high purity synthetic quartz glass (SiO). Designed for efficient and accurate transmission of ultraviolet (UV), visible (VIS) light to near infrared (NIR) light, it is an indispensable "optical highway" in modern precision optical systems.
Core value:
Solve the problem of how to realize low loss, high fidelity, flexible and reliable transmission of light energy in complex or confined space. Traditional light path system relies on multiple lenses and reflectors built in free space, which is large and easy to be disturbed by the environment. Our quartz light guide rod offers an excellent, integrated, compact and stable alternative.
Why choose our quartz light guide rod?
Extremely light transmittance: using the top optical grade synthetic quartz material, it has very high light transmittance in the wide spectrum range of 190nm to 2500nm (for example, the light transmittance>90% in the ultraviolet wave band of 254nm and>99% in the infrared wave band of 1064nm), so as to minimize the loss of light energy in the transmission process.
Excellent dimensional accuracy: the rod body is precision ground and polished, the diameter and length tolerance can be strictly controlled (e.g. ± 0.01mm), the end face has excellent finish and flatness, and the high efficiency and low loss coupling with the light source and the receiving end can be ensured.
Excellent thermal stability: quartz glass has extremely low coefficient of thermal expansion, can withstand drastic temperature changes (the maximum temperature can be up to 1100 ℃) without deformation or performance degradation, and is suitable for high temperature and harsh environment.
Outstanding mechanical and chemical properties: high hardness, abrasion resistance and scratch resistance. At the same time, it has excellent corrosion resistance and can resist the erosion of water, acid (except hydrofluoric acid and hot phosphoric acid) and other chemical substances, with long service life.
What problems can we solve?
Solve the complicated and unstable problem of optical path construction: replace the complicated optical lens group, simplify the optical path into a solid light guide rod, and make the system more compact, with stronger anti-vibration and interference capacity.
Solve the problem of low light transmission efficiency: Extremely high light transmittance and precise end surface treatment greatly reduce the reflection, scattering and absorption loss of light in the transmission process, and significantly improve the energy utilization efficiency of the whole system.
Solutions to severe environmental applications: excellent high temperature resistance and chemical stability, making it suitable for high temperature, high corrosion or industrial environments requiring frequent cleaning, while ordinary optical glass or resin materials are not suitable.
Solution to the problem of UV and IR special wave band transmission: ordinary glass seriously absorbs UV and IR light, and optical quartz glass performs excellently in these wave bands, which is an ideal choice for transmitting UV and IR light.
Solve the problem of light transmission under space limitation: bend or design a specific shape according to the need to guide the light to the area difficult to be illuminated directly, so as to design high flexibility.
Typical application fields
Our high-precision quartz light guide rod is the core component of many high-tech fields:
Semiconductor manufacturing and detection: used in photolithography machines, wafer defect detection equipment, film measuring instruments, etc., to transmit ultraviolet light of specific wavelength for exposure and precise measurement.
Medical and biological instruments: used in laser treatment equipment (such as urology and dermatology), endoscopic lighting, flow cell analyzer, DNA sequencer, etc. to realize reliable transmission of high energy laser or high brightness lighting light.
Industrial processing and sensing:
Laser processing: used in laser conduction system of laser marking, welding and cutting equipment, especially high-power ultraviolet laser processing.
Spectrum analysis: as the optical fiber probe or conducting element of spectrometer and process analyzer, ensure the accuracy of sampled optical signal.
High-temperature industrial sight glass: used for nondestructive testing and observation inside high-temperature equipment such as boiler and engine.
Scientific Research and Defense:
Light conduction in high-energy physical experiments and astronomical observation equipment.
UV warning, missile seeker and other defense photoelectric systems.
Analytical instruments: key optical components in environmental and scientific instruments such as water quality analysis, fluorescence detection and ozone monitoring.
Customized service
We understand that the demands for optical components vary considerably from application to application. Therefore, we provide comprehensive flexible customization services to ensure that you can obtain products that completely match the project requirements.
Size and shape customization:
Diameters: Available in diameters ranging from a few tenths of millimeters to dozens of millimeters.
Length: Specific length can be customized according to your system layout.
Shape: straight bars, bent bars (specific bend radius) or more complex shapes can be customized.
Customization of optical performance:
Coating service: Anti-transmission film (AR film) can be coated on the end face as required to further reduce the reflection loss and improve the transmittance at specific wavelength (such as 266nm, 355nm, 1064nm, etc.). Other functional films may also be deposited.
Selection of materials and grades:
Provide different grades of synthetic quartz materials to meet your special requirements for fluorescent effects, hydroxyl content, UV transmittance, etc.
End treatment customization:
Provide a variety of end types, such as plane, bevel, sphere, etc., and customize the interface scheme according to your connector type to facilitate system integration.
If you are looking for a highly reliable optical element that can improve system performance and solve complex optical transmission problems, our highly transparent and high-precision optical quartz light guide rods and customized services will be your ideal choice.
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
