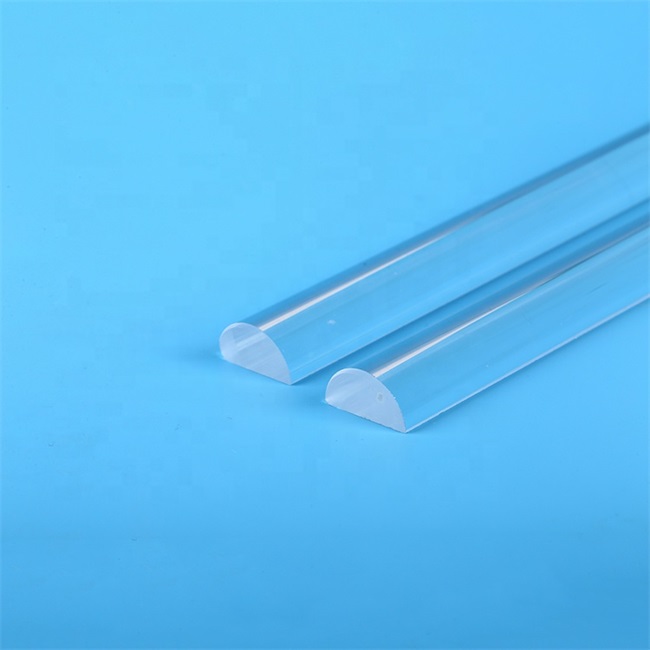

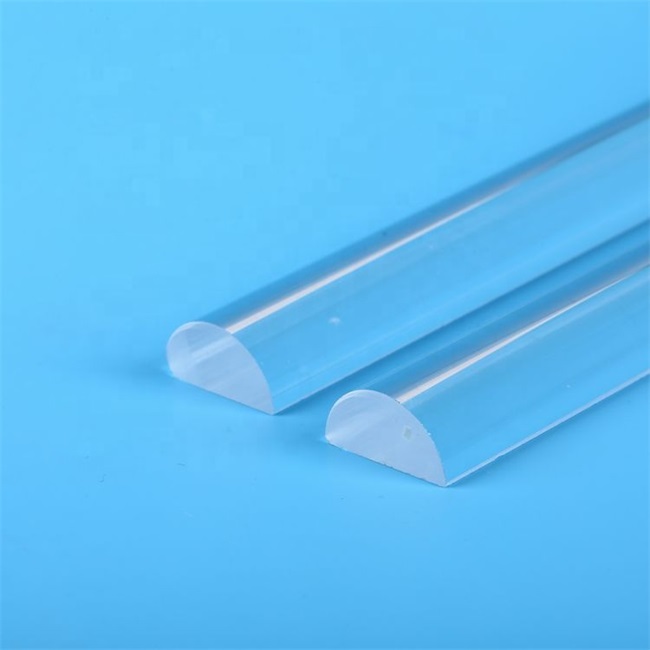

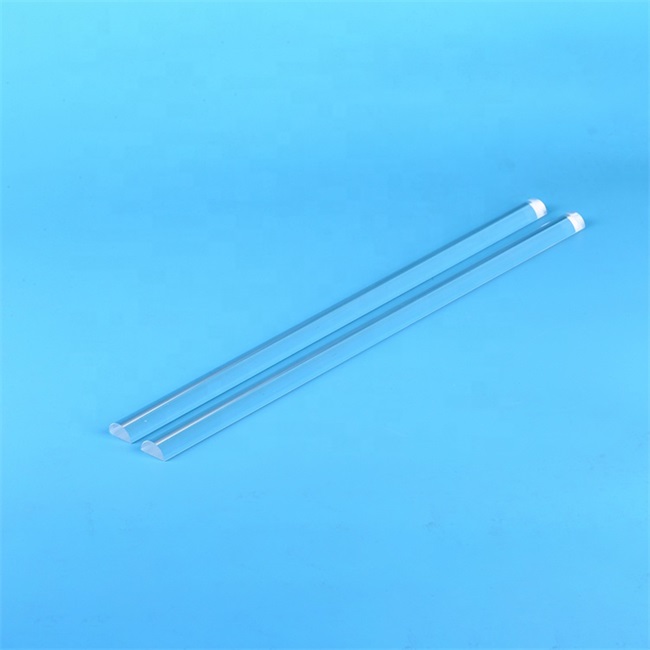

A semi-circular optical quartz rod is a precision quartz element with a semi-circular cross-section, widely used in fields such as optical communication coupling, laser shaping, spectral analysis, and medical optical equipment. Its unique geometric shape enables light to diffuse uniformly or focus precisely in specific directions. However, the asymmetric structure of a semicircle places extremely high demands on machining accuracy, surface smoothness, and material uniformity.

Frequently Asked Questions (FAQ)

-Q: What are the main difficulties in processing semi-circular optical quartz rods?

Answer: There are three main difficulties: firstly, high-precision coordinated control of outer circle grinding and plane grinding is required for semi-circular sections to ensure that the boundary line between the arc and the plane is straight and without any broken edges; The second requirement is that the optical grade surface must have a roughness of nanometer level and not cause subsurface damage; Thirdly, quartz material has high hardness and brittleness, and is prone to microcracks or fractures during processing, requiring special process parameters and cooling schemes.

-Q: What process does your company use to make semi-circular quartz rods?

Answer: We adopt a composite process route of "precision wire cutting initial forming → contour grinding sizing → multi pass grinding and polishing". For products that require high precision, optical cold processing technology will also be introduced to process cylindrical or rectangular bars into standard semi-circular sections using specialized fixtures, and gradually refine the surface to achieve a mirror effect.

-Q: Can we customize semi-circular quartz rods of different sizes and materials?

Answer: Absolutely possible. We support customization of semi-circular rods with diameters ranging from 2mm to 100mm and lengths ranging from 5mm to 500mm. The materials available include high-purity synthetic quartz, air refined quartz, or cerium doped quartz. The radius of the arc, width of the plane, chamfer size, and surface smoothness can all be processed one-to-one according to your drawing requirements.

User core needs and solutions

-Requirement 1: Obtain high-precision, defect free semi-circular optical interfaces

Solution: We use multi axis precision grinding machines and optical grade polishing processes to ensure the geometric accuracy and surface quality of circular arc surfaces and planes, meeting the requirements of optical path coupling and imaging.

-Requirement 2: Solve the consistency problem in batch processing

Solution: By designing high rigidity fixtures and standardizing the process flow, the size deviation between batches can be controlled within ± 0.01mm, ensuring interchangeability during large-scale production.

-Requirement 3: Special specifications and fast sampling requirements

Solution: We provide full cycle customization services from single prototype verification to batch delivery, with a minimum sampling period of 5-7 working days.

Preparation process of semi-circular optical quartz rod

1、 Material selection: laying the foundation for optical performance

The quality of semi-circular optical quartz rods begins with the raw materials. According to different application scenarios, we offer the following material options:

-High purity synthetic quartz: with low OH content and extremely high transmittance in the ultraviolet to infrared band, suitable for high-end applications such as deep ultraviolet lithography and laser transmission.

-Gas refining electric melting quartz: relatively cost-effective, good thermal stability, suitable for general industrial optics and lighting fields.

-Cerium doped quartz: It has radiation resistance and is specifically used in optical systems in aerospace and nuclear environments.

All raw materials undergo strict optical uniformity and bubble level testing to ensure controllable internal defects.

2、 Molding process: from blank to semi-circular initial embryo

There are two main paths for forming a semi-circular quartz rod:

1. Round bar grinding method (mainstream process): High precision cylindrical quartz rods are selected as blanks, fixed with special fixtures, and standard semi-circular sections are ground along the axial direction using formed grinding wheels or diamond grinding tools. This method is suitable for products with a diameter of 5mm or more and a length of 300mm or less, with an accuracy of ± 0.02mm.

2. Rectangular bar cutting method: cut the rectangular quartz Flat noodles longitudinally to obtain a strip with a semicircular section. This method is suitable for products with small diameters or special aspect ratios, but requires subsequent refinement of the curved surface.

Regardless of the method used, we strictly control the grinding depth and feed rate to avoid material cracking caused by instantaneous high temperature or impact force.

3、 Precision Grinding: Eliminating Processing Deterioration Layer

The surface of the initially formed semi-circular quartz rod has a deep processing metamorphic layer and microcracks. We use progressively refined diamond abrasives (with particle size gradually transitioning from 200 mesh to 3000 mesh) for wet grinding, effectively removing the damaged layer while controlling the shape error between the circular arc surface and the plane at the micrometer level. The key to this stage is to maintain the integrity of the arc contour and the uniformity of the plane width, avoiding the phenomenon of "flat circle" or "skewed edge".

4、 Optical polishing: achieving mirror level surface quality

The ground semi-circular quartz rod needs to be polished to have optical grade transmission performance. We use polyurethane polishing pads combined with cerium oxide polishing solution to polish circular and flat surfaces separately under constant temperature and pressure conditions. The final surface roughness (Ra) can reach below 0.8nm, and the transmittance can be increased to over 92% (uncoated state). For applications that require anti reflective or reflective coatings, we can also provide follow-up coating services.

Product application value and customized services

Core application scenarios of semi-circular optical quartz rods:

-Optical communication coupling module: As a spot shaping element between the fiber array and the waveguide, it achieves efficient energy transmission.

-Laser processing head: used to shape circular laser beams into linear light spots, applied in fields such as laser cutting and welding.

-Spectrometer illumination system: As a linear light source output component, it provides uniform linear illumination.

-Medical optical equipment: such as optical path turning and homogenization components in endoscopes and phototherapy equipment.

Our customization capability:

-Size range: diameter ranging from 2mm to 100mm, length ranging from 5mm to 500mm

-Material options: high-purity synthetic quartz, gas refined quartz, cerium doped quartz, titanium doped quartz, etc

-Accuracy level: Dimensional tolerance ± 0.01mm, surface roughness Ra ≤ 0.8nm

-Special requirements: Can provide composite structures such as chamfers, steps, through holes, and coatings (anti reflective/reflective/spectral)

The application problems we solve and the reasons for our selection

Typical problem: Low optical coupling efficiency due to eccentricity or insufficient flatness of the circular arc surface of the semi-circular rod

Our solution is to use coaxial reference machining technology to ensure that the center line of the arc coincides with the axis of the bar within 0.01mm, while ensuring the perpendicularity of the plane and the tangent line of the arc, so that the light maintains the expected path when entering and exiting, significantly improving the coupling efficiency.

Customer Application Cases

Case 1: A European optical module enterprise (high-speed optical engine coupling component)

-Background issue: When developing the next generation 400G optical module, the customer requires a miniature semi-circular quartz rod with a length of 8mm and a radius of 0.5mm for spot conversion between the laser chip and the waveguide. Previously, the supplier was unable to ensure both the smoothness of the arc surface and the perpendicularity of the plane on such a small size, resulting in excessive coupling losses.

-Solution: We adopt micro optical cold processing technology and design a dedicated vacuum adsorption fixture to control the precision of the blank within ± 0.005mm. After five grinding and three polishing processes, the final surface roughness reaches Ra 0.6nm, and there are no broken edges or burrs on the intersection line between the arc and the plane.

-Application effect: The customer integrated the sample into the light engine for testing, and the coupling efficiency increased by 18% compared to the original solution, meeting the requirements for mass production.

Case 2: A laser equipment manufacturer (shaping the laser cutting line spot of photovoltaic cells)

-Background issue: The customer needs to convert a circular laser beam into a uniform linear spot with a width of only 0.1mm in their photovoltaic cell laser cutting equipment. The original cylindrical lens group scheme had a large volume, complex adjustment, and high cost. The customer is looking for a more compact and easily integrated solution.

-Solution: We have designed a semi-circular quartz rod with a length of 120mm and a radius of 3mm for the customer, and coated its surface with anti reflective coating (AR Coating @ 1064nm). The semi-circular structure directly achieves the diffusion and homogenization of light beams in one dimension without the need for additional lens groups.

-Application effect: The new solution reduces the volume of the laser cutting head by 40% and reduces the number of optical adjustment points from 5 to 1. After running continuously on the client side for 6 months, the consistency of the cutting line width remained within ± 0.01mm, and the yield rate increased by 3.2%.

The preparation of semi-circular optical quartz rods is a multiple fusion of materials science, precision machining, and optical engineering. From raw material selection to micrometer level grinding, from nanometer level polishing to rigorous testing, each step determines the performance of the final component in the optical path system. As a professional quartz customization manufacturer, we are committed to providing high-precision, high consistency, and highly customized semi-circular optical quartz rods to global customers.

Whether you need micro coupling components or large spot shaping rods, and have special requirements for material, size, or coating, please feel free to contact us at any time. We will provide you with technical evaluation and quotation within 24 hours to help you quickly implement optical design into reliable products.
