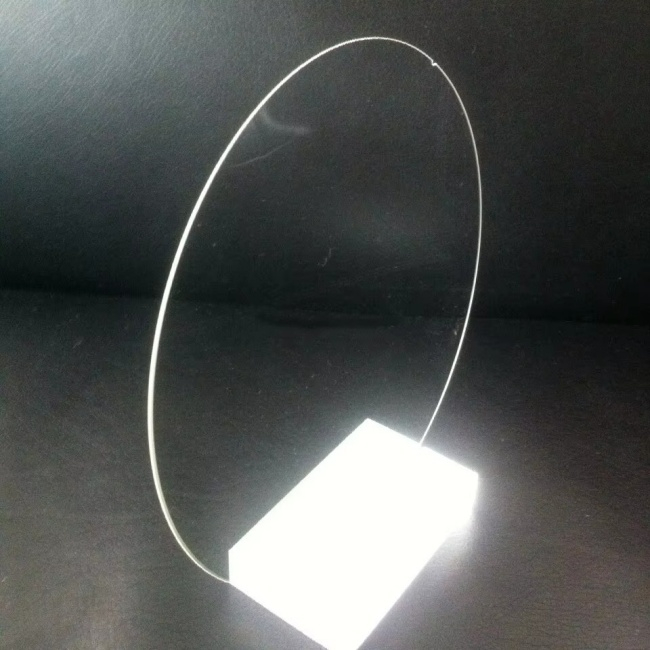

JGS1 180nm UV fused quartz glass plate
JGS1 180nm ultraviolet fused quartz glass plate is a high-performance optical material designed specifically for ultraviolet applications.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
JGS1 180nm ultraviolet fused quartz glass plate is a high-performance optical material designed specifically for ultraviolet applications. This product is made by melting high-purity quartz raw materials through a special process, and has excellent UV transmittance, high thermal stability, and chemical stability. JGS1 quartz glass plate is widely used in fields such as optics, electronics, semiconductors, and communications, and is an ideal choice for manufacturing high-precision optical devices.
Main characteristics
Excellent UV transmittance:
JGS1 quartz glass has extremely high transmittance in the short wave ultraviolet region, especially in the wavelength range of 180nm to 2500nm. The transmittance at 185nm can reach over 90%, making it the preferred material for ultraviolet optical devices.
High thermal stability:
The softening point temperature of quartz glass is about 1730 ℃, which can be used for a long time at 1100 ℃, and the maximum temperature for short-term use can reach 1450 ℃. Its low thermal expansion coefficient ensures dimensional stability in high-temperature environments.
Good chemical stability:
Except for hydrofluoric acid, quartz glass hardly undergoes chemical reactions with other acidic substances. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, especially exhibiting excellent chemical stability at high temperatures.
High transmittance:
Quartz glass has good transparency in the entire spectral range from ultraviolet to infrared, with a visible light transmittance of over 93%.
Low metal impurity content:
JGS1 quartz glass ensures extremely low metal impurity content through high-purity raw materials and precision production processes, thereby improving optical performance.
Application area
Optical components: used for manufacturing high-precision lenses, window panels, mirrors, and other optical components.
Laser devices: Due to their excellent UV transmittance and thermal stability, they are suitable for components such as windows and lenses in laser systems.
Fiber optic communication system: as a key material for fiber optic connectors and couplers.
Semiconductor manufacturing: used to manufacture masks and lenses in lithography machines.
Solar cell: As a transparent cover plate for solar cells, it improves the photoelectric conversion efficiency.
Processing services
We provide comprehensive processing services to meet customers' customized needs:
Cutting: Cut quartz glass panels into specified sizes according to customer requirements.
Coating: Provides AR (anti reflection), AF (anti fingerprint), AL (anti reflection) and other coating services to enhance optical performance.
Drilling: Using laser or mechanical methods to drill tiny holes in quartz glass plates.
Polishing: Providing high-precision polishing services to achieve the desired surface quality and smoothness.
Product specifications
Material: JGS1 quartz glass
Thickness: 0.1 to 30mm (customizable according to customer needs)

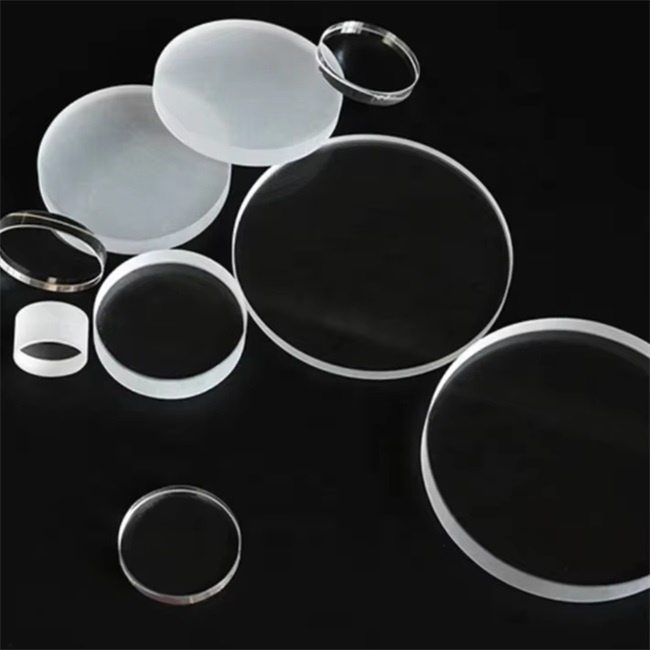

Shape: Circular (other shapes can be customized according to customer needs)
Size: Custom 2 to 900mm
Surface quality: 60/40 (other grades can be selected according to customer needs)
Working temperature: up to 1150 ℃
Purity: 99.99%
JGS1 180nm ultraviolet fused quartz glass plate has become a leader in the optical materials market due to its excellent optical properties and wide range of applications. We are committed to providing customers with high-quality products and excellent services to meet their diverse needs. If you have any related needs, please feel free to contact us at any time.

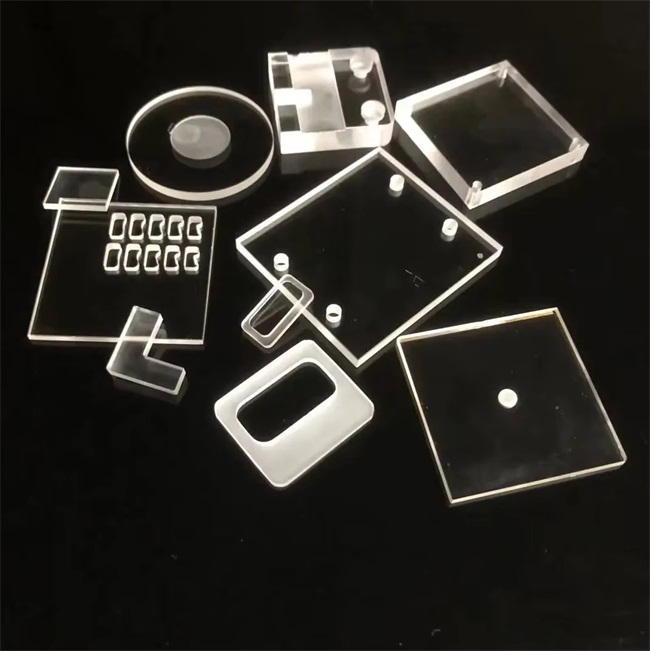

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
