Photovoltaic large diameter quartz tube

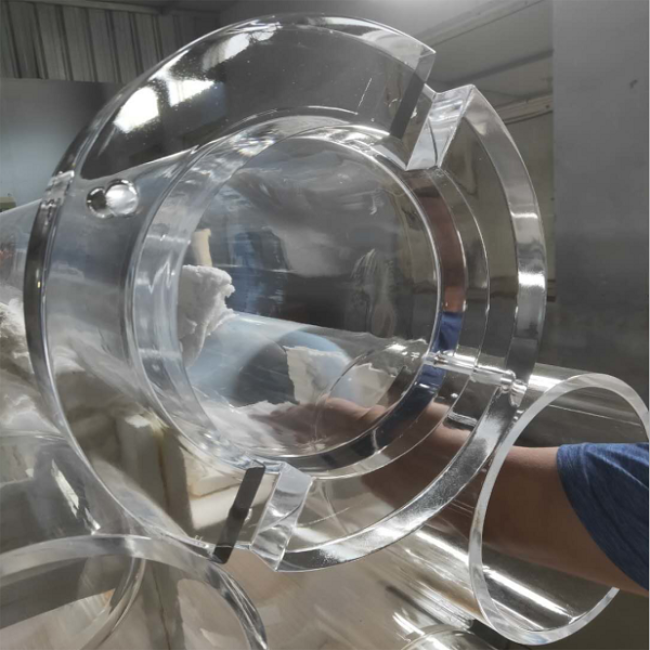

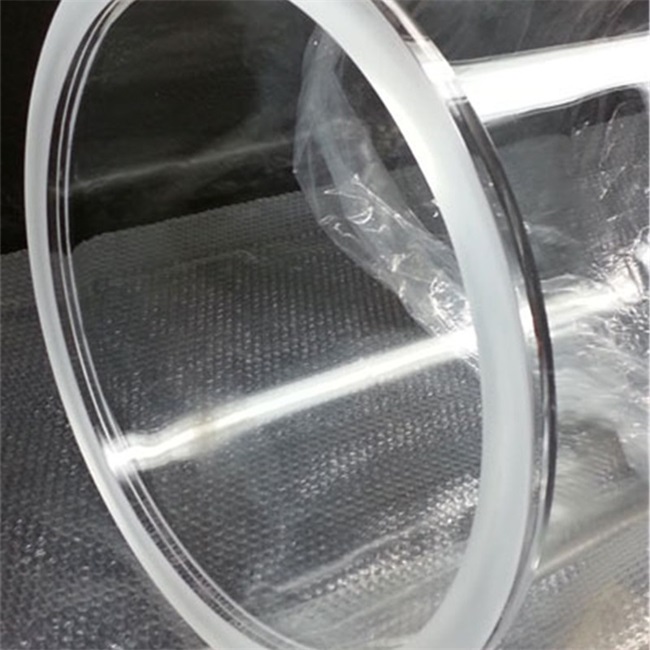

Photovoltaic large-diameter quartz tube is a high-performance quartz glass product designed specifically for the photovoltaic industry
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Photovoltaic large-diameter quartz tube
Photovoltaic large-diameter quartz tube is a high-performance quartz glass product designed specifically for the photovoltaic industry, with excellent characteristics such as high purity, high transparency, high temperature resistance, and corrosion resistance.
Main features:
1. High purity: Silicon dioxide (SiO ₂) content exceeds 99.98%, with extremely low impurity content, ensuring stability in high temperature and chemical environments.
2. High temperature resistance: It can be continuously used in high temperature environments above 1100 ℃.
3. High transparency: It has good transparency in the ultraviolet to infrared wavelength range and can effectively transmit light energy.
4. Corrosion resistance: It has excellent corrosion resistance to most chemicals and is suitable for various process environments.
5. High mechanical strength: Made with special processes, it has high mechanical strength and thermal shock resistance.
Application
Photovoltaic large-diameter quartz tubes are widely used in multiple aspects of the photovoltaic industry, as follows:
1. Photovoltaic cell manufacturing:
-Used as a quartz tube for carrying silicon wafers in diffusion furnaces, oxidation furnaces, and chemical vapor deposition (CVD) reaction chambers.
-Used in the diffusion process of photovoltaic cells to ensure stability and uniformity in high-temperature environments.
2. Polycrystalline silicon ingot furnace:
-As a thermal insulation tube, it ensures temperature uniformity and stability during the process of polycrystalline silicon ingot casting.
3. Solar collectors:
-The heat collection tube used in solar collectors can effectively absorb and conduct the heat of sunlight.
4. Photovoltaic modules:
-As a protective sleeve for photovoltaic modules, it improves the transparency and service life of the modules.
5. Semiconductor manufacturing:
-Used in semiconductor integrated circuit production lines as key components such as diffusion tubes and oxide tubes.
Customized description
Photovoltaic large-diameter quartz tubes can be customized according to specific customer needs to meet the requirements of different application scenarios:
1. Size customization:

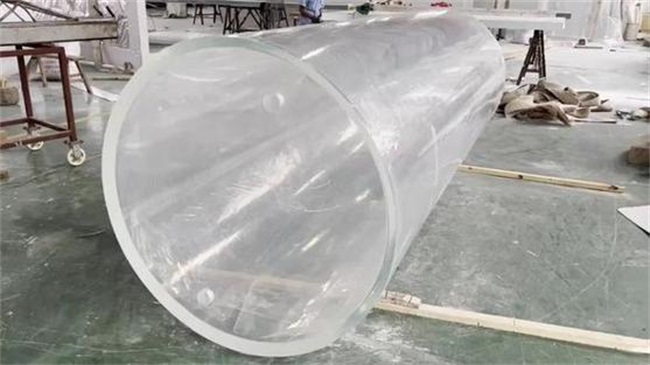

-Outer diameter: It can produce quartz tubes with outer diameters ranging from 300mm to 1000mm or even larger.
-Length: Customize different lengths according to customer needs to meet the installation requirements of different devices.
2. Shape customization:
-Straight pipe, bent pipe, and irregular pipe: Different shapes of quartz pipes can be customized according to process requirements.
-Special structures, such as porous tubes, spiral tubes, etc., to meet specific fluid mechanics or optical requirements.
3. Surface treatment:
-Polishing treatment: The inner and outer surfaces can be polished with high precision to ensure low loss transmission of light.
-Coating treatment: Special materials can be coated on the surface of quartz tubes according to requirements to enhance their corrosion resistance or optical performance.
4. Process customization:
-Ultra high purity quartz sand: using ultra high purity quartz sand with a silicon dioxide content exceeding 99.9999% as raw material.
-Rare earth trace element additives: By adding rare earth trace elements (such as aluminum nitrate, titanium tetrachloride, etc.), the performance of quartz tubes can be further improved.
5. Connection method:
-Flange connection: equipped with standard or customized flange interfaces for easy connection with existing equipment.
-Threaded connection: Supports threaded connection methods, suitable for scenarios that require quick disassembly and assembly.
-Welding connection: Welding connection options are available to ensure the firmness and sealing of the connection.
Photovoltaic large-diameter quartz tubes have become a key material in photovoltaic and semiconductor manufacturing due to their high purity, high temperature resistance, high transparency, and corrosion resistance. Its wide range of application areas and flexible customization options enable it to meet the needs of various complex processes, providing reliable material support for the development of the photovoltaic and semiconductor industries.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
