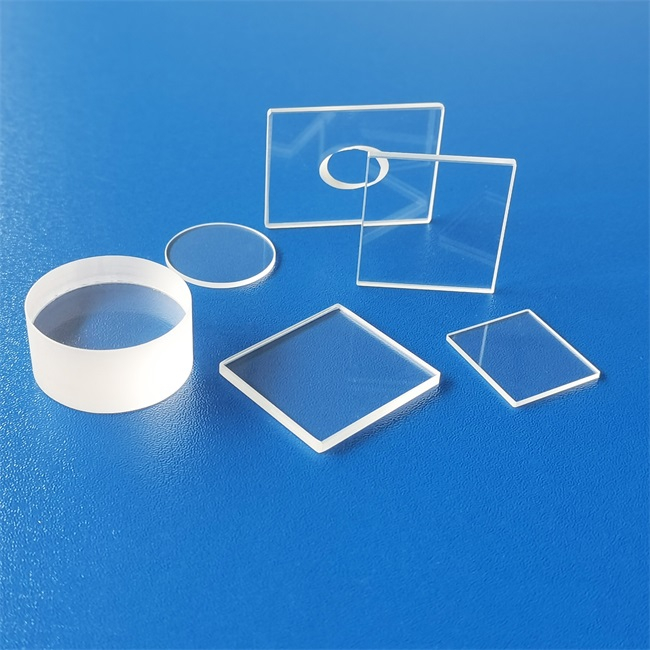

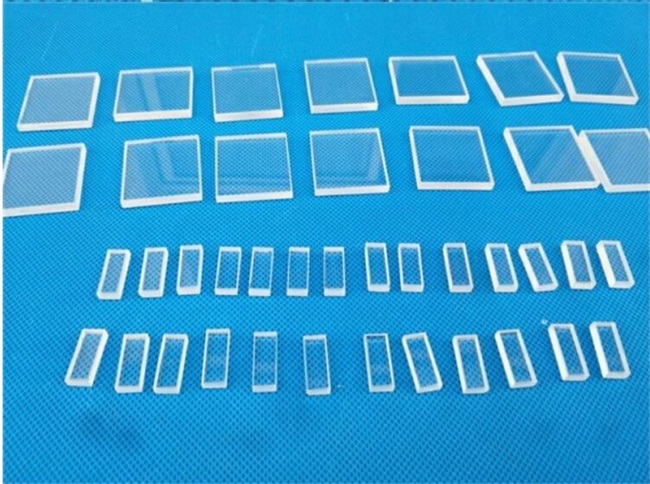

Precision perforated quartz glass window piece
Precision perforated quartz glass window is a kind of special optical material mainly composed of high-purity silicon dioxide (SiO _ 2), which has been widely used in many fields due to its excellent physical and chemical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Precision perforated quartz glass window piece
Precision perforated quartz glass window is a kind of special optical material mainly composed of high-purity silicon dioxide (SiO _ 2), which has been widely used in many fields due to its excellent physical and chemical properties.
Precision perforated quartz glass windows have the following core characteristics:
High light transmittance: It has excellent light transmittance in the range of ultraviolet to near-infrared light, with a transmittance of over 92%, making it particularly suitable for optical applications.
High temperature resistance: Can be used for a long time at a high temperature of 1100 ° C, with a short-term maximum operating temperature of 1450 ° C, suitable for high temperature environments.
Chemical stability: Except for hydrofluoric acid and hot phosphoric acid, it hardly reacts chemically with other acids, providing excellent corrosion resistance.
Low coefficient of thermal expansion: The coefficient of thermal expansion is extremely low, about 1/10 to 1/20 that of ordinary glass, and it has excellent thermal shock resistance.
High mechanical strength: Mohs hardness of 7, wear-resistant and not easy to break, suitable for precision instruments.
Precise punching ability: Through laser punching technology, micrometer-level aperture processing can be achieved, with uniform aperture and no burrs.
These characteristics make precision perforated quartz glass windows an ideal material for optics, semiconductors, aerospace, and other fields.
Application field
Due to its excellent performance, precision perforated quartz glass windows are widely used in the following fields:
Optical instrument:
Used as an optical component in spectrographs, infrared cameras, prisms, lenses, etc., it can significantly enhance the performance of the instrument due to its high light transmittance and chemical stability.
In a laser system, it acts as a light guide window to ensure the efficient transmission of laser light.
Semiconductor industry:
Used for wafer manufacturing in the cleaning, oxidation, lithography, etching and other links, such as quartz sheet, quartz boat, quartz flange and so on.
In semiconductor equipment, as an observation window or protective window, it provides high temperature and corrosion resistance.
Aerospace:
It is used for observation windows of rockets, spacecraft and wave-penetrating reinforcement materials, such as missile radar covers, airborne radar covers, etc.
In high temperature and high pressure environments, it is used as a high temperature resistant material.
Photovoltaic and new energy:
In photovoltaic solar modules, it is used to punch holes in the backplane glass to improve the photoelectric conversion efficiency of the module.
Light guide elements used in laser cutting equipment.
Laboratory and scientific research:
As a high-temperature observation window for laboratory instruments, it is used for real-time monitoring of chemical reactions.
In spectral analysis, high-precision optical performance is provided.
Custom description
Precision perforated quartz glass windows can be customized according to user requests to meet the requirements of different application scenarios. The following are common customization options:
Specification parameters:
Thickness range: 0.1-30 mm.
Aperture range: can be machined micrometer-level aperture (e.g. less than 0.1 mm).
Dimensional tolerance: ± 0.02mm, ensuring high accuracy.
Shape: Round, square, or special-shaped (e.g. oval, polygon).
Processing technology:
Laser drilling: using picosecond or nanosecond laser equipment to achieve high-precision, high-efficiency drilling with uniform aperture and no burrs.
Surface treatment: support polishing, backing, threading and other processes to meet optical or mechanical requirements.
Coating treatment: After double-sided anti-reflection coating (AR), the transmittance can be increased to 98%.
Application scenario customization:
According to the specific application (e.g. optical instruments, semiconductor equipment, photovoltaic modules, etc.), adjust the material characteristics and processing accuracy.
We provide high-purity quartz materials (e.g. JGS1, JGS2, JGS3) to meet different spectral requirements.
With its high light transmittance, high temperature resistance, chemical stability, low coefficient of thermal expansion and high mechanical strength, precision perforated quartz glass windows perform well in optical instruments, semiconductors, aerospace, photovoltaics and other fields. Its flexible customization capabilities (including specifications, processing techniques and application scenarios) further expand its application range.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
